1. Introduction
Thank you for choosing the atomberg Erica Nuvo 1200mm BLDC Ceiling Fan. This fan is designed for energy efficiency, high air delivery, and quiet operation, featuring a modern design and convenient remote control. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan.

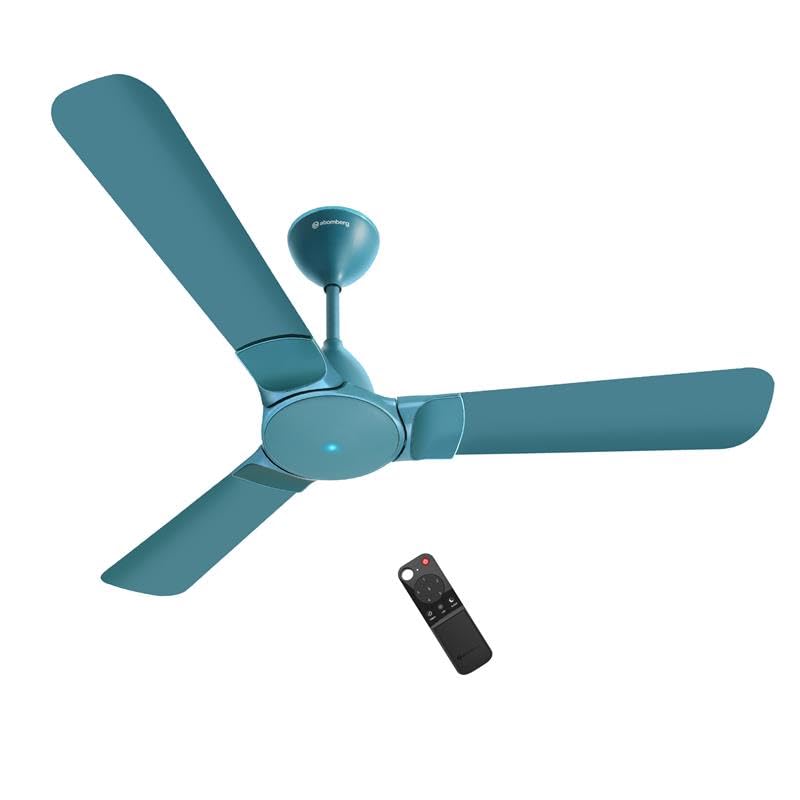

Image 1.1: The atomberg Erica Nuvo 1200mm BLDC Ceiling Fan, showcasing its sleek design and Aegean Blue finish.
2. Safety Instructions
Read all instructions carefully before installation and use. Retain this manual for future reference.
- Electrical Safety: Ensure the main power supply is disconnected before installation, maintenance, or cleaning. All electrical wiring must comply with local codes and regulations.
- Professional Installation: Installation should be performed by a qualified electrician to prevent electrical shock or fire hazards.
- Mounting: The mounting structure must be capable of supporting the fan's weight (approximately 3.8 kg) and the dynamic load during operation.
- Blade Clearance: Ensure there is adequate clearance between the fan blades and any obstacles, including walls and furniture.
- Voltage: Operate the fan only on the specified voltage (220 Volts).
- Children and Pets: Keep children and pets away from the fan during operation and installation.
3. What's in the Box
Carefully unpack the box and ensure all components are present:
- Motor box - 1 Unit
- Blade set - 1 Unit (3 blades)
- Remote - 1 Unit
- Canopy set - 1 Unit
- Downrod - 1 Unit
- Shackle kit - 1 Unit
- Manual Leaflet & Warranty card - 1 Unit
4. Setup and Installation
This section provides general guidance. Always refer to the detailed instructions in the included manual leaflet for specific steps.
4.1 Pre-Installation Checks
- Verify that the power supply is switched off at the main circuit breaker.
- Ensure the ceiling structure can safely support the fan.
- Confirm all components listed in Section 3 are present and undamaged.
4.2 Mounting the Fan
- Attach the mounting bracket securely to the ceiling joist or a suitable support structure.
- Connect the downrod to the motor box, ensuring all screws are tightened.
- Hang the fan assembly onto the mounting bracket using the shackle kit.
- Perform electrical connections as per the wiring diagram provided in the manual leaflet. Ensure proper grounding.
- Secure the canopy set to cover the wiring and mounting bracket.
4.3 Attaching the Blades
- Carefully attach each blade to the motor hub using the provided screws.
- Ensure all blade screws are firmly tightened to prevent wobbling and noise during operation.
Note: This fan is suitable for false ceilings or low ceiling heights and includes an additional ceiling plate if required.
Image 4.1: A detailed view of the atomberg Erica Nuvo fan, illustrating the motor, downrod, and blade attachment points for installation reference.
5. Operating Instructions
Your atomberg Erica Nuvo fan is operated using the included Smart IR Remote. Ensure batteries are correctly inserted into the remote.
5.1 Remote Control Functions
Image 5.1: Illustration of the atomberg Smart IR Remote, highlighting its various functions for fan control.
- Power Button: Turns the fan ON or OFF.
- Speed Control (1-6): Adjusts the fan speed from 1 (lowest) to 6 (highest).
- Boost Mode: Activates the highest fan speed for maximum airflow.
- Timer Mode: Sets the fan to switch off automatically after pre-set hours.
- Sleep Mode: Gradually decreases the fan's speed every two hours to provide comfortable sleep.
- LED Lights: Toggles the integrated LED light ON or OFF.
The remote is universal across atomberg fans and does not require pairing.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your fan.
- Cleaning: Disconnect power before cleaning. Use a soft, damp cloth to wipe the fan blades and motor housing. Avoid using abrasive cleaners or solvents.
- Blade Inspection: Periodically check the blades for any damage or warping. Ensure they are securely fastened.
- Tighten Fasteners: Over time, some fasteners may become loose. Check and tighten all screws and connections annually.
- No Lubrication Required: The BLDC motor is maintenance-free and does not require lubrication.
7. Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power supply Remote battery depleted Improper wiring | Check circuit breaker and wall switch Replace remote batteries Consult a qualified electrician to check wiring |
| Low air delivery | Fan speed set too low Blades are dirty or damaged Incorrect fan size for room | Increase fan speed using the remote Clean or replace blades Refer to fan sweep size guide (Section 8.1) |
| Excessive noise or wobbling | Loose mounting screws Unbalanced blades Loose canopy | Ensure all mounting screws are tight Check for bent blades or uneven blade attachment Secure the canopy firmly |
| Remote not responding | Depleted batteries Obstruction between remote and fan | Replace remote batteries Ensure a clear line of sight to the fan's receiver |
If the problem persists after attempting these solutions, please contact atomberg customer support.
8. Specifications
Key technical specifications for the atomberg Erica Nuvo 1200mm BLDC Ceiling Fan:
| Feature | Specification |
|---|---|
| Brand | atomberg |
| Model Name | Erica Nuvo |
| Size | 1200mm (48 inches) |
| Electric Fan Design | Ceiling Fan |
| Motor Type | Brushless DC (BLDC) |
| Wattage | 35 Watts (at top speed) |
| Voltage | 220 Volts |
| Number of Speeds | 6 |
| Air Flow Capacity | 235 Cubic Meters Per Minute (CMM) |
| Speed | 360 RPM |
| Noise Level | Less than 56 Decibels |
| Number of Blades | 3 |
| Blade Material | Aluminium |
| Product Dimensions (D x W x H) | 57D x 28W x 20H Centimeters |
| Item Weight | 3.8 Kilograms |
| Energy Rating | BEE 5-star rated |
| Control Method | Remote Control, Button Control |
| Special Features | BLDC Motor, Low noise, Boost Mode, Timer Mode, Sleep Mode, LED light, High Air Delivery |
| Indoor/Outdoor Usage | Indoor |
| Country of Origin | India |
8.1 Fan Sweep Size Guide
Selecting the correct fan size for your room ensures optimal air circulation.
Image 8.1: A guide illustrating recommended fan sweep sizes (600mm, 900mm, 1200mm, 1400mm) for various room dimensions, from small to large.
- < 30 sq ft: 600mm (24 Inch) - Suitable for bathrooms, kitchens, balconies, small rooms.
- 30-65 sq ft: 900mm (36 Inch) - Suitable for small to medium rooms.
- 65-120 sq ft: 1200mm (48 Inch) - Suitable for medium rooms (Erica Nuvo 1200mm).
- 120-225 sq ft: 1400mm (56 Inch) - Suitable for large rooms.
Image 8.2: Details on the energy efficiency of the BLDC motor, highlighting power savings compared to unrated fans and the BEE 5-star rating.
9. Warranty and Support
9.1 Warranty Information
Your atomberg Erica Nuvo fan comes with a standard 2-year warranty. An additional 1-year warranty can be availed by registering your purchase on the official atomberg website. Please refer to the warranty card included in the box for terms and conditions.
9.2 Customer Support
For any queries, technical assistance, or warranty claims, please contact atomberg customer support:
- Email: support@atomberg.com
- Phone: 08448449442
- Manufacturer Address: Atomberg Technologies Pvt. Ltd., Mind Space Shelters LLP/ Vithai Developers LLP, Gat No. 51-59, Village Bhamboli, Chakan, Pune, Maharashtra-410507, India.
