JOYROOM JR-ZS288 + JR-ZS428 Handlebar Phone Mount User Manual

Introduction

Thank you for choosing the JOYROOM JR-ZS288 + JR-ZS428 Handlebar Phone Mount. This product is designed to securely hold your smartphone on bicycles, motorcycles, scooters, and other vehicles with round handlebars. It features advanced shock-absorbing capabilities and an ultra-stable locking mechanism to ensure your device remains safe and accessible during your rides. Please read this manual carefully before installation and use to ensure optimal performance and safety.

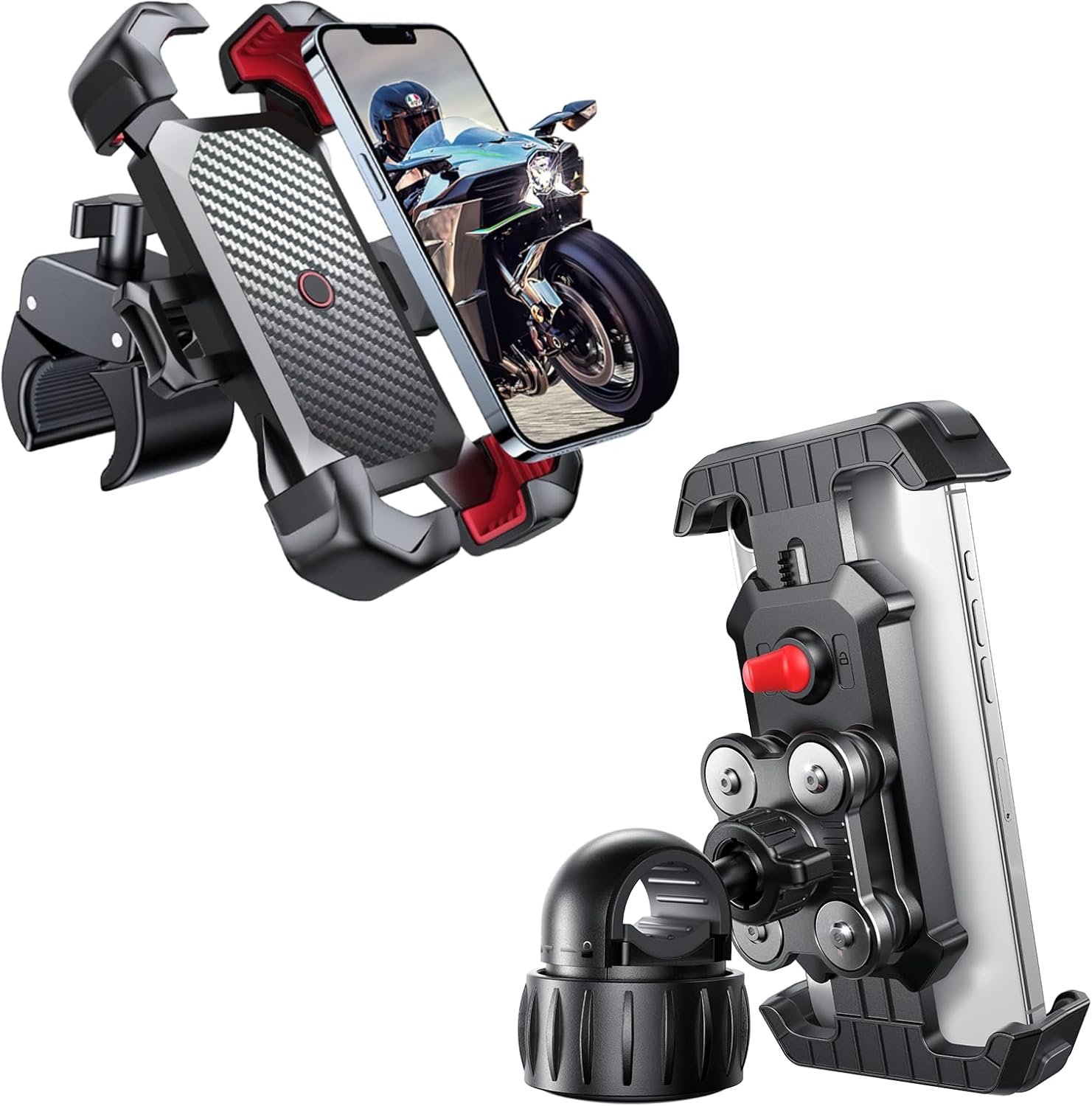

Image: The JOYROOM JR-ZS288 and JR-ZS428 Handlebar Phone Mounts, showcasing their design and components.

Setup and Installation

The JOYROOM phone mount is designed for quick and easy installation without the need for additional tools.

1. Identify Compatible Handlebar: Ensure your handlebar is round and has a diameter between 0.7 and 1.34 inches (18-34mm). This mount is not suitable for flat or profiled handlebars.



   Image: A visual representation of the mount's compatibility with smartphones ranging from 4.7 to 7 inches and handlebars from 0.7 to 1.5 inches in diameter.

2. Attach Mount to Handlebar: Open the clamp of the mount and position it around your desired section of the handlebar. Tighten the screw or lever mechanism until the mount is firmly secured and does not rotate freely. No tools are required for this step.



   Image: The phone mount securely attached to both a motorcycle and a bicycle handlebar, demonstrating its versatility for round handlebars.

3. Adjust Viewing Angle: The mount features a ball joint for 360-degree rotation. Loosen the adjustment nut, position the phone holder to your preferred viewing angle (portrait or landscape), and then tighten the nut to lock it in place.

Operating Instructions

Using the JOYROOM phone mount is designed to be simple and secure, even with one hand.

1. Inserting Your Phone: Gently press the center button or mechanism on the mount to open the clamps. Place your 4.7-7 inch smartphone into the holder. The mount features a 1-second auto-lock mechanism that will automatically secure your phone once it's placed correctly.



   Image: A hand demonstrating the ease of one-hand operation to insert or release a phone from the mount, highlighting its quick fixed/release mechanism.


   Image: A detailed diagram explaining the 1-second auto-lock feature, showing how the clamps automatically secure the phone upon insertion.

2. Ensuring Stability: After inserting your phone, ensure the red safety lock on the back of the mount is engaged. This provides an ultra-stable fixation, preventing accidental drops even on bumpy roads.



   Image: The phone mount securely holding a phone on a motorcycle, illustrating its rock-solid grip with a 4-corner lock and high-speed switch for stability on bumpy roads.

3. Shock Absorption: The mount is equipped with 4 unique shock-absorbing modules. These modules effectively alleviate vibrations and jitter during riding, keeping your phone stable and protected, especially when driving fast or on uneven terrain.



   Image: A close-up view highlighting the 'Super Shock Absorption' feature of the bike phone mount, showing the internal spring mechanism.



   Image: An illustration demonstrating 80% vibration reduction, showing the shock-absorbing springs in both stretched and compressed states to maintain phone stability.

4. Removing Your Phone: To remove your phone, simply press the release button or mechanism, and the clamps will open, allowing you to retrieve your device.

Maintenance

To ensure the longevity and optimal performance of your JOYROOM phone mount, follow these simple maintenance guidelines:

• Cleaning: Wipe the mount regularly with a soft, damp cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, as they may damage the material.
• Check Tightness: Periodically check that the mount is securely fastened to the handlebar. If it feels loose, re-tighten the clamp mechanism.
• Inspect for Damage: Before each ride, quickly inspect the mount for any signs of wear, cracks, or damage. If any damage is found, discontinue use and consider replacing the unit.
• Storage: When not in use for extended periods, store the mount in a cool, dry place away from direct sunlight.

Troubleshooting

If you encounter any issues with your JOYROOM phone mount, please refer to the following common troubleshooting tips:

• Mount is loose on handlebar: Ensure the handlebar clamp is fully tightened. Verify that your handlebar diameter is within the compatible range (0.7-1.34 inches).
• Phone is not secure in the holder: Make sure your phone size is within the compatible range (4.7-7 inches). Ensure the auto-lock mechanism engages fully and the red safety lock is activated.
• Difficulty inserting/removing phone: Check for any obstructions in the clamping mechanism. Ensure you are pressing the release button/mechanism correctly.
• Excessive vibration: While the mount has shock absorption, extreme road conditions can still cause some movement. Ensure the mount is tightly secured and the phone is properly seated.

If the problem persists after attempting these steps, please contact JOYROOM customer support for further assistance.

Specifications

Warranty and Support

JOYROOM products are manufactured with high-quality standards. For warranty information or technical support, please refer to the product packaging or visit the official JOYROOM website. You may also contact JOYROOM customer service directly for assistance with your product.

For more information, visit the JOYROOM Store on Amazon.
