Motionflow Carpet Cleaner with Heating Function

1. Introduction

Thank you for choosing the Motionflow Carpet Cleaner. This advanced cleaning device is designed to provide deep and hygienic cleaning for carpets, upholstered furniture, car seats, and other textile surfaces. Featuring a powerful 1200W motor, a heating function, and a range of specialized brush attachments, it ensures effective removal of stains and dirt. Please read this manual thoroughly before initial use to ensure safe operation and optimal performance of your device.

2. Safety Instructions

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury:

• Ensure the power supply voltage matches the rating label on the appliance.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Keep the appliance away from children and pets.
• Unplug the appliance from the power outlet when not in use and before cleaning or maintenance.
• Do not use the appliance to pick up flammable or combustible liquids, or anything that is burning or smoking.
• Use only recommended cleaning solutions. Do not use harsh chemicals.
• Inspect the power cord and hose for damage before each use. Do not operate if damaged.
• Do not block ventilation openings.
• Always empty and clean the dirty water tank after each use to prevent mold and odors.

3. Package Contents

Verify that all items are present in the package:

• Motionflow Carpet Cleaner Unit
• Ecological Cleaning Agent (sample)
• Multifunction Brush Attachment
• Wide Brush Attachment
• T-shaped Brush Attachment
• Self-cleaning Brush Attachment
• User Manual

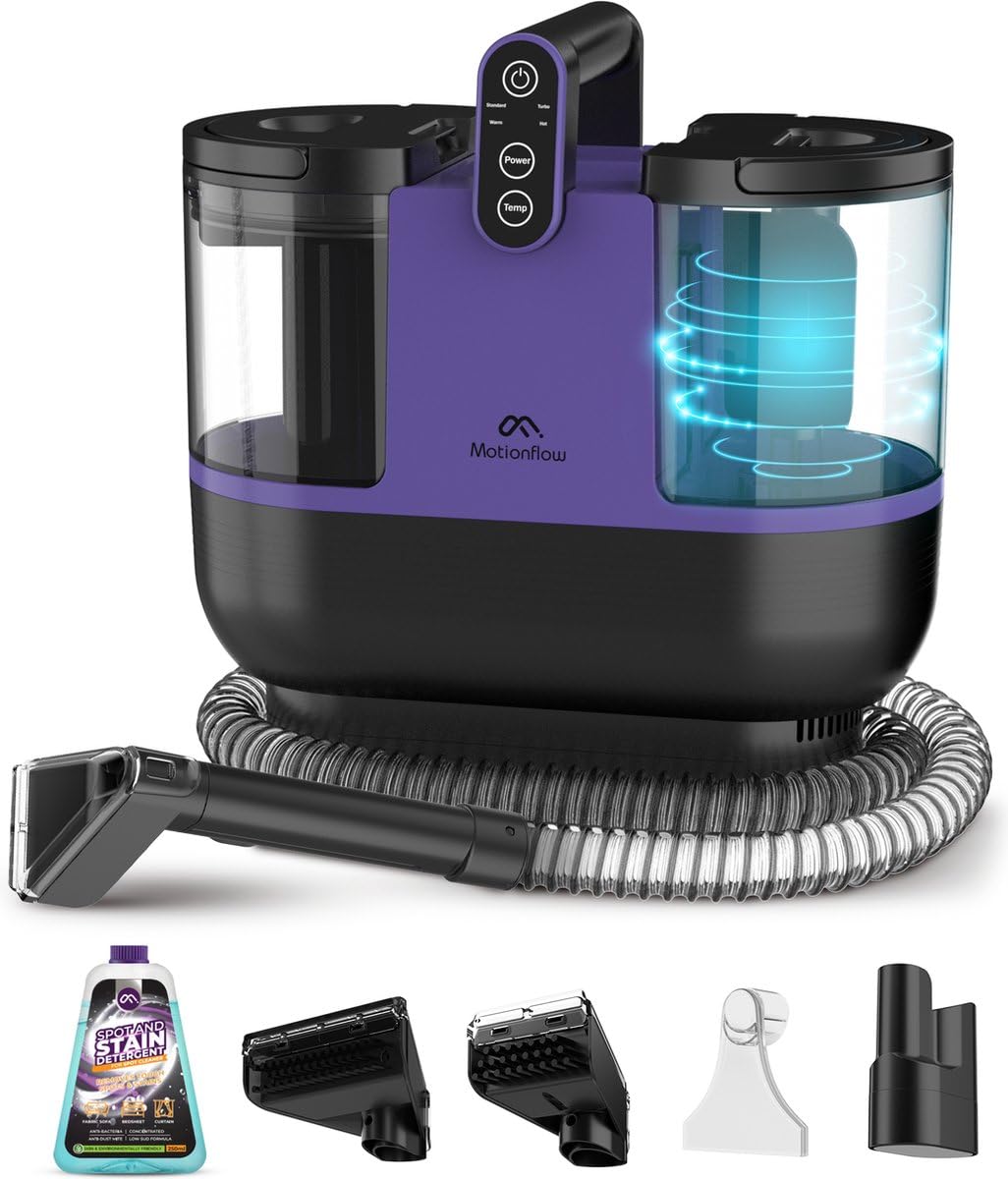

Image 1: Motionflow Carpet Cleaner with main unit, hose, cleaning solution, and four brush attachments.

4. Product Overview

Familiarize yourself with the components of your Motionflow Carpet Cleaner:

• Clean Water Tank: For fresh water and cleaning solution (Capacity: 1.8 L).
• Dirty Water Tank: Collects extracted dirty water (Capacity: 0.95 L).
• Main Unit: Contains motor, heating element, and controls.
• Hose: Flexible hose for connecting attachments (Length: 1.7 m).
• Handle with Spray Trigger: Ergonomic handle for directing spray and suction.
• Control Panel: Includes Power, Temp, and Power Mode buttons.
• Power Cord: For electrical connection (Length: 5 m).
• Brush Attachments: Various brushes for different cleaning needs.

Image 2: Side view of the Motionflow Carpet Cleaner, highlighting the clean and dirty water tanks and the hose connection point.

5. Setup

1. Unpack the Device: Carefully remove all components from the packaging.
2. Fill the Clean Water Tank: Remove the clean water tank (usually marked 'Fresh Water' or similar) from the main unit. Fill it with warm tap water up to the 'Max Fill' line. Add the recommended amount of Motionflow ecological cleaning agent or another suitable carpet cleaning solution according to the solution's instructions. Do not overfill.
3. Attach the Tank: Securely place the clean water tank back onto the main unit.
4. Select and Attach Brush: Choose the appropriate brush attachment for your cleaning task (e.g., wide brush for carpets, multifunction brush for upholstery). Connect it firmly to the end of the hose handle.
5. Connect Power: Plug the power cord into a grounded electrical outlet.

6. Operation

6.1 Basic Operation

1. Power On: Press the Power button on the control panel. The indicator light will blink, signifying the 15-second heating phase for the water. Wait until the light becomes solid.
2. Select Temperature: Press the Temp button to cycle between 'Warm' (approx. 30°C) and 'Hot' (approx. 60°C) water settings.
3. Select Power Mode: Press the Power Mode button to switch between standard and turbo suction modes. Turbo mode provides stronger suction for heavily soiled areas.
4. Spray Solution: Hold the attachment over the area to be cleaned. Press the trigger on the handle to spray the cleaning solution onto the surface.
5. Scrub and Extract: Release the spray trigger. Move the attachment slowly over the wet area, applying gentle pressure, to scrub and extract the dirty solution. Overlap passes slightly.
6. Repeat: For heavily soiled areas, you may need to repeat the spray and extract process.
7. Finish: Continue until the area is clean and as dry as possible.

6.2 Cleaning Specific Surfaces

• Carpets: Use the wide brush attachment. Work in small sections, spraying and then extracting. For deep stains, allow the solution to sit for a few minutes before extracting.
• Upholstery/Car Seats: Use the multifunction or T-shaped brush attachment. Test on an inconspicuous area first. Do not oversaturate fabric. Extract thoroughly to prevent mildew.

Image 3: A user operating the Motionflow Carpet Cleaner on a carpeted surface, demonstrating the cleaning process.

7. Maintenance

Regular maintenance ensures the longevity and performance of your Motionflow Carpet Cleaner.

1. Empty and Clean Dirty Water Tank: After each use, remove the dirty water tank. Dispose of the dirty water. Rinse the tank thoroughly with clean water and allow it to air dry before reattaching.
2. Rinse Clean Water Tank: If any cleaning solution remains, empty and rinse the clean water tank.
3. Clean Attachments: Detach all brush attachments and rinse them under running water. Remove any trapped debris or hair. Allow them to air dry completely.
4. Self-Cleaning Function: The self-cleaning brush attachment can be used to clean the hose and internal components. Refer to specific instructions for this attachment if provided separately.
5. Wipe Down Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners.
6. Storage: Store the appliance and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord is neatly wrapped.

8. Troubleshooting

If you encounter issues, refer to the following troubleshooting guide:

9. Specifications

10. Warranty and Support

This product is subject to a return policy of 31 days for refund or replacement. For any issues or support inquiries, please refer to your retailer or the official Motionflow customer service channels. Keep your purchase receipt as proof of purchase.
