Talentcell 12V 2600mAh Lithium-ion Battery Pack User Manual

Introduction

This manual provides essential information for the safe and effective use of your Talentcell 12V 2600mAh Lithium-ion Battery Pack. This portable battery is designed to power various 12V DC electronic devices, offering a reliable and compact power source for applications such as LED light strips, digital cameras, portable TVs, and routers. Please read these instructions thoroughly before operating the device.

Image: The Talentcell 12V 2600mAh Lithium-ion Battery Pack, showing its compact blue casing and output cables.

Package Contents

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.

• 1x 12V Lithium-ion Battery Pack
• 1x 12.6V 0.5A Charger
• 1x DC 5521 Female Plug to Bare Wire Open End Power Wire
• 1x Cable Connector

Image: Contents of the package, including the battery pack, charger, DC 5521 female plug to bare wire, and a cable connector.

Specifications

Image: Detailed dimensions (72mm x 55.8mm x 19.2mm) and weight (163g) of the battery pack.

Image: Diagram illustrating the DC5521 female and male connectors, showing 5.5mm outer diameter and 2.1mm inner diameter, with inner positive (+) and outer negative (-) polarity.

Safety Instructions

To ensure safe operation and prolong the lifespan of your battery pack, please adhere to the following safety guidelines:

• Do not use the battery pack in high humidity environments or where it may be exposed to water.
• Do not modify or disassemble the power bank.
• Do not throw the 12 volt power bank into fire or water.
• Do not reverse the polarity of the battery pack.
• Use only the specified charger for this battery pack.
• Avoid dropping, crushing, or puncturing the battery.
• Keep out of reach of children.

The battery pack is equipped with multiple protection features:

• Over-heating Protection
• Over-voltage Protection
• Over-current Protection
• Short-circuit Protection
• Over-charge Protection
• Over-load Protection
• Over-power Protection

Image: Diagram illustrating the seven built-in protection mechanisms of the battery pack, including over-heating, over-voltage, over-current, short-circuit, over-charge, over-load, and over-power protection.

Setup and Charging

1. Initial Charge: Before first use, fully charge the battery pack using the provided 12.6V 0.5A charger. Connect the charger's DC plug to the battery pack's input port. The charging indicator on the charger will typically change color (e.g., red to green) when fully charged.
2. Connecting Devices: Ensure your device requires a 12V DC input and has a compatible DC5521 connector (5.5mm outer, 2.1mm inner diameter, inner positive, outer negative).
3. Using the Bare Wire Cable: If your device does not have a standard DC5521 male plug, use the included DC 5521 female plug to bare wire open end power wire. Connect the bare wires to your device's power input, ensuring correct polarity (red for positive, black for negative). Use the cable connector for secure connections if needed.

Operation

Once charged, connect your 12V device to the battery pack's output port. The battery pack will automatically begin supplying power.

• The output voltage is nominal 11.1V, ranging from 12.6V down to 9V during discharge. For over 90% of the discharge cycle, the output voltage will be approximately 12V to 13V.
• The maximum output current is 3A. Ensure your connected device does not exceed this current draw.

Compatible Applications

This battery pack is suitable for a wide range of 12V DC electronic devices, including but not limited to:

• LED light strips and panels
• Digital/CCTV cameras
• Portable TVs and HDTVs
• Routers and Modems
• Fishing lights and fish finders
• RC cars and DIY projects
• Booth lighting
• Spectra S2 breast pumps
• Telescopes
• Smartphones (with appropriate adapter, not included)

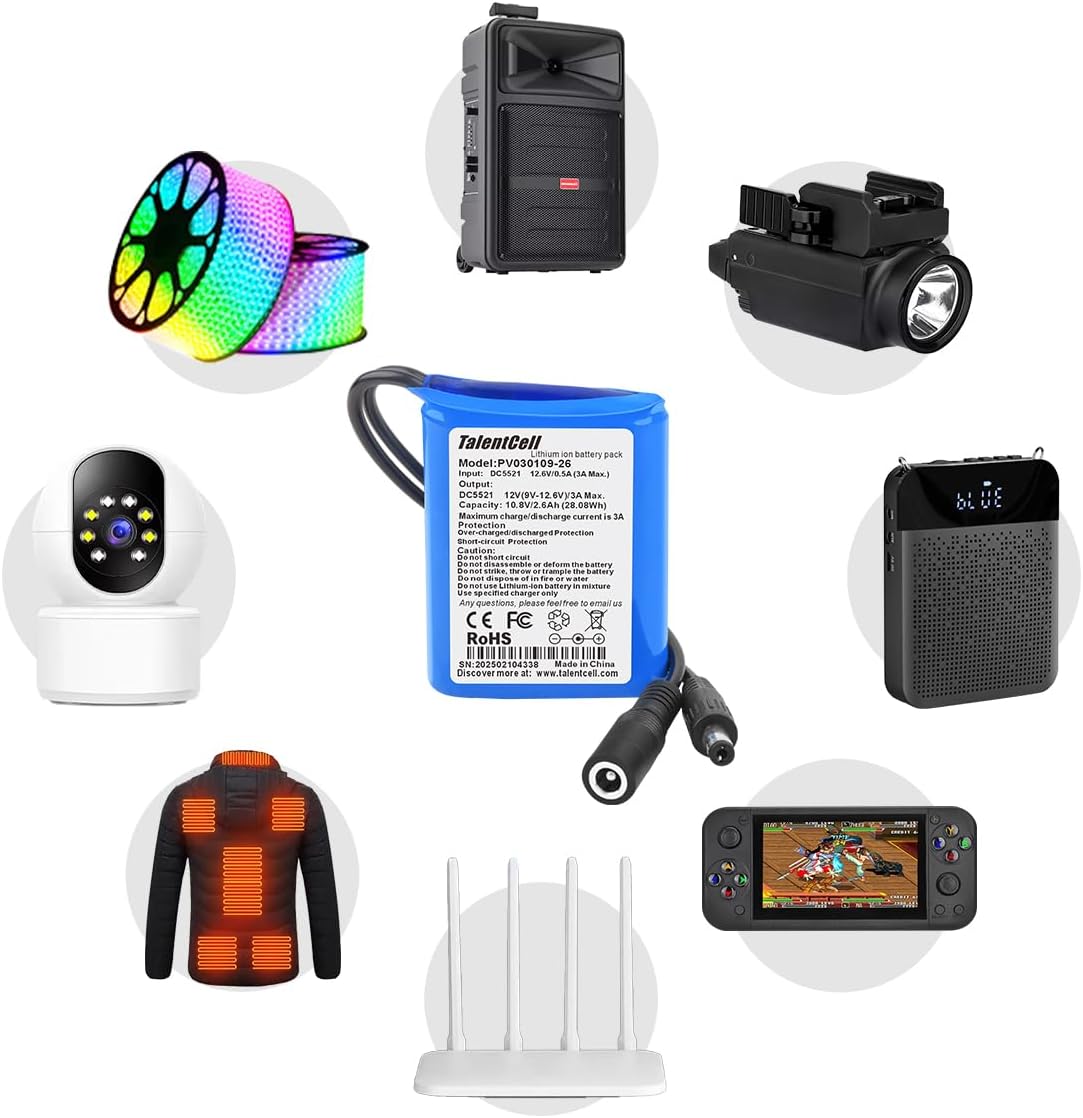

Image: The battery pack shown connected to various compatible devices such as an LED light strip, portable speaker, camera light, security camera, heated jacket, router, and handheld game console.

Maintenance

Proper maintenance ensures the longevity and performance of your battery pack.

• Periodic Charging: If the battery is not used for an extended period, it is recommended to charge it periodically (e.g., every 3-6 months) to maintain its health.
• Storage: Store the battery pack in a cool, dry place within the recommended long-term storage temperature range of 15°C to 25°C (59°F to 77°F).
• Cleaning: Use a dry, soft cloth to clean the exterior of the battery pack. Do not use liquid cleaners or immerse the unit in water.

Troubleshooting

If you encounter issues with your Talentcell battery pack, consider the following:

• Battery Not Charging:
  • Ensure the charger is properly connected to a working power outlet and the battery pack.
  • Verify that the charger's indicator light is active during charging.
  • Check for any visible damage to the charger or battery port.
• Device Not Powering On:
  • Confirm the battery pack is sufficiently charged.
  • Check that the device's power requirements (voltage and current) are compatible with the battery pack's output.
  • Ensure all connections are secure and the polarity is correct (Inner Positive, Outer Negative).
  • Test the device with another power source if possible to rule out device malfunction.
• Short Battery Life:
  • The actual runtime depends on the power consumption of the connected device. Higher power draw will result in shorter battery life.
  • Ensure the battery has been fully charged.
  • Extreme temperatures can affect battery performance. Operate and store within recommended temperature ranges.

Warranty and Support

Talentcell products are manufactured with quality and reliability in mind. For warranty information, technical support, or any questions regarding your battery pack, please contact Talentcell customer service. Refer to the product packaging or the official Talentcell website for the most current contact details.

Manufacturer: TalentCell
Website: www.talentcell.com
