Introduction
This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your ModernLuxe upholstered bed. This bed features an elegant design, an adjustable headboard, a hydraulic lift storage system, and two integrated drawers, offering both comfort and practical storage solutions. Please read these instructions carefully before beginning assembly or use to ensure safe and correct operation.
Setup and Assembly
The ModernLuxe upholstered bed is designed for straightforward assembly. For optimal safety and efficiency, it is recommended that two adults perform the assembly. Ensure all components are present before starting.
Required Tools (Not Included):
- Phillips head screwdriver
- Allen wrench (often included with hardware)
- Rubber mallet (optional, for gentle tapping)
Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Verify that all parts listed in the included parts list are present.
- Assemble Bed Frame: Follow the step-by-step diagrams provided in the separate assembly guide. Typically, this involves attaching side rails to the headboard and footboard.
- Install Slatted Base: Secure the wooden slats to the bed frame according to the instructions. Ensure they are evenly spaced and firmly attached.
- Attach Hydraulic Mechanism: Install the hydraulic lift system as directed. Ensure all bolts are tightened securely to support the mattress and base.
- Assemble Drawers: Construct the two under-bed drawers and install them into their designated slots.
- Adjust Headboard: Set the headboard to your desired height.
Operating Instructions
Hydraulic Storage System:
Your ModernLuxe bed features a hydraulic lift mechanism for easy access to under-bed storage. To open the storage compartment:
- Remove any pillows or loose items from the bed surface.
- Locate the fabric strap or handle at the foot of the bed.
- Firmly pull the strap upwards, lifting the mattress and slatted base. The hydraulic pistons will assist in lifting and holding the bed in the open position.
- To close, gently push the mattress base downwards until it locks into place. Ensure no objects are obstructing the closing mechanism.
Integrated Drawers:
Two metal mesh drawers are located beneath the bed frame, providing additional storage. Simply pull the handles to slide the drawers out. Push them back in until they are flush with the bed frame for a neat appearance.

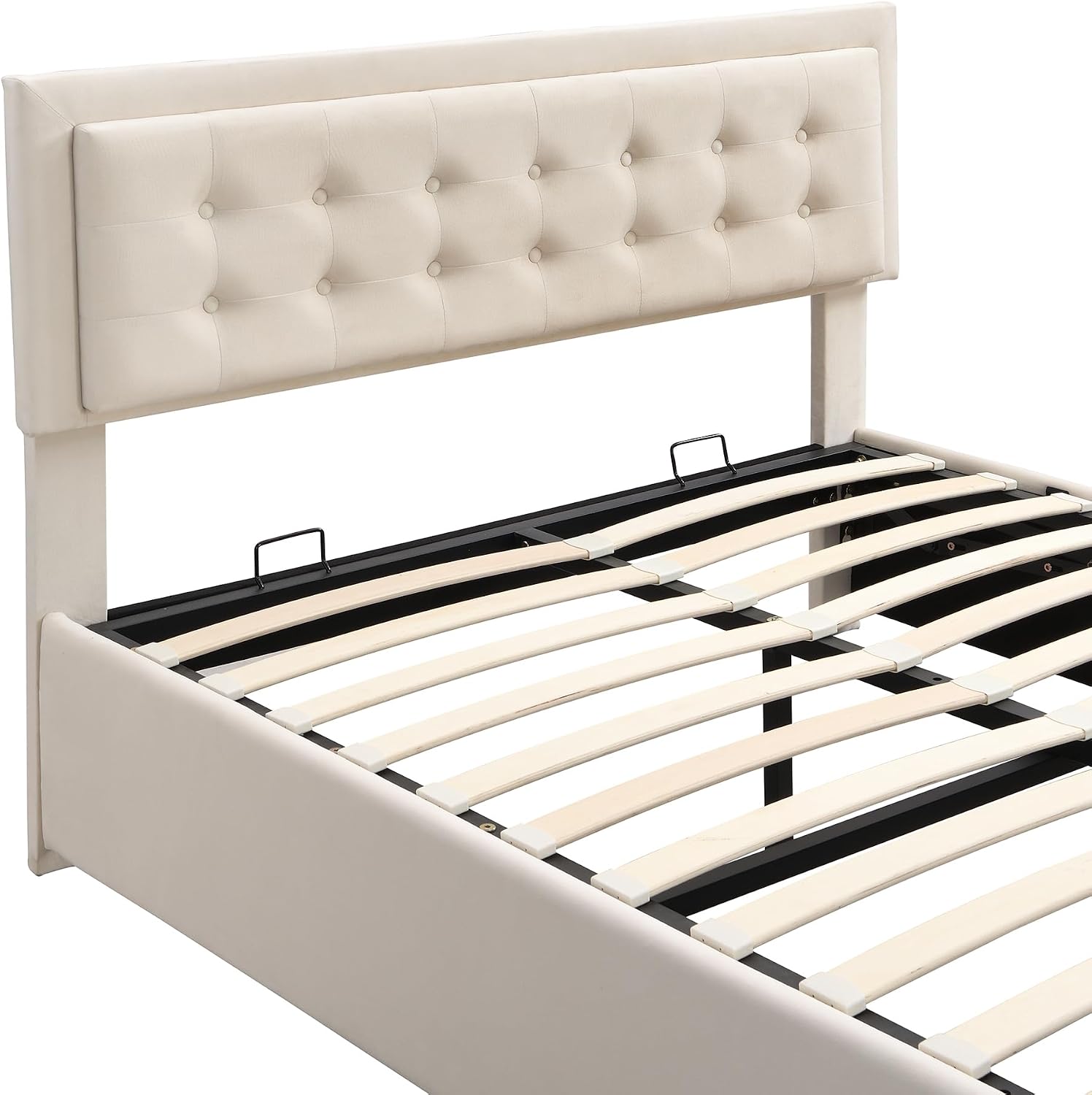

Adjustable Headboard:
The headboard can be adjusted by 10 cm to accommodate different mattress heights or personal preference. To adjust, loosen the securing bolts on the headboard supports, slide the headboard to the desired height, and re-tighten the bolts firmly.
Maintenance
Regular maintenance will prolong the life and appearance of your ModernLuxe bed.
Upholstery Care:
- Cleaning: For general cleaning, gently vacuum the velvet upholstery using a soft brush attachment to remove dust and debris.
- Spot Cleaning: For spills, blot immediately with a clean, dry cloth. Do not rub. For stubborn stains, use a mild upholstery cleaner following the product instructions, testing on an inconspicuous area first. Avoid harsh chemicals.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading.
Frame and Mechanism Care:
- Check Connections: Periodically check all bolts and screws to ensure they are tight. Re-tighten as necessary to maintain stability.
- Hydraulic System: The hydraulic pistons are designed for long-term use. If the lift mechanism becomes stiff or noisy, a small amount of silicone-based lubricant can be applied to the pivot points. Do not use oil-based lubricants.
- Drawers: Keep the drawer runners clean and free of obstructions. If drawers become difficult to slide, check for debris or apply a dry lubricant to the runners.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed is wobbly or squeaks | Loose bolts or uneven assembly. | Check and tighten all bolts and screws. Ensure the bed is on a level surface. |
| Hydraulic lift is difficult to open/close | Mechanism needs lubrication or is obstructed. | Ensure no items are blocking the mechanism. Apply silicone lubricant to pivot points if stiff. |
| Drawers stick or do not slide smoothly | Debris in runners or misaligned. | Clean drawer runners. Check if drawers are assembled correctly and aligned. |
| Headboard does not stay at desired height | Securing bolts are loose. | Re-tighten the bolts that secure the headboard to its supports. |
Specifications
| Feature | Detail |
|---|---|
| Brand | ModernLuxe |
| Model Number (ASIN) | B0DY7S4L4K |
| GTIN / UPC | 198573951130 |

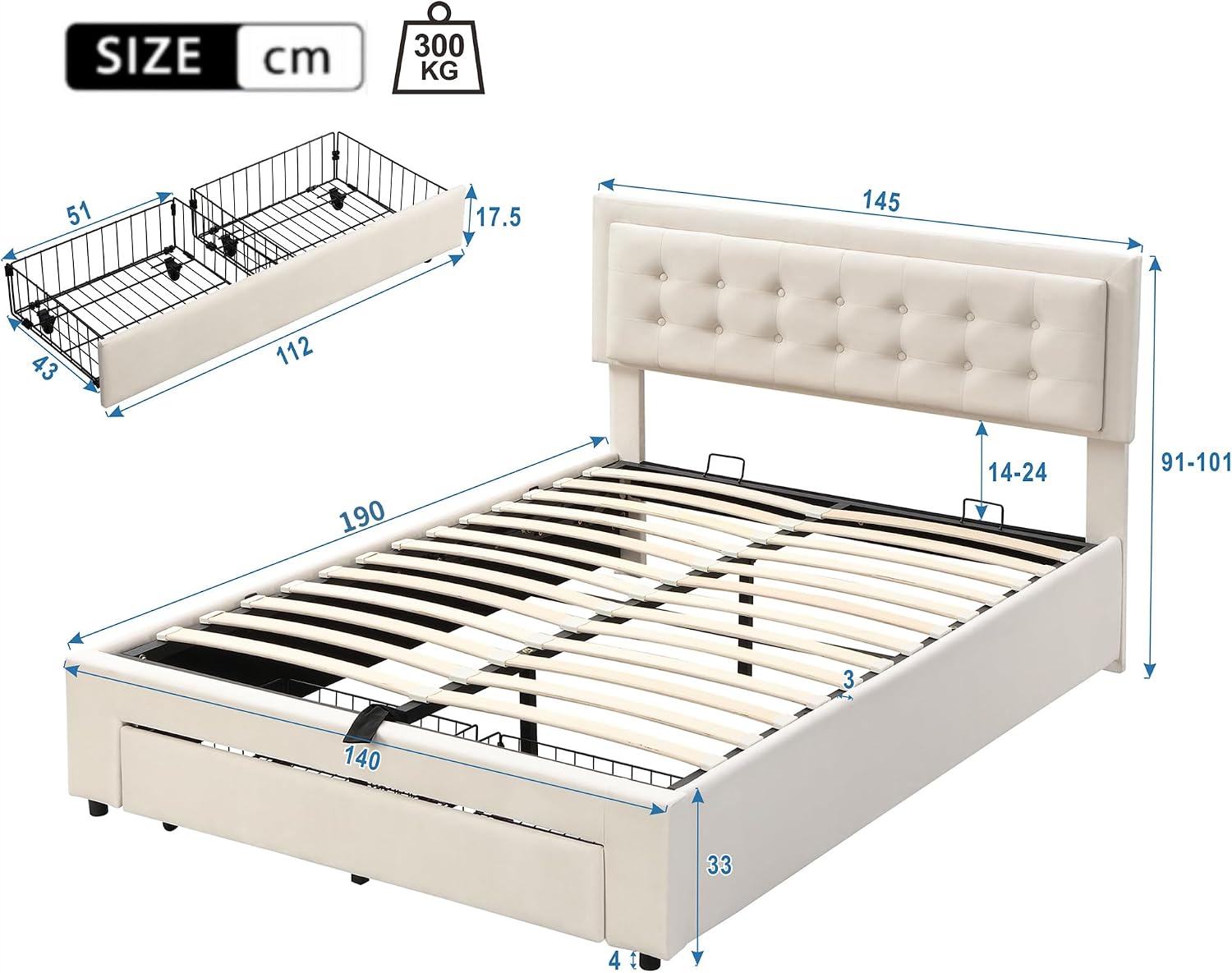

| Overall Dimensions (L x W x H) | 190 cm x 145 cm x 91-101 cm |
| Mattress Size Compatibility | 140 cm x 190 cm (mattress not included) |
| Color | Beige C |
| Upholstery Material | Velvet |
| Frame Material | Metal, Wood |
| Headboard Adjustment | 10 cm height adjustable |
| Storage Type | Hydraulic lift under-bed storage, 2 integrated drawers |
| Maximum Weight Capacity | 300 kg |
Warranty Information
For specific warranty details regarding your ModernLuxe upholstered bed, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms typically cover manufacturing defects and material flaws under normal use. Keep your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require assistance with assembly, or encounter any issues not covered in this manual, please contact the seller or manufacturer directly. Provide your model number (B0DY7S4L4K) and a detailed description of the problem to facilitate a quicker resolution.
For further assistance, please visit the ModernLuxe brand page or contact their customer service department through the platform where you purchased the product.
