MERACH MR-S26
MERACH Home Exercise Bike User Manual
Model: MR-S26
1. Important Safety Information
Before operating the MERACH Home Exercise Bike, please read and understand all instructions in this manual. Keep this manual for future reference.
- Consult your physician before starting any exercise program.
- Ensure all parts are securely assembled before each use.
- Keep children and pets away from the exercise bike during operation.
- Place the bike on a flat, stable surface. Use a mat to protect flooring.
- Do not exceed the maximum weight capacity of 136 kg (300 lbs).
- Wear appropriate athletic footwear and clothing during exercise.
- Stop exercising immediately if you feel faint, dizzy, or experience pain.
2. Setup and Assembly
The MERACH Home Exercise Bike arrives approximately 80% pre-assembled, significantly simplifying the setup process. The package includes all necessary tools and an installation video to guide you.
2.1 Unpacking
- Carefully remove all components from the packaging.
- Verify that all parts listed in the packing list are present.
2.2 Assembly Steps
The main body of the exercise bike is largely pre-assembled. You will primarily need to attach the stabilizers, pedals, seat, and handlebars.
- Attach the front and rear stabilizers to the main frame using the provided bolts and tools. Ensure they are tightened securely for stability.
- Install the pedals. Note that pedals are typically marked 'L' for left and 'R' for right. Thread them carefully to avoid cross-threading.
- Insert the seat post into the frame and secure it at your desired height. Attach the seat to the post.
- Insert the handlebar post into the frame and secure it. Attach the handlebars to the post.
- Connect any necessary cables for the LED display, if applicable.
Image: Detailed view of the assembly steps for the MERACH Home Exercise Bike, showing how to attach the main components.
Image: The MERACH Home Exercise Bike fully assembled, ready for use.
The entire installation process should take no more than 20 minutes.
3. Operating Instructions
The MERACH Home Exercise Bike is designed for a comfortable and effective indoor cycling experience, featuring adjustable settings and smart connectivity.
3.1 Adjusting the Bike
The bike offers personalized adjustments to accommodate users between 1.5 m and 1.95 m in height.
- Handlebar Adjustment: The anti-slip handlebar can be adjusted in 2 directions (up/down). Loosen the adjustment knob, move the handlebar to the desired position, and tighten the knob securely.
- Seat Adjustment: The ultra-soft seat can be adjusted in 4 directions (up/down, forward/backward). Loosen the adjustment knob, position the seat for optimal comfort and pedaling efficiency, and tighten the knob.
Image: Illustration of the adjustable handlebars and seat, highlighting the range of motion for user customization.
3.2 Resistance System
The MERACH bike utilizes a new magnetic resistance system with industrial bearings and ABS pulleys, ensuring a smooth and quiet ride with noise levels not exceeding 30 dB. This system avoids issues like loud noises or damaged pulleys found in bikes with iron sand flywheels.
- Adjusting Resistance: The easy-to-use adjustment knob allows for resistance settings from 0 to 8. Turn the knob clockwise to increase resistance and counter-clockwise to decrease it.
- Emergency Stop: Push the resistance knob down firmly to engage the emergency brake and stop the flywheel immediately.

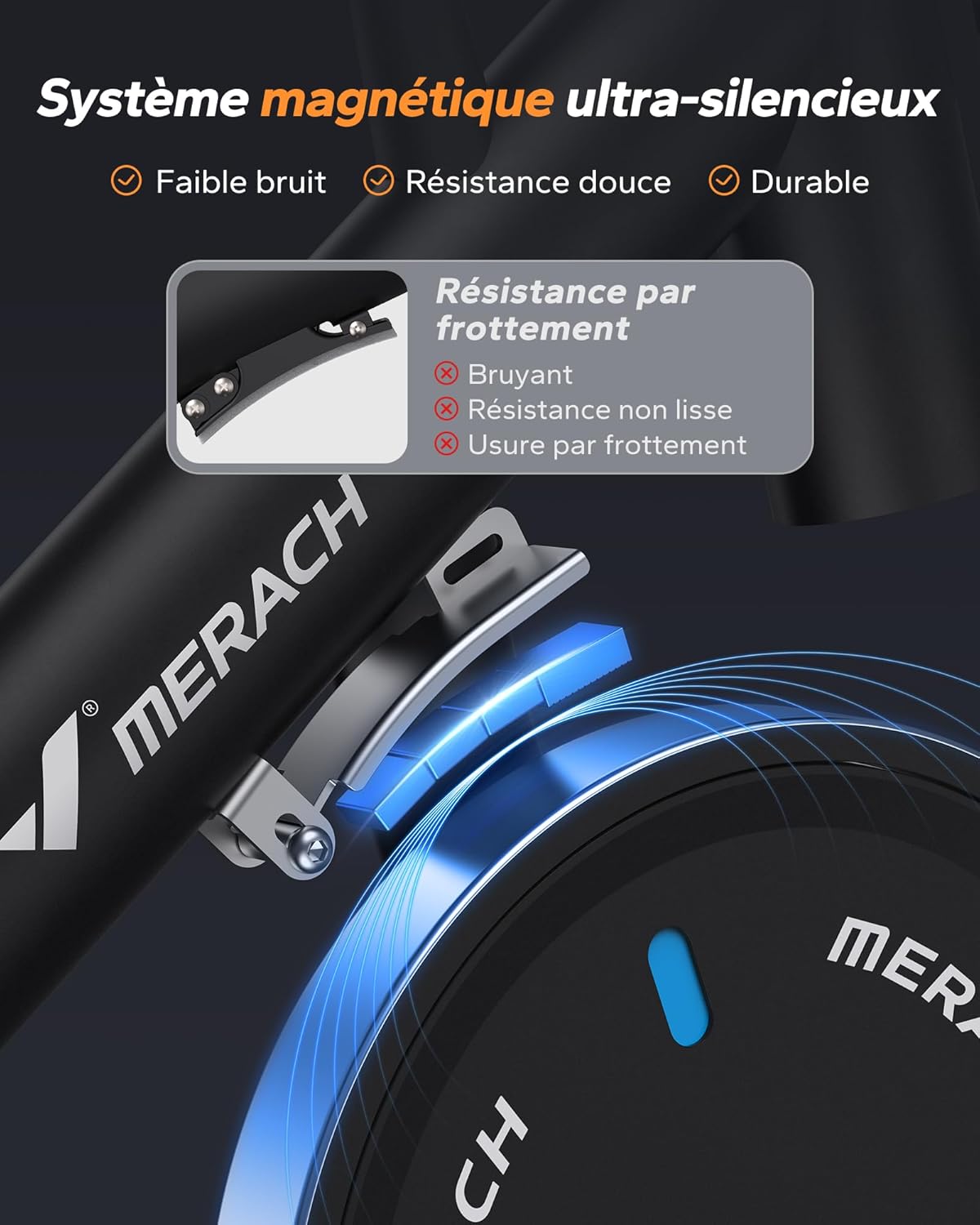

Image: Close-up view of the ultra-silent magnetic resistance system, illustrating its smooth and durable operation.
Image: Diagram showing the quiet belt drive system, which contributes to the bike's silent operation.
3.3 LED Display and App Connectivity
The integrated LED display tracks essential workout data, and the bike connects to the exclusive MERACH app for enhanced training experiences.
- LED Display: The LED screen records time, distance, calories burned, and other training data. It is powered by 2 AA batteries (included).
- MERACH App: Download the free MERACH app to connect with the bike. The app offers online personal trainers, real-world simulations (e.g., Swiss snowy landscapes, alpine challenges, coastal rides), and various training programs to make workouts more engaging and effective.
Image: Close-up of the ergonomic LED display, showing various workout metrics like time, distance, and calories.
3.4 Additional Features
- Bottle Holder: The bike includes a double-slot bottle holder compatible with most water bottles, allowing you to stay hydrated during your workout.
- Dumbbell Holder: A special design allows for storing various dumbbells, including common safety bars.
- Transport Wheels: Two-way transport wheels make it easy to move the bike for storage or repositioning.

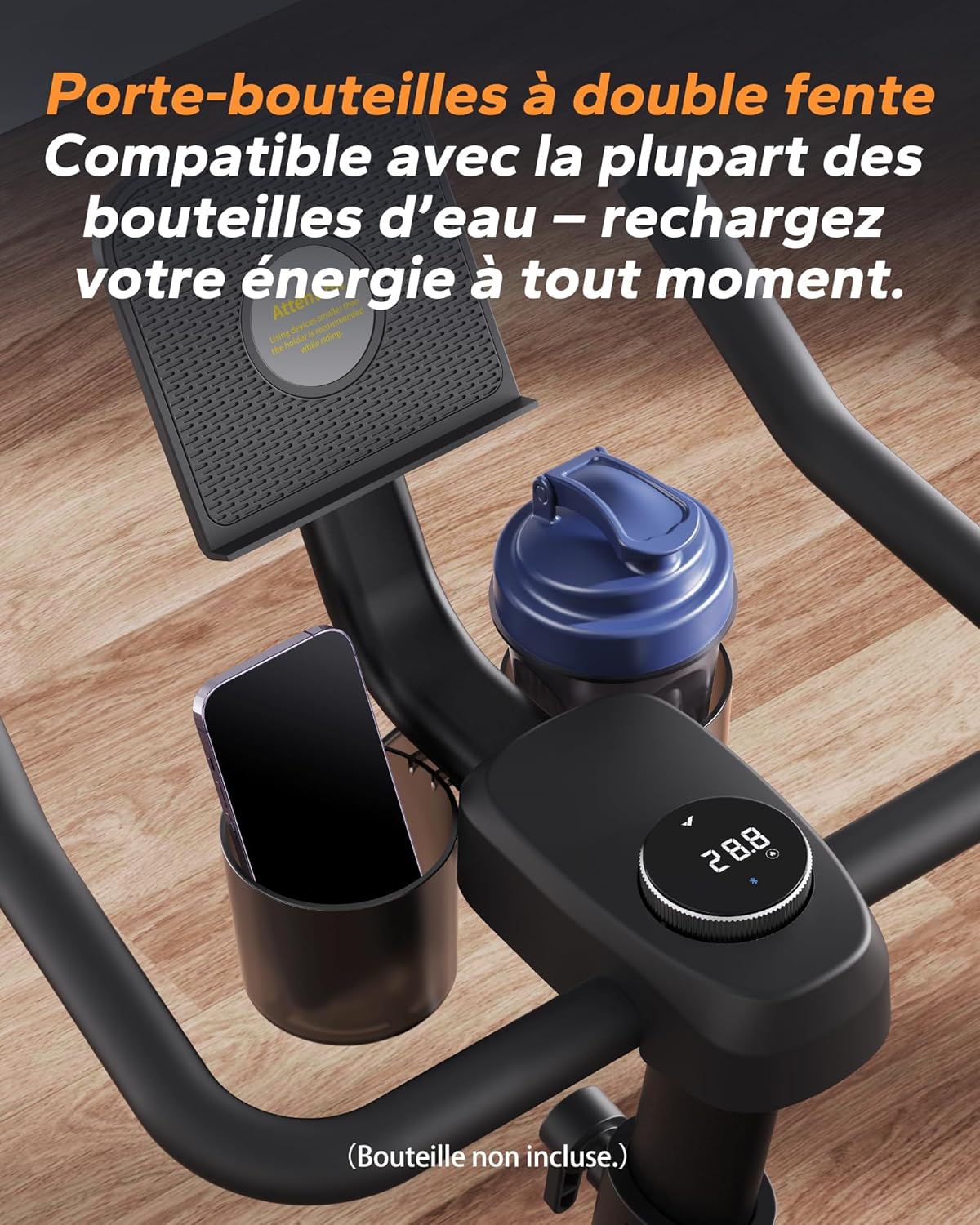

Image: View of the double-slot bottle holder and integrated phone/tablet stand on the handlebars.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your MERACH Home Exercise Bike.
- Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners or solvents.
- Inspecting Bolts and Connections: Periodically check all bolts and connections to ensure they are tight. Re-tighten as necessary.
- Lubrication: The magnetic resistance system and belt drive are designed for low maintenance. No regular lubrication is required for these components.
- Storage: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures.
5. Troubleshooting
This section addresses common issues you might encounter with your exercise bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike is noisy during operation | Loose components; bike not on a level surface. | Check and tighten all bolts and connections. Ensure the bike is on a flat, stable surface. The magnetic resistance system is designed to be quiet. |
| LED display not working | Batteries are dead or incorrectly installed; loose cable connection. | Check and replace the 2 AA batteries. Ensure all display cables are securely connected. |
| Resistance not changing | Resistance knob issue; internal mechanism problem. | Ensure the resistance knob is turning freely. If the issue persists, contact customer support. |
If you encounter any problems not listed here, or if the suggested solutions do not resolve the issue, please refer to the Warranty and Support section for assistance.
6. Specifications
| Feature | Specification |
|---|---|
| Model Number | MR-S26 |
| Color | Blue-Black |
| Drive System | Belt |
| Material Type | Alloy Steel |
| Max Weight Capacity | 136 Kilograms (300 lbs) |
| Recommended User Height | 1.5 m to 1.95 m (4 ft 11 in to 6 ft 5 in) |
| Power Source | Battery Powered (2 AA batteries included) |
| Resistance Mechanism | Magnetic |
| Product Dimensions (L x W x H) | 49 x 123 x 108 cm (19.3 x 48.4 x 42.5 inches) |
| Product Weight | 31 Kilograms (68.3 lbs) |
| Special Features | Interactive App, Stability, Silent Operation, LED Screen |
7. Warranty and Support
MERACH offers comprehensive support for your exercise bike.
- Warranty: The MERACH Home Exercise Bike comes with a 12-month warranty from the date of purchase.
- Customer Service: If you encounter any issues or have questions during use, please contact MERACH customer service. We commit to responding within 12 hours and assisting you throughout the resolution process.
- Contact Information: Please refer to your purchase documentation or the MERACH official website for specific contact details.
