RHYTHM TESTAMENT Air Filter Replacement Instruction Manual

1. Introduction

This manual provides essential information for the proper installation and maintenance of your RHYTHM TESTAMENT replacement air filter. A clean air filter is crucial for optimal engine performance and longevity of your lawn mower. Please read these instructions carefully before proceeding with installation or maintenance.

2. Product Compatibility

This RHYTHM TESTAMENT air filter replacement is specifically designed for the following Troy-Bilt lawn mower models:

• Troy-Bilt TB230 (Model Number: 12AVB26M011)
• Troy-Bilt TB280ES (Model Number: 12AGA26E011)

Always verify your mower's model number to ensure correct part compatibility.

3. Package Contents

Your package should contain the following items:

• Replacement Pleated Paper Air Filter
• Replacement Foam Pre-Filter

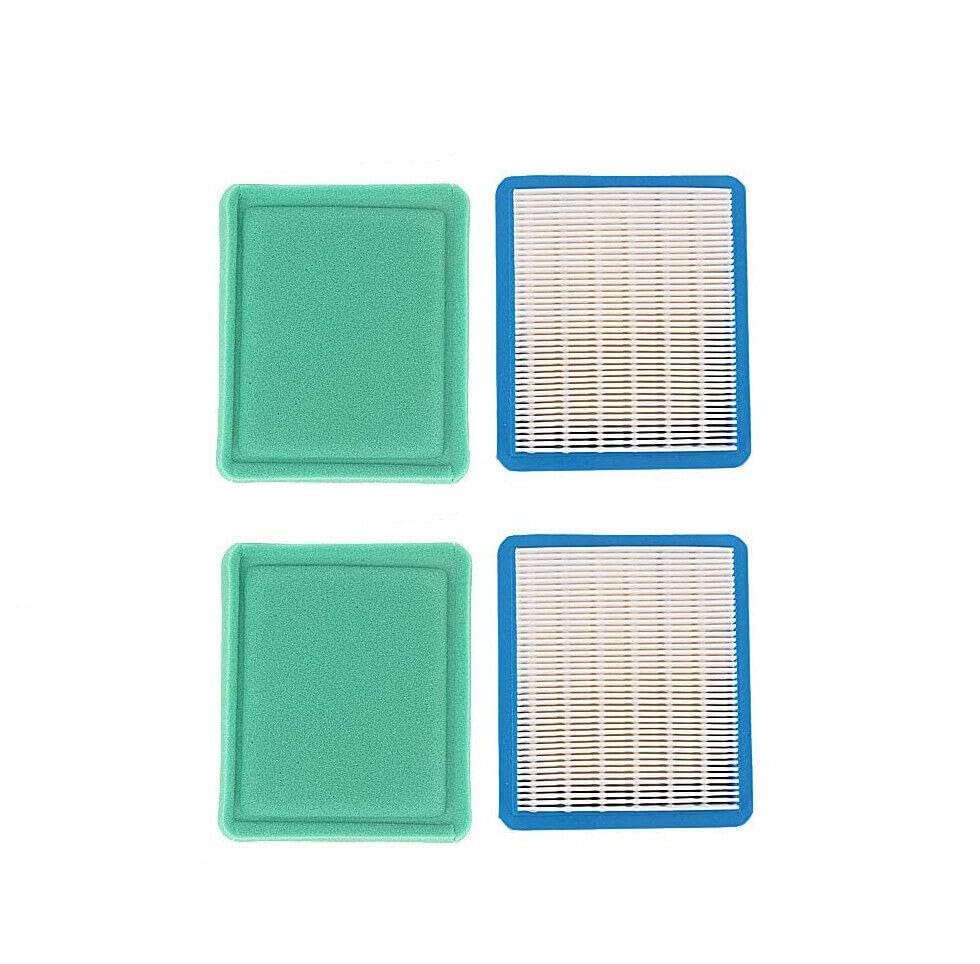

Image 1: Contents of the RHYTHM TESTAMENT air filter replacement package, showing two complete filter sets.

4. Safety Information

Before performing any maintenance on your lawn mower, observe the following safety precautions:

• Turn off the engine: Ensure the mower engine is completely off and cooled down.
• Disconnect the spark plug: Remove the spark plug wire to prevent accidental starting.
• Wear protective gear: Use gloves to protect your hands from dirt and sharp edges.
• Work in a well-ventilated area: Ensure adequate airflow.

5. Installation Instructions

Follow these steps to replace the air filter in your Troy-Bilt mower:

1. Locate the Air Filter Cover: The air filter is typically housed in a plastic cover on the side of the engine.
2. Remove the Cover: Unclip or unscrew the fasteners holding the air filter cover in place and carefully remove it.
3. Remove Old Filters: Take out the old foam pre-filter and the pleated paper air filter. Note their orientation for correct installation of the new filters.
4. Clean the Housing: Wipe away any dirt or debris from inside the air filter housing.
5. Install New Filters: Place the new pleated paper air filter into the housing, ensuring it fits snugly. Then, install the new foam pre-filter over the paper filter.
6. Reattach Cover: Securely reattach the air filter cover, ensuring all clips or screws are fastened properly.
7. Reconnect Spark Plug: Reconnect the spark plug wire.

Image 2: Close-up view of a single RHYTHM TESTAMENT air filter set, illustrating the two components.

6. Maintenance

Regular inspection and replacement of your air filter are vital for maintaining engine health and performance. A dirty air filter can restrict airflow, leading to reduced power, increased fuel consumption, and premature engine wear.

• Inspection Frequency: Inspect the air filter every 25 hours of operation or annually, whichever comes first. In dusty conditions, inspect more frequently.
• Replacement: Replace the air filter if it appears heavily soiled, damaged, or if engine performance noticeably declines. Do not attempt to clean heavily soiled paper filters; replacement is recommended. Foam pre-filters can sometimes be cleaned with warm, soapy water, rinsed, and air-dried, but replacement is often more effective.

7. Troubleshooting

If you experience issues with your lawn mower after air filter maintenance, consider the following:

• Reduced Engine Power: A clogged or improperly installed air filter can restrict airflow. Ensure the new filter is clean and correctly seated.
• Engine Running Rough: Check that the air filter cover is securely fastened and that no debris has entered the carburetor.
• Excessive Smoke: While not directly related to the air filter, ensure the oil level is correct and the engine is not overfilled.

If problems persist, consult your mower's official service manual or a qualified technician.

8. Specifications

9. Warranty and Support

For information regarding product warranty or technical support, please refer to the original purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.
