Intelamp Solar Street Light

Introduction

The Intelamp Solar Street Light (Model 13P10) is an outdoor lighting solution designed for various applications such as driveways, parking lots, yards, gardens, and streets. It features high brightness, dual motion sensors, remote control capabilities, and a linkable lighting function for enhanced security and convenience. This manual provides detailed instructions for its setup, operation, and maintenance.

Key features include:

• 3000LM High Brightness: Powered by 109 high-efficiency LEDs, illuminating a wide 65.6ft range.
• 180° Dual PIR Motion Sensors: Industrial-grade sensors detect movement within a 180° angle and a range of 16.4-32.8ft.
• Smart Linkable Lighting: Connect 2 or more lights within a 100ft radius; motion detection on one activates all linked lights.
• Remote Control: Adjust modes, brightness (60%, 80%, 100%), and timing (30s/3m/10m delay, 2-12 hours dusk-to-dawn) from up to 50ft away.
• 12500mAh Large Battery & Fast Solar Charging: Fully charges in 6 hours, providing 12-14 hours of operation at 100% brightness.
• Heat-Resistant Design & IP65 Waterproof: Durable ABS housing with sunshade reduces internal temperatures and ensures weather resistance.

What's in the Box

The Intelamp Solar Street Light package includes the following components:

• Solar Street Light Unit (with integrated LEDs and sensors)
• Solar Panel (monocrystalline)
• Mounting Arm/Pole
• Wall Mount Bracket
• Remote Control
• AAA Batteries (for remote control)
• Installation Hardware (screws, anchors, nuts)
• Instruction Manual

Setup & Installation

The Intelamp Solar Street Light is designed for easy installation on walls or poles. Ensure the solar panel is positioned to receive maximum direct sunlight throughout the day for optimal charging.

1. Assemble the Solar Panel: Attach the solar panel to the mounting arm using the provided screws and nuts. Ensure it is securely fastened and can be adjusted for optimal sun exposure.
2. Connect the Light Unit: Connect the cable from the solar panel to the main light unit.
3. Mount the Bracket: Choose a suitable location on a wall or pole (diameter 2.36-7.87 inches). Mark the drilling points for the wall mount bracket. Drill holes and insert anchors if necessary. Securely fasten the bracket to the surface using the provided screws.
4. Attach the Light Assembly: Slide the assembled light unit and solar panel onto the mounted bracket. Secure it with the remaining hardware, ensuring the light is stable and directed as desired.
5. Adjust Solar Panel Angle: Adjust the solar panel to face the sun directly for the longest period during the day.

Image: Long Life Solar Light. This diagram illustrates the internal components and durable construction of the solar street light, emphasizing its longevity.

Image: High-Efficiency Solar Panels and Materials. This image highlights the advanced features of the solar panel and the quality of materials used in the light's construction.

Operating Instructions

The Intelamp Solar Street Light offers multiple operating modes and can be controlled via the included remote.

Remote Control Functions

The remote control allows you to manage the light's settings:

• ON/OFF: Turns the light on or off. Turning off interrupts auto-lighting; turn on to reactivate.
• Sensor Mode: Set high brightness time after motion detection (30s, 3m, 10m). The light dims or turns off when no motion is detected.
• Lighting Mode: Automatically lights up for 2-12 hours at night. Set for 2H, +1H, or 6H. The light dims or turns off after the programmed lighting.
• Brightness Adjustment: Adjust light intensity to 60%, 80%, or 100%.

Image: Remote Control Functions. This image displays the various buttons and settings available on the remote control for the solar street light.

Motion Sensor Operation

The dual PIR motion sensors activate the light to full brightness when movement is detected. Depending on the selected mode, the light will either dim or turn off after a set period of inactivity.

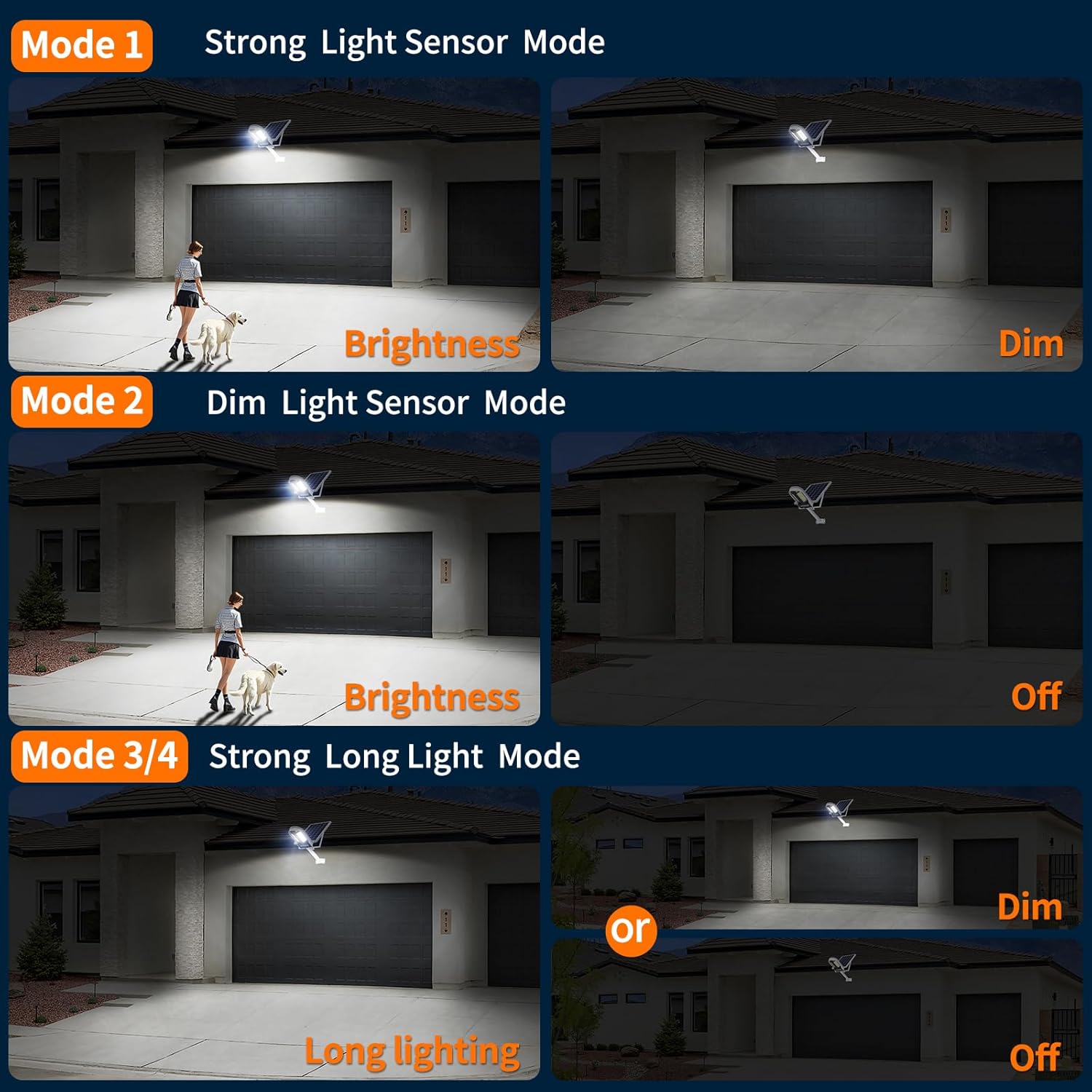

Image: Light Operating Modes. This image illustrates the three primary operating modes: Strong Light Sensor, Dim Light Sensor, and Strong Long Light, showing how the light behaves with and without motion.

Linkable Lighting

Multiple Intelamp solar street lights can be linked together. When one light detects motion, all linked lights within a 100ft radius will activate simultaneously, providing broader coverage.

Image: Linkable Lights Motion Detection. This image illustrates how multiple linked lights respond to motion detected by a single unit.

Maintenance

To ensure optimal performance and longevity of your Intelamp Solar Street Light, follow these maintenance guidelines:

• Clean Solar Panel: Regularly wipe the solar panel surface with a soft, damp cloth to remove dust, dirt, and debris. A clean panel ensures maximum sunlight absorption and charging efficiency.
• Check Connections: Periodically inspect all cable connections to ensure they are secure and free from corrosion.
• Weather Resistance: The light has an IP65 waterproof rating, making it suitable for various weather conditions including rain, snow, and frost. No special weather-proofing is typically required.
• Heat Management: The unique white ABS housing and sunshade are designed to reduce internal temperatures, contributing to the longevity of the batteries and LEDs.

Image: Solar Street Lights Outdoor Weather Resistance. This image demonstrates the light's ability to withstand various outdoor weather conditions due to its IP65 waterproof design.

Troubleshooting

If you encounter issues with your Intelamp Solar Street Light, consider the following:

• Light Not Turning On:
  • Ensure the light is switched ON via the remote control.
  • Verify the solar panel is receiving direct sunlight and is not obstructed.
  • Allow 1-2 days for initial charging if the battery is completely depleted.
  • Check the cable connection between the solar panel and the light unit.
• Insufficient Brightness or Short Run Time:
  • Clean the solar panel surface.
  • Adjust the solar panel angle for optimal sun exposure.
  • Ensure the light is not installed in a shaded area.
  • Check remote control settings for brightness level and lighting duration.
• Motion Sensor Not Responding:
  • Ensure the light is in a motion sensor mode via the remote.
  • Verify there are no obstructions blocking the sensor's field of view.
  • Test the sensor range (16.4-32.8ft) and angle (180°).

Specifications

Warranty & Support

The Intelamp Solar Street Light comes with a 2-year manufacturer's warranty. For any product inquiries, technical support, or warranty claims, please refer to the contact information provided in your product packaging or visit the official Intelamp website.
