Introduction
This manual provides comprehensive instructions for the safe and effective use of your RESTMO 2-IN-1 Garden Hose Nozzle. Designed for versatility and durability, this nozzle combines a traditional hose nozzle with a sprinkler function, offering multiple spray patterns and convenient flow control for various watering and cleaning tasks.
Image: The RESTMO 2-IN-1 Garden Hose Nozzle in its primary configuration, showcasing its ergonomic design and orange and black color scheme.
Product Features
The RESTMO 2-IN-1 Garden Hose Nozzle is engineered with several key features to enhance your watering experience:
- 2-IN-1 Magic Twist Design: Seamlessly switch between a garden hose nozzle and a sprinkler mode for diverse watering needs.
- Heavy-Duty Construction: The nozzle body is crafted from zinc-alloy for resistance against rust, corrosion, and wear. A shock-resistant rubberized bezel dial adds durability.
- 4 Watering Patterns: Easily select from Shower, Mist, Jet, and Sprinkler modes by twisting the nozzle head.
- Easy-to-Use Thumb Controller: An all-in-one thumb controller allows for effortless adjustment of water flow from on to off, and high to low pressure.
- Ergonomic Design: The handle is coated with soft TPU rubber, providing a non-slip, heat and cold-resistant grip for comfortable use and reduced hand fatigue.
- Standard Hose Compatibility: Features a 3/4” NH Thread, fitting all standard garden hoses, and includes a rubber seal gasket for a leak-free connection.
Image: An exploded view diagram of the nozzle highlighting its components, including the shock-resistant rubber dial, 4 spray patterns, twist switch, thumb flow controller, all-metal body, ergonomic handle, replacement rubber seal gaskets, and 3/4" leak-free hose thread.
Setup Instructions
Follow these steps to properly set up your RESTMO 2-IN-1 Garden Hose Nozzle:
- Inspect Components: Ensure all components, including the nozzle and rubber seal gasket, are present and undamaged.
- Prepare Hose: Take your standard 3/4” garden hose and ensure its end is clean and free of debris.
- Insert Gasket: Place the included rubber seal gasket firmly inside the threaded end of the nozzle. This gasket is crucial for preventing leaks.
- Attach Nozzle: Screw the nozzle onto the end of your garden hose. Turn clockwise until it is hand-tight. Avoid over-tightening, which can damage the threads or gasket.
- Check Connection: Turn on the water supply to your hose and check for any leaks at the connection point. If a leak occurs, tighten slightly or re-seat the gasket.
Operating Instructions
Your RESTMO 2-IN-1 Garden Hose Nozzle offers versatile operation for various tasks:
1. Adjusting Water Flow (Thumb Control)
The integrated thumb controller allows for easy adjustment of water flow:
- To Turn On/Off: Push the thumb controller forward to increase flow and backward to decrease flow, eventually turning the water off.
- To Adjust Pressure: Slide the thumb controller to achieve the desired water pressure, from a gentle trickle to a powerful stream.

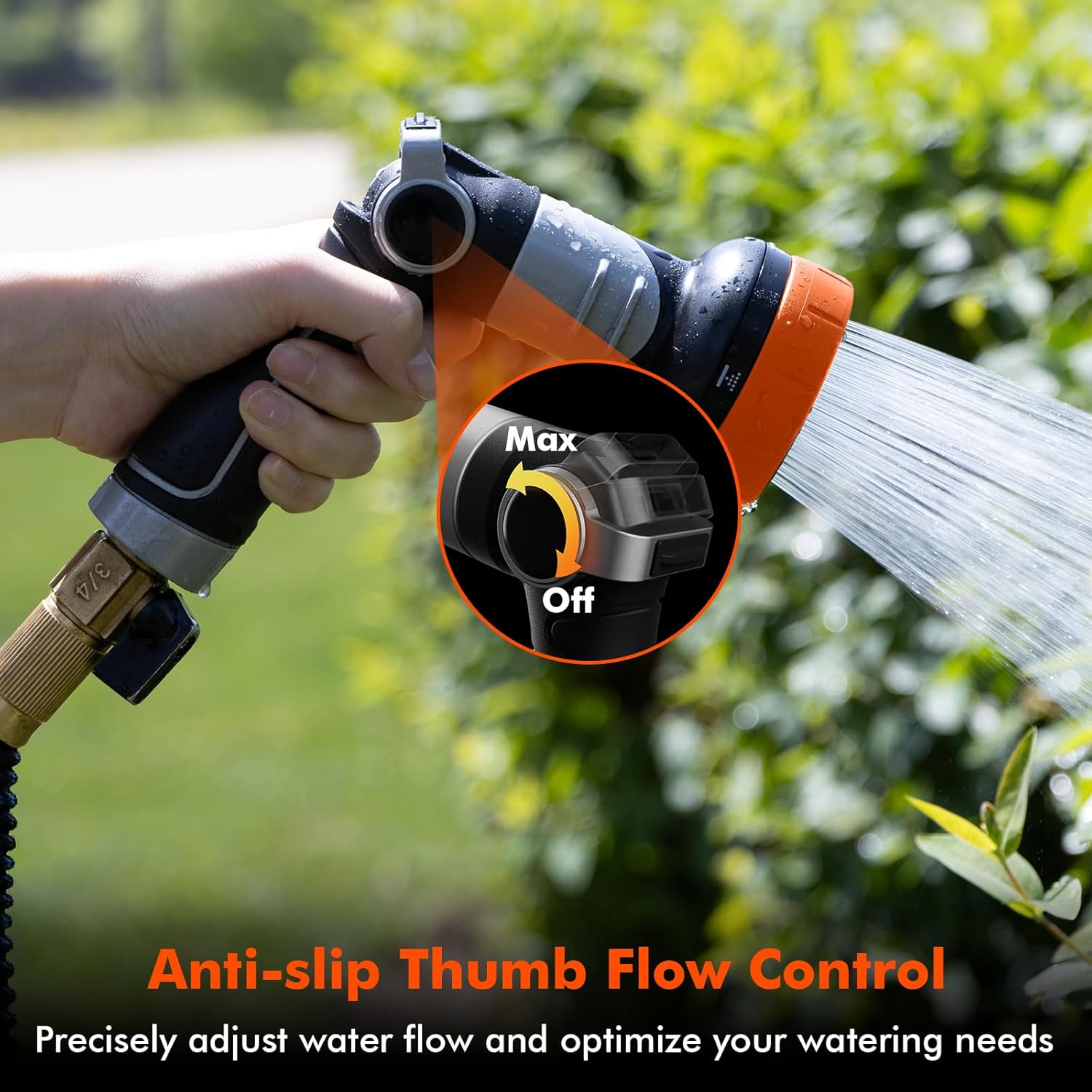

Image: A hand demonstrating the anti-slip thumb flow control, showing the 'Max' and 'Off' positions for precise water flow adjustment.
2. Selecting Spray Patterns (Magic Twist)
Twist the orange bezel at the front of the nozzle to cycle through the four available spray patterns:
- Shower: A gentle, wide spray ideal for watering delicate plants, flowers, and newly seeded areas.
- Mist: A fine, soft mist suitable for seedlings, humidifying, or cooling plants.
- Jet: A powerful, concentrated stream for cleaning hard surfaces like patios, driveways, or vehicles.
- Sprinkler: Transforms the nozzle into a ground-based sprinkler for hands-free, even coverage of lawns or gardens.
Image: A collage demonstrating the four versatile watering modes: Shower, Sprinkler, Jet, and Mist, each suitable for different tasks.
3. Using Sprinkler Mode for Hands-Free Operation
To utilize the hands-free sprinkler function:
- Twist the nozzle head to the 'Sprinkler' setting.
- Place the nozzle on a flat surface in the area you wish to water.
- Adjust the water flow using the thumb controller to achieve the desired coverage and intensity.
Image: The nozzle in sprinkler mode, positioned on the ground, providing hands-free watering to plants.
Image: A series of images illustrating the nozzle's hands-free watering capability, showing it used as a sprinkler on a lawn and near potted plants.
Maintenance
Proper maintenance will extend the life of your hose nozzle:
- Cleaning: Periodically rinse the nozzle with clean water to remove dirt, debris, or mineral buildup. For stubborn deposits, a soft brush can be used.
- Gasket Inspection: Regularly check the rubber seal gasket for wear or damage. Replace it if it appears cracked or flattened to maintain a leak-free connection.
- Winter Storage: Before freezing temperatures, disconnect the nozzle from the hose, drain any remaining water, and store it in a dry, protected area to prevent damage from ice expansion.
- Lubrication: If the twist mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the moving parts.
Troubleshooting
If you encounter issues with your nozzle, refer to the following common problems and solutions:
- Leakage at Hose Connection:
- Ensure the nozzle is securely tightened to the hose.
- Check the rubber seal gasket for proper placement and condition. Replace if damaged.
- Low Water Pressure:
- Verify that the water source (faucet) is fully open.
- Check the hose for kinks or obstructions.
- Ensure the thumb controller is pushed fully forward for maximum flow.
- Difficulty Switching Spray Patterns:
- Ensure the nozzle head is clean and free of debris that might obstruct the twisting mechanism.
- Apply a small amount of silicone lubricant if the mechanism feels stiff.
- Inconsistent Spray Pattern:
- Check the nozzle holes for blockages and clean them if necessary.
Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | Restmo |
| Part Number | O-HN-1T |
| Item Weight | 1.21 pounds |
| Product Dimensions (L x W x H) | 5 x 2 x 2 inches |
| Item Model Number | O-HN-1T |
| Color | Orange |
| Item Package Quantity | 1 |
| Included Components | Hose Nozzle |
| Inlet Connection Type | Threaded (3/4” NH) |
| Number of Ports | 2 |
Warranty and Support
Specific warranty information for the RESTMO 2-IN-1 Garden Hose Nozzle is not provided in this document. For details regarding warranty coverage, claims, or technical support, please contact Restmo customer service directly or visit their official website. Contact information can typically be found on the product packaging or the manufacturer’s brand store.
You can visit the Restmo Store on Amazon for more information.
