Qiilu Hood and Tailgate Stone Deflector Instruction Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of the Qiilu Hood and Tailgate Stone Deflector kit. This product is designed to protect your vehicle's hood, windshield, fenders, and headlights from dents and scratches caused by road debris and stones. It is constructed from high-strength ABS material for durability and resistance to various weather and road conditions.

Image 1.1: The Qiilu Hood Tailgate Stone Deflector installed on a vehicle.

2. Compatibility and Package Contents

2.1. Vehicle Compatibility

This hood and tailgate deflector kit is compatible with JK models from 2007 to 2017. Please verify your vehicle's model and year before proceeding with installation.

2.2. Package Contents

The package includes the following components:

• 1 x Front Hood Guard
• 1 x Rear Bumper Guard (Tailgate Deflector)

Image 2.1: The two components of the deflector kit.

3. Setup and Installation

The installation process for the Qiilu Hood and Tailgate Stone Deflector is designed to be straightforward and does not require complex tools or special procedures. The deflectors feature a self-adhesive installation type.

3.1. Preparation

1. Ensure the installation surfaces on your vehicle's hood and tailgate are clean, dry, and free from dust, dirt, wax, or grease. Use an appropriate automotive cleaner if necessary.
2. Test fit each deflector piece to its intended location to confirm proper alignment before removing the adhesive backing.

3.2. Installation Steps

1. Carefully peel off the protective film from the adhesive backing on one of the deflector pieces.
2. Align the deflector precisely with the edge of the hood or tailgate.
3. Once aligned, firmly press the deflector onto the surface, applying even pressure along its entire length to ensure strong adhesion.
4. Repeat the process for the second deflector piece on the other location.
5. After installation, avoid washing the vehicle or exposing the deflectors to heavy moisture for at least 24-48 hours to allow the adhesive to fully cure.

Image 3.1: Visual comparison of the hood before and after deflector installation.

Image 3.2: Installed hood deflector (top) and tailgate deflector (bottom).

4. Operating Instructions

Once properly installed, the Qiilu Hood and Tailgate Stone Deflector operates passively. It functions as a protective barrier against road debris, stones, and other elements that could cause damage to your vehicle's paint, windshield, and lights. No active operation is required from the user.

5. Maintenance

To ensure the longevity and appearance of your deflectors, follow these simple maintenance guidelines:

• Cleaning: Regularly clean the deflectors with mild automotive soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the ABS material or its finish.
• Inspection: Periodically inspect the deflectors for any signs of damage or loosening. Ensure the adhesive remains secure.
• Protection: While the material is durable, avoid direct impact with sharp objects that could scratch or crack the deflector.

6. Troubleshooting

If you encounter issues with your Qiilu Hood and Tailgate Stone Deflector, consider the following:

• Adhesion Issues: If a deflector begins to lift or detach, it may be due to improper surface preparation or insufficient curing time.
• Solution: Thoroughly clean the surface and the deflector. If the original adhesive is compromised, remove it completely and apply new, high-quality automotive-grade double-sided adhesive tape. Ensure the surface is warm (above 10°C / 50°F) during application and allow adequate curing time before exposing to stress.
• Fitment Concerns: While designed for JK 2007-2017, minor variations can occur.
• Solution: Double-check that the correct deflector piece is being applied to the correct location (hood vs. tailgate). If fitment is significantly off, contact customer support.

7. Specifications

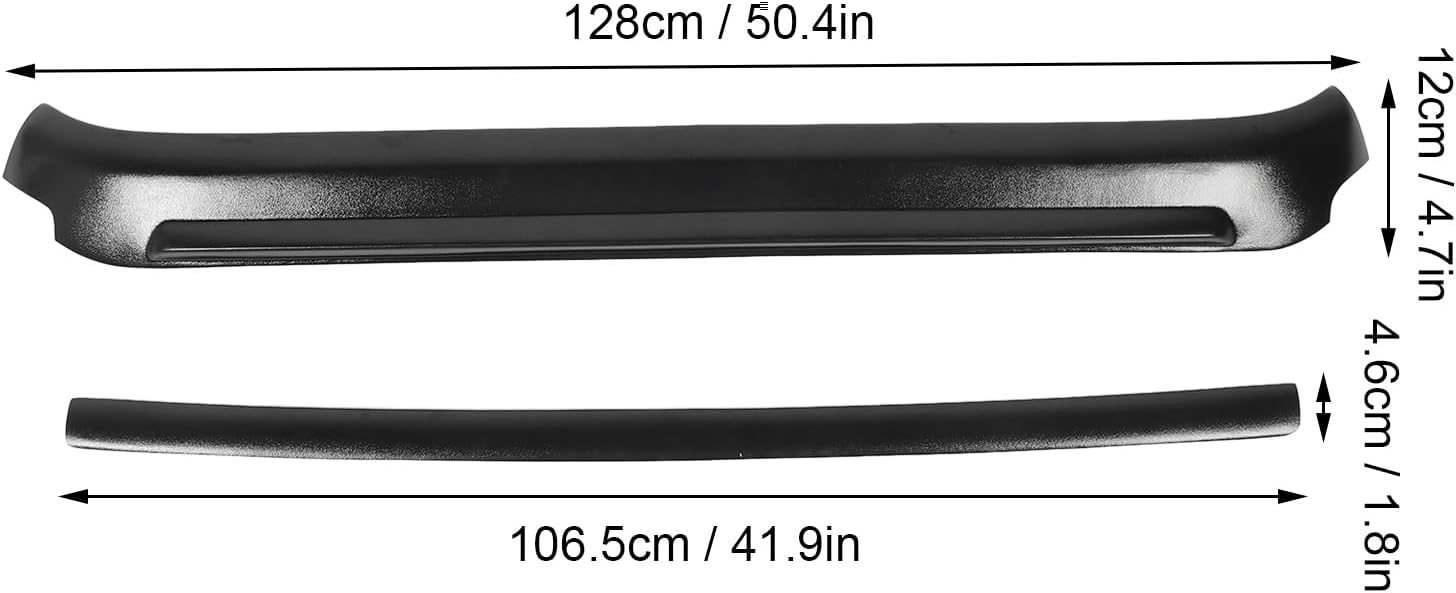

Image 7.1: Approximate dimensions of the deflector components.

8. Warranty and Support

For warranty information or technical support, please refer to the retailer's return policy or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
