1. Introduction
Welcome to the Hot Pepper K82A Smartphone User Manual. This guide provides essential information to help you set up, operate, maintain, and troubleshoot your new device. The Hot Pepper K82A is an advanced Android smartphone featuring a 6.67-inch AMOLED display, a powerful Octa-Core processor, 256GB of storage, 8GB of RAM, and a long-lasting 5000mAh battery. It also boasts a versatile triple camera system with a 50MP main sensor and a 24MP selfie camera.
2. What's in the Box
Upon unboxing your Hot Pepper K82A, please ensure all the following items are present:
- Hot Pepper KR10 Smartphone
- USB Adapter
- USB-C Charging Cable
- User Manual
- SIM Ejector Tool
Image: Contents of the Hot Pepper K82A retail box.
3. Device Overview
Familiarize yourself with the physical components and ports of your Hot Pepper K82A smartphone.
Image: Hot Pepper K82A device overview, showing camera modules, side-mounted fingerprint sensor, and bottom ports.
- Main Camera: High-resolution rear camera.
- Wide-Angle Camera: For broader landscape shots.
- Depth Camera: Enhances portrait mode effects.
- AI Face Unlock: Front-facing camera for secure facial recognition.
- Fingerprint Sensor: Side-mounted for quick and secure unlocking.
- Built-in Microphone: For calls and voice recording.
- Type-C 2.0 Charger Port: For charging and data transfer.
4. Setup
4.1. Inserting SIM Card(s)
- Locate the SIM card tray on the side of your phone.
- Insert the SIM ejector tool into the small hole next to the tray and push gently until the tray pops out.
- Place your Nano-SIM card(s) and/or microSD card (if applicable) into the tray with the gold contacts facing down. Ensure they are correctly seated.
- Carefully push the tray back into the phone until it clicks into place.
4.2. Powering On/Off
- To Power On: Press and hold the Power button (usually on the right side) until the Hot Pepper logo appears.
- To Power Off: Press and hold the Power button until the power options appear on the screen, then tap "Power off".
- To Restart: Press and hold the Power button, then tap "Restart".
4.3. Initial Setup
The first time you power on your phone, you will be guided through an initial setup process:
- Select your preferred language.
- Connect to a Wi-Fi network.
- Review and accept the terms and conditions.
- Sign in with your Google account or create a new one.
- Set up screen lock (PIN, pattern, password, fingerprint, or face unlock).
- Restore data from a previous device (optional).
5. Operating Your Smartphone
5.1. Basic Navigation
- Tap: To select an item or open an app.
- Swipe: To scroll through screens or lists.
- Pinch: To zoom in or out on photos and web pages.
- Long Press: To access contextual menus or move icons.
5.2. Making Calls and Sending Messages
- Open the Phone app to dial numbers or access contacts.
- Open the Messages app to send and receive SMS/MMS.
5.3. Connecting to Networks
- Wi-Fi: Go to Settings > Network & internet > Wi-Fi to connect to available networks.
- Bluetooth: Go to Settings > Connected devices > Bluetooth to pair with other Bluetooth devices.
- Mobile Data: Ensure your SIM card is active and mobile data is enabled in Settings > Network & internet > Mobile network.
6. Camera Usage
Capture every moment with the Hot Pepper K82A's versatile AI Triple Camera system.

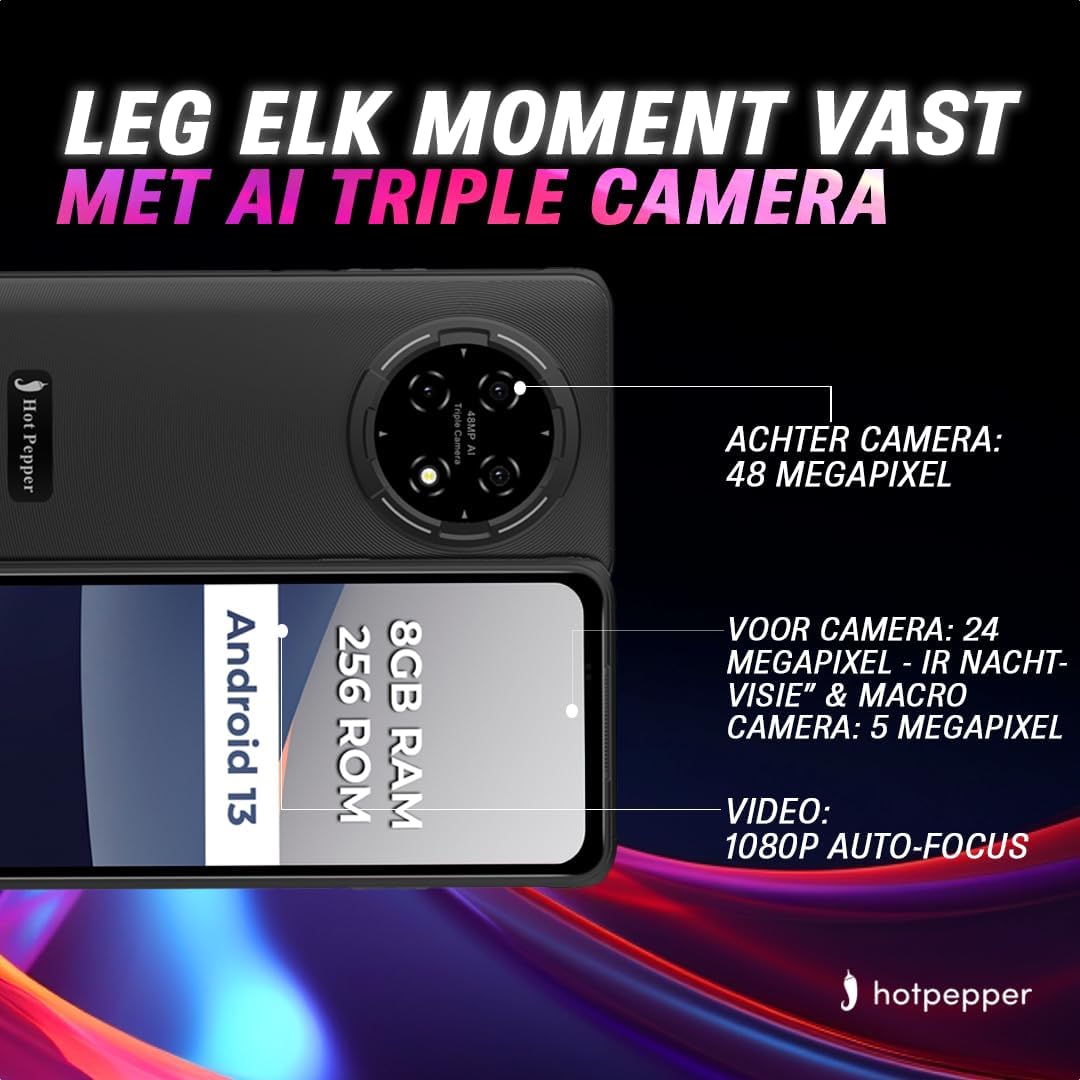

Image: Hot Pepper K82A camera specifications.
- Rear Camera: 48 Megapixels for high-resolution photos.
- Front Camera: 24 Megapixels, featuring IR Night Vision and Macro capabilities for detailed selfies and close-up shots.
- Macro Camera: 5 Megapixels for extreme close-up photography.
- Video Recording: Supports 1080p video with auto-focus.
To use the camera, open the Camera app. You can switch between photo and video modes, adjust settings, and select different lenses (e.g., wide-angle, macro) as available.
7. Battery Management
The Hot Pepper K82A is equipped with a 5000mAh battery designed for extended use. To optimize battery life and ensure proper charging:
Image: Hot Pepper K82A battery life and charging details.
- Charging: Use the provided 18W fast charger and USB-C cable for optimal charging speed.
- Expected Usage: Up to 24 hours call time, 14 hours web usage, 8 hours video playback, 7 hours gaming, and 660 hours standby time.
- Battery Saving Tips: Reduce screen brightness, disable unused features like Bluetooth or GPS, close background apps, and enable battery saver mode in settings.
8. Outdoor Features
The Hot Pepper K82A is built to withstand various outdoor conditions, making it an ideal companion for your adventures.
Image: Hot Pepper K82A outdoor durability features.
- Robust Design: Engineered for durability, suitable for various environments.
- GPS Signal: Integrated GPS for navigation and location services.
- IP68 Water and Dust Resistance: Protects against immersion in water and ingress of dust.
- Drop Resistance: Designed to withstand drops from up to 1.5 meters.
9. Specifications
Detailed technical specifications for the Hot Pepper K82A smartphone:
| Feature | Specification |
|---|---|
| Brand | Hot Pepper |
| Model Name | Hot Pepper K82A |
| Model Number | KR10 |
| Operating System | Android 13.0 |
| Screen Size | 6.78 Inches |
| Resolution | 1080 x 2400 |
| RAM Size | 8 GB |
| Storage Capacity | 256 GB |
| CPU Model | MediaTek Helio (Octa-Core) |
| Rear Camera Resolution | 48 Megapixels (Effective) |
| Front Camera Resolution | 24 Megapixels |
| Battery Composition | Lithium-ion (5000 mAh) |
| Connectivity | USB, 3.5 mm Jack |
| Cellular Technology | 5G |
| Special Features | Robust Body, Dual SIM, Expandable Memory, Water Resistant (IP68) |
| Color | Blue |
10. Maintenance
To ensure the longevity and optimal performance of your Hot Pepper K82A smartphone, follow these maintenance guidelines:
- Cleaning: Use a soft, lint-free cloth to clean the screen and body. Avoid abrasive materials or harsh chemicals.
- Software Updates: Regularly check for and install system updates to ensure your device has the latest features, security patches, and performance improvements. Go to Settings > System > System update.
- Storage Management: Periodically clear unnecessary files, uninstall unused apps, and transfer large media files to cloud storage or a computer to free up internal storage.
- Battery Care: Avoid extreme temperatures. Do not leave the phone fully charged or fully discharged for extended periods.
11. Troubleshooting
Here are solutions to some common issues you might encounter:
11.1. Device Not Turning On
- Ensure the battery is charged. Connect the phone to the charger for at least 15-30 minutes.
- Press and hold the Power button for 10-15 seconds to force a restart.
11.2. Screen Unresponsive
- Force restart the device (see above).
- If the issue persists, consider a factory reset (data will be lost, back up first).
11.3. Network Issues (No Signal/Wi-Fi)
- Toggle Airplane Mode on and off.
- Restart the phone.
- Check SIM card insertion.
- For Wi-Fi, restart your router.
11.4. Battery Draining Quickly
- Check battery usage in Settings > Battery to identify power-hungry apps.
- Reduce screen brightness and disable unnecessary features.
- Close background apps.
11.5. Factory Reset (Last Resort)
If your device experiences persistent software issues, a factory reset may be necessary. Warning: This will erase all data on your phone. Back up important data before proceeding.
- Go to Settings > System > Reset options.
- Tap Erase all data (factory reset).
- Confirm your decision and enter your PIN/password if prompted.
12. Warranty and Support
Your Hot Pepper K82A smartphone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including coverage duration and limitations.
For technical support, warranty claims, or further assistance, please visit the official Hot Pepper website or contact their customer service through the contact information provided in your product documentation.
