Introduction
This manual provides detailed instructions for the safe and effective use of your EBTOOLS 600A Peak Car Starter. This portable device is designed to jump-start vehicles with up to 5.0L gasoline or 2.0L diesel engines, charge mobile devices, and provide emergency lighting. Please read this manual thoroughly before operation and retain it for future reference.
Safety Information
WARNING: Improper use can result in injury, damage to the device, or damage to your vehicle. Always follow these safety guidelines.
- Keep the device away from children.
- Do not disassemble, modify, or attempt to repair the unit.
- Do not expose the device to fire, extreme heat, or direct sunlight for prolonged periods.
- Avoid contact with water or other liquids. The device is IP65 rated for dust and splash resistance, but not for submersion.
- Ensure proper polarity when connecting jumper cables to the vehicle battery. Reverse polarity can cause sparks and damage.
- Do not jump-start a frozen battery.
- Remove the jumper cables from the vehicle battery within 30 seconds after the vehicle starts.
- Use only the provided jumper cables and accessories.
- Operate in a well-ventilated area.
Package Contents
Verify that all items are present in your package:
- 1 x EBTOOLS Car Starter Unit
- 1 x Smart Jumper Cable with Clamps
- 1 x Storage Bag
- 1 x Instruction Book (This manual)
Image: The EBTOOLS Car Starter unit, smart jumper cables with red and black clamps, and a black zippered storage bag.
Product Overview
The EBTOOLS Car Starter is a compact and powerful portable battery designed for emergency vehicle starting and charging electronic devices. It features multiple protection technologies for safe operation.
Key Features:
- 600A Peak Current: Capable of starting vehicles with up to 5.0L gasoline or 2.0L diesel engines.
- 8000mAh Battery Capacity: Provides ample power for jump-starting and charging.
- USB Output Ports: Includes 1 x USB-A and 1 x USB-C port for charging smartphones, tablets, and other USB devices.
- Integrated LED Light: Features an LED flashlight with SOS and POS (strobe) functions for emergencies.
- Comprehensive Protection: Built-in over-current, short-circuit, overload, over-voltage, and over-charge protection.
- Durable Design: IP65 rated housing protects against dust and splashes.
Component Identification:
Image: Top view of the EBTOOLS Car Starter unit, showing its sleek, dark gray casing with textured accents.
Image: End view of the EBTOOLS Car Starter, highlighting the USB-A output port, the integrated LED flashlight, and the USB-C input/output port.

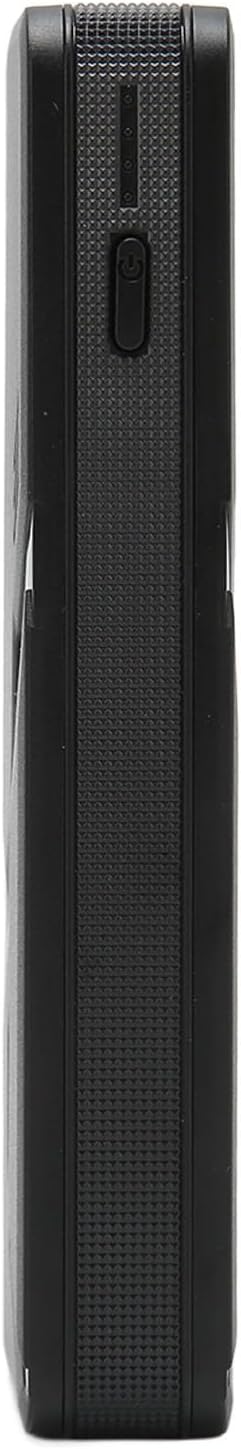

Image: Side view of the EBTOOLS Car Starter, showing the power button and textured side panel for grip.
Setup
Charging the Car Starter Unit:
- Before first use, fully charge the EBTOOLS Car Starter.
- Connect a USB-C charging cable (not included) to the USB-C input port on the car starter.
- Connect the other end of the USB-C cable to a suitable USB wall adapter (5V/2A recommended, not included).
- The LED indicator lights on the unit will illuminate to show the charging status. All lights will be solid when fully charged.
It is recommended to fully charge the unit every 3-6 months to maintain battery health, even when not in use.
Operating Instructions
1. Jump Starting a Vehicle:
IMPORTANT: Ensure the car starter unit is at least 75% charged before attempting to jump-start a vehicle.
- Turn off your vehicle's ignition and all accessories (radio, lights, AC).
- Connect the blue plug of the smart jumper cable to the jump-start port on the EBTOOLS Car Starter unit. Ensure a firm connection.
- Connect the red (+) clamp to the positive (+) terminal of your vehicle's battery.
- Connect the black (-) clamp to the negative (-) terminal of your vehicle's battery.
- Check the indicator lights on the smart jumper cable. A solid green light indicates a correct connection and readiness to start. If a red light or alarm sounds, check connections for reverse polarity or short circuit.
- Once the green light is solid, start your vehicle's engine.
- After the engine starts, immediately remove the black (-) clamp from the vehicle battery, then remove the red (+) clamp.
- Disconnect the smart jumper cable from the car starter unit.
Image: The EBTOOLS Car Starter unit with the smart jumper cable connected, showing the red and black clamps ready for battery connection.
Image: Another view of the EBTOOLS Car Starter and its jumper cables, emphasizing the connection point and cable design.
2. Charging Mobile Devices:
The car starter can act as a power bank for your electronic devices.
- Connect your device's charging cable to either the USB-A or USB-C output port on the car starter.
- The car starter will automatically begin charging your device.
- Disconnect your device once charging is complete.
3. Using the LED Light:
The integrated LED light has multiple modes for emergency situations.
- Press and hold the power button for approximately 3 seconds to turn on the LED flashlight.
- Press the power button briefly again to cycle through modes: Flashlight (steady on) > SOS (slow flash) > POS (fast strobe) > Off.
- To turn off the light directly from any mode, press and hold the power button for approximately 3 seconds.
Maintenance
- Store the car starter in its storage bag in a cool, dry place when not in use.
- Avoid storing the unit in direct sunlight or extreme temperatures.
- Recharge the unit every 3-6 months to maintain optimal battery performance and extend its lifespan.
- Clean the unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not start after jump-starting. | Low charge on car starter; incorrect connection; vehicle battery severely damaged; other vehicle issues. | Ensure car starter is fully charged. Check cable connections for correct polarity. If issues persist, consult a mechanic. |
| Smart jumper cable shows red light/alarm. | Reverse polarity; short circuit; vehicle battery voltage too low. | Disconnect immediately. Recheck connections for correct positive (+) and negative (-) terminals. Ensure clamps are not touching each other. |
| Car starter unit not charging. | Faulty charging cable or adapter; loose connection. | Try a different USB-C cable and wall adapter. Ensure connections are secure. |
| LED light not working. | Unit is off; low battery. | Ensure the unit is powered on. Recharge the unit if the battery is low. |
Specifications
| Feature | Specification |
|---|---|
| Model Number | EBTOOLSq9vzcg0ea5 |
| Battery Type | Built-in 8000mAh Lithium Battery |
| Starting Current | 300A |
| Peak Current | 600A |
| Start Output | 5V |
| Interface | USB-A Output, USB-C Input/Output |
| Operating Temperature | -20°C to +65°C |
| Engine Compatibility | Up to 5.0L Gasoline, 2.0L Diesel |
| IP Rating | IP65 (Dust and splash resistant) |
| Item Weight | 1.3 pounds (approx. 0.59 kg) |
| Package Dimensions | 7.87 x 4.72 x 2.76 inches (approx. 20 x 12 x 7 cm) |
Warranty Information
Specific warranty details for the EBTOOLS Car Starter are typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the retailer/manufacturer directly for information regarding warranty coverage, terms, and conditions.
Support
If you encounter any issues or have questions not covered in this manual, please contact the seller or manufacturer for assistance. You may find contact information on the product packaging, your purchase receipt, or the online product page where you purchased the item.
