Introduction
Thank you for purchasing the Eujgoov Multifunctional Rechargeable LED Working Light. This manual provides important information regarding the setup, operation, maintenance, and troubleshooting of your new work light. Please read this manual thoroughly before use to ensure proper function and longevity of the product.
This work light is designed for versatility, featuring a foldable and portable design, a magnetic base for easy attachment, and multiple lighting modes suitable for various outdoor activities and maintenance tasks.
Package Contents
- 2 x Rechargeable LED Work Lamp
- 2 x Charging Cable

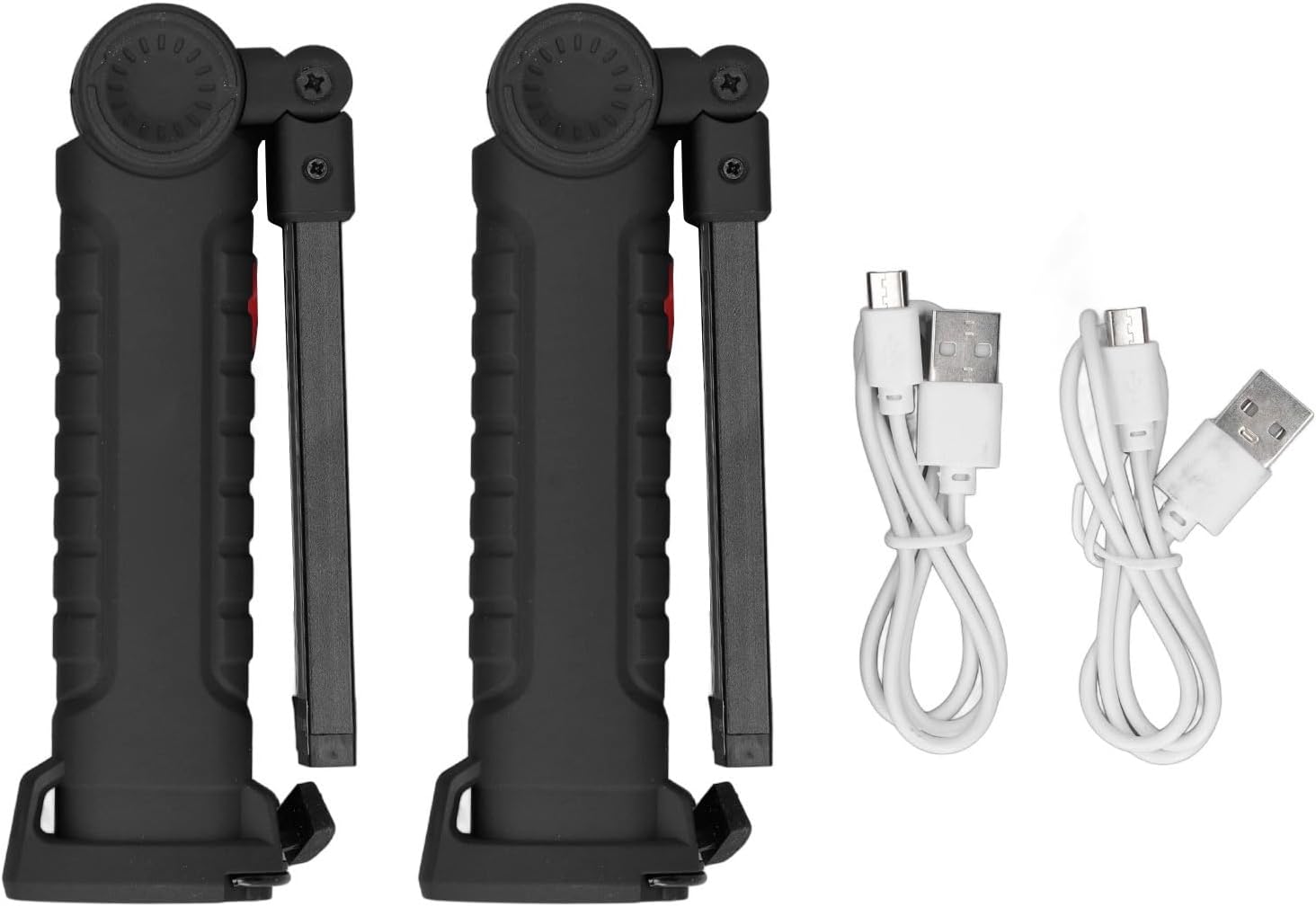

Image: The package contents, showing two black foldable LED work lights and their respective white USB charging cables.
Product Features
- COB LED Technology: Provides high-intensity illumination.
- Magnetic Base: Allows for easy attachment to metal surfaces for hands-free operation.
- Long-lasting Battery: Integrated rechargeable lithium battery (600 mAh) offers up to 3 hours of continuous use.
- Versatile Lighting Modes: Strong COB light, Low COB light, LED light, Red COB light, and Red COB flashing light.
- Adjustable Design: 360° rotation and 180° folding capability for flexible lighting angles.
- Powerful Magnetic Hook: Located at the bottom for convenient suspension.
Image: A side view of the work light in its folded position, highlighting the magnetic base at the bottom and the compact design.
Setup
Initial Charging
- Before first use, fully charge the work light.
- Locate the charging port on the work light (typically at the base).
- Connect the provided charging cable to the work light and a compatible USB power source (e.g., computer USB port, USB wall adapter).
- Allow the light to charge until the charging indicator (if present) shows a full charge, or for approximately 3 hours for a full charge.
A full charge provides approximately 3 hours of continuous use.
Operating Instructions
Powering On/Off and Mode Selection
The work light features a power button (often red) on its body. Press the button to cycle through the various lighting modes:
- First Press: Activates Strong COB Light mode.
- Second Press: Switches to Low COB Light mode.
- Third Press: Switches to LED Light mode (end of the arm).
- Press and Hold (3 seconds): Activates Red COB Light mode (for signaling or emergencies).
- Subsequent Press (after Red COB Light): Switches to Red COB Flashing Light mode.
- Next Press (after Red COB Flashing Light): Turns the light OFF.

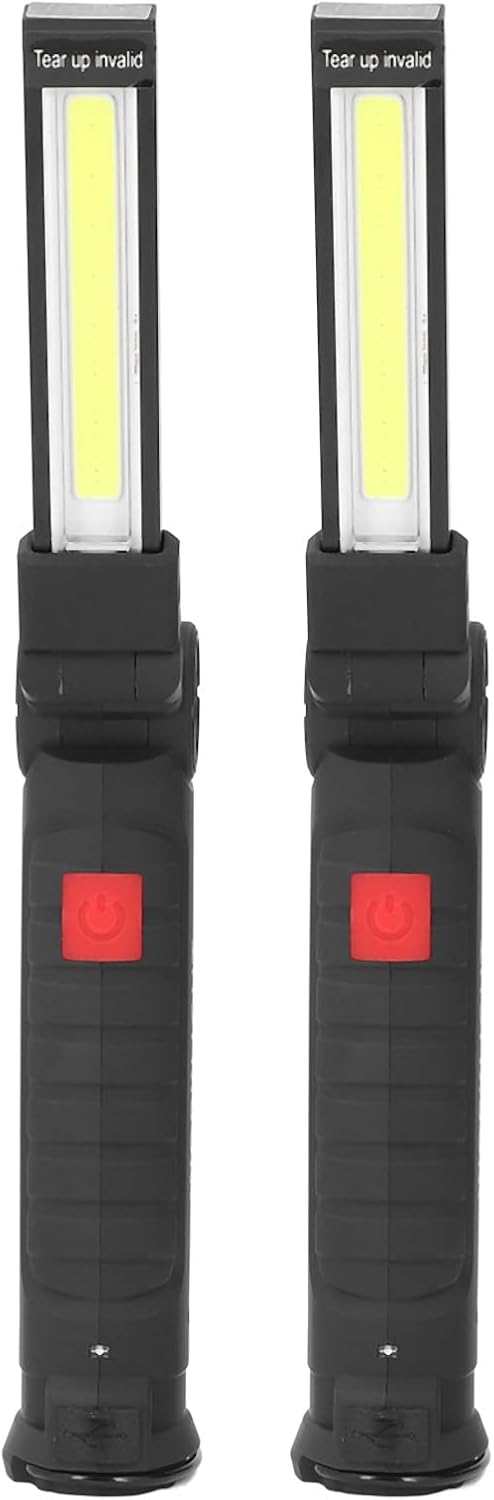

Image: Two work lights with their main COB light panels extended, illustrating the primary illumination source and the red power button.
Adjusting the Light Angle
The work light is designed with a 360° rotation and 180° folding capability. This allows you to direct the light precisely where needed.
- Gently pivot the light head to adjust the angle of the COB panel.
- Fold the light arm to change its orientation or for compact storage.

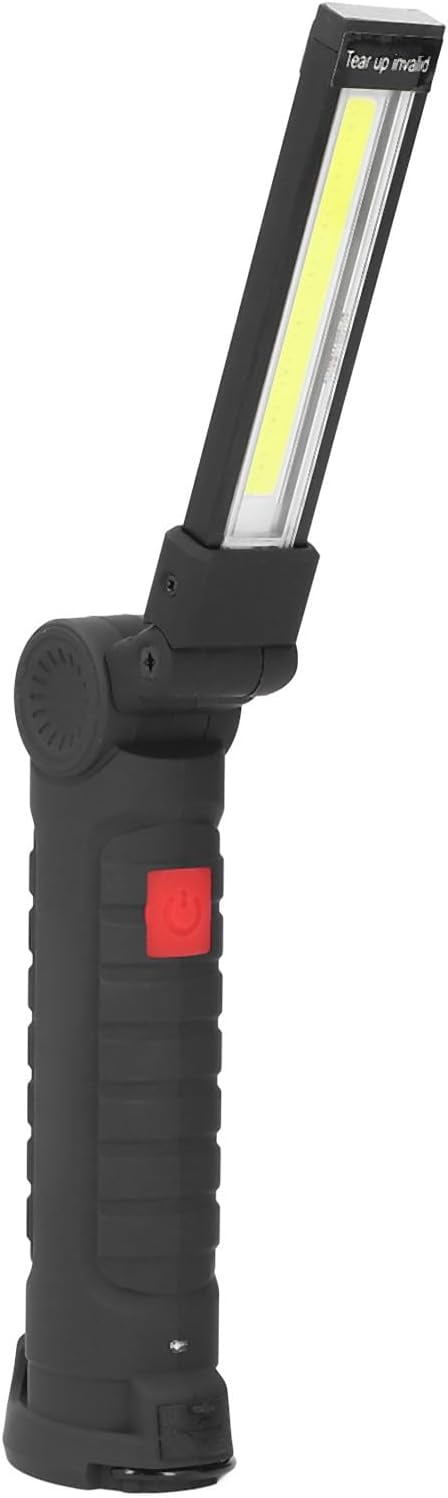

Image: A single work light shown with its arm fully extended and the COB light panel visible, demonstrating its adjustable nature.
Using the Magnetic Base and Hook
- Magnetic Base: The base of the work light contains a powerful magnet. Attach it to any ferrous metal surface for hands-free illumination.
- Magnetic Hook: A strong magnetic hook is integrated into the base. Pull it out and use it to hang the light from non-magnetic surfaces or objects.
Maintenance
- Cleaning: Wipe the surface of the work light with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the work light in a cool, dry place when not in use. Avoid extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge the light regularly, even if not in constant use.
- Avoid Water: While durable, this product is not specified as waterproof. Avoid submerging it in water or exposing it to heavy rain.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | Battery is depleted. | Charge the work light fully. |
| Light output is dim. | Low battery charge. | Recharge the work light. |
| Light does not charge. | Faulty charging cable or power source. | Try a different USB charging cable or power adapter. Ensure connections are secure. |
| Magnetic base not holding. | Surface is not ferrous metal or too thin. | Ensure the surface is made of a magnetic material and is thick enough to support the light's weight. |
Specifications
| Feature | Detail |
|---|---|
| Item Type | Rechargeable LED Work Lamp |
| Material | ABS and LED |
| Quantity | 2 packages (2 lamps) |
| Voltage | 3.7 V - 4.2 V |
| Power | 10 W |
| Brightness | 240 LM |
| Endurance (Battery Life) | 3 hours (continuous use) |
| Battery Type (per product) | Lithium battery (600 mAh) |
| Lighting Modes | Strong COB Light, Low COB Light, LED Light, Red COB Light, Red COB Flashing Light |
| Functions | White Light COB + LED, Red Light Warning, 360° Rotation, 180° Folding, Powerful Magnetic Hook |
| Item Weight | 9.9 ounces |
| Package Dimensions | 6.3 x 4.33 x 1.57 inches |
| Model Number | Eujgoov0phtvyrgon |
Warranty and Support
Warranty Information
Specific warranty details for this product are not provided in the product information. Please refer to the retailer's return policy or contact the manufacturer directly for warranty inquiries.
Customer Support
For further assistance, technical support, or questions regarding your Eujgoov Multifunctional Rechargeable LED Working Light, please contact Eujgoov customer service through their official channels or the retailer from whom you purchased the product.
You can visit the official Eujgoov store on Amazon for more information: Eujgoov Amazon Store
