Devoko 3x4m Garden Gazebo with LED Light Instruction Manual

1. Introduction

The Devoko 3x4m Garden Gazebo with LED Light is designed to provide a comfortable and protected outdoor space. It features a robust steel frame, UV50+ coated polyester fabric for sun protection, and an integrated LED lighting system for evening use. The double-roof design ensures ventilation while maintaining rain protection, offering a more comfortable experience. Its galvanized, rust-resistant alloys contribute to a longer product lifespan.

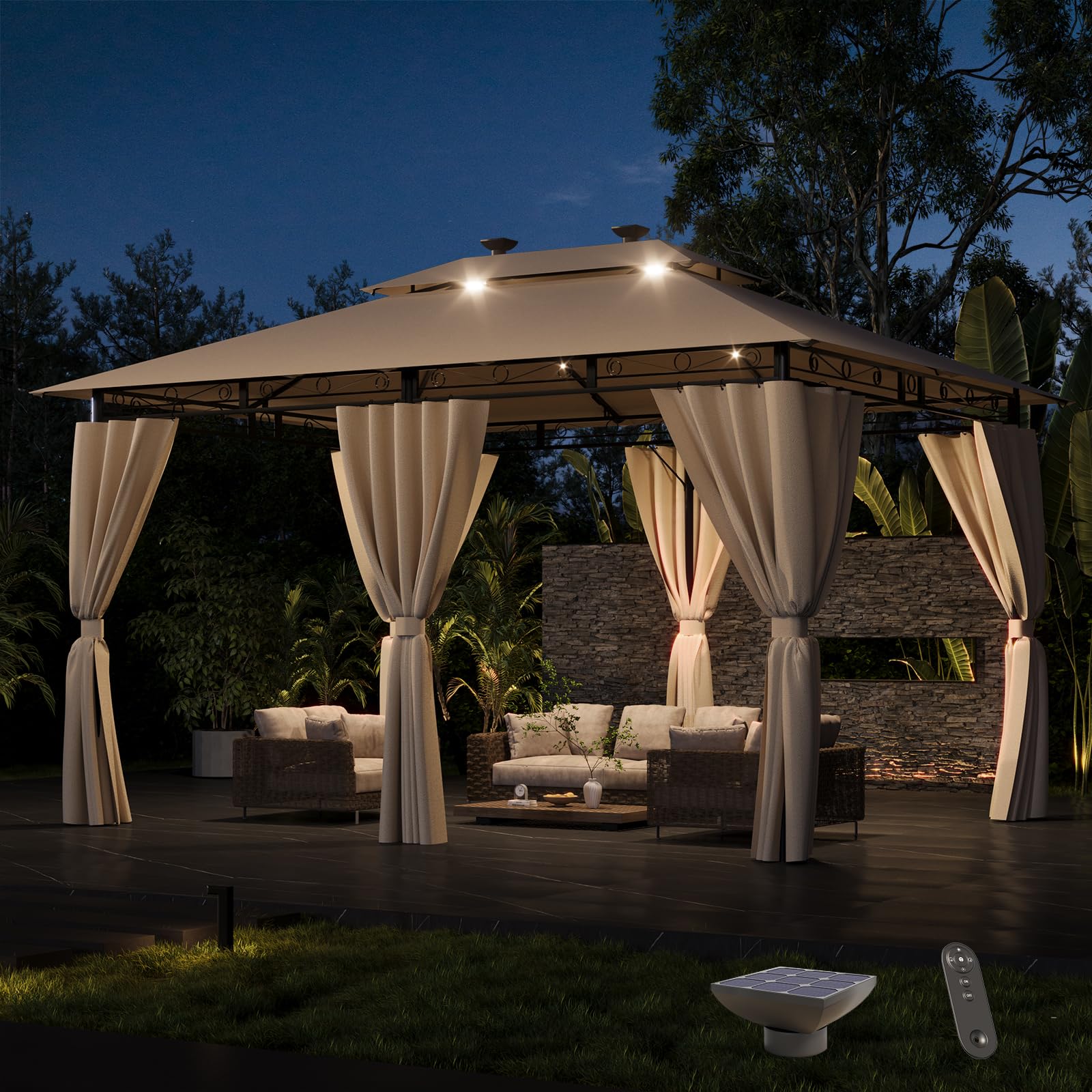

Image 1.1: The Devoko 3x4m Garden Gazebo in beige with LED lighting, set up in an outdoor environment.

2. Safety Information

Attention: Please read the installation instructions carefully before assembling the gazebo. Ensure the gazebo is placed on a stable surface and is sufficiently secured to prevent tipping. Observe weight restrictions and avoid using sharp objects or tools that could damage the fabric or frame. In adverse weather conditions such as strong winds or heavy snow, it is recommended to remove the canopy to prevent damage and ensure safety.

3. Package Contents

Before assembly, verify that all components listed below are present and undamaged. All parts are numbered for easy identification.

Image 3.1: An exploded view diagram illustrating all components included in the gazebo package, including frame parts, fabric, and accessories.

• Steel Frame Components (various poles and connectors)
• Main Roof Canopy (UV50+ coated polyester)
• Upper Roof Canopy (for ventilation)
• Side Curtains (removable)
• LED Lighting Unit with Solar Panel
• Remote Control for LED Lights
• Ground Stakes (8 thickened stakes)
• Assembly Tools (e.g., wrench, hex key)
• Instruction Manual

4. Setup and Assembly

Assembly of this gazebo typically requires two people. Follow the step-by-step instructions provided in the included manual. All parts are numbered to facilitate the assembly process. Ensure all connections are secure, especially the thickened metal legs and ground stakes, to guarantee stability against wind and rain. The tubular feet form a triangular structural connection with the roof, enhancing overall stability.

Image 4.1: Detailed view of the gazebo's stable steel frame, highlighting the 1.0mm thickness and the triangular structural connection for enhanced stability.

Assembly Steps:

1. Unpack all components and lay them out, verifying against the package contents list.
2. Assemble the main frame structure according to the numbered parts and diagrams in the manual.
3. Attach the roof canopies, ensuring they are taut and correctly positioned for proper water drainage and ventilation.
4. Install the LED lighting unit and connect it as per the instructions.
5. Attach the side curtains if desired, which offer additional privacy.
6. Secure the gazebo to the ground using the provided ground stakes.

5. Operating Instructions (LED Lights)

The integrated LED lighting system provides ambient illumination for your outdoor gatherings. It supports both solar energy and USB charging for convenience.

Image 5.1: The LED remote control and details on solar and USB charging for the gazebo's integrated lighting system.

Charging:

• Solar Panel: For optimal performance, ensure the solar panel receives 6-9 hours of strong sunlight. This provides approximately 4 hours of illumination.
• USB Charging: Connect the USB cable to a power source. Charging takes 5-7 hours. A green indicator light will illuminate when the battery is fully charged. The battery is designed to operate effectively above -15°C.

Remote Control Functions:

• On/Off: Use the dedicated buttons to turn the lights on or off.
• Timer: Set the lights to automatically turn off after 30 or 60 minutes.
• Brightness Adjustment: Choose from 5 levels of brightness to suit your ambiance needs.
• Automatic Operation: The system includes a 4-hour automatic runtime feature.

6. Maintenance

Proper maintenance will extend the life and appearance of your gazebo.

• Frame Inspection: Regularly inspect all frame connections and fasteners to ensure they remain tight. Tighten any loose bolts or screws.
• Cleaning Fabric: Clean the canopy and side curtains with mild soap and water. Avoid using harsh chemicals, abrasive cleaners, or stiff brushes, as these can damage the UV coating and fabric integrity. Allow fabric to air dry completely before storage.
• Rust Prevention: The frame is constructed from galvanized, rust-resistant alloys. However, to further prevent corrosion, keep the metal parts dry and clean. Address any scratches or chips in the paint promptly to prevent rust.
• Winter Storage: In regions with heavy snow or extreme cold, it is advisable to disassemble and store the canopy and curtains indoors to prevent damage.

Image 6.1: Detail of the gazebo's black metal posts, emphasizing the rust and corrosion-resistant coating for durability.

7. Troubleshooting

This section addresses common issues you might encounter.

• Stability Issues: If the gazebo feels unstable, ensure all frame parts are correctly assembled and tightened. Verify that the 8 thickened ground stakes are firmly secured to the ground. Check for uneven ground surfaces.
• LED Lights Not Working: Check if the solar panel has received sufficient strong sunlight for charging, or if the USB battery is fully charged (indicated by a green light). Ensure the remote control battery is functional and correctly inserted.
• Water Accumulation on Roof: The double-roof design is intended for ventilation and rain protection. If water pools, ensure the fabric is taut and correctly installed, allowing water to run off.
• Difficulty with Assembly: If you encounter difficulties during assembly, double-check the numbered parts against the instruction manual. Sometimes, parts may be oriented incorrectly. Assembly is easier with two people.

For any persistent installation or usage problems, please do not hesitate to contact customer support.

8. Specifications

Image 8.1: Visual representation of the gazebo's dimensions (400cm x 300cm x 285cm height) and package count (2 boxes).

9. Warranty and Support

Your Devoko Garden Gazebo is backed by a 30-day return policy and applicable legal guarantees. We are committed to providing excellent customer service.

• Returns: Enjoy a 30-day return period from the date of purchase.
• Legal Guarantees: The product is covered by standard legal guarantees.
• Customer Support: For any quality issues, installation assistance, or usage problems, please do not hesitate to contact our specialized customer support team. We strive to provide a proper resolution within 24 hours.

Contact information for customer support can typically be found on your purchase receipt or the seller's page.
