Introduction
This instruction manual provides essential information for the safe and correct assembly, operation, and maintenance of your Aoxun 12' x 16' Hardtop Gazebo. Please read this manual thoroughly before beginning assembly or use, and retain it for future reference.
Safety Information
Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Ensure all components are present and undamaged before assembly.
- Assembly requires a minimum of 2-4 people. Do not attempt to assemble alone.
- Wear appropriate safety gear, such as gloves, during assembly.
- Choose a level and stable surface for installation.
- Securely anchor the gazebo to the ground using the provided expansion screws.
- Do not hang heavy objects from the gazebo frame or roof.
- In extreme weather conditions (heavy snow, strong winds), it is recommended to remove curtains and netting, and if possible, disassemble the gazebo to prevent damage.
- Keep children and pets away from the assembly area.
Setup and Assembly
The assembly process typically takes 4-7 hours with a team of 2-4 people. Follow the detailed instructions provided in the separate assembly guide for step-by-step procedures. Below are key considerations for setup.
Site Preparation
Select a flat, stable area for your gazebo. Ensure adequate clearance around the structure for safe assembly and future use. The gazebo dimensions are approximately 19.7' L x 12.0' W x 10.0' H.
Frame Assembly
The gazebo features a sturdy aluminum frame designed for stability and durability. The frame components are coated with Interpon AkzoNobel powder for resistance against scratches, peeling, corrosion, and rust. Use the provided expansion screws to secure the frame components during assembly.
Roof Installation
The gazebo is equipped with a double galvanized steel roof. This design provides superior heat insulation and ventilation. Ensure all roof panels are securely fastened according to the assembly guide to withstand various weather conditions.
Operating Instructions
Your Aoxun Hardtop Gazebo offers multiple functionalities to enhance your outdoor experience.

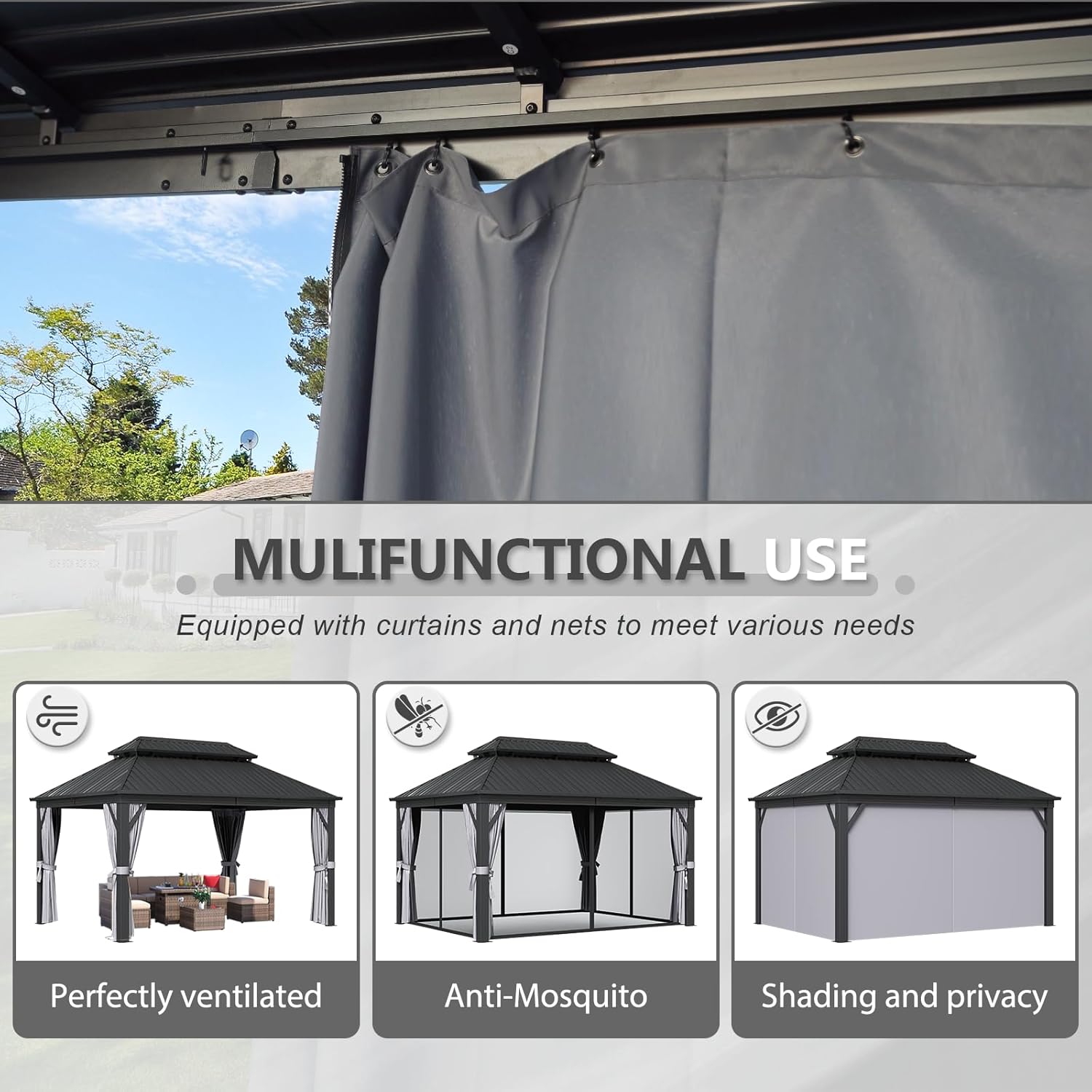

Mosquito Netting and Curtains
The gazebo includes an insect net to keep pests out, allowing for an enjoyable outdoor experience. The curtains provide privacy and can offer additional warmth or shade as needed. These can be easily opened or closed depending on your preference.
LED String Lights
The gazebo comes with energy-efficient LED string lights, including 15 sockets and 16 shatterproof bulbs (plus one spare). These lights have an IP65 waterproof rating, making them suitable for outdoor use in various weather conditions. They can be used with dimmer switches (sold separately) for adjustable lighting.
Ceiling Hooks
Three ceiling hooks are integrated into the gazebo structure, allowing for the hanging of fans, additional lights, or decorative items.
Maintenance
Regular maintenance will help prolong the life and appearance of your gazebo.
- Cleaning: Clean the aluminum frame and galvanized steel roof with a mild soap solution and water. Rinse thoroughly and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Fabric Care: The mosquito netting and curtains can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.
- Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary. Inspect the roof and frame for any signs of damage or wear.
- Weather Protection: The galvanized steel roof is rust- and fade-resistant and designed to withstand wind, rain, and snow. The gazebo also offers UV protection. However, in severe weather, it is advisable to take precautions as mentioned in the safety section.
Troubleshooting
This section addresses common issues you might encounter with your gazebo.
- Wobbly Frame: Ensure all frame connections are securely tightened. Verify that the gazebo is installed on a level surface and properly anchored.
- Leaking Roof: Check that all roof panels are correctly installed and sealed according to the assembly instructions. Inspect for any visible damage to the panels or seals.
- Curtains/Netting Not Sliding Smoothly: Inspect the tracks for any obstructions or debris. Ensure the curtain rings are not bent or damaged.
- LED Lights Not Working: Check the power connection and ensure the bulbs are securely screwed in. If using a dimmer, ensure it is compatible and functioning correctly. Inspect for any visible damage to the wiring.
If you encounter issues not covered here or require further assistance, please contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | Aoxun |
| Model Number | G30034+SL401BK02A-ZJ |
| Material | Aluminum Frame, Galvanized Steel Roof |
| Product Dimensions (L x W x H) | 190.94" x 143.7" x 119.69" (approx. 12' x 16' x 10') |
| Item Weight | 399 Pounds |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | 25 |
| Assembly Required | Yes (2-4 people recommended) |
| Color | Grey/Light |
| UPC | 799413422720 |
Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact Aoxun customer service. If you have questions, require replacement parts, or need technical assistance, please reach out to Aoxun customer support through the retailer where the product was purchased or visit the official Aoxun website.
