DYU Electric Bike User Manual

Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your DYU Electric Folding Fat Tire Bike. Please read this manual thoroughly before your first ride and keep it for future reference. Proper assembly and adherence to safety guidelines are crucial for your riding experience and longevity of the product.

The DYU Electric Folding Fat Tire Bike is equipped with a powerful 1000W peak brushless motor, a 48V 15.6Ah (748.8Wh) removable lithium battery, and 20-inch fat tires. It features a 7-speed gear system, hydraulic disc brakes, and dual suspension for a comfortable and controlled ride across various terrains.

Image: The DYU Electric Folding Fat Tire Bike, showcasing its robust frame and fat tires.

Setup and Assembly

Your DYU electric bike comes 85% assembled. The following steps detail the installation of the rear seat components, which are essential for passenger comfort and storage. Tools required include a spanner and a 7-in-1 multi-tool, both provided with your bike.

Components for Rear Seat Assembly:

• Rear Saddle
• Back Support & Storage Box
• Handle
• Rear Pedal (Footrest)
• Dress Guard
• Screws and Spanner/7-in-1 Tool

Installation Steps:

1. Install the Rear Saddle Base: Secure the metal plate to the rear rack using the provided screws and the 7-in-1 tool. Ensure it is tightened clockwise for a secure fit.
2. Attach the Rear Saddle: Place the rear saddle cushion onto the installed base. Align the mounting points and secure it firmly with the screws, tightening them with the spanner.
3. Install the Back Support & Storage Box: Attach the back support to the rear rack using the designated screws. Ensure the screws are fully tightened for stability. The storage box can then be attached to the back support.
4. Install the Handle: Secure the handle to the seat post using the provided screws and the 7-in-1 tool. Tighten clockwise until firm.
5. Install the Rear Pedals: Attach the rear pedals to the designated mounting points on the bike frame near the rear wheel. Use the provided screws and the 7-in-1 tool, tightening clockwise.
6. Install the Dress Guard: Secure the dress guard to the rear frame using the straps or fasteners provided, ensuring it covers the rear wheel spokes to prevent clothing entanglement.

Video: Detailed instructions for rear seat installation on the DYU Electric Bike.

Operating Your Electric Bike

The DYU Electric Bike offers multiple riding modes to suit your preference and terrain:

• Pure Electric Mode: Engage the throttle for full electric power, reaching speeds up to 28 mph. This mode is ideal for effortless cruising.
• Pedal-Assist Mode: The motor provides assistance as you pedal, making rides easier and extending battery range. This mode offers a balance of exercise and electric support.
• Cycling Mode (Manual): Ride the bike like a traditional bicycle, utilizing the 7-speed gear system for full manual control.

The bike's 1000W peak brushless motor provides strong climbing ability, allowing it to conquer slopes up to 35 degrees. The 48V 15.6Ah battery offers a substantial range, enabling longer rides.

Image: Illustration of the three riding modes: Pure Electric, Pedal Assist, and Cycling Mode.

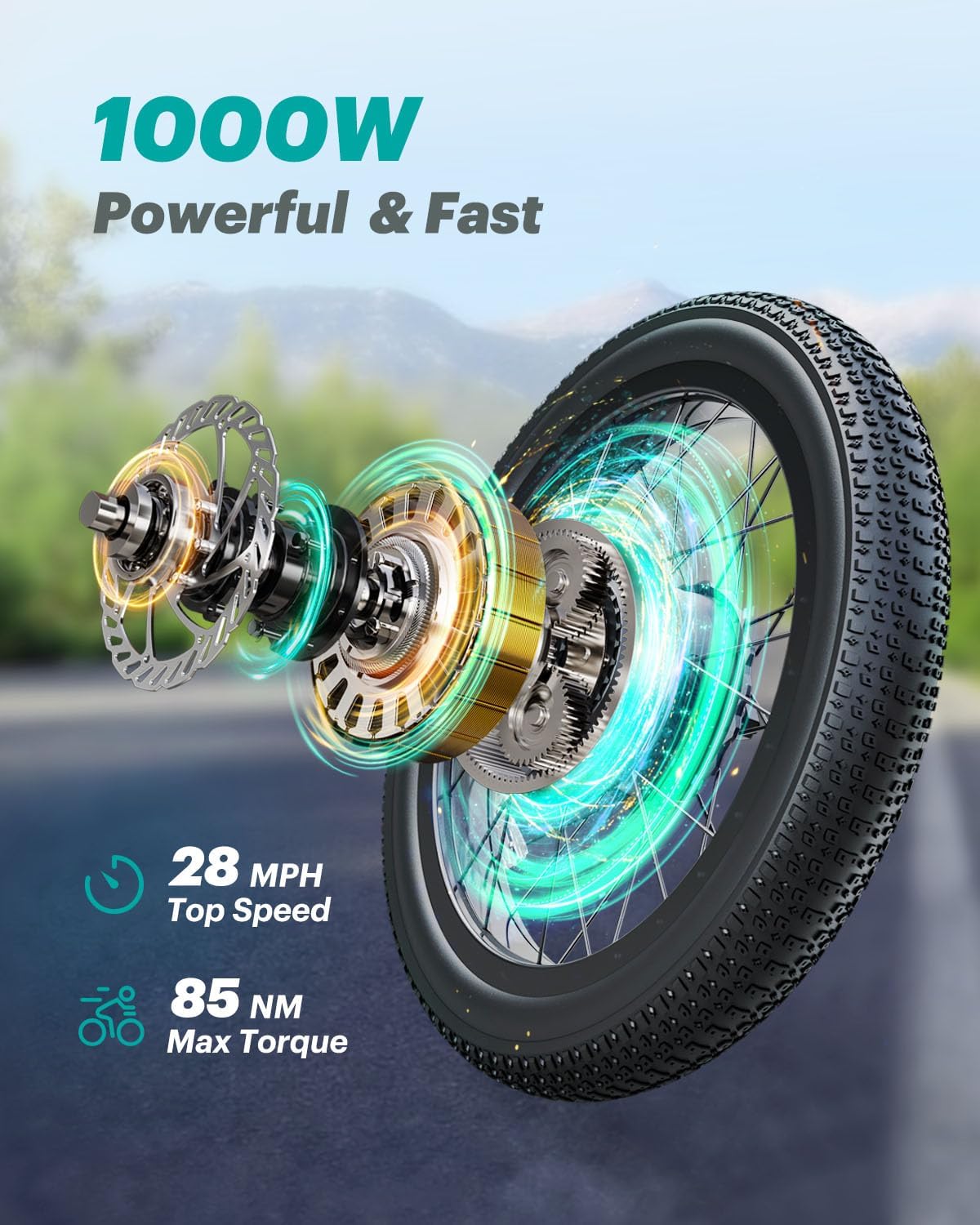

Image: Diagram highlighting the 1000W motor, 28 MPH top speed, and 85 Nm max torque.

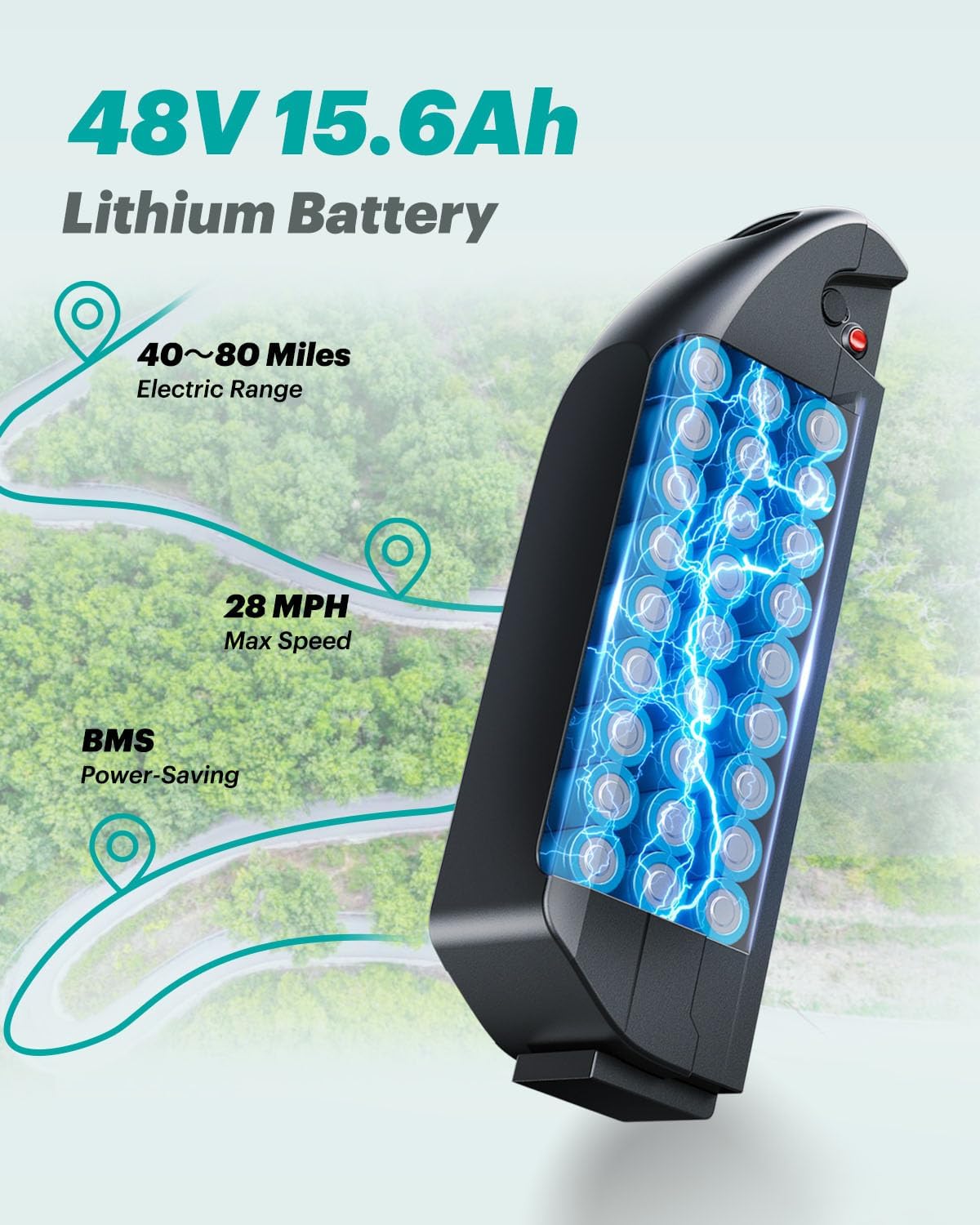

Image: Visual representation of the 48V 15.6Ah lithium battery, indicating 40-80 miles electric range and BMS power-saving features.

The bike is designed for various terrains, thanks to its 20x3 inch fat tires, providing stability and grip on different surfaces.

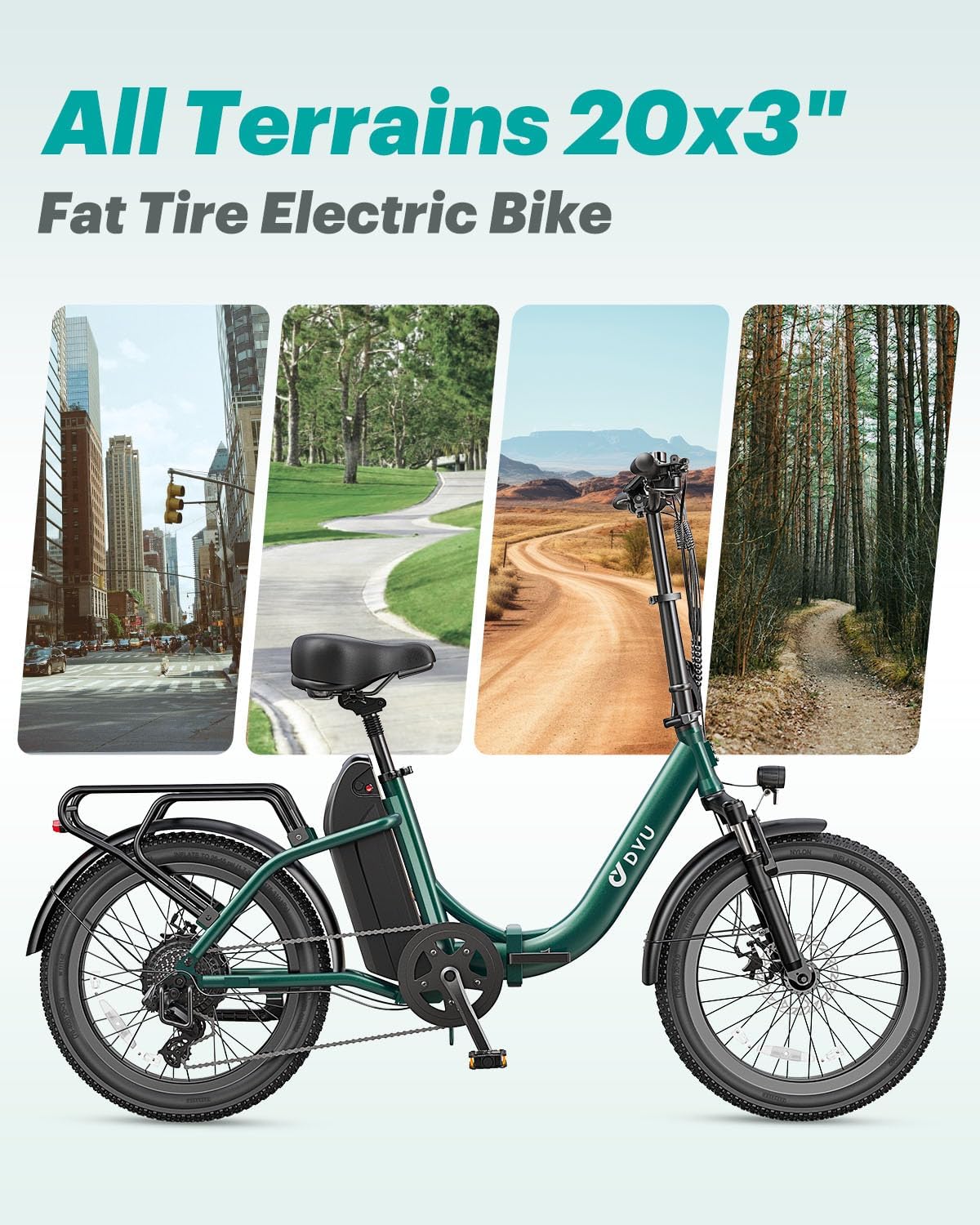

Image: The DYU Electric Bike shown in various environments, emphasizing its all-terrain capability.

For convenient storage and transport, the bike features a quick-fold mechanism.

Image: A person folding the DYU Electric Bike and placing it into a car trunk, demonstrating its quick-fold feature.

Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike. Perform these checks periodically:

• Tire Pressure: Check tire pressure before each ride. Maintain recommended PSI for optimal performance and safety.
• Brakes: Inspect brake levers and pads regularly. Ensure hydraulic disc brakes are responsive and free from excessive wear. Adjust or replace as needed.
• Battery Care: Charge the battery fully after each use. Avoid completely draining the battery. Store the bike and battery in a cool, dry place.
• Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• Fasteners: Periodically check all nuts, bolts, and quick-release levers to ensure they are securely tightened.
• Cleaning: Clean the bike with a damp cloth. Avoid high-pressure washing directly on electrical components.

Troubleshooting

If you encounter issues with your DYU Electric Bike, refer to the following common troubleshooting tips:

• Bike Not Powering On: Check if the battery is fully charged and properly seated. Ensure the power button on the battery or display is pressed.
• Motor Not Assisting: Verify that pedal-assist mode is selected and the pedal-assist sensor is clean and unobstructed. In pure electric mode, ensure the throttle is engaged and the battery has sufficient charge.
• Brakes Squealing or Ineffective: Inspect brake pads for wear and replace if necessary. Clean brake rotors. If hydraulic brakes feel spongy, they may need bleeding by a qualified technician.
• Unusual Noises: Check for loose components, rubbing parts (e.g., fenders against tires), or issues with the chain or gears.
• Reduced Range: Ensure tires are properly inflated. Riding in higher assist modes or against strong headwinds can reduce range. Battery health may also be a factor over time.

For persistent issues not resolved by these steps, please contact DYU customer support.

Specifications

Warranty and Support

Your DYU Electric Bike comes with a 30-day free return policy and a 1-year parts warranty. For any warranty claims, technical support, or inquiries, please contact DYU customer service through the retailer's platform or the official DYU website. Please retain your proof of purchase for warranty validation.
