KC Hilites Flex ERA® 4 - Single Master LED Light Pod Kit Instruction Manual

Introduction

The KC Hilites FLEX ERA® 4 - Single Master LED Light Pod Kit is a high-performance LED lighting solution designed for off-road adventures. This manual provides essential information for the proper installation, operation, and maintenance of your new light pod kit. Please read all instructions carefully before proceeding.

Key Features

• Type: Single Master Kit
• Manufacturer: KC Hilites
• Beam Pattern: Combo & Spot (interchangeable lenses included)
• Performance: 7,912 lumens, IP68-rated for durability
• Customization: Amber LED backlight, swappable bezels

What's in the Box

Your KC Hilites Flex ERA® 4 Single Master LED Light Pod Kit includes:

• 1 x KC Hilites FLEX ERA® 4 LED Light Pod
• Mounting Hardware
• Wiring Harness (if included in kit)
• Interchangeable Combo & Spot Lenses
• KC Covers for lens protection

Specifications

Setup and Installation

Proper installation is crucial for the performance and longevity of your KC Hilites Flex ERA® 4 LED Light Pod. If you are unsure about any steps, it is recommended to seek professional assistance.

Tools and Materials Required:

• Basic hand tools (wrenches, screwdrivers)
• Wire strippers and crimpers
• Electrical tape or heat shrink tubing
• Multimeter (for testing connections)
• Drill (if custom mounting is required)
• Safety glasses and gloves

Installation Steps:

1. Plan Mounting Location: Determine the optimal mounting location on your vehicle for the light pod, ensuring it does not obstruct vision or interfere with other vehicle components. Consider the beam pattern for desired light coverage.
2. Secure the Mount: Attach the provided mounting bracket to your chosen location using the supplied hardware. Ensure the mount is stable and securely fastened.
3. Attach Light Pod: Mount the Flex ERA® 4 LED Light Pod to the bracket. Adjust the angle as needed, but do not fully tighten until final aiming.
4. Wiring Connection:
   • Connect the positive (+) wire from the light pod to the positive terminal of your vehicle's battery, preferably through a fused relay and switch (not always included in single master kits, may require separate purchase).
   • Connect the negative (-) wire from the light pod to a suitable ground point on the vehicle chassis.
   • Ensure all connections are secure and insulated to prevent short circuits.
5. Install Switch (if applicable): If using a separate switch, install it in an accessible location within the vehicle cabin and connect it to the relay as per the switch's instructions.
6. Test Functionality: Before finalizing the installation, turn on the light pod to ensure it functions correctly.
7. Aim and Tighten: Adjust the light pod's aim for optimal beam pattern and coverage. Once satisfied, securely tighten all mounting hardware.
8. Apply KC Covers: When not in use, place the provided KC covers over the lenses to protect them from debris and damage.

Image: Close-up view of two KC Hilites Flex ERA 4 LED light pods, showcasing their robust design and bright illumination when mounted on a vehicle.

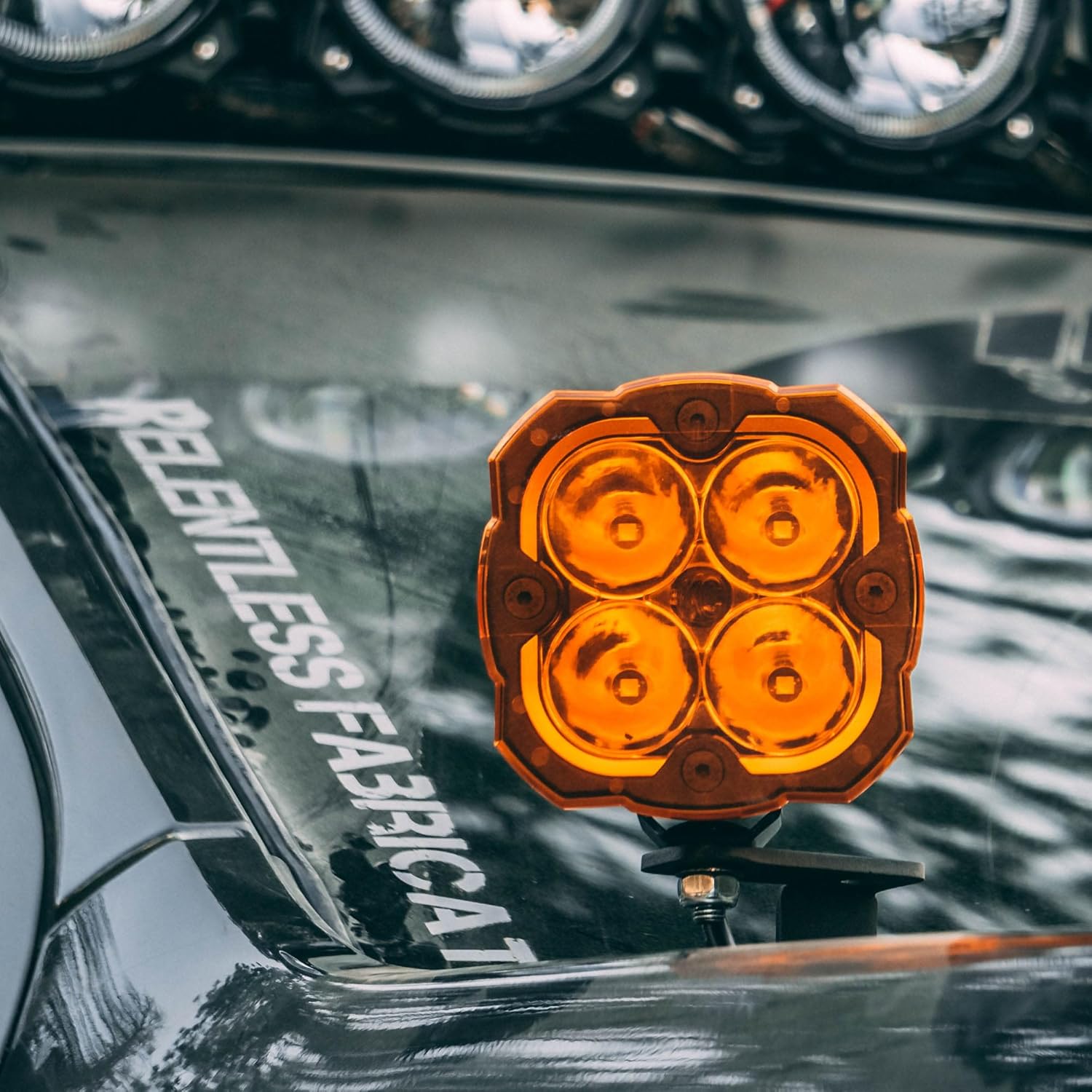

Image: A detailed view of a single KC Hilites Flex ERA 4 LED light pod featuring an amber lens, demonstrating the amber LED backlight and swappable bezel options.

Operating Instructions

The KC Hilites Flex ERA® 4 LED Light Pod is designed for straightforward operation.

1. Power On/Off: Activate the light pod using the installed switch. Ensure your vehicle's ignition is on if the lights are wired to an ignition-switched circuit.
2. Beam Pattern Adjustment: If your kit includes interchangeable lenses, you can swap them to change between Combo and Spot beam patterns as needed for different driving conditions. Refer to the lens replacement guide (if provided separately) for detailed instructions.
3. Amber Backlight: The amber LED backlight can be activated independently (if wired for separate control) for a distinctive look or as a daytime running light.

Maintenance

To ensure optimal performance and longevity of your KC Hilites Flex ERA® 4 LED Light Pod, follow these maintenance guidelines:

• Cleaning: Regularly clean the lenses with a soft cloth and mild soap and water. Avoid abrasive cleaners that could scratch the lens surface.
• Inspection: Periodically inspect all wiring connections for corrosion or damage. Ensure mounting hardware remains tight.
• Lens Protection: Use the provided KC covers when the lights are not in use or during vehicle washing to protect the lenses from impacts and harsh chemicals.
• IP68 Rating: While IP68-rated for dust and water resistance, avoid prolonged submersion or high-pressure washing directly on the light pods.

Troubleshooting

Warranty and Support

For information regarding product warranty, please refer to the official KC Hilites website or contact their customer support directly. Extended protection plans may also be available for purchase.

For technical support or inquiries, please visit the KC Hilites Support Page or contact their customer service team.

Application Examples

The versatile design of the Flex ERA® 4 LED Light Pod allows for various mounting and application scenarios on off-road vehicles.

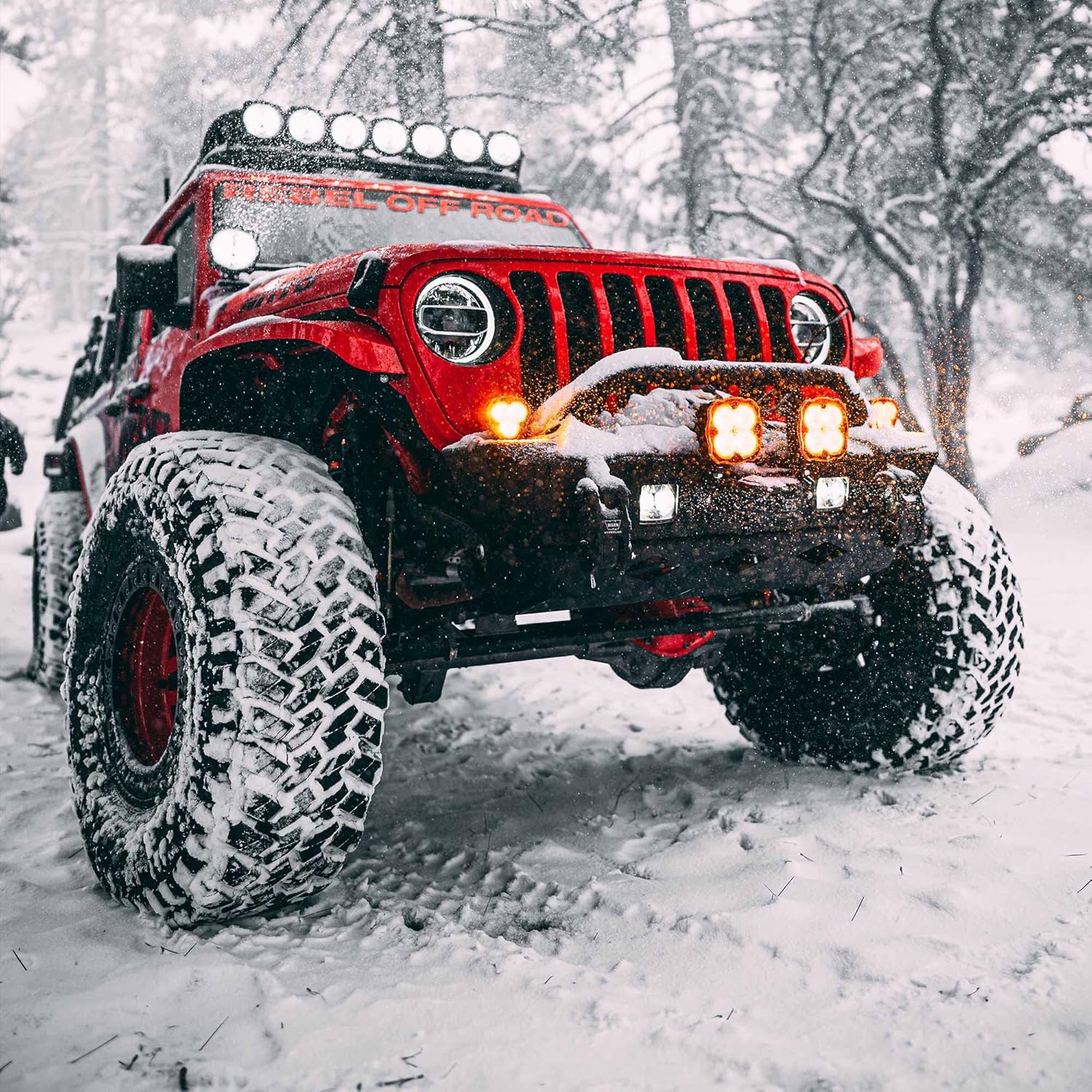

Image: A red Jeep Wrangler navigating a snowy terrain, illuminated by several KC Hilites Flex ERA 4 LED light pods mounted on its front bumper and roof rack, demonstrating their use in challenging conditions.

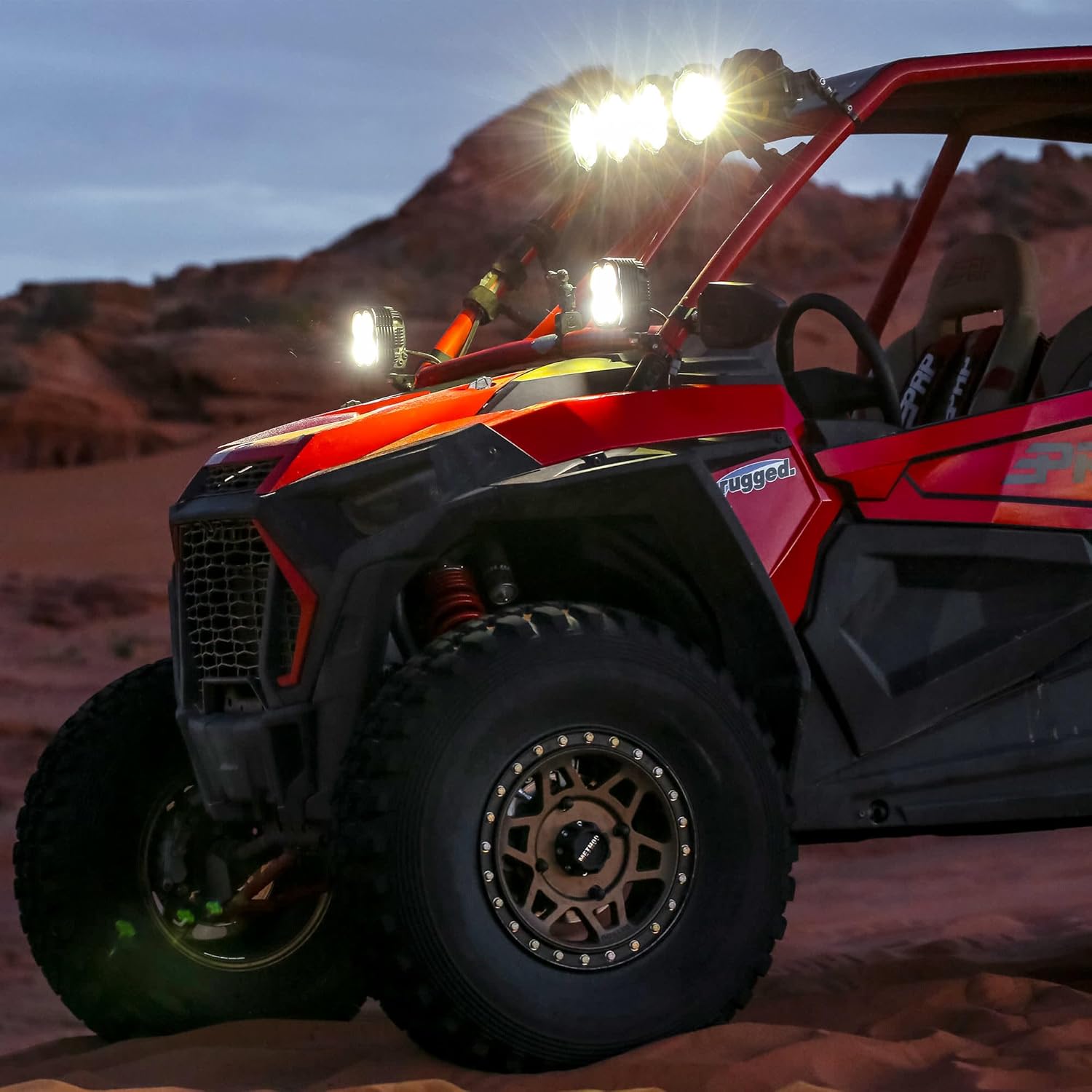

Image: A red UTV (Utility Terrain Vehicle) equipped with KC Hilites Flex ERA 4 LED light pods on its A-pillars and roof, providing enhanced visibility in a desert environment during twilight hours.

Image: A white Ford F-150 Raptor truck showcasing an extensive lighting setup with numerous KC Hilites Flex ERA 4 LED light pods mounted on its roof and front bumper, ideal for off-road night driving.

Image: A white off-road race truck in action on a dusty desert track, featuring KC Hilites Flex ERA 4 LED light pods on its roof and front bumper, highlighting their performance in high-speed off-road racing.
