1. Introduction
Thank you for choosing the LIVINGbasics 1000W Countertop Single Burner Electric Hot Plate. This appliance is designed to provide a convenient and portable cooking solution, ideal for various settings such as small kitchens, dorm rooms, offices, or as an extra cooking surface for entertaining. Please read this manual thoroughly before first use to ensure safe and efficient operation.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical hazards, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.
- This appliance has a safety mechanism that automatically cycles the heating element on and off to maintain the set temperature and prevent overheating. This is normal operation.
3. Product Overview
The LIVINGbasics Countertop Single Burner features a durable cast iron heating plate and intuitive controls for easy cooking.
- Cast Iron Heating Plate: A 7.28-inch diameter plate for efficient heat transfer.
- Temperature Control Knob: Adjusts heat settings from LOW to HIGH (5 levels).
- Power Indicator Light: Illuminates when the burner is active.
- Non-skid Rubber Feet: Ensures stability during use.
- Safety Plug: Standard electrical plug for safe connection.

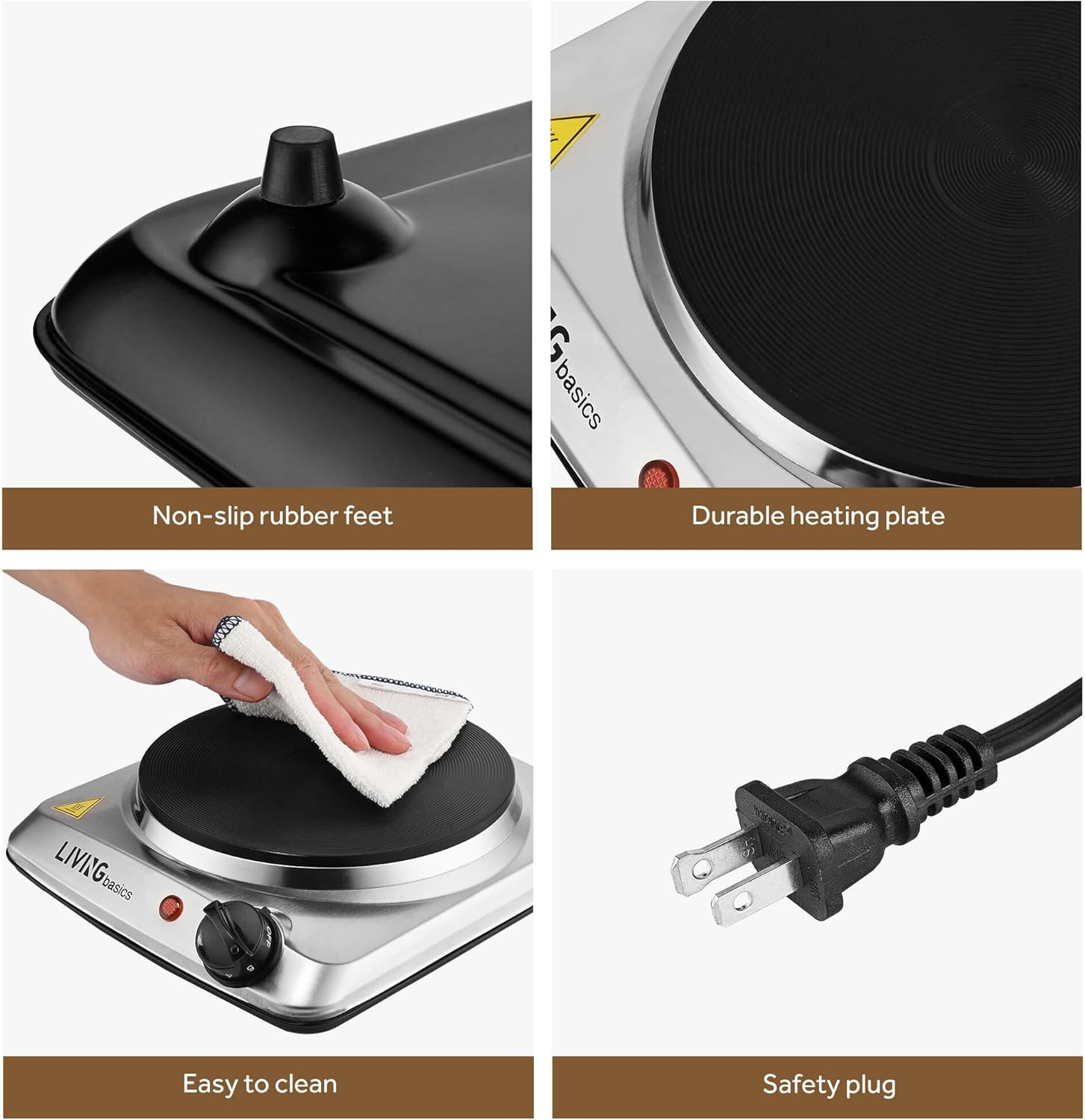

Figure 1: Key features of the LIVINGbasics Single Burner Hot Plate, including non-slip feet, durable heating plate, easy-to-clean surface, and safety plug.
Figure 2: Dimensions of the LIVINGbasics Single Burner Hot Plate, highlighting its compact size.
4. Setup
- Unpack: Carefully remove the hot plate from its packaging. Retain packaging for future storage or transport.
- Placement: Place the hot plate on a dry, level, and heat-resistant surface. Ensure there is adequate ventilation around the appliance. Do not place it directly on wood or other heat-sensitive materials without proper insulation.
- First Use Preparation: Before first use, operate the hot plate at its highest setting for approximately 3-5 minutes without any cookware. This will burn off any manufacturing residues and protective coating oil, which may produce a slight smoke or odor. This is normal and will dissipate after a few uses. Ensure the area is well-ventilated during this process.
- Power Connection: Plug the hot plate into a standard electrical outlet.
5. Operating Instructions
The LIVINGbasics hot plate offers versatile cooking with its adjustable temperature control.
- Place Cookware: Place your desired cookware (pot or pan) directly onto the cast iron heating plate. For best results, use flat-bottomed cookware with a diameter close to 7.28 inches.
- Adjust Temperature: Turn the temperature control knob to your desired heat setting. The knob offers 5 levels, from LOW to HIGH, allowing you to keep food warm, simmer, stir-fry, or boil water.
- Power Indicator: The red power indicator light will illuminate when the burner is active and heating. It will cycle on and off as the hot plate maintains the set temperature, indicating normal operation of the safety mechanism.
- Cooking: Monitor your cooking. The 1000 watts of power provide quick and consistent heat.
- Finish Cooking: Once cooking is complete, turn the temperature control knob to the "OFF" position. The power indicator light will turn off.
- Cool Down: Allow the hot plate to cool completely before cleaning or storing. The surface will remain hot for some time after use.
Figure 3: The 5-level temperature control knob allows for precise heat adjustment for various cooking methods.
Figure 4: The 1000W cooktop heats up quickly and cooks food evenly, suitable for frying, keeping food warm, boiling water, or soup.
Figure 5: The hot plate is compatible with all types of cookware and is portable for convenient use and storage.
6. Maintenance and Cleaning
Regular cleaning will help maintain the performance and appearance of your hot plate.
- Always Unplug: Ensure the hot plate is unplugged from the power outlet and completely cool before cleaning.
- Clean Heating Plate: The cast iron heating plate can be cleaned with a damp cloth or a non-abrasive sponge. For stubborn food residues, a mild detergent can be used. Rinse thoroughly with a damp cloth and dry completely.
- Clean Exterior: Wipe the exterior housing with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may scratch the surface.
- Do Not Immerse: Never immerse the hot plate, cord, or plug in water or any other liquid.
- Storage: Store the hot plate in a dry place when not in use.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Hot plate does not heat up. | Not plugged in; power outlet not working; temperature knob set to "OFF". | Ensure the hot plate is securely plugged into a working outlet. Check the circuit breaker. Turn the temperature knob to a desired heat setting. |
| Hot plate heats slowly. | Temperature setting is too low; cookware is not suitable; initial use residue burn-off. | Increase the temperature setting. Use flat-bottomed cookware that makes full contact with the heating plate. Slow heating can occur during the initial burn-off period (see Setup). |
| Smoke or odor during first use. | Protective coating burning off. | This is normal for the first few uses. Ensure good ventilation. The smoke/odor will disappear. |
| Hot plate cycles on and off. | Normal operation of the internal safety thermostat. | This is a safety feature to maintain the set temperature and prevent overheating. The indicator light will turn on when heating and off when maintaining temperature. |
| Exterior housing becomes very hot. | Normal heat transfer from the heating element. | The hot plate's body will get hot during operation. Always use the non-slip feet and place it on a heat-resistant surface. Avoid direct contact with the hot surface. |
8. Specifications
- Model: B0DX1LBLR3
- Brand: LIVINGbasics
- Power: 1000 Watts
- Heating Elements: 1
- Material: Cast Iron (heating plate), Metal (housing)
- Color: Silver
- Product Dimensions: 23D x 24.7W x 7.1H Centimetres (approximately 9.06D x 9.72W x 2.8H inches)
- Heating Plate Diameter: 7.28 inches (18.5 cm)
9. Warranty and Support
For warranty information or customer support, please refer to the product packaging or contact LIVINGbasics customer service directly. Keep your purchase receipt as proof of purchase.
