1. Introduction
The TopTes Guard-863Pro is a professional 4-in-1 multi-gas detector designed to monitor the presence of Hydrogen Sulfide (H₂S), Carbon Monoxide (CO), Combustible Gases (LEL), and Oxygen (O₂) levels. This device provides accurate and reliable detection, crucial for ensuring safety in various environments. This manual provides essential information for the proper setup, operation, and maintenance of your Guard-863Pro detector.
The detector features a fast 0.5-second response time and a continuous triple alarm system (sound, light, and vibration) to alert users to potentially hazardous gas concentrations. It is suitable for applications in industrial manufacturing, mining, agriculture, emergency rescue, and general home use.
Image 1.1: The Guard-863Pro 4-in-1 Gas Detector highlighting its large TFT display, certified reliability, explosion-proof design, fast charging, long battery life, and USB data export capabilities.
2. Product Overview and Features
The Guard-863Pro is equipped with high-quality sensors from DDS (UK) to ensure precise and dependable performance. Key features include:
- Multi-Gas Detection: Simultaneously detects H₂S, CO, LEL, and O₂.
- Fast Response Time: Provides readings within 0.5 seconds.
- Upgraded O₂ Sensor: Features an extended service life of up to 5 years.
- TFT Color Screen: Displays real-time gas data, concentration matrices, and trend curves for easy interpretation.
- Triple Alarm System: Alerts users with synchronized sound, light, and vibration.
- Durable Design: Dustproof, waterproof, and explosion-proof for demanding environments.
- Long Battery Life: Over 18 hours of continuous operation on a single charge.
- Fast Charging: Reaches full charge in approximately 2.5 hours.
- USB Data Export: Allows export of alarm records, fault logs, calibration records, and operation history.
- Portable Design: Includes a back clip for convenient carrying.
Image 2.1: The Guard-863Pro demonstrating its multi-gas detection capabilities for H₂S, CO, LEL, and O₂ with a rapid 0.5-second response time.
Image 2.2: An internal diagram illustrating the upgraded O₂ sensor, which offers a 5-year lifespan for reliable performance.
3. Package Contents
Upon opening the package, please verify that all the following items are included:
- 1x Guard-863Pro 4-in-1 Gas Detector
- 1x Packaging Box
- 1x User Manual (this document)
- 1x Charging Cable
- 1x Standard Gas Hood

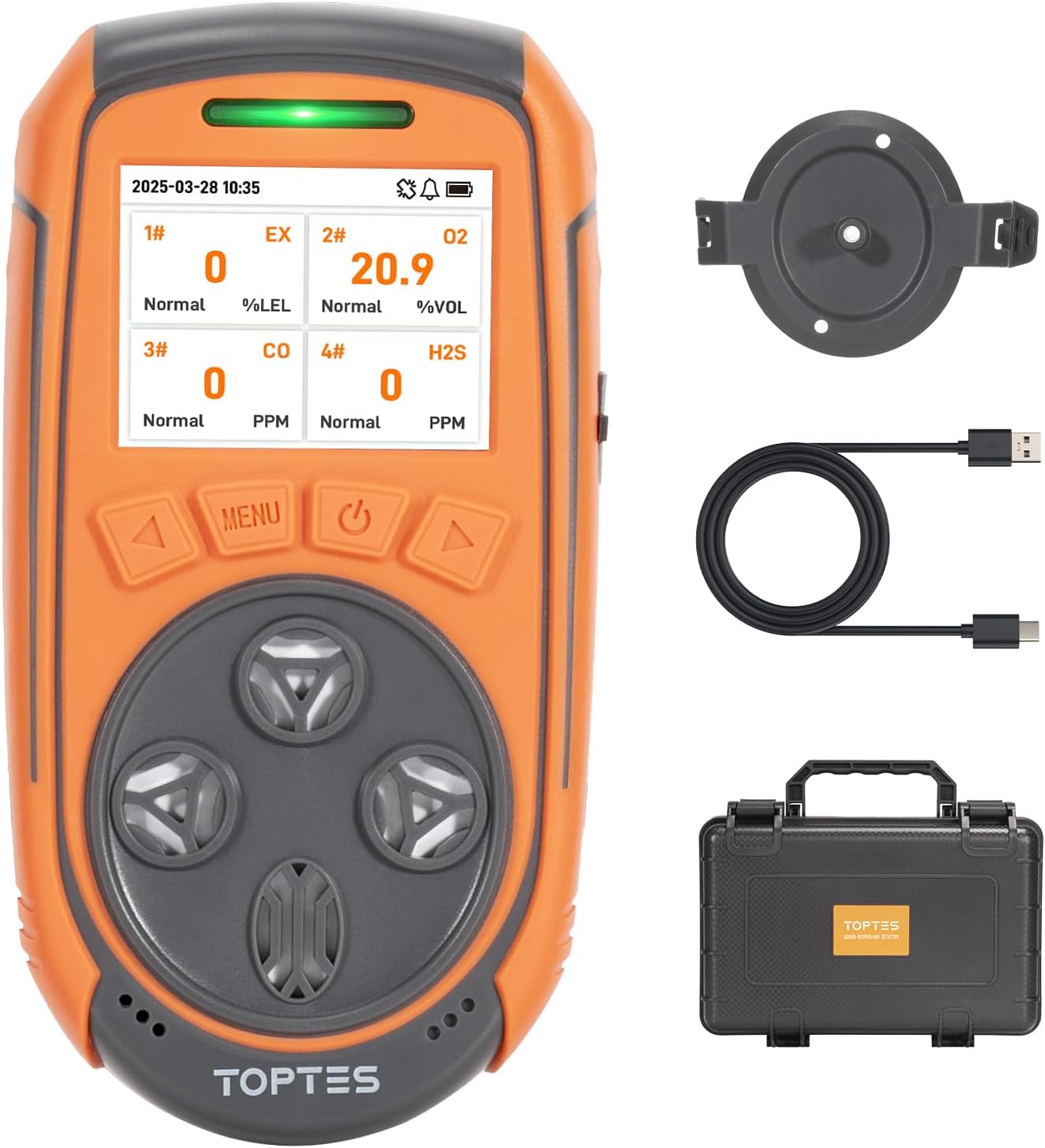

Image 3.1: All items included in the Guard-863Pro product package.
4. Setup
4.1 Initial Charging
Before first use, fully charge the Guard-863Pro detector. Connect the provided charging cable to the device and a suitable USB power source. A full charge typically takes approximately 2.5 hours. The device is equipped with a Lithium Ion battery.

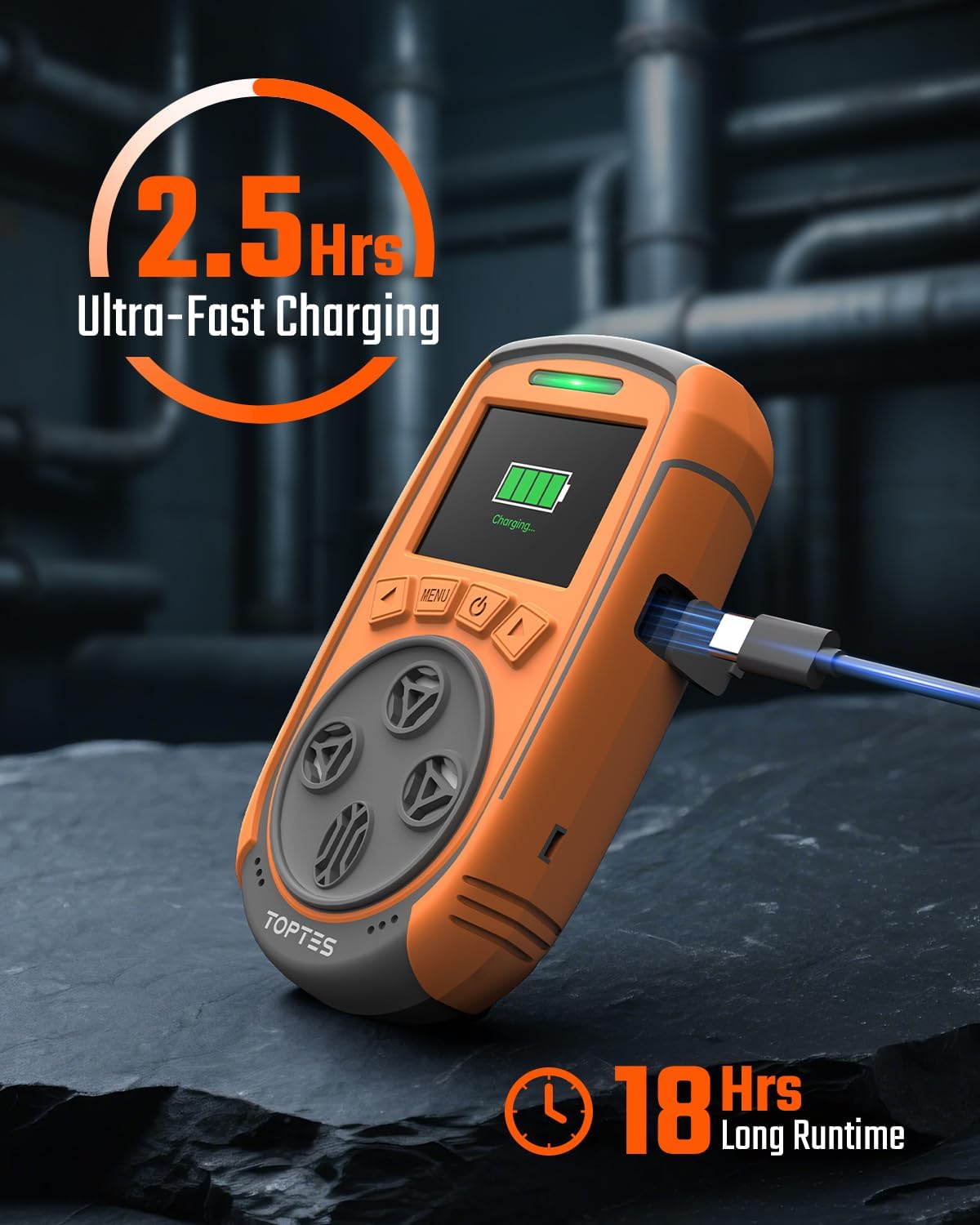

Image 4.1: The Guard-863Pro connected for charging, highlighting its 2.5-hour ultra-fast charging and 18-hour long runtime.
4.2 Powering On/Off
Refer to the device's on-screen prompts or the physical buttons for specific power-on and power-off procedures. Typically, a long press of the power button will initiate or terminate operation.
4.3 Initial Zeroing/Calibration
For accurate readings, it is recommended to power on the device in a fresh air environment to allow it to zero out its sensors. Consult the device's menu for options related to calibration. While the device is factory calibrated, periodic checks and recalibration are essential for maintaining accuracy, especially for professional use.
4.4 Carrying the Device
The Guard-863Pro features a back clip for easy attachment to clothing or equipment, allowing for convenient hands-free monitoring during work.
Image 4.2: The Guard-863Pro showcasing its portable back clip and robust design features.
5. Operation
5.1 Reading the Display
The TFT color screen provides clear, real-time data. It can display gas concentrations in various formats, including numerical readouts and graphical trend curves. Navigate through display modes using the device's menu buttons.

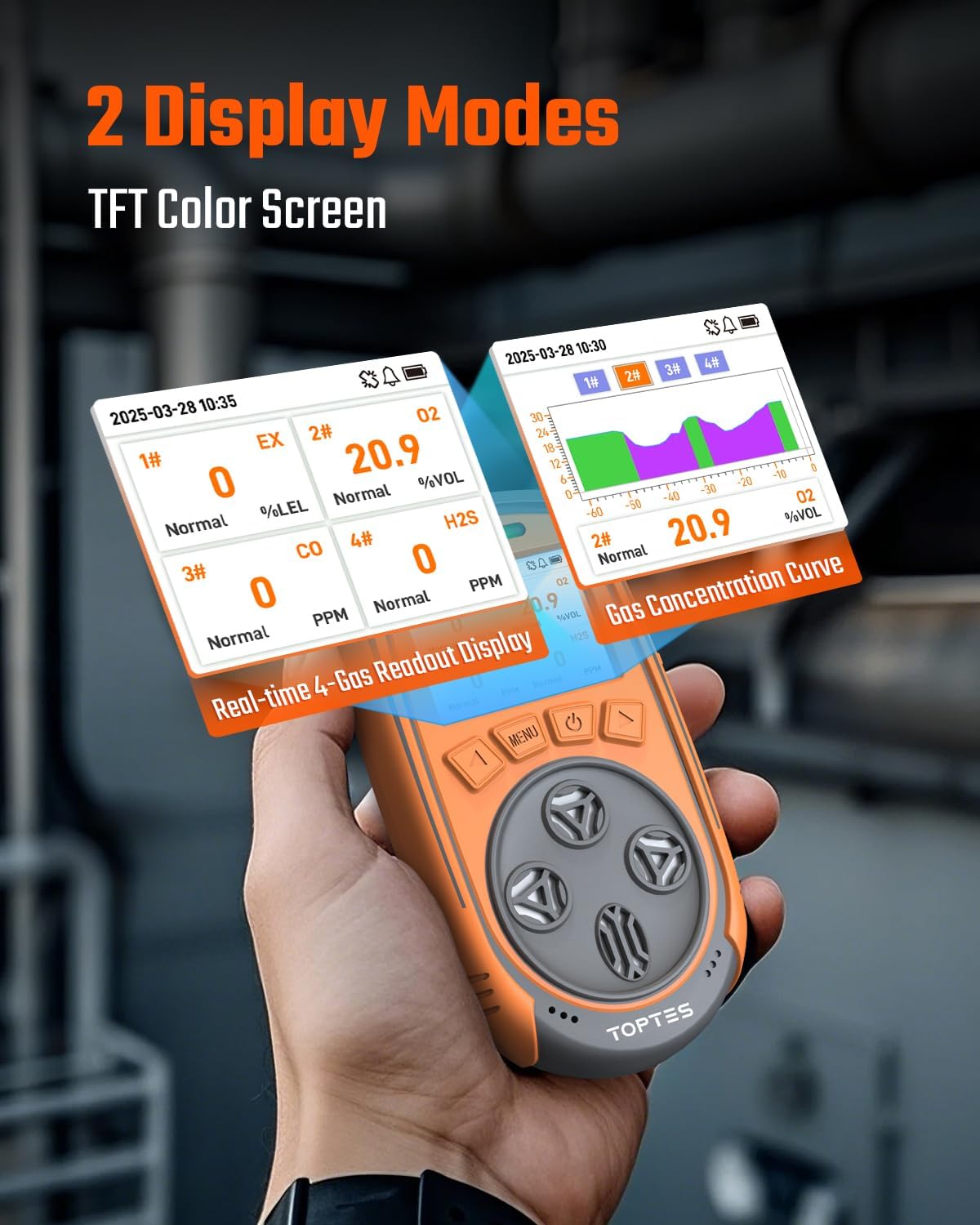

Image 5.1: The Guard-863Pro's TFT color screen showing two display modes: real-time gas readouts and a gas concentration curve.
Image 5.2: The multifunction menu on the TFT color screen, designed for easy viewing and interpretation of readings.
5.2 Alarm System
The device employs a triple alarm system:
- Audible Alarm: A loud sound alerts users to hazardous conditions.
- Visual Alarm: Flashing lights provide a clear visual warning.
- Vibrating Alarm: The device vibrates, useful in noisy environments or when worn on the body.
Alarms will continue until gas levels return to safe limits or are manually acknowledged, depending on settings.
5.3 Data Export
The Guard-863Pro supports USB data export. Connect the device to a computer using the provided charging cable to access and export stored data. This includes alarm records, fault logs, calibration records, and operation history, facilitating efficient tracking and analysis.
Image 5.3: The Guard-863Pro connected via USB for data export, showing a laptop screen with data analysis software.
The device can store over 16,000 alarm data records, providing a comprehensive history of detected events.
Image 5.4: The Guard-863Pro's display showing a list of stored alarm records.
6. Maintenance
6.1 Sensor Lifespan
The upgraded Oxygen (O₂) sensor has an estimated lifespan of up to 5 years. Other sensors may have different lifespans. Regular monitoring of sensor performance is recommended.
6.2 Cleaning and Storage
Keep the device clean and free from dust and debris. Use a soft, dry cloth for cleaning. Store the detector in its original packaging box or a protective case when not in use to prevent damage. Avoid exposing the device to extreme temperatures or direct sunlight for prolonged periods.
6.3 Calibration
While the Guard-863Pro is factory calibrated, periodic calibration is crucial to ensure continued accuracy and reliability, especially for professional and critical applications. Consult the device's menu for calibration options or refer to professional calibration services. The device has undergone stringent safety testing and holds certifications such as UL and FCC, along with calibration certificates.
Image 6.1: Certificates of Professional Recognition, including Calibration, UL, and FCC, for the Guard-863Pro.
7. Troubleshooting
7.1 False Alarms or Erroneous Readings
If the device provides unexpected alarms or readings, consider the following:
- Environment: Ensure the device was powered on and zeroed in a fresh air environment.
- Battery Level: Low battery can sometimes affect sensor performance. Ensure the device is fully charged.
- Sensor Obstruction: Check if the sensor inlets are clear of dust or debris.
- Recalibration: If issues persist, a recalibration may be necessary.
7.2 Device Not Powering On
Ensure the battery is fully charged. If the device still does not power on, contact customer support.
7.3 Data Export Issues
Verify that the USB cable is securely connected to both the device and the computer. Ensure the computer recognizes the device. If issues persist, try a different USB port or cable.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | Guard-863Pro |
| Detected Gases | H₂S, CO, LEL, O₂ |
| Response Time | 0.5 seconds |
| O₂ Sensor Lifespan | Up to 5 years |
| Display | TFT Color Screen |
| Battery Type | Lithium Ion |
| Battery Life | Over 18 hours (continuous operation) |
| Charging Time | Approx. 2.5 hours |
| Data Storage | Over 16,000 alarm records |
| Data Export | USB |
| Item Weight | 1.42 pounds (0.64 kg) |
| Package Dimensions | 8.35 x 6.26 x 3.11 inches |
| Certifications | UL, FCC, Calibration Certificate (ILAC-MRA) |
| Power Source | Battery Powered |
9. Warranty and Support
9.1 Warranty Information
The TopTes Guard-863Pro comes with a 36-month after-sale service warranty. Please retain your proof of purchase for warranty claims.
9.2 Customer Support
