1. Introduction
Thank you for choosing the ILM FP05 Full-Face Motorcycle Helmet. This manual provides essential information for the proper use, maintenance, and care of your helmet. Please read it thoroughly before use to ensure your safety and the longevity of the product. This helmet meets SG/PSC and DOT safety standards, designed for motorcycle use.
2. Product Features
The ILM FP05 helmet is engineered with advanced features to enhance comfort, safety, and convenience during your rides.
2.1. Ventilation System
The helmet features adjustable air vents on the forehead and rear. These vents can be opened or closed to regulate airflow, providing optimal ventilation inside the helmet and reducing stuffiness based on seasonal conditions and temperature.
Image: Front and rear air intake vents for improved airflow.
2.2. Removable Interior Lining
The inner pads are designed for easy removal and washing. This allows you to maintain a clean and hygienic helmet interior, especially after rides where sweat may accumulate. The soft interior provides both cushioning and a secure fit.
Image: Easily removable and washable interior lining for hygiene and comfort.
2.3. Reduced Wind Noise and Anti-Fog Features
A chin cover is integrated into the helmet to minimize wind ingress from below the chin and effectively reduce wind noise during riding. Additionally, strategically placed ventilation points help to reduce shield fogging, ensuring clear visibility.
Image: Chin cover and shield lock mechanism to reduce wind noise and secure the shield.
2.4. Intercom Compatibility
The helmet is designed with dedicated spaces around the ears for speakers and microphones, allowing for easy installation of intercom systems. This design reduces tightness and discomfort, enhancing the overall riding experience.
Image: Dedicated space for intercom speakers and microphone for easy integration.
2.5. Clear and UV-Cut Shield
The helmet comes equipped with a clear outer shield and an additional black outer shield, providing versatility for various light conditions. The shields offer UV protection and are designed to be durable and resistant to cracking. Pinlock 30 installation space is also provided for enhanced anti-fog performance.

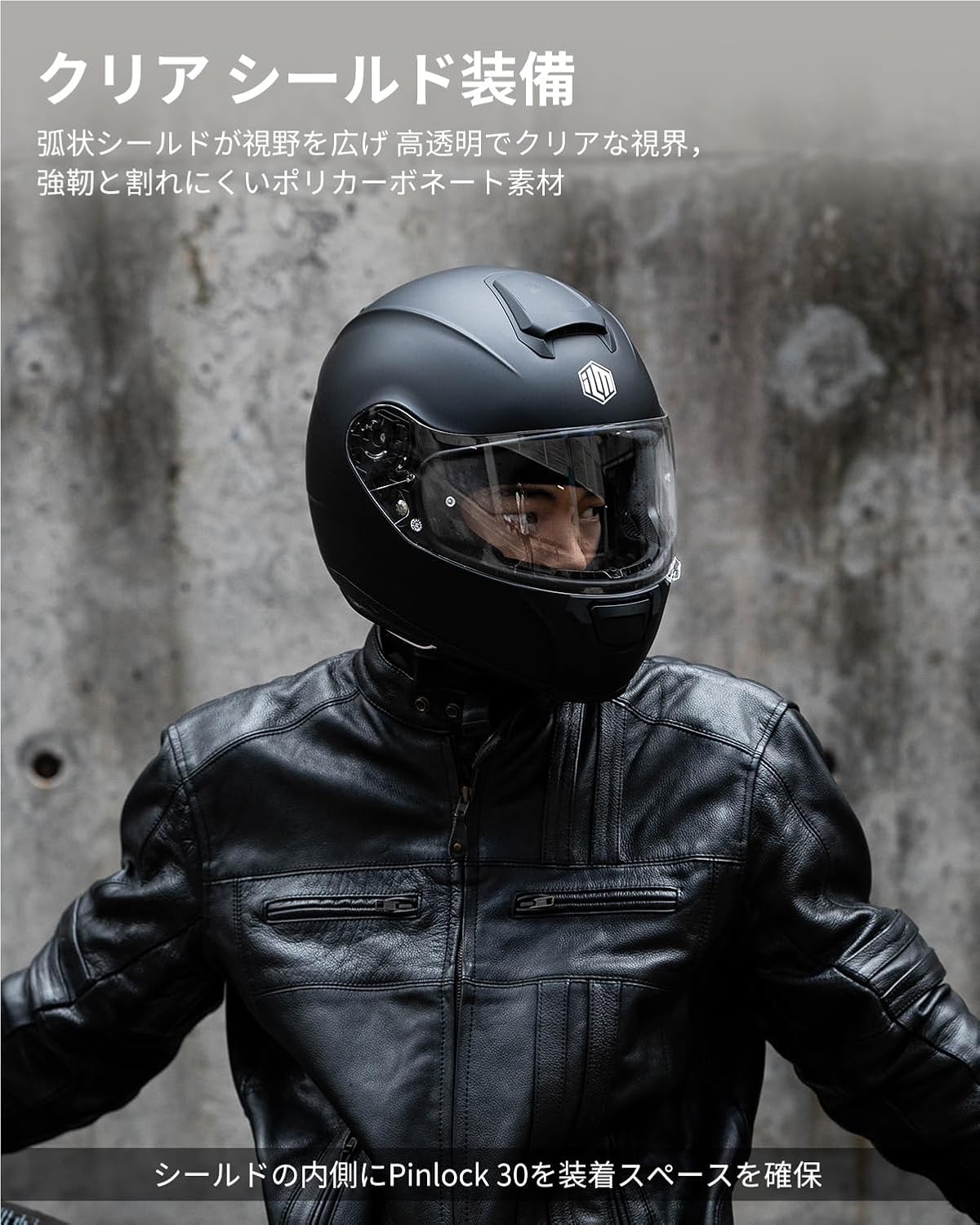

Image: Clear shield for wide, transparent vision, with space for Pinlock 30.
2.6. Helmet Construction
The helmet features a hybrid structure with an ABS resin outer shell and high-impact EPS (expanded polystyrene) foam on the inside. This construction ensures excellent shock absorption and head protection.
Image: Helmet construction with ABS resin shell and EPS foam for safety.
3. Setup and Fitting
3.1. Proper Helmet Fit
A correctly fitting helmet is crucial for safety. To determine your size, use a measuring tape to measure the circumference of your head, placing it above your eyebrows and around the widest part of the back of your head. Refer to the size chart below as a guide.
Image: Head measurement guide and size chart for ILM FP05 helmet.
| Size | Applicable Head Circumference (CM) |
|---|---|
| M | 57-58 |
| L | 59-60 |
| XL | 61-62 |
Sizing information is provided by the manufacturer and does not guarantee a perfect fit. Please use this chart as a guide only.
3.2. Chinstrap Adjustment
The helmet is equipped with a secure chinstrap system. To fasten, insert the male end into the female buckle until it clicks. To release, pull the red tab to disengage the magnetic lock. Ensure the strap is snug but comfortable, allowing for proper helmet retention.
Video: Demonstration of the chinstrap buckle operation for secure fastening and quick release.
4. Operation
4.1. Ventilation Control
The front and rear vents can be opened and closed by sliding the respective levers. Adjust them to control the amount of airflow through the helmet, optimizing comfort for different riding conditions.
4.2. Shield Operation
The outer shield can be easily raised and lowered. Ensure the shield is securely closed before riding to protect against wind, debris, and UV rays. The shield lock mechanism helps keep the shield stable during rides.
5. Maintenance
5.1. Cleaning the Exterior
Clean the helmet's exterior shell with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish. For the shield, use a dedicated helmet shield cleaner or mild soap and water, then dry with a soft, lint-free cloth.
5.2. Cleaning the Interior Lining
Remove the inner pads as described in Section 2.2. Hand wash them with mild soap and lukewarm water. Rinse thoroughly and allow them to air dry completely before reinserting them into the helmet. Do not machine wash or tumble dry.
6. Troubleshooting
If you encounter any issues with your helmet, please refer to the following common solutions:
- Fogging Shield: Ensure ventilation is open. Consider installing a Pinlock insert if available for your shield.
- Loose Fit: Recheck your head measurement against the size chart. Ensure the chinstrap is properly adjusted.
- Excessive Wind Noise: Ensure the chin cover is correctly installed and the shield is fully closed.
For persistent issues, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | ILM |
| Model Number | FP05 |
| Product Type | Full-Face Helmet |
| Color | Matte Black |
| Material | Plastic (ABS Shell) |
| Compatible Vehicle Type | Motorcycle |
| Included Components | Motorcycle helmet body ×1, Clear shield ×1, Black shield ×1, Instruction manual ×1 |
| Country of Origin | China |
| Safety Standards | SG/PSC, DOT |
8. Warranty and Support
8.1. Warranty Information
Our products come with a one-year warranty. While we strive for perfection in manufacturing, if you encounter any initial defects, please do not hesitate to contact us. We will respond promptly within 24 hours.
8.2. Customer Support
For any questions, concerns, or support needs regarding your ILM FP05 helmet, please contact our customer service team through the retailer's platform or visit the official ILM website for further assistance.
