SKIL PWR CORE 20 22-Inch Hedge Trimmer

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SKIL PWR CORE 20 22-inch Hedge Trimmer. Please read this manual thoroughly before using the tool and keep it for future reference.

The SKIL 20V Brushless 22-inch Hedge Trimmer is designed for trimming and shaping hedges, bushes, and shrubs. It features a brushless motor for efficient cutting, dual-action hardened steel blades for precise cuts, and a debris remover to manage clippings.

Important Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Always wear eye protection, hearing protection, and heavy-duty gloves when operating the hedge trimmer.
• Ensure the work area is clear of debris, children, and bystanders.
• Inspect the hedge trimmer for damage before each use. Do not operate if damaged.
• Keep hands and feet away from the cutting blades.
• Disconnect the battery pack before making any adjustments, changing accessories, or storing the tool.
• Do not operate the tool in wet conditions or in the presence of flammable liquids or gases.
• Maintain a firm grip with both hands on the trimmer handles during operation.
• Avoid overreaching. Maintain proper footing and balance at all times.
• Only use SKIL PWR CORE 20 batteries and chargers with this tool.

Package Contents

Your SKIL PWR CORE 20 22-inch Hedge Trimmer kit includes the following items:

• (1) SKIL 20V 22" Hedge Trimmer [HT2200B-00]
• (1) SKIL 20V 2.0Ah Battery [BY519701]
• (1) SKIL 20V 60W Charger [SC535801]
• (1) Debris Remover
• (1) Blade Sheath
• (1) EASYSTORAGE Bracket

Figure 1: All components included in the SKIL PWR CORE 20 22-inch Hedge Trimmer kit.

Setup

1. Charge the Battery: Before first use, fully charge the 20V 2.0Ah battery using the provided 20V 60W charger. Refer to the charger's instruction manual for detailed charging procedures.
2. Install the Debris Remover:

   Align the debris remover with the designated slots on the hedge trimmer body. Push firmly until it clicks into place. This accessory helps direct clippings away from the cutting area.



   Figure 2: The debris remover in action, clearing clippings from the cutting path.
3. Insert the Battery: Slide the charged battery pack into the battery port on the hedge trimmer until it locks securely. Ensure it is fully seated.
4. Remove Blade Sheath: Carefully remove the blade sheath from the cutting blades before operation. Store the sheath in a safe place for future use.

Operating Instructions

1. Starting the Trimmer:

   To start the hedge trimmer, depress the safety switch (usually located on the front handle) and then squeeze the trigger switch on the rear handle. Release the safety switch once the blades begin to move.

2. Stopping the Trimmer:

   Release the trigger switch to stop the hedge trimmer. The blades will stop moving shortly after the trigger is released.
3. Trimming Technique:
   • Hold the trimmer firmly with both hands.
   • Use a sweeping motion to cut through hedges.
   • For optimal results, cut small amounts at a time. The trimmer can cut branches up to 3/4-inch thick.
   • The dual-action hardened steel blades provide clean and precise cuts.


   Figure 3: Detail of the dual-action hardened steel blades designed for clean cuts.

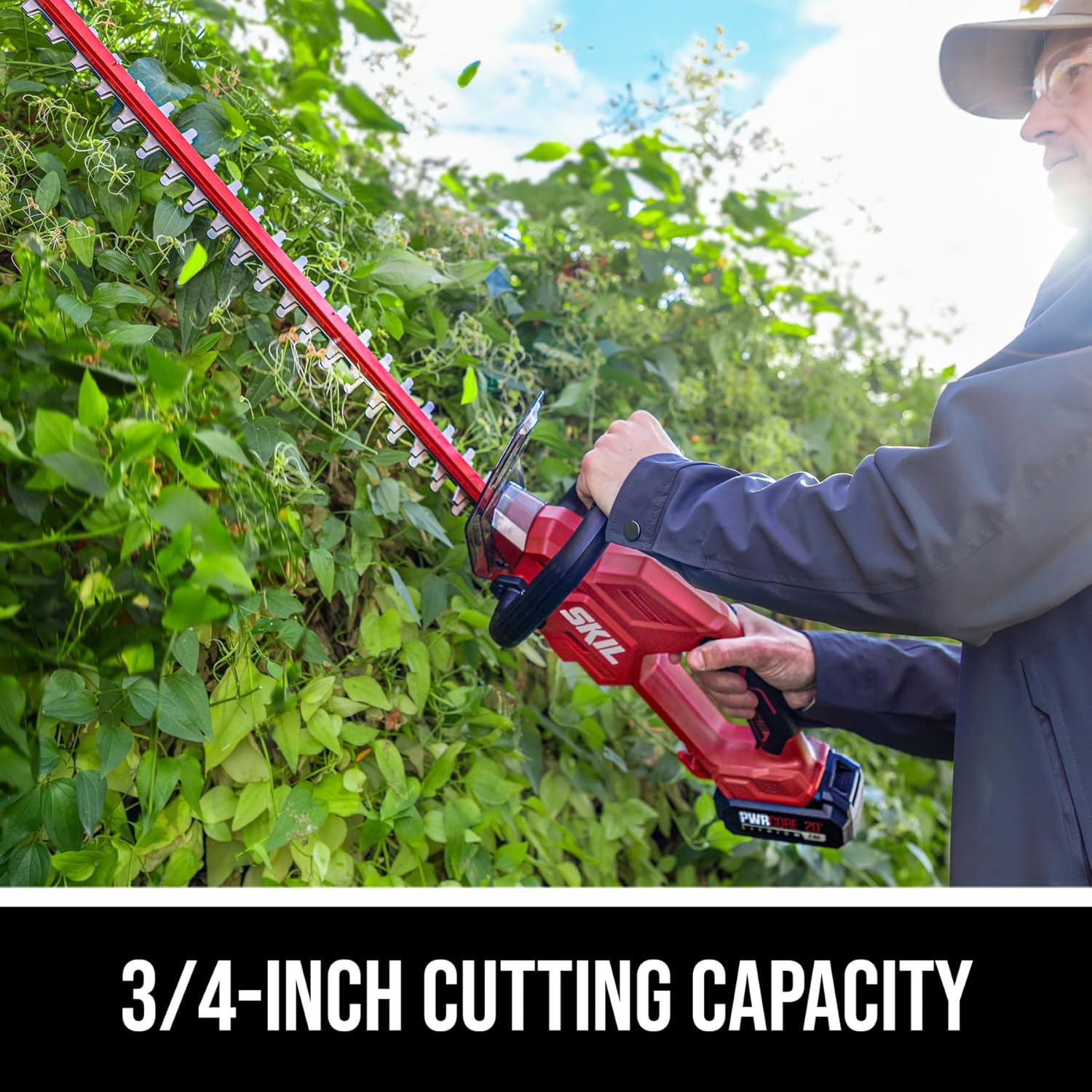

   Figure 4: The hedge trimmer's 3/4-inch cutting capacity allows for efficient trimming of thicker branches.
4. Brushless Motor Performance:

   The brushless motor delivers up to 3,000 strokes per minute (SPM), ensuring fast and efficient cutting performance.



   Figure 5: The brushless motor provides up to 3,000 SPM for quick and clean cuts.

Official Product Video:

Maintenance

• Blade Cleaning: After each use, disconnect the battery and carefully clean the blades with a stiff brush to remove sap and debris. Apply a light machine oil to the blades to prevent rust and ensure smooth operation.
• Battery Care: Store the battery in a cool, dry place away from direct sunlight. Do not store the battery fully discharged for extended periods.
• General Cleaning: Wipe down the tool's exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: When not in use, store the hedge trimmer in a secure, dry location, out of reach of children. Utilize the included EASYSTORAGE bracket for convenient and organized storage.

Figure 6: The EASYSTORAGE bracket provides a convenient solution for storing your SKIL tools.

Troubleshooting

Specifications

Warranty and Support

SKIL provides a limited warranty for its products. For detailed warranty information, including terms, conditions, and registration, please refer to the warranty card included with your product or visit the official SKIL website.

For technical assistance, replacement parts, or customer service inquiries, please contact SKIL customer support. Contact information can typically be found on the SKIL website or in your product packaging.

Online Resources: www.skil.com
