1. Introduction
Thank you for choosing the AEG XXL Hot Air Fryer AAF12B 8000. This multi-combo appliance is designed to provide a healthy and efficient way to prepare a variety of meals. With its generous 12-liter capacity and 1800W power, it is perfect for families and larger portions. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new appliance.
The AEG AAF12B 8000 features 5 versatile cooking modes, an intuitive LED display, and includes functions such as air frying, baking, reheating, dehydrating, and rotisserie cooking. Many parts are dishwasher safe for easy cleaning.
Figure 1: Front view of the AEG XXL Hot Air Fryer AAF12B 8000.
2. Setup and First Use
2.1 Unpacking
- Carefully remove the appliance and all accessories from the packaging.
- Retain the packaging for future storage or transport.
- Check that all components are present and undamaged. Refer to the 'Accessories' section for a list of included items.
2.2 Initial Cleaning
- Before first use, wipe the main unit with a damp cloth.
- Wash all removable accessories (e.g., frying basket, racks, rotisserie skewer, drip tray) with warm soapy water or in a dishwasher. Rinse thoroughly and dry completely.
2.3 Placement
- Place the appliance on a stable, heat-resistant, and level surface.
- Ensure there is adequate space (at least 10 cm) around the appliance for proper ventilation. Do not place it against a wall or under cabinets.
- Do not place the appliance near flammable materials or heat sources.

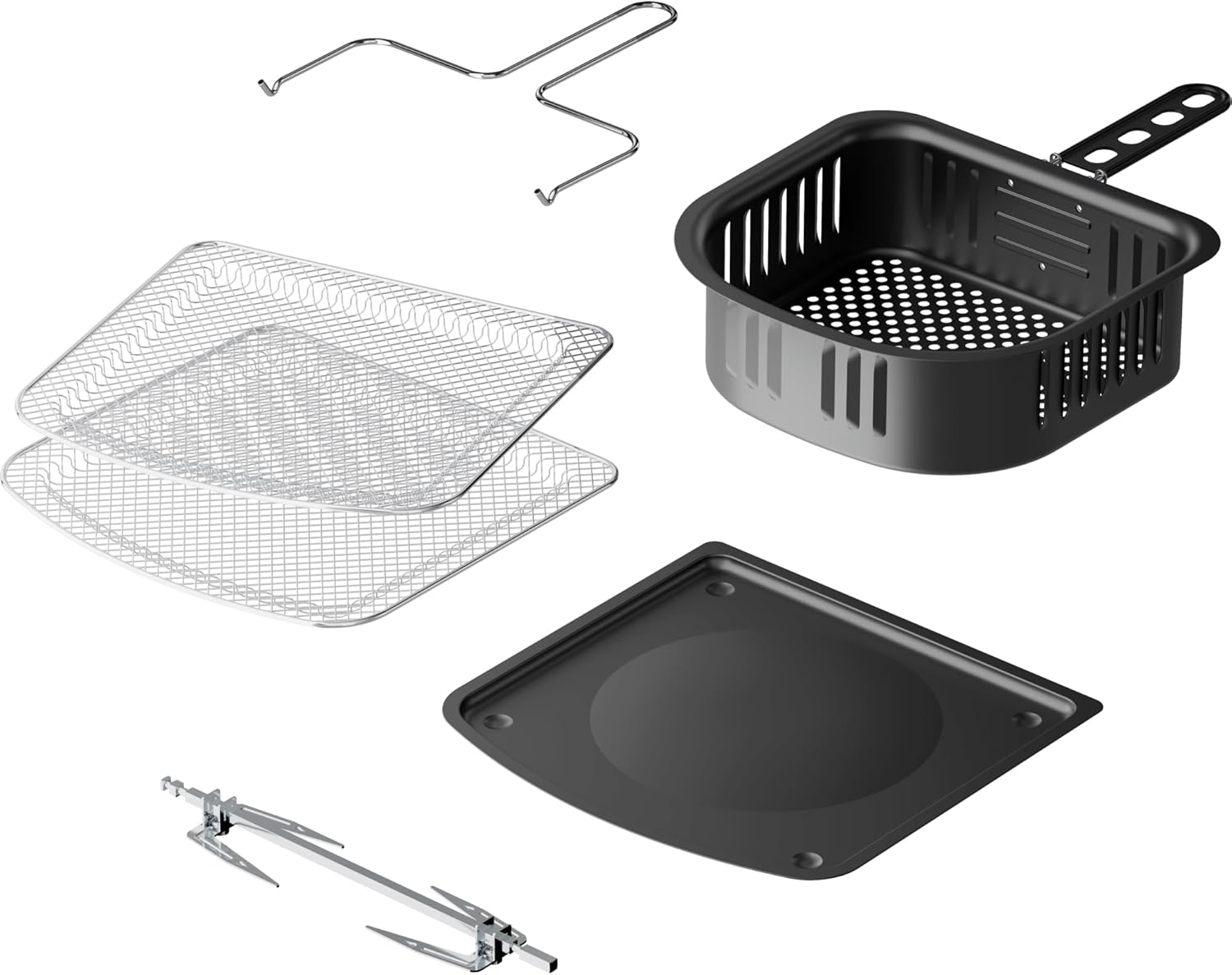

Figure 2: Included accessories for the AEG XXL Hot Air Fryer.
3. Operating Instructions
3.1 Control Panel Overview
The AEG AAF12B 8000 features a touch control panel for easy operation. The LED display shows temperature, time, and selected cooking modes.
3.2 Cooking Modes
The appliance offers five primary cooking modes for maximum versatility:
- Air Fry: For crispy results with little to no oil.
- Bake: Ideal for muffins, pastries, and other baked goods.
- Reheat: To warm up leftovers.
- Dehydrate: For drying fruits, vegetables, and meats.
- Rotisserie: For evenly cooked whole chicken or kebabs.
Figure 3: Visual representation of the five cooking modes.
3.3 Pre-set Recipes
The fryer includes seven pre-set recipes for common dishes:
- Fries
- Vegetables
- Chicken
- Steak
- Fish
- Muffins
- Pastries
Simply select the desired pre-set, and the appliance will automatically set the optimal temperature and time. A practical shake/turn reminder will prompt you when to agitate or flip food for even cooking.
3.4 Rotisserie Function
The included rotisserie skewer allows for uniform rotation of food, ensuring even cooking and browning. This is ideal for whole chickens, roasts, or kebabs.

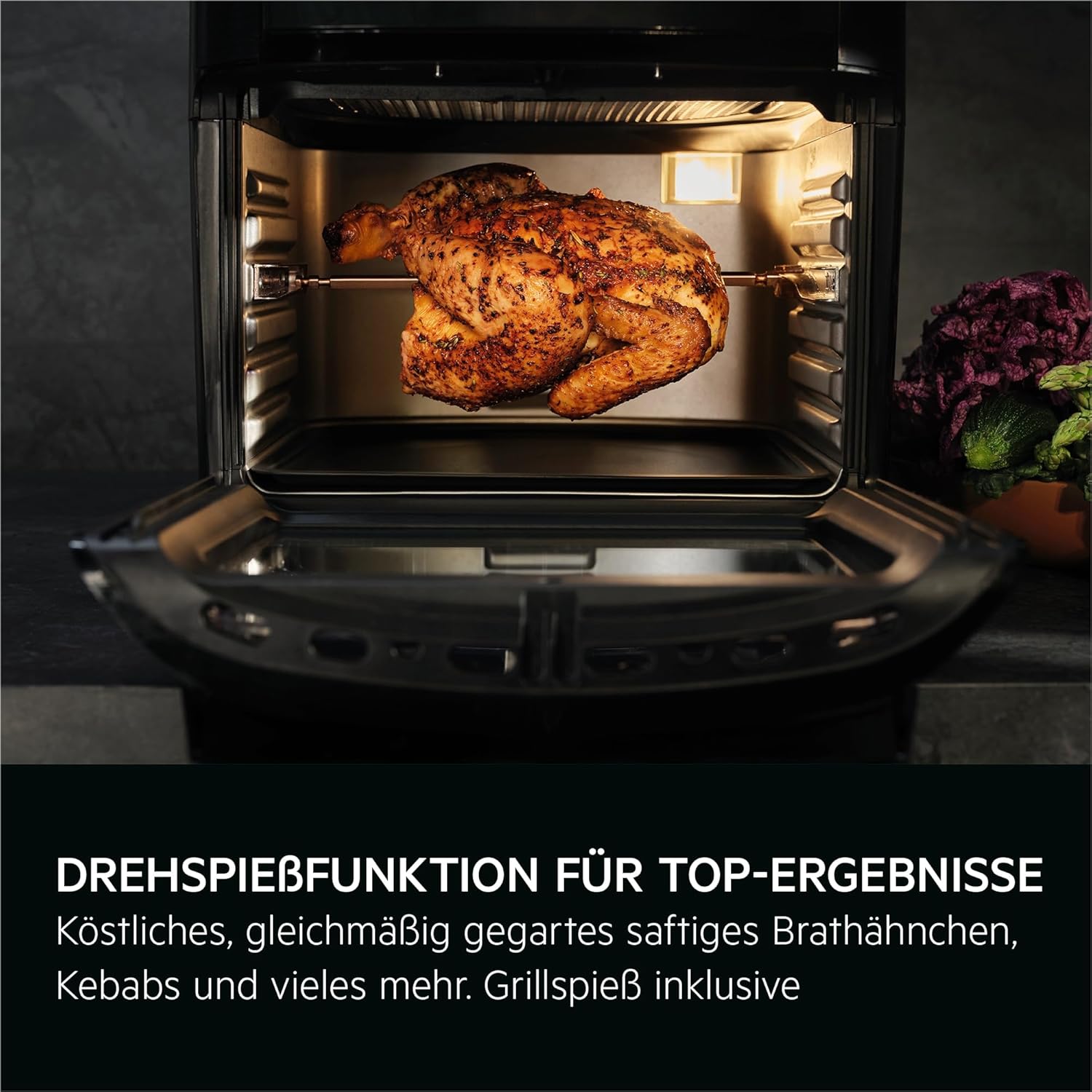

Figure 4: Rotisserie function in action, cooking a whole chicken.
3.5 Dehydration Function
The dehydration function allows you to dry fruits, mushrooms, meat, and more, creating healthy and delicious snacks or preserving food.

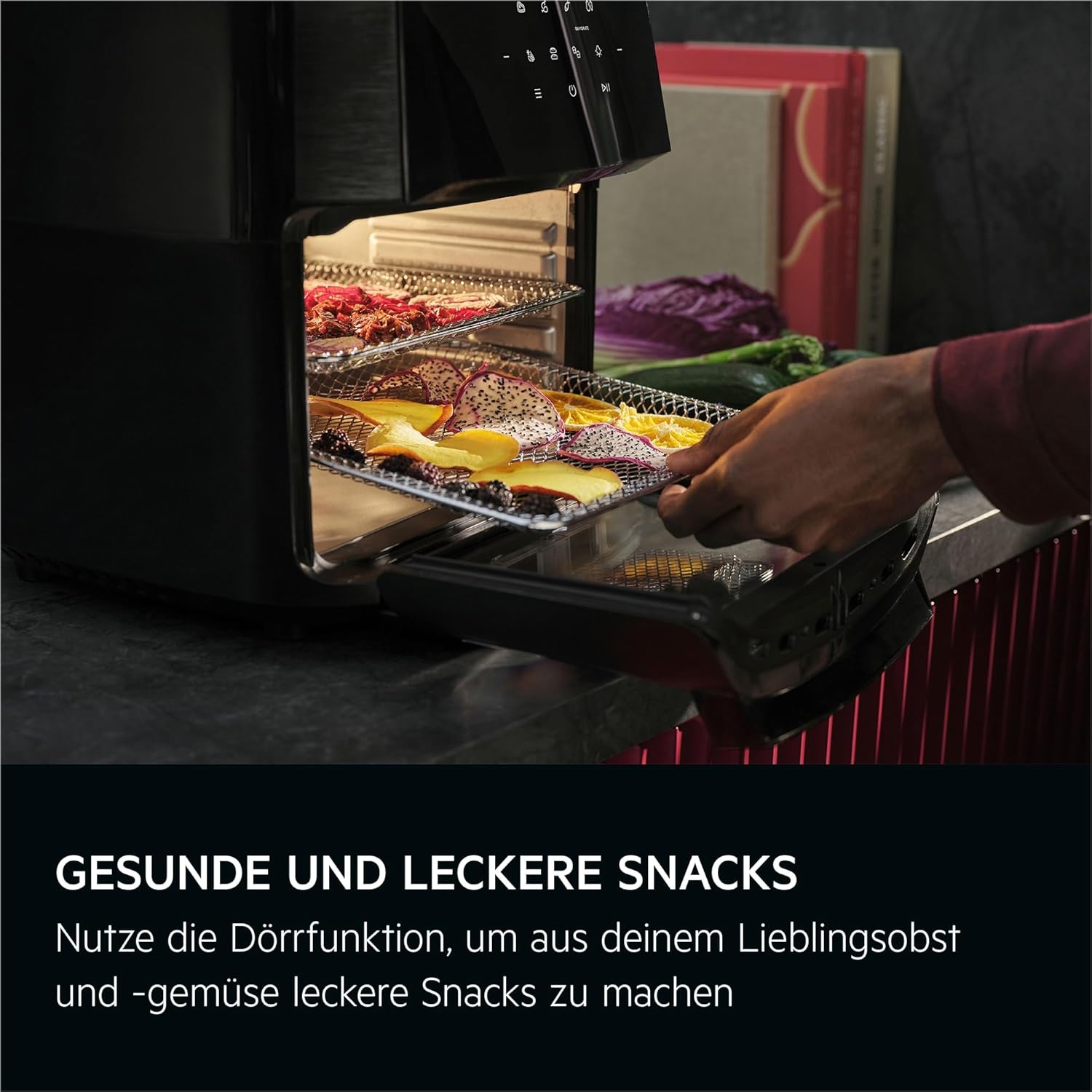

Figure 5: Dehydration function for healthy snacks.
3.6 Healthy Cooking
The AEG XXL Hot Air Fryer enables you to prepare dishes with significantly less fat and calories compared to traditional deep frying. Enjoy crispy results with little to no added oil.
Figure 6: Healthy cooking with less oil.
4. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your AEG Hot Air Fryer.
4.1 General Cleaning
- Always unplug the appliance and allow it to cool completely before cleaning.
- Wipe the exterior of the appliance with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Clean the interior with a soft, damp cloth and mild detergent.
4.2 Cleaning Accessories
- The frying basket, racks, rotisserie skewer, and drip tray are dishwasher safe.
- For hand washing, use warm soapy water and a non-abrasive sponge.
- The non-stick coating on certain parts ensures easy food release and cleaning. Avoid using metal utensils or abrasive cleaners that could damage the coating.
5. Troubleshooting
If you encounter issues with your AEG Hot Air Fryer, refer to the common problems and solutions below before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet issue; appliance malfunction. | Ensure the power cord is securely plugged into a working outlet. Check your circuit breaker. |
| Food is not cooked evenly. | Overcrowding; insufficient shaking/turning; incorrect temperature/time. | Do not overcrowd the basket/racks. Shake or turn food halfway through cooking. Adjust temperature and time as needed. |
| White smoke coming from the appliance. | Grease residue from previous use; high-fat food. | Clean the appliance thoroughly after each use. For high-fat foods, place a piece of aluminum foil at the bottom of the drip tray to catch excess oil. |
| Food is not crispy. | Too much moisture; not enough oil (for certain foods); overcrowding. | Pat food dry before cooking. Lightly coat some foods with oil. Do not overcrowd. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Name | AAF12B |
| Brand | AEG |
| Product Dimensions | 32.2D x 40.9W x 40.9H centimeters |
| Color | Black |
| Capacity | 12 Liters |
| Power Output | 1800 Watts |
| Voltage | 230 Volts (AC) |
| Control Method | Touch |
| Non-stick Coating | Yes |
| Air Frying Technology | True |
7. Warranty and Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official AEG website. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or service inquiries, please contact AEG customer service. You can find contact details on the official AEG website or through the retailer where you purchased the product.
Visit the AEG Brand Store for more information on AEG products.
