1. Introduction
Thank you for purchasing the RASTAR Red Bull Racing F1 RB18 1/12 Scale Remote Control Car. This model is an officially licensed replica of the Oracle Red Bull Racing F1 RB18, driven by Max Verstappen and Sergio Perez. Designed for enthusiasts, it features detailed craftsmanship and a responsive 2.4 GHz control system for an engaging driving experience. Please read this manual thoroughly before operating the product to ensure proper use and safety.
Image 1: RASTAR Red Bull Racing F1 RB18 1/12 Scale Remote Control Car.
2. Safety Information
- Choking Hazard: Contains small parts. Not suitable for children under 3 years old.
- Age Recommendation: Recommended for ages 6 years and older.
- Always operate the vehicle in a safe, open area away from people, pets, and obstacles.
- Do not operate near streets, water, or in wet conditions.
- Adult supervision is recommended during operation.
- Do not mix old and new batteries, or different types of batteries.
- Ensure batteries are inserted with correct polarity (+/-).
- Remove batteries from the car and remote control when not in use for extended periods.
3. Package Contents
Please check the package to ensure all items are present:
- 1 x RASTAR Red Bull Racing F1 RB18 RC Car (1/12 Scale)
- 1 x Remote Control
- 1 x Sheet of Car Body Stickers (for DIY application)
- 1 x User Manual
Image 2: The Red Bull Racing F1 RB18 RC car and its remote control.
4. Setup
4.1 Battery Installation
- For the RC Car: Locate the battery compartment on the underside of the car. Open the cover. Insert 5 x AA batteries (not included), ensuring correct polarity. Close the cover securely.
- For the Remote Control: Locate the battery compartment on the back of the remote control. Open the cover. Insert 2 x AA batteries (not included), ensuring correct polarity. Close the cover securely.
4.2 Applying Stickers (Optional)
The car comes with a sheet of stickers for customization. Carefully peel off the desired stickers and apply them to the corresponding areas on the car body as shown in the diagram or to your preference. Ensure the surface is clean and dry before application.
Image 3: Diagram showing the application of DIY stickers to the car body.
5. Operating Instructions
5.1 Pairing the Remote Control
The 2.4 GHz frequency allows multiple users to race together without interference. To pair the remote control with the car:
- Ensure fresh batteries are installed in both the car and the remote control.
- Turn on the car using the ON/OFF switch located on its underside.
- Turn on the remote control. The indicator light on the remote should blink, then become solid, indicating a successful connection.
5.2 Driving Controls
Use the remote control to maneuver the car:
- Forward: Push the left joystick forward.
- Backward: Pull the left joystick backward.
- Turn Left: Push the right joystick left.
- Turn Right: Push the right joystick right.
- Stop: Release both joysticks to their neutral position.
Image 4: A user operating the remote control for the RASTAR F1 RB18 RC car.
Image 5: Overhead view illustrating the car's movement capabilities (forward, backward, left, right).
6. Maintenance
- Cleaning: Wipe the car and remote control with a soft, dry cloth. Do not use water or chemical cleaners.
- Storage: Store the product in a cool, dry place away from direct sunlight when not in use. Remove batteries if storing for extended periods.
- Battery Care: Always use fresh batteries. Dispose of used batteries responsibly according to local regulations.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not move or respond. | Low or incorrectly installed batteries in car or remote. | Replace batteries in both car and remote. Ensure correct polarity. |
| Short control range or intermittent signal. | Weak batteries; environmental interference. | Replace batteries. Operate in an open area away from other electronic devices. |
| Car moves slowly. | Low car battery power. | Replace car batteries. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | Red Bull F1 RB18 |
| Model Number | 94700 |
| Scale | 1:12 |
| Car Dimensions (L x W x H) | 47 x 17 x 9.9 cm (18.5 x 6.7 x 3.9 inches) |
| Material | Non-toxic ABS Plastic |
| Max Speed | Approx. 8 km/h (5 mph) |
| Control Frequency | 2.4 GHz |
| Control Range | Up to 30 meters (98 feet) |
| Car Battery Requirement | 5 x AA batteries (not included) |
| Remote Control Battery Requirement | 2 x AA batteries (not included) |

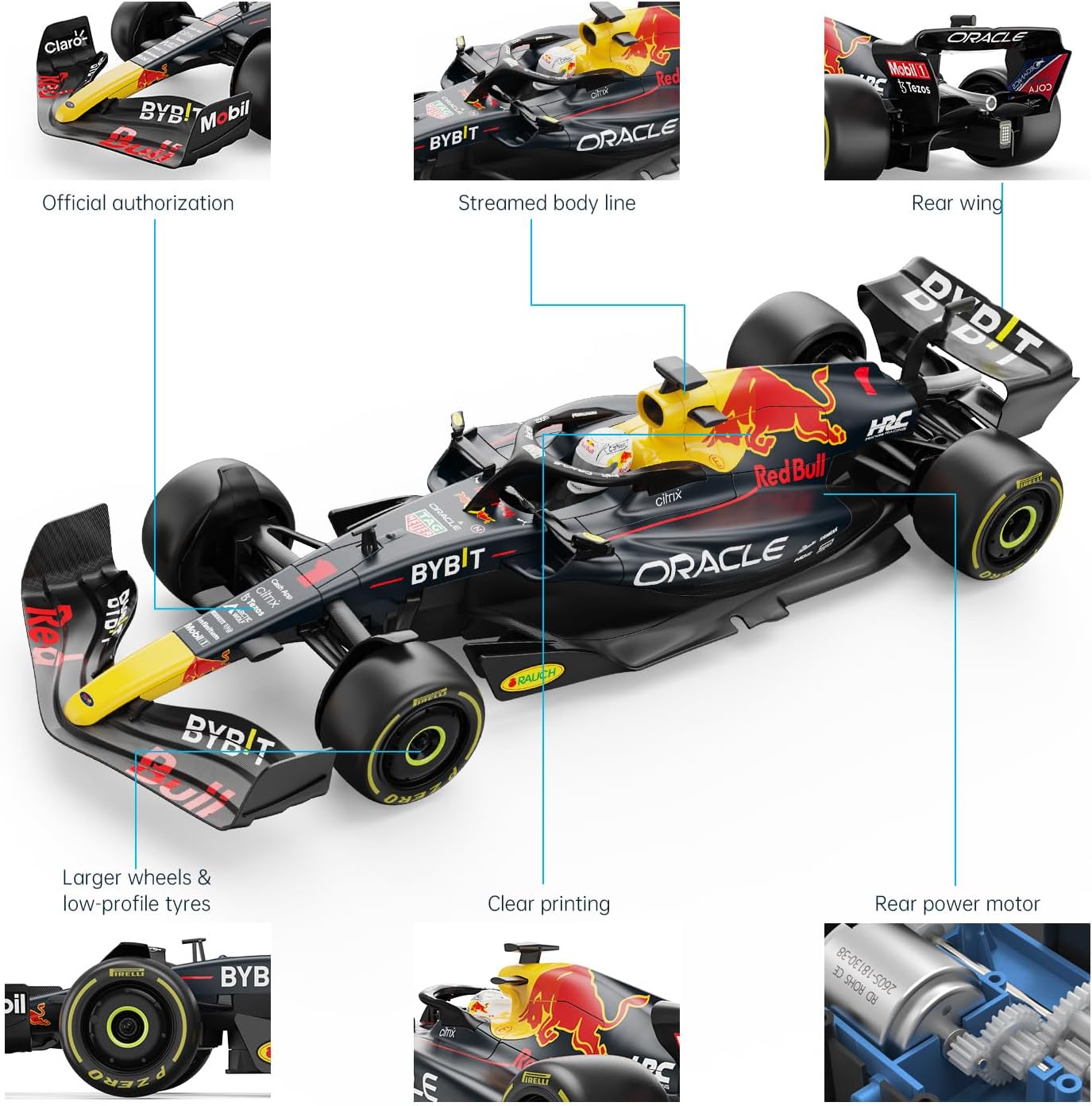

| Special Features | Independent 4-wheel suspension, front shock absorption, high-intensity magnetic rear motor, differential mechanism, streamlined body. |

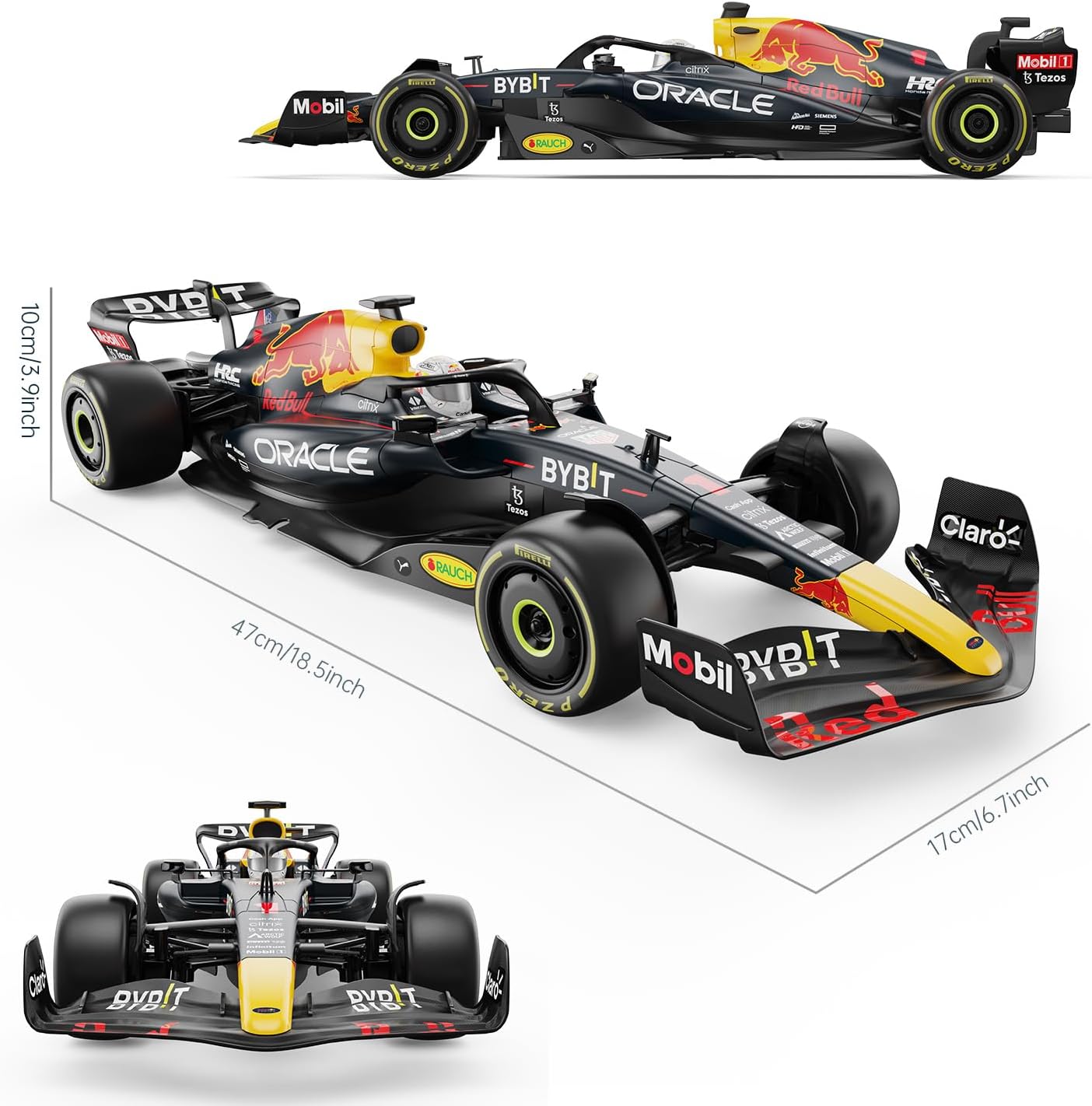

Image 6: Detailed view of the car with dimensions and key features highlighted.
9. Warranty and Support
RASTAR products are manufactured to high-quality standards. For any questions, technical support, or warranty claims, please refer to the contact information provided on the product packaging or contact your retailer. Please retain your proof of purchase for warranty purposes.
