1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Topyond Water Cooled 125A Brushless Electronic Speed Controller (ESC). Designed for RC boats, this ESC offers reliable performance in wet conditions, robust safety features, and programmable functionality. Please read this manual thoroughly before use to ensure optimal performance and safety.

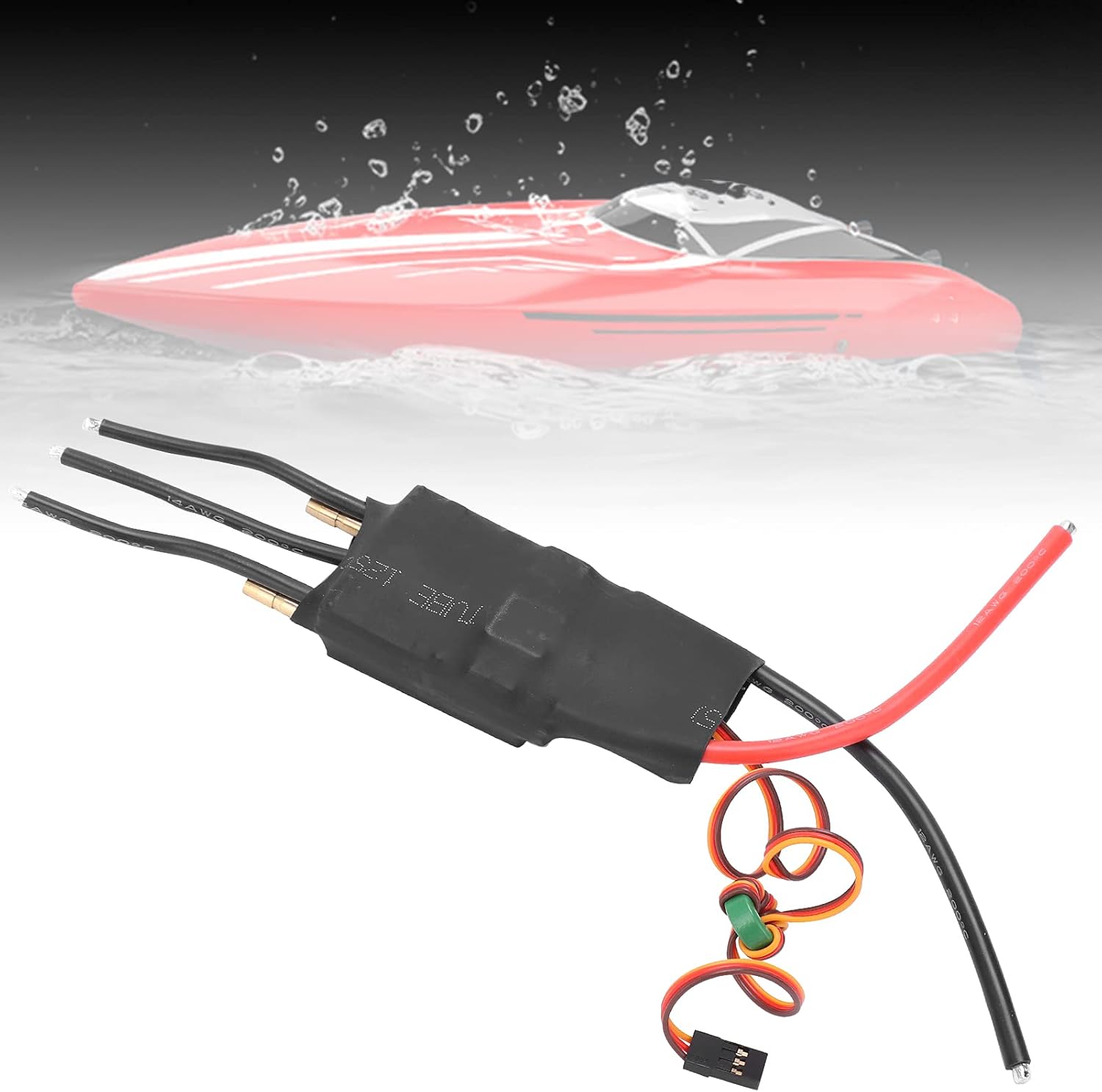

Image 1.1: The Topyond Water Cooled 125A Brushless ESC, designed for RC boat applications, shown with a boat in the background.
2. Product Features
- Compact and Portable Design: Lightweight and easy to integrate into your RC boat setup.
- High-Quality Construction: Manufactured from durable aluminum alloy and rubber materials for longevity and resilience in various conditions.
- Efficient Water Cooling System: Features an effective water cooling system for optimal temperature management, ensuring consistent performance across different climates.
- Powerful UBEC Output: Provides a stable 5V/5A UBEC output to power your RC boat's components, enhancing overall efficiency and responsiveness.
- Easy to Program and Use: Designed with plug-and-play functionality for quick setup and user-friendly programming, suitable for both beginners and experienced RC enthusiasts.
3. Package Contents
Upon opening the package, please verify that all items are present and in good condition:
- 1 x Topyond Water Cooled 125A Brushless ESC
- 1 x Instruction Manual (this document)
4. Setup Instructions
Follow these steps to properly install the ESC in your RC boat:
- Connect Motor to ESC: Connect the three motor wires to the corresponding three output wires of the ESC. Ensure a secure connection. If the motor spins in the wrong direction during testing, swap any two of the motor wires.
- Connect ESC to Receiver: Plug the ESC's signal cable (usually a three-wire servo connector) into the throttle channel (typically channel 2) of your RC receiver.
- Connect Battery to ESC: Connect your battery pack to the power input wires of the ESC. Ensure correct polarity (red to positive, black to negative) to prevent damage.
- Water Cooling Connection: Connect the water inlet and outlet tubes from your RC boat's cooling system to the water cooling ports on the ESC. Ensure water flow is unobstructed.
- Throttle Range Calibration (Recommended):
- Turn on your transmitter and set the throttle trim to neutral.
- Connect the battery to the ESC while holding the throttle stick at full throttle.
- Listen for a series of beeps. Once heard, move the throttle stick to the full brake/reverse position.
- Listen for another series of beeps, indicating successful calibration.
- Return the throttle stick to neutral. The ESC is now calibrated.
Image 4.1: Detailed view of the ESC's wiring, illustrating connections for the motor (three black wires) and receiver (three-pin connector).
5. Operating Instructions
Once the ESC is properly installed and calibrated, follow these steps for operation:
- Power On: Ensure your transmitter is turned on first, then connect the battery to the ESC. The ESC will emit a series of tones indicating it is ready.
- Throttle Control: Use the throttle stick on your transmitter to control the motor speed. Moving the stick forward increases speed, and pulling it back applies brake or reverse (if configured).
- Monitoring: Pay attention to the boat's performance and any unusual sounds or behavior. The water cooling system should be actively circulating water.
- Power Off: Always disconnect the battery from the ESC first, then turn off your transmitter.
6. Maintenance
Regular maintenance ensures the longevity and reliable performance of your ESC:
- Cleaning: After each use, especially in saltwater, rinse the ESC with fresh water to remove salt, dirt, and debris. Ensure it is completely dry before storage.
- Water Cooling System: Periodically check the water cooling tubes for kinks, blockages, or leaks. Ensure the water inlet and outlet are clear.
- Connections: Inspect all wiring and connectors for signs of wear, corrosion, or loose connections. Secure any loose connections.
- Storage: Store the ESC in a cool, dry place away from direct sunlight and extreme temperatures.
7. Troubleshooting
If you encounter issues with your ESC, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not spin or stutters | Incorrect motor wiring; ESC not calibrated; Low battery voltage; Damaged motor or ESC. | Check motor wire connections (swap two if needed); Perform throttle calibration; Charge or replace battery; Inspect motor and ESC for damage. |
| ESC overheats | Insufficient water flow; Over-geared motor; Excessive load; Damaged water cooling system. | Check water cooling lines for blockages/kinks; Reduce propeller size or motor KV; Reduce load on the boat; Inspect water cooling system for damage. |
| Loss of control/intermittent operation | Weak receiver signal; Loose receiver connection; Interference; Low battery voltage. | Ensure receiver antenna is properly positioned; Secure receiver connection; Operate away from sources of interference; Charge or replace battery. |
| No power to ESC | Battery not connected; Incorrect battery polarity; Damaged battery or ESC. | Connect battery securely; Verify correct battery polarity; Test with a different battery; Inspect ESC for visible damage. |
8. Specifications
Detailed technical specifications for the Topyond Water Cooled 125A Brushless ESC:
- Continuous Current: 125A
- Peak Current: 150A
- BEC Model: Switch BEC
- BEC Output: 5V/5A
- Input: DC 4.5-6V
- Recommended Batteries: Li-ion/Lipoly 2-7s, Ni-MH/Ni-Cd 6-20NIMH
- Weight: Approximately 99g / 3.5oz
- Material: Aluminum Alloy + Rubber + Electronic Components
- Applicable To: RC Ship Model
- Model Number: Topyondgi5smc0q2o

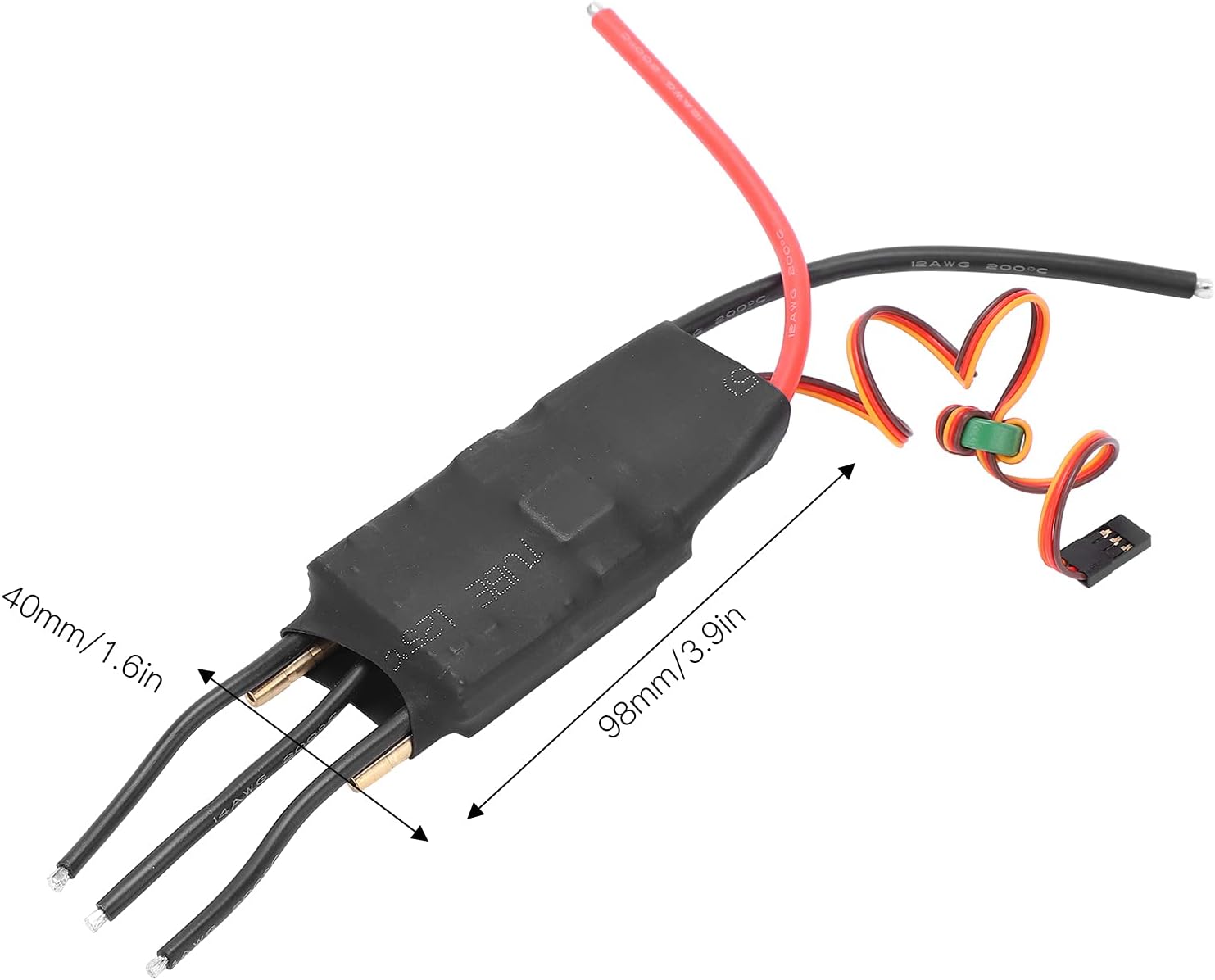

Image 8.1: The Topyond Water Cooled 125A Brushless ESC showing its approximate dimensions: 98mm (3.9in) length and 40mm (1.6in) width.
9. Warranty and Support
For warranty information, technical support, or any inquiries regarding your Topyond Water Cooled 125A Brushless ESC, please contact Topyond customer service through the retailer where the product was purchased or visit the official Topyond website. Please retain your proof of purchase for warranty claims.
