FORIDA 3 Ports USB 3.0 Adapter User Manual

1. Introduction

Thank you for choosing the FORIDA 3 Ports USB 3.0 Adapter. This compact and versatile USB hub is designed to expand the connectivity of your devices, providing one USB 3.0 port and two USB 2.0 ports. It is ideal for connecting multiple peripherals such as keyboards, mice, mobile hard disks, U disks, and cameras to your PC, laptop, TV, or other compatible devices, preventing the need for constant plugging and unplugging.

This manual will guide you through the features, setup, operation, and maintenance of your new USB adapter.

2. Product Features

• USB 3.0 High Speed: Equipped with one USB 3.0 port, offering super-speed data synchronization up to 5 Gbit/s.
• USB 2.0 Ports: Includes two USB 2.0 ports, providing data transfer speeds up to 480 Mbps, suitable for connecting standard peripherals.
• Plug and Play: No drivers required. Simply connect the adapter to your device, and it's ready to use.
• Compact and Portable Design: Mini size, lightweight, and easy to carry, making it perfect for travel or on-the-go use.
• Durable Construction: Made of high-quality ABS material for excellent heat dissipation and stable transmission.
• Versatile Compatibility: Compatible with a wide range of USB-A devices, including PCs, laptops, TVs, PS4, and more.

Figure 2.1: The FORIDA 3 Ports USB 3.0 Adapter, showcasing its compact design and multiple ports.

Figure 2.2: The 3-in-1 Mini Hub integrated into a typical workspace setup, demonstrating its small footprint alongside a laptop, tablet, and external hard drive.

Figure 2.3: Illustration highlighting the USB 3.0 port's super-speed data transfer capability of 5Gbps, ideal for quick file synchronization.

Figure 2.4: The two USB 2.0 ports in use, demonstrating their suitability for connecting wireless peripherals like Bluetooth mice and keyboards via their respective dongles.

Figure 2.5: A hand holding the adapter, emphasizing its mini design and portability, along with its precise dimensions for easy storage and transport.

Figure 2.6: The adapter functioning as a USB power and data distributor, shown charging two smartphones simultaneously from a wall outlet, supporting BC1.2 protocol for up to 5V/2.4A.

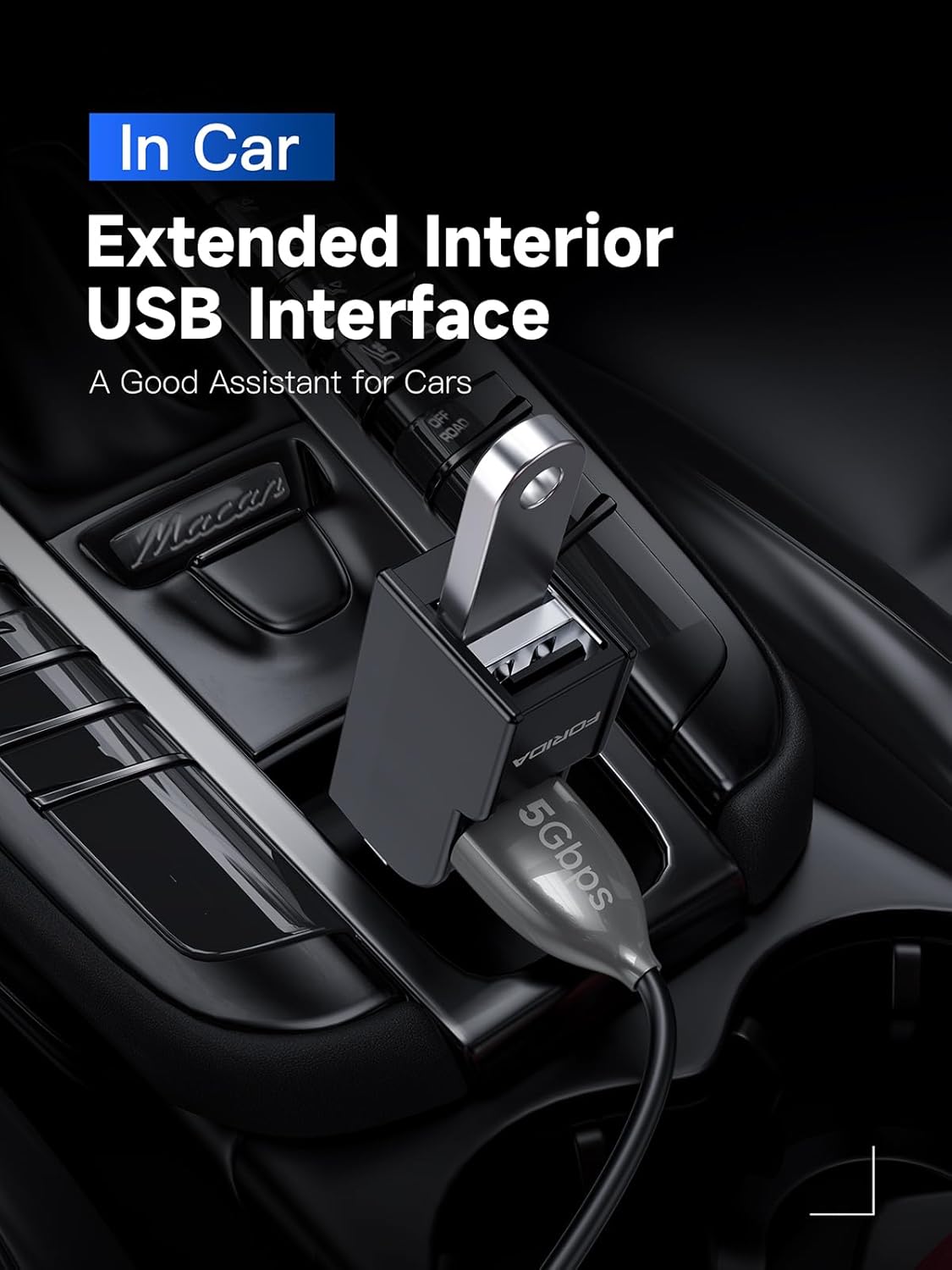

Figure 2.7: The adapter being used as an extended interior USB interface in a car, providing additional ports for in-vehicle devices.

3. Setup Instructions

The FORIDA 3 Ports USB 3.0 Adapter is designed for simple plug-and-play operation. No software installation or external power supply is required for most standard uses.

3.1 Connecting the Adapter

1. Locate an available USB-A port on your host device (e.g., computer, laptop, smart TV, game console).
2. Insert the USB-A male connector of the FORIDA adapter firmly into the USB-A port on your host device.
3. The adapter is now ready for use. Your operating system should automatically detect it.

4. Operating the Adapter

Once connected, you can begin using the available USB ports to connect your peripherals.

4.1 Connecting Peripherals

• USB 3.0 Port (Blue): Use this port for devices that require high-speed data transfer, such as external hard drives, SSDs, or high-resolution webcams. Insert the device's USB connector into the blue USB 3.0 port on the adapter.
• USB 2.0 Ports (Black): Use these two ports for standard peripherals like keyboards, mice, USB flash drives, printers, or charging smaller devices. Insert the device's USB connector into either of the black USB 2.0 ports.

4.2 Data Transfer and Charging

• The adapter supports simultaneous data transfer and charging for connected devices, within the limits of the host USB port's power output.
• For optimal performance, especially with power-intensive devices, ensure your host device's USB port can provide sufficient power.

5. Maintenance

To ensure the longevity and optimal performance of your FORIDA USB adapter, follow these simple maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the surface of the adapter. Avoid using liquid cleaners or abrasive materials.
• Storage: When not in use, store the adapter in a cool, dry place, away from direct sunlight and extreme temperatures. The included cap protects the USB male connector from dust and damage.
• Handling: Avoid dropping the adapter or subjecting it to strong impacts. Do not force connectors into ports.

6. Troubleshooting

If you encounter issues with your FORIDA USB adapter, please refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

FORIDA provides an 18-Month Warranty for this USB 3.0 Adapter. We are committed to ensuring your satisfaction with our products.

If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our customer service team. We are available 24/7 and will resolve your issue within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official FORIDA website.
