1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the HDIFXTCU Replacement for Duke Tangential Motor Replacement 600540. Please read this manual thoroughly before attempting any installation or operation to ensure safe and efficient use of the product. This motor is a genuine OEM replacement part designed for specific Duke applications.
2. Safety Information
Always observe the following safety precautions to reduce the risk of injury or damage:
- Disconnect Power: Always disconnect power to the appliance before installing, servicing, or cleaning the motor.
- Qualified Personnel: Installation and servicing should only be performed by qualified and experienced personnel.
- Proper Tools: Use appropriate tools for installation and removal to prevent damage to the motor or appliance.
- Inspect for Damage: Before installation, inspect the motor for any visible damage. Do not install if damaged.
- Ventilation: Ensure adequate ventilation around the motor during operation to prevent overheating.
- Electrical Connections: Ensure all electrical connections are secure and comply with local electrical codes.
3. Product Overview
The Duke Tangential Motor Replacement 600540 is a genuine OEM part designed to replace the original motor in compatible Duke appliances. It features a tangential blower design for efficient air movement.

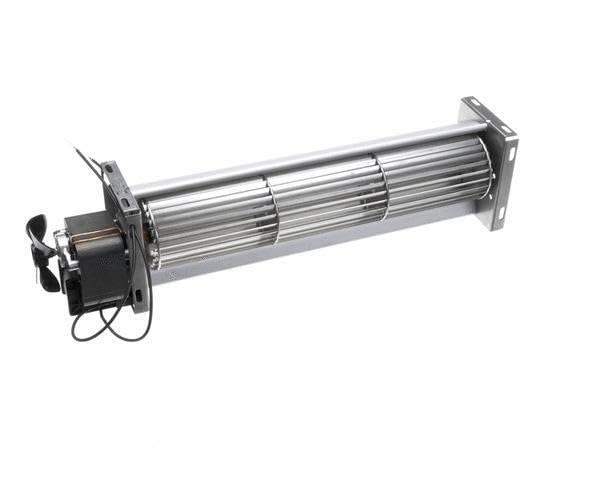

Figure 3.1: The Duke Tangential Motor Replacement 600540. This image displays the complete motor assembly, including the electric motor unit on the left with its cooling fan and wiring, connected to the elongated tangential blower housing on the right. The blower housing contains multiple parallel fins designed to move air efficiently. Mounting brackets are visible at both ends of the assembly.
Components:
- Motor Unit: The electric motor that drives the blower.
- Tangential Blower Wheel: The cylindrical fan assembly responsible for air movement.
- Housing/Mounting Brackets: The structural frame that holds the motor and blower, and allows for secure installation.
- Wiring Harness: Pre-attached wiring for electrical connection.
4. Setup and Installation
Follow these steps carefully for proper installation:
- Preparation:
- Ensure the appliance is completely disconnected from its power source.
- Gather necessary tools (e.g., screwdrivers, wrenches, wire strippers).
- Access the existing motor within the appliance.
- Removal of Old Motor:
- Carefully disconnect the electrical wiring from the old motor, noting the connections.
- Unscrew or unbolt the old motor from its mounting points.
- Gently remove the old motor assembly from the appliance.
- Installation of New Motor:
- Position the new Duke Tangential Motor Replacement 600540 into the designated mounting location.
- Secure the motor using the original screws or bolts, ensuring it is firmly seated and aligned.
- Reconnect the electrical wiring to the new motor, matching the connections noted during removal. Ensure all connections are tight and insulated.
- Final Checks:
- Verify all connections are secure and no wires are pinched.
- Ensure the blower wheel can rotate freely without obstruction.
- Reassemble any removed panels or covers of the appliance.
5. Operating Instructions
Once the motor is correctly installed, the appliance can be powered on. The motor's operation is typically controlled by the appliance's internal circuitry.
- Power On: Restore power to the appliance.
- Function Test: Activate the function of the appliance that utilizes the tangential motor (e.g., heating, ventilation).
- Observe Operation: Listen for smooth operation and observe proper air movement. Any unusual noises, vibrations, or lack of air flow may indicate an issue.
- Normal Operation: The motor should operate quietly and efficiently, providing consistent air flow as designed by the appliance manufacturer.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your tangential motor. Always disconnect power before performing any maintenance.
- Cleaning: Periodically inspect the tangential blower wheel and housing for dust, lint, or debris buildup. Use a soft brush or vacuum cleaner to gently remove any accumulation. Avoid using harsh chemicals or excessive moisture.
- Inspection: Annually inspect the motor for signs of wear, such as loose wiring, damaged insulation, or excessive vibration. Check mounting bolts for tightness.
- Lubrication: This motor is typically designed with sealed bearings that do not require lubrication. Do not attempt to lubricate unless specifically instructed by the appliance manufacturer's manual.
- Professional Service: If you notice any significant issues or performance degradation, consult a qualified service technician.
7. Troubleshooting
This section provides solutions to common issues. For problems not listed, consult a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power; Loose wiring; Faulty appliance control; Motor failure | Check power supply; Verify wiring connections; Consult appliance manual; Replace motor if confirmed faulty |
| Motor runs but no air flow | Blower wheel obstructed; Blower wheel detached from shaft | Disconnect power and clear obstruction; Reattach or replace blower wheel |
| Excessive noise or vibration | Loose mounting; Debris in blower; Worn bearings; Bent blower wheel | Tighten mounting bolts; Clean blower; Replace motor if bearings are worn or wheel is bent |
8. Specifications
Key specifications for the Duke Tangential Motor Replacement 600540:
- Model: 600540
- Type: Tangential Motor Replacement
- Compatibility: Genuine OEM replacement for Duke appliances. Refer to your appliance's manual for specific compatibility.
- Manufacturer: HDIFXTCU
- ASIN: B0DWPP8CTV
- Date First Available: February 10, 2025
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your original appliance or contact the manufacturer, HDIFXTCU, directly. Keep your purchase receipt as proof of purchase.
