1. Introduction
This manual provides detailed instructions for the safe and efficient use of your atomberg Renesa Halo Smart 1200mm BLDC Ceiling Fan. This fan features advanced BLDC technology for energy efficiency, smart control options, and a sleek design. Please read this manual thoroughly before installation and operation, and retain it for future reference.
2. What's in the Box
Carefully unpack all components and ensure all items are present. If any items are missing or damaged, please contact customer support.
- Blade set - 1 Unit
- Remote - 1 Unit
- Motor box - 1 Unit
- Canopy set - 1 Unit
- Downrod - 1 Unit
- Shackle kit - 1 Unit
- Manual Leaflet & Warranty card - 1 Unit
Image: Unboxing the atomberg Renesa Halo Smart Ceiling Fan, showing the blade set, remote, motor box, canopy set, downrod, and shackle kit.
3. Setup & Installation
Professional installation is recommended for this ceiling fan to ensure safety and proper functionality. The fan is suitable for various ceiling types, including false ceilings and low-height ceilings.
Ceiling Compatibility:
- For low height or false ceilings, use the provided ceiling plate.
- For standard ceilings, use both the bottom and top canopy.
Image: Illustration demonstrating how the fan adapts to different ceiling types, showing a ceiling plate for low height or false ceilings and a sleek top canopy for standard ceilings.
4. Operating Instructions
The atomberg Renesa Halo Smart fan offers multiple control methods for your convenience.
Remote Control:
The universal Smart IR Remote allows you to adjust fan speed and activate special modes:
- Boost Mode: Provides maximum airflow for quick cooling.
- Timer Mode: Set the fan to turn off automatically after a specified duration.
- Sleep Mode: Adjusts fan speed for comfortable sleep.
Smart Control (IoT):
Control your fan using the Atomberg Home mobile app, Google Home, or Alexa. This enables operation through voice commands and a mobile application. The app also provides usage tracking, energy consumption data, and savings reports.
LED Speed Indicator:
The integrated LED indicator displays the current fan speed setting.
Image: Control your comfort with the Atomberg Home App, featuring screenshots of the home screen, voice command interface, and remote control options within the app.
5. Key Features & Specifications
Energy Efficiency:
- Equipped with a 5-star rated energy-efficient BLDC motor.
- Consumes only 32W at top speed, resulting in up to 65% electricity savings compared to unrated fans.
- Runs 3X longer on an inverter battery during power outages.
Performance:
- High air delivery of 115 CMM (Cubic Meters Per Minute).
- Low noise levels, less than 57 dB.
- Consistent speed during voltage fluctuations (165V-285V).
- Speed: 850 RPM.
- Number of Speeds: 6.
Design & Build:
- Sleek and modern design with a unique contrast-colored highlight ring.
- Designer blades and LED speed indicator.
- Material: Aluminium blades and body.
- Dimensions (D x W x H): 29.5D x 19.5W x 16.5H Centimeters.
- Blade Length: 1200 Millimetres.
- Item Weight: 3.3 Kilograms.
Image: Details on the energy-efficient BLDC motor, including a power savings guide and a comparison table showing annual electricity cost savings.

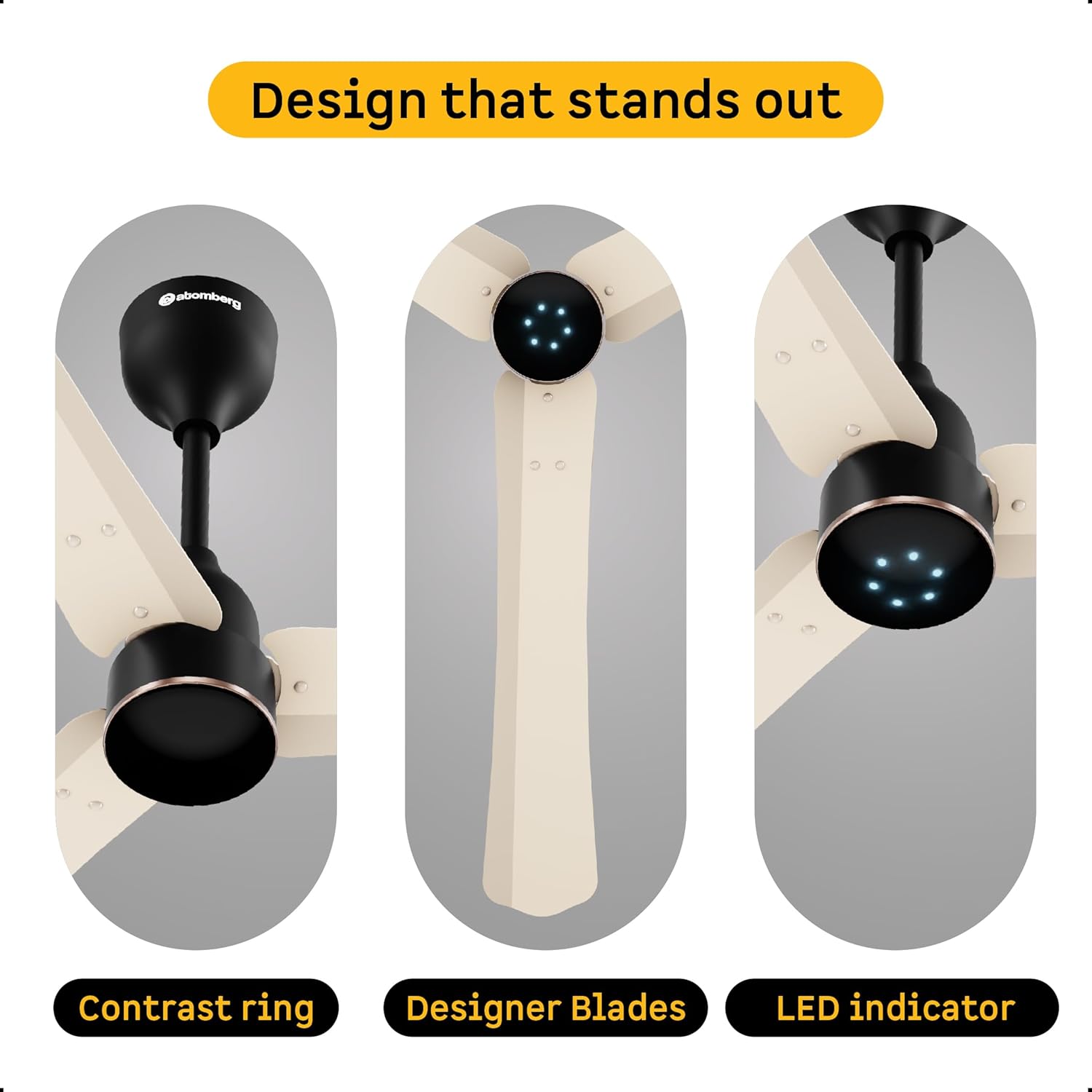

Image: Three detailed views of the fan, showcasing its distinctive design elements: the contrast ring, designer blades, and LED speed indicator.
6. Maintenance
To ensure optimal performance and longevity of your atomberg Renesa Halo Smart ceiling fan, follow these maintenance guidelines:
- Cleaning: Regularly dust the fan blades and motor housing with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and mild detergent, then wipe dry immediately. Avoid abrasive cleaners or solvents.
- Blade Inspection: Periodically check the fan blades for any signs of damage or imbalance. Damaged blades can affect performance and cause noise.
- Tighten Fasteners: Over time, screws and fasteners may loosen. Periodically check and tighten all visible fasteners on the fan and mounting hardware.
- Professional Check: Consider an annual professional check-up to ensure all electrical connections are secure and the motor is functioning correctly.
7. Troubleshooting
If you encounter any issues with your atomberg Renesa Halo Smart ceiling fan, refer to the following common troubleshooting steps:
Fan Not Turning On:
- Check if the main power supply to the fan is on.
- Ensure the remote control batteries are correctly inserted and charged.
- Verify that the fan is properly connected to the electrical wiring.
Unusual Noise (e.g., Squeaking):
- Ensure all blade screws and mounting hardware are securely tightened.
- Check if the blades are clean and free from obstructions.
- If the noise persists, professional inspection may be required.
Smart Control Issues (App/Voice):
- Ensure your fan is connected to your home Wi-Fi network.
- Verify that the Atomberg Home app is updated to the latest version.
- Check your internet connection and router settings.
- For Google Home/Alexa, ensure the Atomberg skill is enabled and linked correctly.
- Note that advanced integration with DIY home automation platforms may require technical expertise and might have usage limitations (e.g., API call limits).
For issues not covered here, please contact atomberg customer support.
8. Warranty & Support
Warranty:
The atomberg Renesa Halo Smart ceiling fan comes with a standard 2-year warranty. An additional 1-year warranty can be availed by registering your purchase on the official Atomberg website through a simple three-step process.
Customer Support:
For any assistance, professional installation services (available at a nominal cost across India), or to avail warranty services, please contact:
- Email: support@atomberg.com
- Toll-Free Number: 08448449442
- Website: Visit the Atomberg website for more information and to register your product.
