BODACIOUS Ultra Quiet Deep Freezer

1. Introduction

Thank you for choosing the BODACIOUS Ultra Quiet Deep Freezer. This compact chest freezer is designed to provide efficient and quiet food storage, ideal for homes, restaurants, and small shops. Its advanced features ensure optimal preservation of your frozen goods while minimizing energy consumption and operational noise. Please read this manual thoroughly before installation and operation to ensure safe and proper use of your appliance.

2. Safety Information

Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

General Safety Precautions:

• Electrical Safety: Ensure the freezer is connected to a properly grounded electrical outlet. Do not use extension cords or ungrounded adapters.
• Ventilation: Allow adequate space around the freezer for proper ventilation. Do not block any ventilation openings.
• Flammable Materials: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Children Safety: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Disposal: Dispose of the appliance according to local regulations for flammable refrigerants and blowing gas.
• Cleaning: Always unplug the freezer before cleaning or performing maintenance.

3. Product Overview

The BODACIOUS 5.0 Cu Ft Chest Freezer is designed for efficiency and convenience, featuring a compact footprint and user-friendly controls.

Key Features:

• Ultra Quiet Operation: Operates at below 40dB, suitable for various living spaces.
• Low Power Consumption: Highly energy-efficient, consuming only 0.36kW.h per 24 hours.
• Fast Freeze Performance: Quickly lowers food temperatures to preserve freshness.
• Compact Design: Space-saving dimensions (21.06"W x 20.27"D x 29.13"H) fit easily in small areas.
• Versatile Usage: Ideal for storing various items from bulk groceries to pet food.
• Mechanical Temperature Control: Offers 6 precise settings for flexible temperature management.
• Concealed Door Handle: Integrated design for a sleek look.
• Efficient Bottom Drainage: Simplifies the defrosting process.

Components:

• BODACIOUS 5.0 Cu Ft Chest Freezer Unit
• 1 Removable Storage Basket

This image displays the Bodacious 5.0 cubic feet chest freezer in white, with its top-opening lid raised, revealing the spacious interior designed for efficient food storage.

The freezer is shown in a modern kitchen environment, emphasizing its compact size suitable for small families. The image also provides information on its estimated yearly electricity consumption and cost.

This image illustrates the freezer's ultra-quiet operation, with a sleeping person undisturbed nearby, and compares its low noise level (38dB) and energy consumption (0.36kW/day) to other freezers.

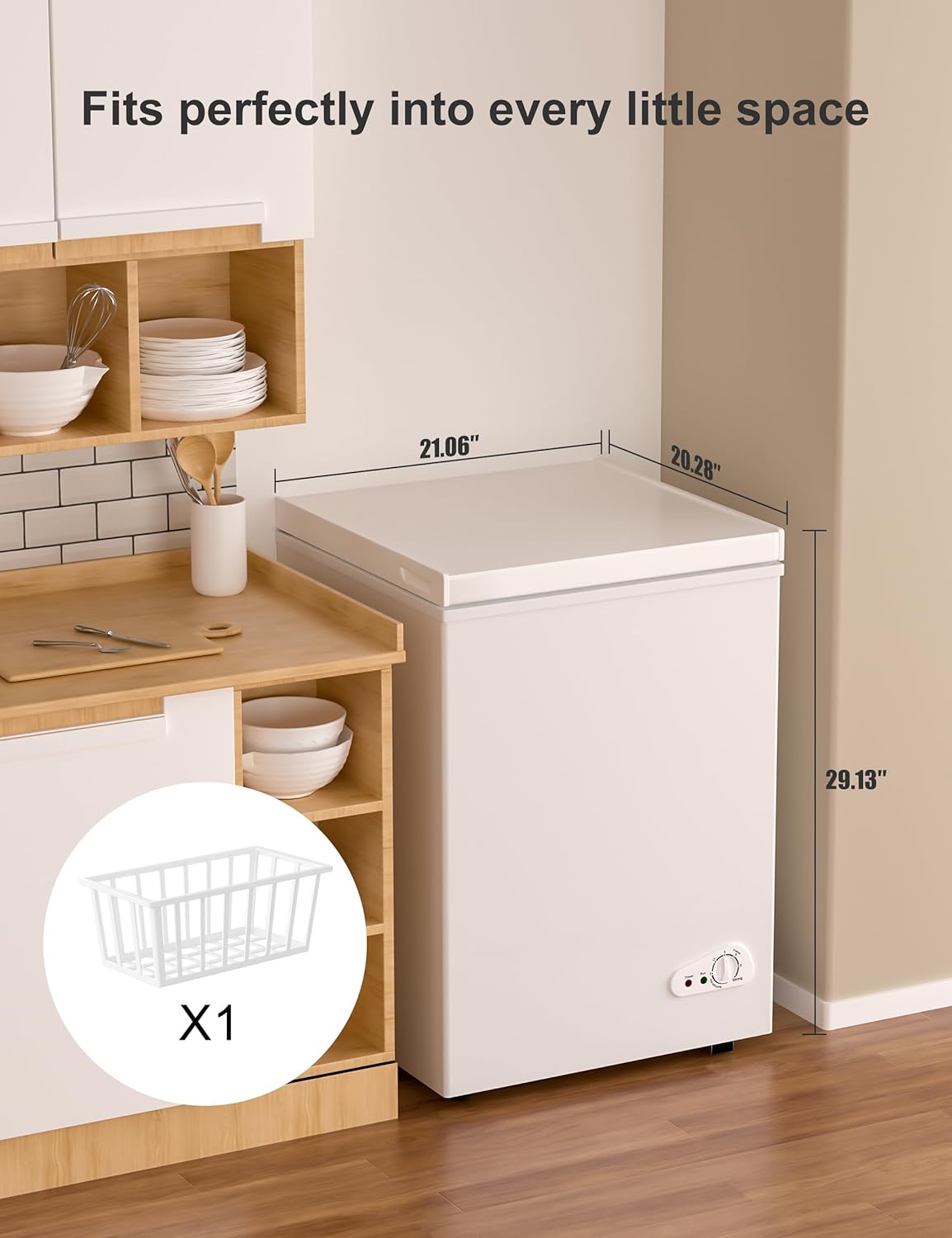

This image provides the precise dimensions of the freezer, indicating its compact footprint, and shows the included removable storage basket for organized storage.

Detailed view of the freezer's design elements, including its fingerprint and abrasion-resistant finish, embossed aluminum interior, discreet concealed door handle, and the efficient bottom drainage system for defrosting.

4. Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your freezer.

Unpacking:

1. Remove all packaging materials, including foam and adhesive tape.
2. Inspect the freezer for any shipping damage. Report any damage to your retailer immediately.
3. Keep packaging materials out of reach of children.

Location:

• Place the freezer on a firm, level surface strong enough to support it when fully loaded.
• Ensure there is adequate air circulation around the freezer. Allow at least 4 inches (10 cm) of space on the back and sides, and 8 inches (20 cm) on top for proper ventilation.
• Avoid placing the freezer in direct sunlight or near heat sources (e.g., stoves, heaters, radiators).
• Do not install the freezer in areas where the temperature is likely to drop below 50°F (10°C) or rise above 90°F (32°C).

The freezer is depicted in a living room, showcasing its quiet operation and ability to blend into various home environments without being disruptive, provided proper ventilation is maintained.

Initial Cleaning:

• Before first use, wipe the interior and exterior of the freezer with a soft cloth and a mild detergent. Rinse with clean water and dry thoroughly.
• Do not use abrasive cleaners or solvents.

Power Connection:

• Plug the freezer into a dedicated, grounded 110-120V, 60Hz electrical outlet.
• Allow the freezer to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
• After plugging in, allow the freezer to cool for approximately 4 hours before loading food.

5. Operating Instructions

Operating your BODACIOUS freezer is straightforward with its intuitive temperature control.

Temperature Control:

The freezer features a mechanical temperature control dial with settings from 0 to 6 (Strong), allowing you to adjust the internal temperature from -0.4°F to 32°F (-18°C to 0°C). The 'Strong' setting provides the coldest temperature for quick freezing.

This image illustrates the mechanical temperature control dial, offering 6 precise settings for various food items, from fruits and vegetables (refrigeration) to quick freezing of bulk foods.

Recommended Settings:

• 0-1 (Refrigeration): Ideal for fruits & vegetables, or when using as a refrigerator.
• 1-2 (Refrigeration): Suitable for bulky meat, or general refrigeration.
• 2-3 (Frozen): Recommended for ice cream and general frozen items.
• 3-5 (Deep Freeze): Best for fish, shrimp, and items requiring deeper freezing.
• 5-6 (Quick Freeze / Strong): Use for foods to be quickly frozen. Note: Quick freezing will lead to faster refrigeration and may temporarily increase compressor running noise. For optimal freezing effect, it is recommended to adjust to 3-5 gear after 2-3 hours of quick freezing.

Loading the Freezer:

• Do not overload the freezer. Leave some space between items for proper air circulation.
• Use the removable basket for smaller, frequently accessed items to keep them organized.
• Ensure the lid is closed tightly after each use to maintain temperature and energy efficiency.

A user is shown effortlessly accessing the freezer, highlighting the wide lid opening angle (45-85 degrees) that allows for easy loading and retrieval of items.

6. Maintenance and Care

Regular maintenance ensures your freezer operates efficiently and extends its lifespan.

Cleaning:

• Interior: Clean the interior regularly with a solution of baking soda and warm water (2 tablespoons baking soda to 1 quart water). Avoid harsh chemicals or abrasive cleaners.
• Exterior: Wipe the exterior with a soft cloth and mild detergent. Dry thoroughly.
• Gasket: Clean the door gasket regularly to ensure a tight seal.
• Condenser Coils: Periodically vacuum the condenser coils at the back of the freezer to remove dust and debris. This improves efficiency.

Defrosting:

Defrost the freezer when frost accumulation reaches about 1/4 inch (0.6 cm) thick. Excessive frost reduces cooling efficiency.

1. Unplug the freezer from the power outlet.
2. Remove all food items and store them in another freezer or cooler.
3. Open the lid and place towels or a shallow pan under the drainage plug located at the bottom of the freezer.
4. Remove the drainage plug to allow water to drain.
5. Allow the frost to melt naturally. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the freezer.
6. Once defrosted, clean and dry the interior thoroughly.
7. Replace the drainage plug, plug in the freezer, and allow it to cool before returning food items.

Power Interruptions:

• In case of a power outage, keep the freezer lid closed to maintain the internal temperature for as long as possible. Food should remain frozen for several hours.
• If the power outage is prolonged, consider transferring food to another freezer or consuming perishable items.

7. Troubleshooting

Before contacting customer service, please check the following common issues and solutions:

8. Specifications

Detailed technical specifications for your BODACIOUS Deep Freezer.

9. Warranty and Customer Support

BODACIOUS is committed to providing quality products and excellent customer service.

Warranty Information:

This BODACIOUS Ultra Quiet Deep Freezer comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support:

For any pre-purchase inquiries, post-purchase problems, technical assistance, or warranty claims, please contact our responsive customer service team. Our professional team is dedicated to providing you with prompt and effective support.

You can also visit the official BODACIOUS store for more information and product details: BODACIOUS Store on Amazon

This image represents BODACIOUS's commitment to customer satisfaction and readily available support.
