1. Product Overview
The Yuasa YUAM724ZV is a 12-volt, absorbed-glass mat (AGM) battery designed for powersports applications. This maintenance-free battery features a special absorbed-glass mat design that eliminates water loss, allowing it to be permanently sealed once filled with electrolyte. This design ensures a non-spillable and reliable power source.

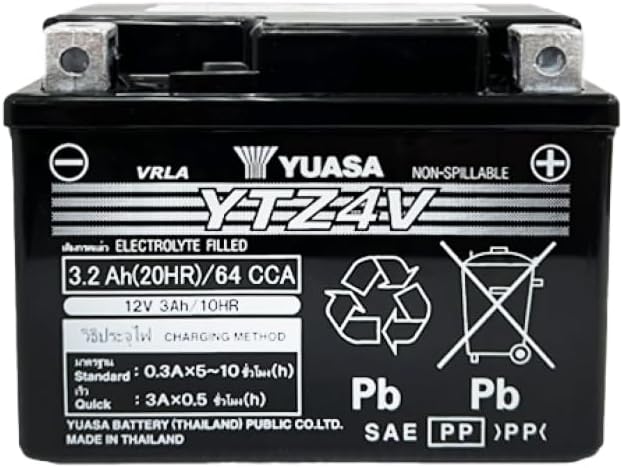

Image of the Yuasa YUAM724ZV battery, showing its VRLA, non-spillable design, 3.2 Ah (20HR) / 64 CCA rating, 12V 3Ah / 10HR capacity, and charging method details. It also indicates 'Pb' for lead content and recycling symbols.
2. Important Safety Information
Always observe the following safety precautions when handling or working with batteries:
- Wear appropriate personal protective equipment, including eye protection and gloves.
- Keep batteries away from open flames, sparks, and heat sources. Batteries can produce explosive gases.
- Do not short-circuit battery terminals.
- Keep out of reach of children.
- Dispose of batteries properly according to local regulations. Do not discard with household waste.
- Proposition 65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
3. Setup and Installation
3.1 Initial Preparation
The Yuasa YUAM724ZV battery is shipped as 'Electrolyte Filled' and 'permanently sealed', meaning it is ready for immediate installation and use. No initial filling or activation is required by the user.
3.2 Installation Steps
Follow these steps for safe installation:
- Ensure the vehicle's ignition is turned off and all accessories are disconnected.
- Locate the battery compartment in your vehicle.
- If replacing an old battery, disconnect the negative (-) terminal first, followed by the positive (+) terminal. Carefully remove the old battery.
- Clean the battery tray and terminal cables to remove any corrosion or debris.
- Place the new Yuasa YUAM724ZV battery securely in the battery compartment.
- Connect the positive (+) terminal cable to the positive (+) battery post first, ensuring a tight connection.
- Connect the negative (-) terminal cable to the negative (-) battery post, ensuring a tight connection.
- Secure the battery with any hold-down clamps or straps provided by the vehicle manufacturer.
4. Operation and Charging
4.1 General Operation
The Yuasa YUAM724ZV is designed to provide reliable starting power and accessory operation for your powersports vehicle. Its maintenance-free AGM design ensures consistent performance without the need for electrolyte level checks.
4.2 Charging Method
Proper charging is crucial for maximizing the lifespan and performance of your AGM battery. Use a charger specifically designed for AGM batteries.
| Charging Method | Current | Duration |
|---|---|---|
| Standard Charge | 0.3A | 5 - 10 hours |
| Quick Charge | 3A | 0.5 hours (30 minutes) |
Avoid overcharging, as this can damage the battery. If the vehicle is stored for extended periods, consider using a trickle charger or battery maintainer designed for AGM batteries to keep it at an optimal charge level.
5. Maintenance
The Yuasa YUAM724ZV is a maintenance-free AGM battery, meaning it does not require periodic water additions. However, some general care practices will help ensure its longevity:
- Terminal Cleaning: Periodically inspect battery terminals for corrosion. If corrosion is present, clean it with a wire brush and a solution of baking soda and water. Rinse with clean water and dry thoroughly.
- Terminal Connections: Ensure all terminal connections remain tight. Loose connections can lead to poor performance and potential damage.
- Storage: If the battery will not be used for an extended period, store it in a cool, dry place. Ensure the battery is fully charged before storage and periodically check its voltage, recharging if necessary, to prevent deep discharge.
- Voltage Check: Regularly check the battery's voltage with a voltmeter. A fully charged 12-volt AGM battery should read approximately 12.8-13.0 volts.
6. Troubleshooting
If you encounter issues with your Yuasa YUAM724ZV battery, consider the following common troubleshooting steps:
- Battery Not Holding Charge:
- Check the vehicle's charging system (alternator/stator) for proper operation.
- Ensure your battery charger is functioning correctly and is compatible with AGM batteries.
- The battery may be at the end of its service life if it's old and no longer accepts a charge.
- Slow Cranking or No Start:
- Verify that battery terminals are clean and tightly connected.
- Check the battery's charge level. A low charge can result in insufficient power for starting.
- Ensure the vehicle's starter motor and associated wiring are in good condition.
- Corrosion on Terminals:
- Clean terminals as described in the Maintenance section. Corrosion can impede electrical flow.
If these steps do not resolve the issue, consult a qualified technician or contact Yuasa customer support.
7. Specifications
- Brand: Yuasa
- Model: YUAM724ZV
- Type: Maintenance Free AGM 12-Volt Battery
- Voltage: 12V
- Capacity (20HR): 3.2 Ah
- Capacity (10HR): 3 Ah
- Cold Cranking Amps (CCA): 64 CCA
- Item Weight: 3.5 pounds
- Manufacturer Part Number: YUAM724ZV
- UPC: 048493724690
- Features: VRLA (Valve Regulated Lead Acid), Non-Spillable, Electrolyte Filled
8. Warranty and Support
Specific warranty details for the Yuasa YUAM724ZV battery are not provided in this manual. For comprehensive warranty information, technical support, or service inquiries, please refer to the official Yuasa website or contact your authorized Yuasa dealer or retailer. Keep your proof of purchase for any warranty claims.
