1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Ohlins HD 778 OHL STX 36 Blackline shock absorbers. These high-performance rear shock absorbers are designed for specific motorcycle models to enhance ride quality and handling. Please read this manual thoroughly before attempting any installation or adjustments to ensure safety and optimal performance.
2. Safety Information
- Professional Installation Recommended: Due to the critical nature of suspension components, installation should ideally be performed by a qualified motorcycle technician.
- Read All Warnings: Pay close attention to all warning labels and instructions provided with the product and in this manual.
- Use Proper Tools: Always use the correct tools for installation and adjustment. Incorrect tools can cause damage to the product or injury.
- High-Pressure Components: Ohlins shock absorbers contain high-pressure nitrogen gas. Do not attempt to open or disassemble the shock absorber. Improper handling can lead to serious injury.
- Hot Surfaces: Shock absorbers can become very hot during operation. Allow them to cool before handling or making adjustments.
- Vehicle Stability: Ensure the motorcycle is securely supported on a stable stand before beginning any work.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation. Your package should contain:
- Ohlins HD 778 OHL STX 36 Blackline Shock Absorbers (Pair)
- Mounting Hardware (specific to your motorcycle model, if included)
- User Manual / Installation Guide
4. Setup and Installation
Installation of the Ohlins HD 778 OHL STX 36 Blackline shock absorbers requires mechanical aptitude and specific tools. It is highly recommended that installation be performed by an authorized Ohlins service center or a qualified motorcycle mechanic.
- Prepare the Motorcycle: Secure the motorcycle on a lift or stand so that the rear wheel is off the ground and the suspension is unloaded.
- Remove Original Shocks: Carefully remove the original rear shock absorbers according to your motorcycle's service manual. Note the orientation and any spacers.
- Install Ohlins Shocks: Install the Ohlins HD 778 OHL STX 36 Blackline shock absorbers in the correct orientation. Ensure all mounting bolts are clean and apply thread locker if specified by your motorcycle manufacturer.
- Torque Bolts: Tighten all mounting bolts to the torque specifications provided in your motorcycle's service manual. Do not overtighten.
- Initial Adjustments: Perform initial preload adjustments as described in the 'Operating' section or by a qualified technician.
- Final Checks: Before riding, ensure all fasteners are tight, there is no interference with other components, and the suspension moves freely through its full travel.

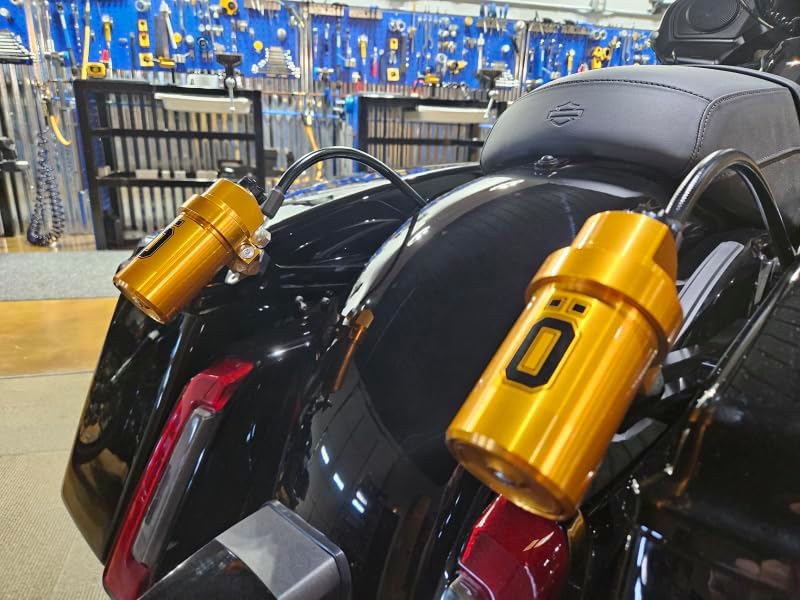

Image: Close-up of the Ohlins HD 778 OHL STX 36 Blackline shock absorbers installed on a motorcycle.

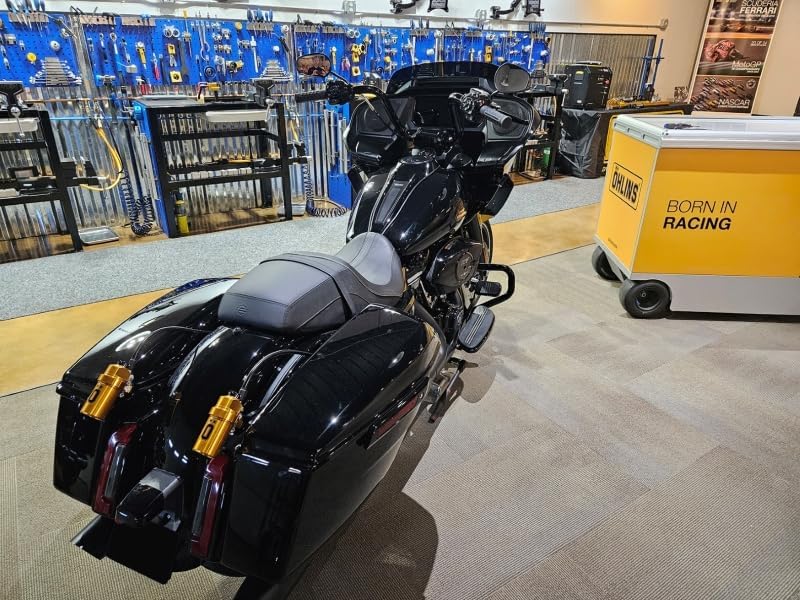

Image: Full view of a motorcycle with the Ohlins HD 778 OHL STX 36 Blackline shock absorbers installed.
5. Operating and Adjustments
The Ohlins HD 778 OHL STX 36 Blackline shock absorbers are designed with adjustability to fine-tune your motorcycle's handling characteristics. Adjustments should be made incrementally and systematically.
- Spring Preload: Adjusts the initial compression of the spring, affecting ride height and sag. Correct sag is crucial for proper suspension function. Refer to your motorcycle's service manual or an Ohlins specialist for recommended sag settings.
- Compression Damping: Controls the speed at which the shock absorber compresses. Adjusting this affects how the suspension handles bumps and impacts.
- Rebound Damping: Controls the speed at which the shock absorber extends after compression. Proper rebound damping prevents the wheel from 'pogo-sticking' and maintains tire contact with the road.
Important: Always make adjustments in small increments and test the motorcycle's behavior in a safe environment. Incorrect adjustments can negatively impact handling and safety. If you are unsure, consult an Ohlins authorized service center.
6. Maintenance
Regular maintenance ensures the longevity and consistent performance of your Ohlins shock absorbers.
- Cleaning: Keep the shock absorbers clean from dirt, dust, and road grime. Use mild soap and water, then rinse thoroughly. Avoid high-pressure washers directly on seals.
- Inspection: Periodically inspect the shock absorbers for any signs of oil leaks, damage to the shaft or body, loose fasteners, or worn bushings.
- Service Intervals: Ohlins shock absorbers require periodic servicing (rebuilding) to maintain optimal performance. The service interval depends on usage (e.g., street riding vs. track use). Consult an Ohlins service center for recommended service schedules.
- Do Not Disassemble: Never attempt to disassemble the shock absorber yourself. It contains high-pressure gas and specialized tools are required for servicing.
7. Troubleshooting
If you experience issues with your Ohlins shock absorbers, consider the following:
- Poor Ride Quality / Handling: Check spring preload and damping settings. Ensure they are appropriate for your weight and riding style. Incorrect tire pressure can also affect handling.
- Noise from Shocks: Inspect mounting bolts for proper torque. Check for any loose components or interference with other parts of the motorcycle.
- Oil Leaks: A small amount of oil residue on the shaft is normal. However, significant oil leakage indicates a seal failure and requires immediate professional servicing.
- Lack of Damping: If the shock feels 'bouncy' or has no resistance, it may indicate a loss of gas pressure or internal damage. This requires professional inspection and repair.
For persistent issues or concerns, contact an authorized Ohlins service center.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Ohlins |
| Model Number | HD 778 |
| Auto Part Position | Rear |
| Style | Performance |
| Vehicle Service Type | Motorcycle |
| Exterior Finish | Black |
| Material Type | Alloy Steel |
| Compatible with Vehicle Type | Motorcycle |
9. Warranty and Support
Ohlins products are manufactured to high standards and come with a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase.
For warranty claims, technical support, or to locate an authorized service center, please visit the official Ohlins website or contact your local Ohlins distributor. Attempting to repair or modify the shock absorbers yourself may void the warranty.
Ohlins Official Website: www.ohlins.com
