Homeiju Wall Mount Wine Rack 40 (31.9"W x 9.8"D x 19.7"H) User Manual

Introduction

This manual provides detailed instructions for the assembly, installation, and maintenance of your Homeiju Wall Mount Wine Rack 40. Please read this manual thoroughly before beginning assembly to ensure safe and correct usage of the product. Keep this manual for future reference.

Figure 1: Fully assembled Homeiju Wall Mount Wine Rack 40, showcasing its capacity for wine bottles and hanging stemware, along with a top shelf for additional items.

Safety Information

• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Always use appropriate tools and follow assembly steps carefully.
• This wine rack is designed for wall mounting. Ensure the wall material is suitable for supporting the weight of the rack and its contents. Use appropriate wall anchors for your specific wall type (e.g., wood studs, drywall, concrete).
• Do not overload the rack. Refer to the specifications for weight capacity.
• Keep children and pets away from the assembly area.
• Periodically check all connections and mounting hardware to ensure they remain secure.

Package Contents

Please verify that all components listed below are included in your package:

• Main Frame Sections (Left, Right, Center)
• Wooden Shelves (2 pieces)
• Wine Bottle Holders (Multiple horizontal bars)
• Stemware Rack
• Assembly Hardware (Screws, Allen wrench)
• Wall Mounting Hardware (Screws, Wall Anchors)
• Instruction Manual

If any parts are missing or damaged, please contact Homeiju customer support.

Assembly Instructions

Follow these steps to assemble your wine rack. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out. Check against the "Package Contents" list.
2. Assemble Side Frames: Attach the horizontal wine bottle holders to the vertical side frame sections using the provided screws. Ensure they are securely fastened. Repeat for both left and right side frames.
3. Attach Center Frame: Connect the two main wooden shelves to the center metal frame using screws.
4. Connect Side and Center Sections: Attach the assembled side frames to the center shelf unit. Ensure all connections are tight and stable.
5. Install Stemware Rack: Secure the stemware rack to the underside of the bottom wooden shelf using the designated screws.

Figure 2: An assembled view of the wine rack, illustrating the integration of metal frames, wooden shelves, and the stemware holder.

Installation Instructions (Wall Mounting)

Proper wall mounting is crucial for the stability and safety of your wine rack. Seek professional assistance if you are unsure about wall types or mounting procedures.

1. Choose Location: Select a suitable wall location, ensuring it is free from electrical wires, plumbing, and other obstructions. Consider the height for easy access to bottles and glasses.
2. Mark Mounting Points: Hold the assembled wine rack against the wall at the desired height. Use a pencil to mark the locations for the mounting screws through the pre-drilled holes on the rack's frame. Use a level to ensure the marks are perfectly horizontal.
3. Drill Pilot Holes: Based on your wall type, drill pilot holes at the marked locations.
   • For wood studs: Drill a pilot hole slightly smaller than the screw diameter.
   • For drywall/plaster: Drill a hole appropriate for the wall anchors. Insert the wall anchors until flush with the wall surface.
   • For concrete/brick: Use a masonry drill bit and appropriate anchors.
4. Mount the Rack: Align the rack's mounting holes with the drilled holes/anchors. Insert the mounting screws and tighten them securely. Do not overtighten, especially with wall anchors, to avoid damaging the wall or anchors.
5. Verify Stability: Gently pull on the mounted rack to ensure it is firmly attached to the wall and does not wobble.

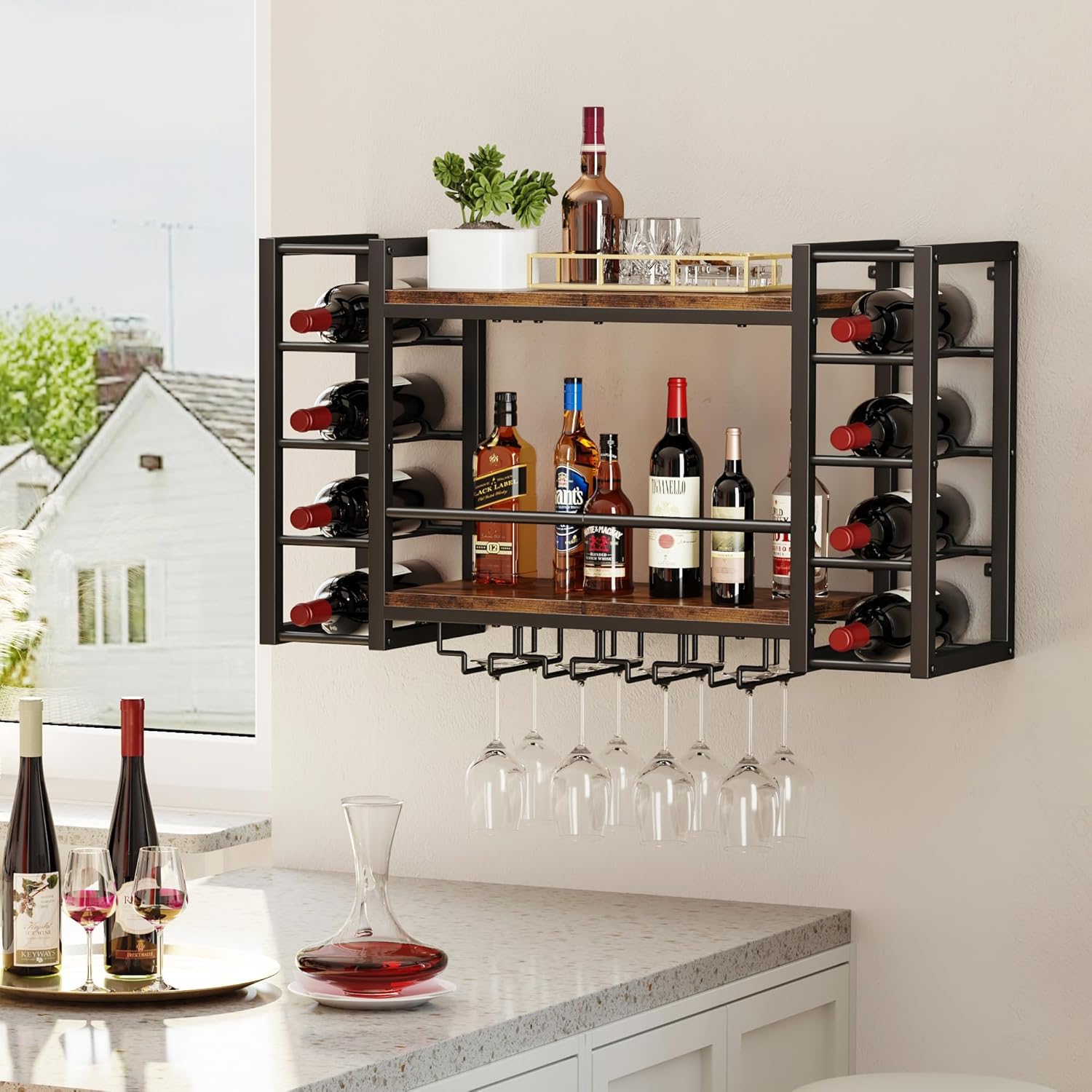

Figure 3: The wine rack securely mounted on a kitchen wall, demonstrating its integration into a home environment.

Usage

The Homeiju Wall Mount Wine Rack 40 is designed for organized storage of wine bottles and stemware.

• Bottle Storage: Place wine bottles horizontally into the designated metal holders. This rack can hold up to 10 standard wine bottles.
• Stemware Storage: Hang wine glasses by their bases in the slots of the stemware rack.
• Shelf Use: The two wooden shelves provide space for additional bottles, spirits, bar accessories, or decorative items.

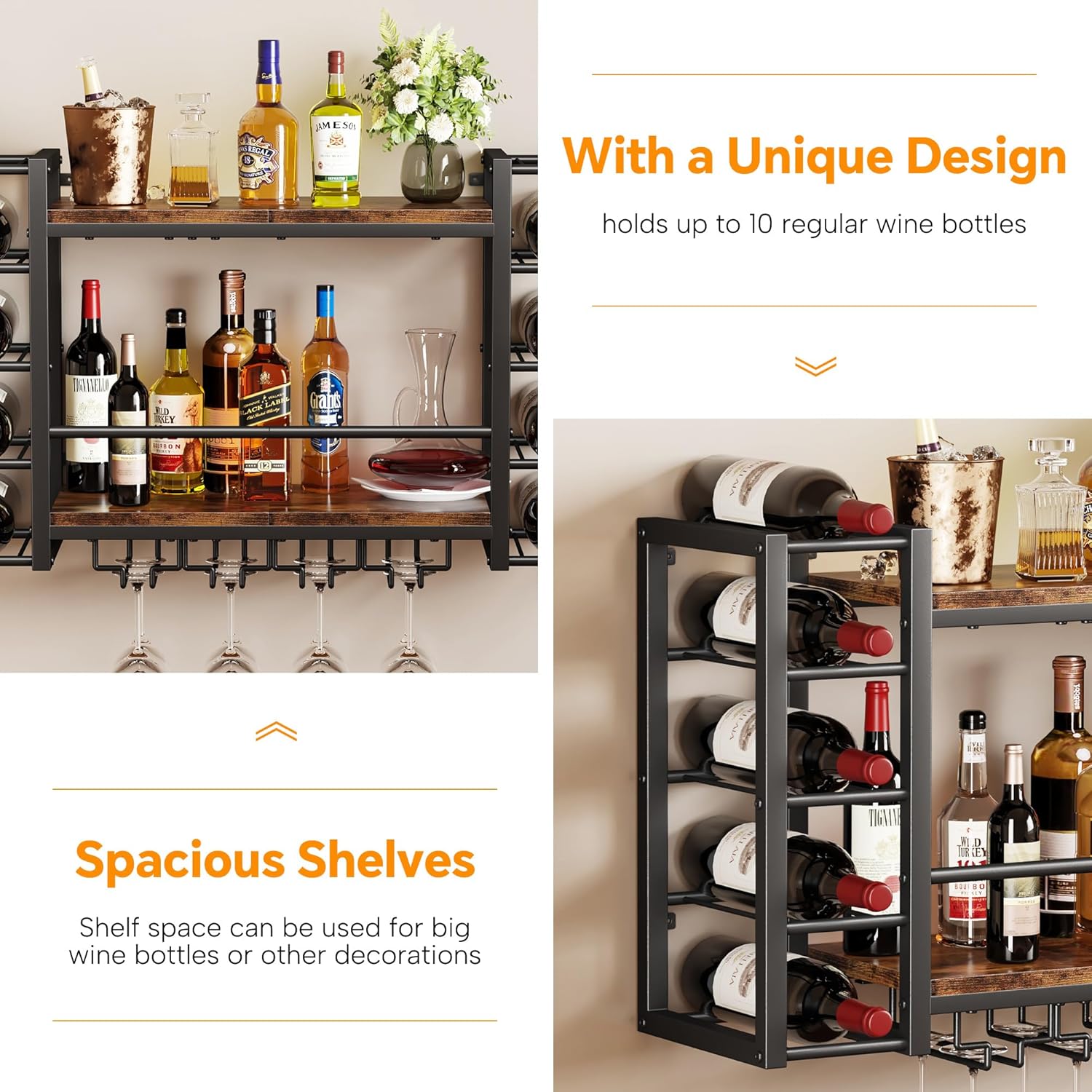

Figure 4: A detailed view highlighting the rack's capacity for 10 wine bottles and the versatile shelf space for other items.

Care and Maintenance

To maintain the appearance and longevity of your wine rack, follow these simple care instructions:

• Cleaning: Wipe the surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the finish.
• Inspection: Periodically check all screws and mounting hardware to ensure they are tight. Retighten if necessary.
• Avoid Moisture: While the rack is designed for kitchen/dining environments, avoid prolonged exposure to excessive moisture or direct water contact.

Troubleshooting

Specifications

Figure 5: Dimensional drawing of the wine rack, indicating width, depth, and height measurements.

Warranty and Support

Homeiju is committed to providing quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase.

For any questions, missing parts, or assistance with assembly and installation, please contact Homeiju customer support through the retailer where the product was purchased or visit the official Homeiju brand store online.

Homeiju Brand Store: Visit Homeiju Store on Amazon
