TOKIT B3 Countertop Blender Instruction Manual

Model: B3 | Brand: TOKIT

1. Important Safety Information

Please read all instructions carefully before using your TOKIT B3 Countertop Blender. Failure to follow these safety guidelines may result in injury or damage to the appliance.

  • Electrical Safety: Always ensure the blender is unplugged before assembly, disassembly, or cleaning. Do not immerse the motor base in water or other liquids. Use only with a compatible power outlet (220V).
  • Blade Safety: The blades are sharp. Handle the blade assembly with extreme care. Never touch the blades directly with your hands, especially when the blender is plugged in.
  • Lid and Pitcher: Always ensure the lid is securely locked onto the pitcher before operating the blender. Never remove the lid or reach into the pitcher while the blender is running.
  • Overheating Protection: The blender is equipped with an overheating protection system. If the motor stops due to overheating, unplug the unit and allow it to cool down for at least 15 minutes before resuming use.
  • Supervision: Close supervision is necessary when any appliance is used by or near children.
  • Intended Use: This appliance is designed for household use only. Do not use it for commercial purposes or for anything other than its intended use.

2. Product Overview

The TOKIT B3 Countertop Blender is a powerful and versatile kitchen appliance designed for efficient blending, mixing, and crushing. It features a robust motor, a large-capacity glass pitcher, and intuitive touch controls with multiple preset programs.

Components:

  • Motor Base: Houses the powerful 2000W motor and touch control panel.
  • 68 Oz Glass Pitcher: Durable and large-capacity pitcher for various blending tasks.
  • Lid with Removable Cap: Ensures secure blending and allows for adding ingredients during operation.
  • Blade Assembly: Integrated into the pitcher for efficient processing.

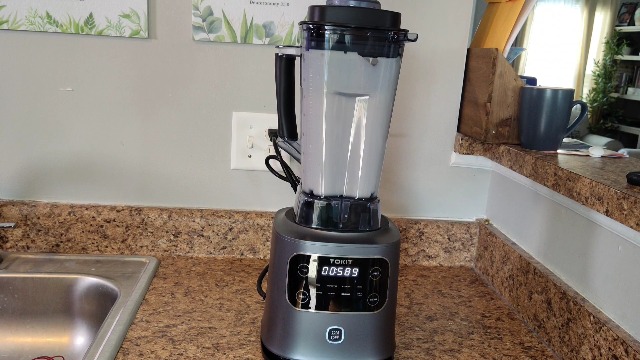

TOKIT B3 Countertop Blender with pitcher and base

The TOKIT B3 Countertop Blender features a powerful motor base, a large 68 oz glass pitcher, and a secure lid with a removable cap for adding ingredients.

3. Setup

  1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
  2. Clean: Before first use, wash the pitcher, lid, and removable cap with warm, soapy water. Rinse thoroughly and dry. Wipe the motor base with a damp cloth.
  3. Placement: Place the motor base on a clean, dry, and stable countertop surface. Ensure there is adequate ventilation around the unit.
  4. Assemble: Place the clean pitcher onto the motor base, ensuring it is seated correctly and securely. The blender will 'wake up' when the pitcher is properly placed.
  5. Power: Plug the power cord into a grounded 220V electrical outlet. The 'ON/OFF' button will illuminate.

4. Operating Instructions

The TOKIT B3 Blender offers both preset programs for convenience and manual controls for precise blending.

Control Panel Overview:

TOKIT B3 Blender control panel showing Time, Speed, Pulse, Menu buttons and preset programs

The touch control panel of the TOKIT B3 Blender features dedicated buttons for Time, Speed, Pulse, Menu, and 8 preset programs.

  • ON/OFF: Powers the unit on or off.
  • TIME: Adjusts the blending duration in manual mode.
  • SPEED: Adjusts the blending speed in manual mode.
  • PULSE: Provides short bursts of high-speed blending for chopping or quick mixing.
  • MENU: Cycles through the 8 preset programs.
  • Preset Programs: MILK, NUT BUTTER, ICE CRUSH, PUREE, SMOOTHIE, EXTRACT, ICE CREAM, QUICK CLEAN.

Basic Operation:

  1. Add Ingredients: Place your desired ingredients into the glass pitcher. Do not exceed the maximum fill line.
  2. Secure Lid: Place the lid firmly onto the pitcher and ensure it is locked in place. The removable cap should also be in place.
  3. Select Program/Settings:
    • For Preset Programs: Press the 'MENU' button repeatedly until your desired program (e.g., SMOOTHIE, ICE CREAM) is selected. The display will show the program name and default time.
    • For Manual Control: Use the 'TIME' and 'SPEED' buttons to set your desired blending duration and intensity.
  4. Start Blending: Press the 'ON/OFF' button to start the selected program or manual blending.
  5. Stop Blending: The blender will automatically stop when a preset program finishes. To stop manual blending or a preset program prematurely, press the 'ON/OFF' button.
  6. Serve: Once blending is complete, carefully remove the pitcher from the base and pour out the contents.

Demonstration Video:

This video demonstrates the TOKIT B3 blender's capability to make ice cream quickly and highlights its automatic cleaning function.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your TOKIT B3 Blender.

Automatic Quick Clean Function:

The 'QUICK CLEAN' preset program simplifies daily cleaning.

  1. After use, rinse the pitcher to remove large food particles.
  2. Fill the pitcher with approximately 2-3 cups of warm water and add a few drops of dish soap.
  3. Secure the lid onto the pitcher.
  4. Place the pitcher on the motor base.
  5. Select the 'QUICK CLEAN' program using the 'MENU' button.
  6. Press 'ON/OFF' to start the cleaning cycle.
  7. Once the cycle is complete, discard the soapy water, rinse the pitcher thoroughly with clean water, and allow it to air dry.

Manual Cleaning:

  • Pitcher and Lid: For a more thorough clean, the pitcher, lid, and removable cap can be hand-washed with warm, soapy water and a non-abrasive sponge or brush. Be extremely careful around the blades.
  • Motor Base: Wipe the motor base with a damp cloth. Never immerse the motor base in water. Ensure the base is completely dry before plugging it back in.
  • Storage: Store the blender in a clean, dry place with the lid slightly ajar to prevent odors.

6. Troubleshooting

If you encounter issues with your TOKIT B3 Blender, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Blender does not turn on.Not plugged in; pitcher not seated correctly; power outage.Ensure the power cord is securely plugged in. Re-seat the pitcher firmly on the motor base. Check your power supply.
Ingredients are not blending smoothly.Too little liquid; too many ingredients; ingredients are too large or hard.Add more liquid. Reduce the amount of ingredients. Cut hard ingredients into smaller pieces. Use the 'PULSE' function or a higher speed.
Motor stops during operation.Overheating protection activated.Unplug the blender and let it cool down for at least 15 minutes. Reduce load or add more liquid before restarting.
Leakage from the pitcher.Lid not properly secured; pitcher overfilled.Ensure the lid is firmly locked in place. Do not fill ingredients above the maximum fill line.

7. Specifications

  • Brand: TOKIT
  • Model: B3
  • Wattage: 2000 Watts
  • Voltage: 220 Volts
  • Capacity: 68 Ounces (approx. 2 Liters)
  • Material: Acrylonitrile Butadiene Styrene (ABS) for base, Glass for pitcher
  • Controls Type: Touch
  • Special Feature: Automatic Cleaning
  • Color: Grey
  • Item Weight: 4.3 Pounds

8. Warranty and Support

Your TOKIT B3 Countertop Blender comes with a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or contact TOKIT customer support.

If you require assistance, have questions, or need to report an issue, please contact TOKIT customer support through the official website or the contact information provided with your purchase. Please have your model number (B3) and purchase details ready when contacting support.
