Introduction
Thank you for choosing the KASUE Portable Infrared Steam Sauna Box. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new sauna. Please read all instructions carefully before use and retain this manual for future reference.
Safety Warnings
- Always use distilled water in the steamer to prevent mineral buildup and ensure longevity.
- Ensure the sauna is placed on a flat, stable, and dry surface.
- Do not operate the sauna if any components are damaged.
- Keep children and pets away from the sauna during operation.
- Consult a physician before use if you have any medical conditions, are pregnant, or are taking medication.
- Avoid prolonged exposure to high temperatures. Limit sessions to recommended durations.
- Unplug the steamer and red light unit when not in use and before cleaning.
Package Contents
Please verify that all items listed below are included in your package:
- Sauna Cloth Cover
- Folding Chair
- Fumigation Machine (Steamer)
- Red Light Strip
- Clear Hose x 2
- Remote Control
- Corner Connector x 4
- Three-way Interface x 8
- Components 32.3in x 8 (Short Pipes)
- Components 33.9in x 8 (Long Pipes)
Figure 1: All components included in the KASUE Portable Infrared Steam Sauna Box package.
Setup Instructions
Frame Assembly
- Connect the short pipes (32.3in) to the corner connectors and three-way interfaces to form the base frame. Ensure all connections are secure.
- Insert the long pipes (33.9in) into the vertical openings of the base frame's corner connectors and three-way interfaces.
- Assemble the top frame using the remaining short pipes, corner connectors, and three-way interfaces. Carefully place and secure the top frame onto the vertical long pipes.
- Drape the sauna cloth cover over the assembled frame, ensuring it fits snugly and the zippers align with the openings.
- Place the folding chair inside the sauna box.
- Position the red light strip inside the sauna, attaching it to the designated hooks or bars at the top.
Figure 2: Front view of the assembled sauna box.

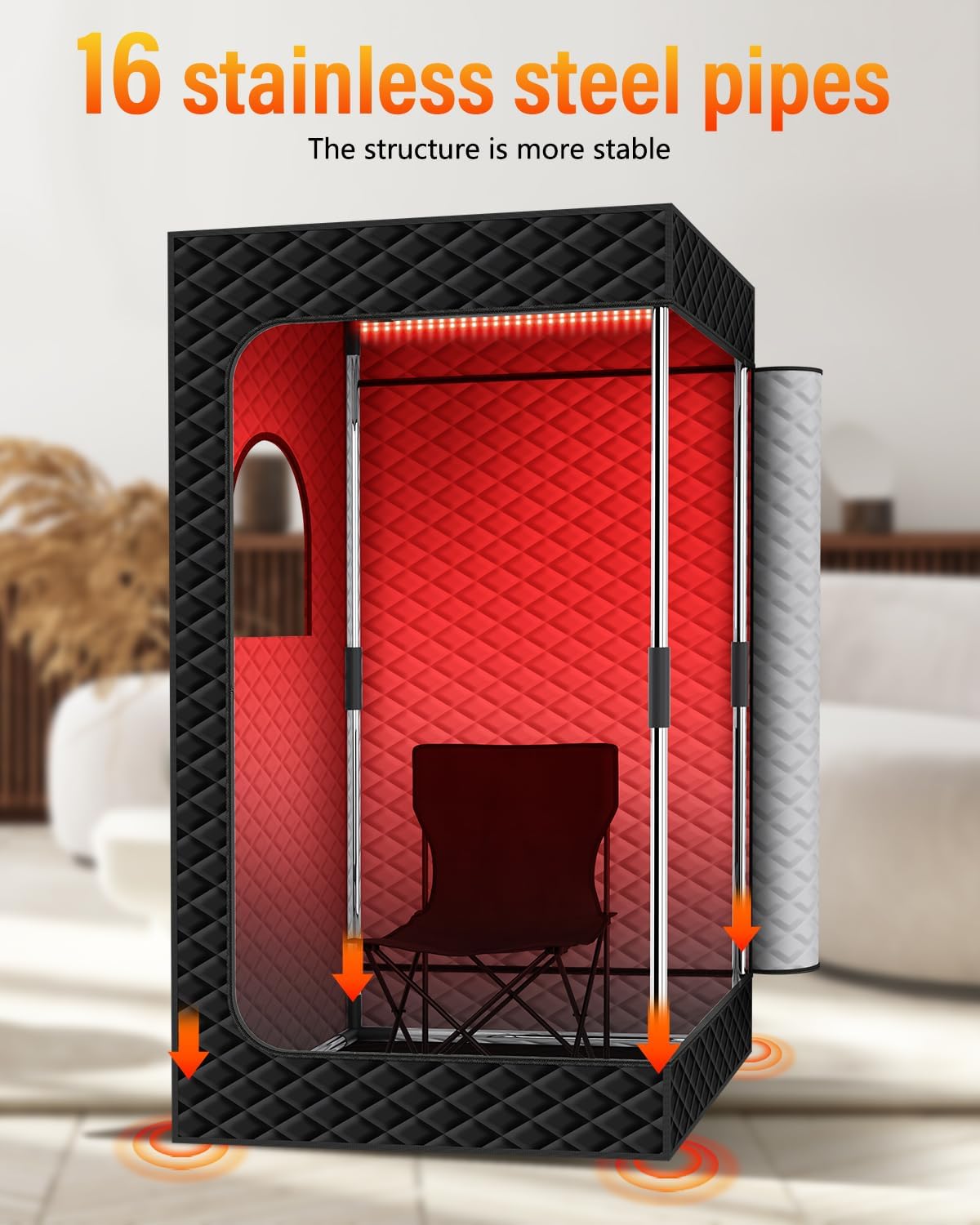

Figure 3: Side view illustrating the frame structure.
Figure 4: Interior view of the sauna box before use.
Figure 5: Sauna interior with the folding chair in place.
Steamer Connection
- Place the fumigation machine (steamer) outside the sauna box on a stable surface.
- Connect one end of the clear hose to the steam outlet on the fumigation machine.
- Feed the other end of the clear hose through the designated opening at the bottom of the sauna box and connect it to the steam box inside.
- Fill the fumigation machine with distilled water up to the maximum fill line. Do not overfill.
- Securely close the lid of the fumigation machine.
- Plug the fumigation machine and the red light unit into a standard electrical outlet.
Figure 6: Proper setup of the steamer unit and hose connection.
Setup Videos
Video 1: "How to Install the Portable Sauna for Home" - A step-by-step guide on assembling the sauna box and connecting the steamer.
Video 2: "Installation steps for our sauna box" - Visual instructions for the assembly process.
Operating Instructions
Steamer Operation
- Ensure the steamer is filled with distilled water and properly connected to the sauna box.
- Press the power button on the steamer unit or the remote control to turn it on.
- Use the 'Timer' buttons on the unit or remote to set the desired session duration (up to 99 minutes).
- Use the 'Heating' buttons to adjust the steam temperature (9 adjustable settings).
- Allow a few minutes for the water to heat up and steam to begin filling the sauna.
- Enter the sauna, close the zippers, and enjoy your session.
Red Light Therapy
The integrated red light strip provides red light therapy (660nm + 850nm). This feature can be turned on independently or in conjunction with the steam function. Use the dedicated controls for the red light unit to activate it.
Remote Control
The included remote control allows you to conveniently adjust the timer and heating settings of the steamer without needing to exit the sauna. Familiarize yourself with the remote's buttons for power, timer adjustment, and heating level control.
Figure 7: User enjoying the sauna experience.
Video 3: "Portable Sauna Box for Home" - Demonstrates the sauna in use, highlighting its features and ease of operation.
Video 4: "Steam Sauna Box" - Shows the steam generation and overall functionality of the sauna box.
Maintenance
Cleaning
- After each use, unplug the steamer and red light unit.
- Allow the sauna to cool down completely.
- Wipe down the interior of the sauna cover with a damp cloth. For stubborn stains, use a mild, non-abrasive cleaner.
- Empty any remaining water from the steamer and wipe its interior dry.
- Regularly descale the steamer using a citric acid solution to prevent mineral buildup (refer to steamer manual for specific instructions).
Storage
- Ensure all components are completely dry before disassembling.
- Disassemble the frame by reversing the setup steps.
- Fold the sauna cover and store all components in their original packaging or a dry, cool place away from direct sunlight.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| No steam production | Steamer not powered on; insufficient water; hose kinked or disconnected. | Ensure power is on; fill water to appropriate level; check hose connections. |
| Sauna not heating sufficiently | Low temperature setting; zippers not fully closed; sauna cover not properly installed. | Increase temperature setting; ensure all zippers are closed; check cover installation. |
| Red light not working | Red light unit not powered on; loose connection. | Ensure red light unit is plugged in and powered on; check connections. |
| Water leakage | Hose not securely connected; steamer lid not properly sealed. | Verify all hose connections are tight; ensure steamer lid is securely closed. |
Specifications
- Model: SNFF-a1
- Product Dimensions: 35.4 x 35.4 x 71 inches
- Item Weight: 19.16 pounds
- Steamer Capacity: 3 Liters
- Steamer Power: 1400W (requires 120V voltage)
- Temperature Settings: 9 levels
- Maximum Timer: 99 minutes
- Material: 5-Layer Waterproof & Heat-Insulating Fabric, Stainless Steel Frame
- Red Light Therapy: 660nm + 850nm
Warranty & Support
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the KASUE official website. Please have your model number (SNFF-a1) and purchase date available when contacting support.
