1. Introduction

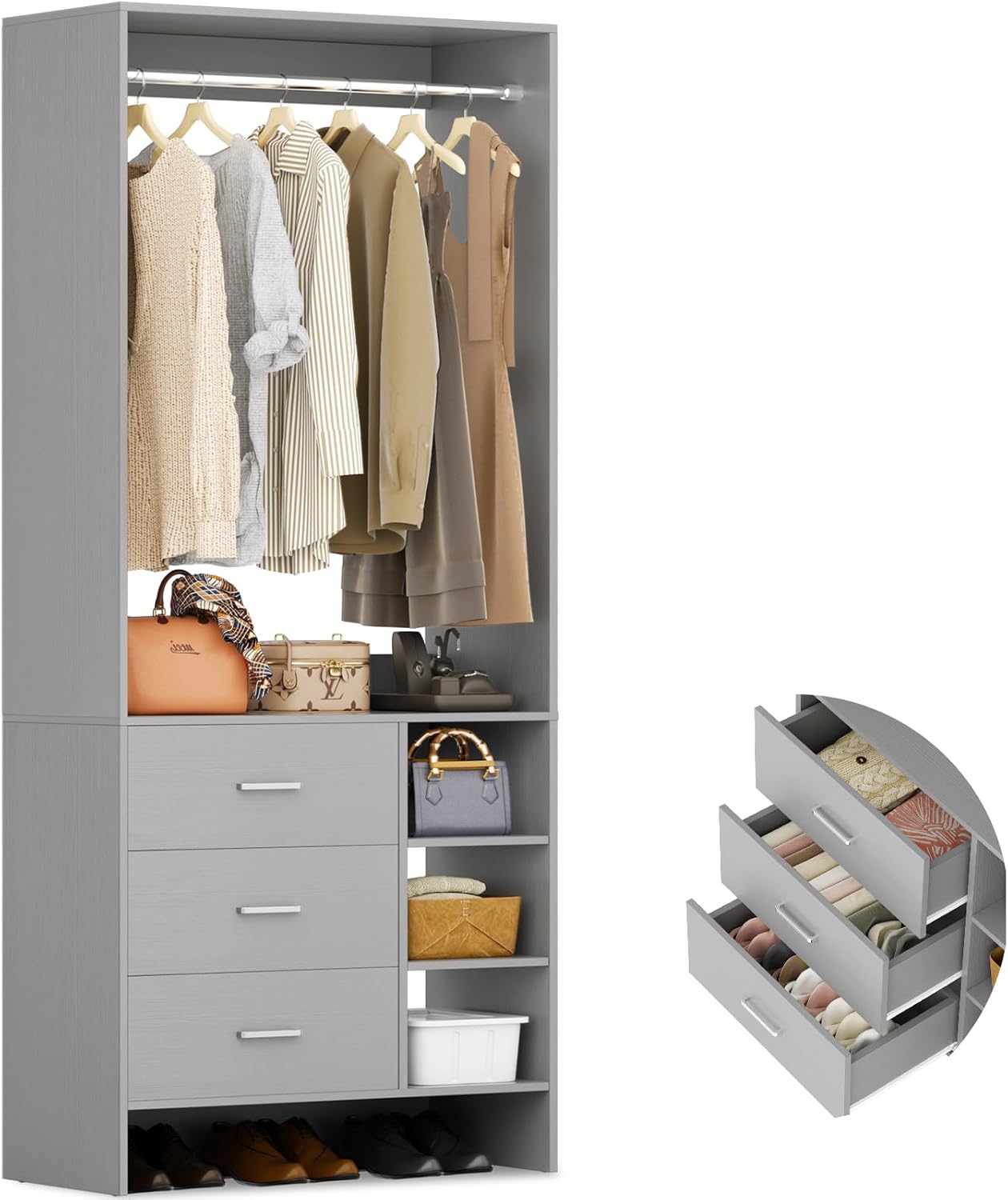

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aheaplus Closet System, Model E3. This versatile wood closet organizer is designed to enhance storage and organization in various spaces, featuring three drawers, multiple shelves, and a hanging rod.
2. Safety Information
- Always ensure all connections are secure before use.
- Do not exceed the maximum weight capacity of 600 lbs for the entire unit and 100 lbs for the hanging rod.
- Install the provided anti-tip kits to prevent accidental tipping, especially in households with children or pets.
- Keep small parts away from children during assembly.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer service.
- Closet System Panels (various sizes)
- 3 Wooden Drawers
- Hanging Rod
- Assembly Manual
- Installation Kits (hardware, tools, anti-tip kits)
4. Setup and Assembly Instructions
Assembly is required for this product. It is recommended that two people assist with the assembly process for ease and safety. All necessary hardware and tools are included, and each part is clearly labeled.
- Unpack Components: Carefully unpack all parts and lay them out on a clean, soft surface to prevent scratches. Refer to the parts list in the included assembly manual to identify each component.
- Assemble Frame: Follow the step-by-step diagrams in the separate assembly manual to connect the main frame panels using the provided hardware. Ensure all screws are tightened securely.
- Install Shelves: Insert the fixed and adjustable shelves into their designated slots or attach them with the appropriate hardware.
- Assemble Drawers: Construct the three wooden drawers according to the instructions, ensuring the drawer slides are correctly installed for smooth operation.
- Attach Hanging Rod: Secure the hanging rod between the designated supports.
- Install Anti-Tip Kits: Attach the anti-tip kits to the top rear of the closet system and secure them to a wall stud using the provided hardware. This step is critical for stability.
5. Operating Instructions (Usage)
The Aheaplus Closet System is designed for versatile storage and organization.
- Drawers: Utilize the three wooden drawers for storing personal items such as underwear, socks, or folded T-shirts.
- Open Shelves: The three open shelves are suitable for bags, shoes, folded garments, or decorative items.
- Hanging Rod: The robust hanging rod provides ample space for both long and short clothes, such as dresses, shirts, and jackets.
- Top Surface: The spacious top surface can be used for additional storage or display.
- Versatile Placement: This freestanding unit can be used in various rooms including bedrooms, living rooms, kitchens, laundry rooms, or entryways. It is not wall-mounted and can be moved freely.

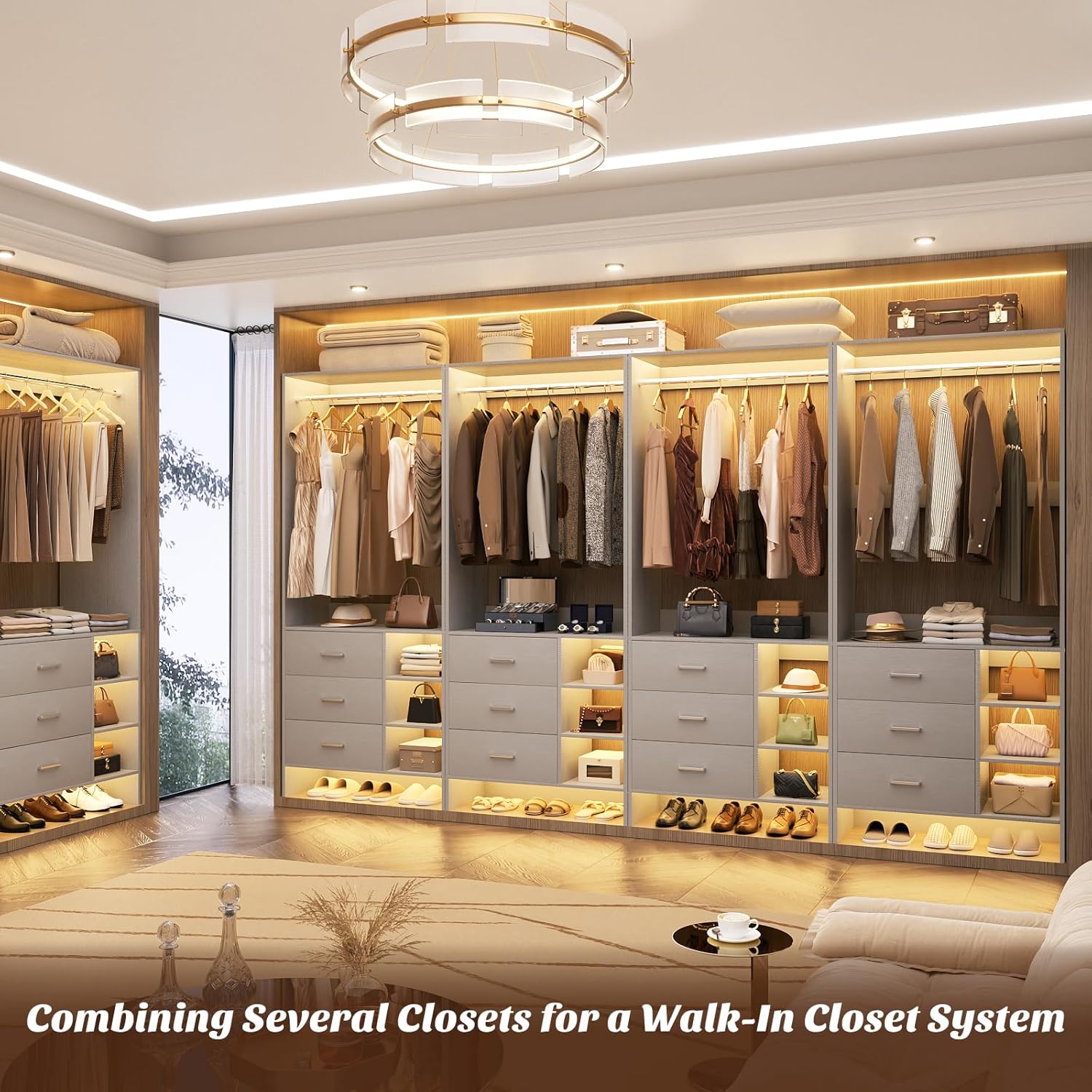

- Expandable System: Multiple units can be combined to create a larger closet system. For example, two units create a 5-foot system, three units create a 7.5-foot system, and four units create a 10-foot system.
6. Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the wood finish.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Drawer Care: Ensure drawers slide smoothly. If they become stiff, a small amount of silicone lubricant can be applied to the drawer slides.
7. Troubleshooting
- Missing/Damaged Parts: If any parts are missing or damaged during installation, please contact Aheaplus customer service for assistance.
- Wobbling Unit: Ensure all screws are fully tightened. Verify that the anti-tip kits are correctly installed and secured to a wall stud.
- Drawers Not Closing Smoothly: Check for obstructions in the drawer slides. Ensure the drawer slides are properly aligned and installed.

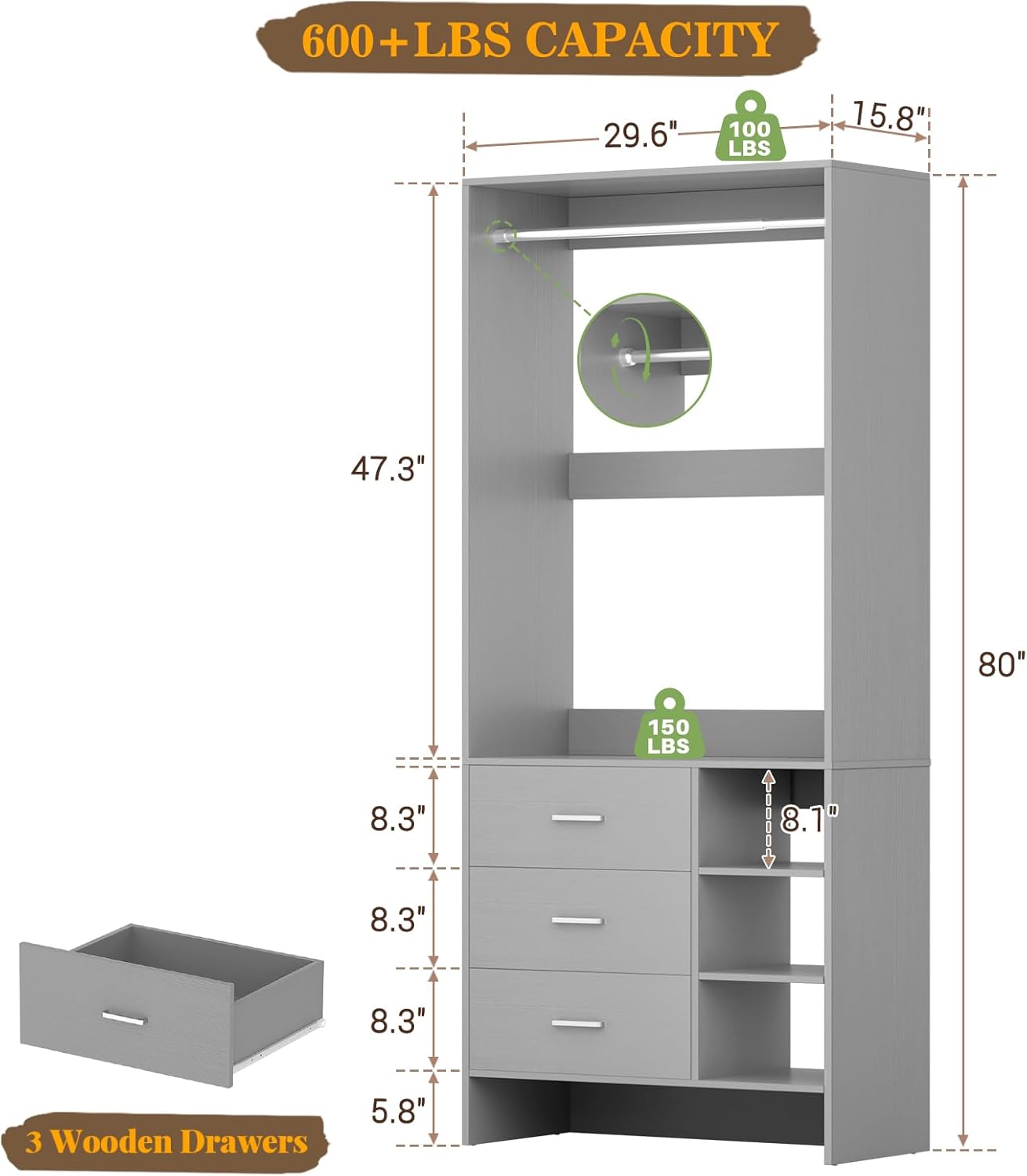

8. Specifications
| Feature | Detail |
|---|---|
| Model Number | E3 |
| Dimensions (L x W x H) | 29.6 x 15.8 x 80 inches |
| Material | Wood |
| Color | Grey |
| Total Load Capacity | Up to 600 lbs |
| Hanging Rod Capacity | Up to 100 lbs |
| Mounting Type | Freestanding (with wall-mounted anti-tip kits for safety) |
| Included Components | Closet System, 3 Drawers, Manual, Install Kits |
9. Warranty and Support
Aheaplus is committed to providing excellent customer service. If you encounter any issues with your product, such as missing or damaged parts during installation, please do not hesitate to reach out to our support team. We are here to assist you with any questions or concerns.
For support, please refer to the contact information provided with your purchase or visit the official Aheaplus store page on Amazon.
