Samsung 9100 PRO NVMe M.2 SSD User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Samsung 9100 PRO NVMe M.2 Solid State Drive. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

The Samsung 9100 PRO is a high-performance internal SSD designed for demanding applications such as gaming, 4K video editing, and AI content generation. It utilizes the PCIe 5.0 interface for superior speed and efficiency.

2. Safety Information

• Always handle the SSD by its edges to avoid touching the gold connectors or components.
• Ensure your system is powered off and unplugged before installation.
• Discharge any static electricity from your body before handling the SSD.
• Do not expose the SSD to moisture, extreme temperatures, or strong magnetic fields.
• Keep the SSD away from children.

3. Package Contents

Verify that your package contains the following items:

• 1 x Samsung 9100 PRO NVMe M.2 SSD
• Installation instructions
• Instructions for use (this manual)

Image: The Samsung 9100 PRO NVMe M.2 SSD shown with its retail packaging.

4. Setup

4.1 System Requirements

• Motherboard with an available M.2 slot (M-key, 2280 form factor).
• PCIe 5.0 x4 interface support for optimal performance. The SSD is backward compatible with PCIe 4.0/3.0, but performance will be limited by the interface.
• Operating System: Windows 10/11, macOS, or Linux with NVMe driver support.

4.2 Installation Steps

1. Prepare Your System: Power off your computer and unplug all cables. Open your computer case.
2. Locate M.2 Slot: Identify an available M.2 slot on your motherboard. Consult your motherboard manual for exact locations.
3. Insert the SSD: Gently insert the Samsung 9100 PRO SSD into the M.2 slot at a 30-degree angle. Ensure the gold connectors are fully seated.

Image: Top view of the Samsung 9100 PRO NVMe M.2 SSD, showing the label and components.

Image: Angled view of the Samsung 9100 PRO NVMe M.2 SSD, highlighting the M.2 connector.

4. Secure the SSD: Push the SSD down until it is parallel with the motherboard. Secure it with the screw provided with your motherboard or system.
5. Close Case and Power On: Reassemble your computer and reconnect all cables. Power on your system.
6. Initialize and Format:
   • Windows: Open Disk Management (right-click Start button > Disk Management). Locate the new SSD, initialize it (GPT partition style recommended), and then create a new simple volume.
   • macOS: Use Disk Utility to erase and format the drive.
   • Linux: Use tools like fdisk or gparted to partition and format the drive.

5. Operating

5.1 Verifying Installation

After installation and formatting, the SSD should appear as a new drive in your operating system's file explorer or disk management utility. You can check its properties to confirm the capacity and file system.

5.2 Samsung Magician Software

Samsung Magician is a proprietary software suite designed to help users manage and optimize their Samsung SSDs. It provides features such as:

• Drive Health Check: Monitor the SSD's health and temperature.
• Performance Benchmark: Test the read/write speeds of your SSD.
• Firmware Updates: Easily update the SSD's firmware to the latest version.
• TRIM Optimization: Ensure optimal performance by managing deleted data blocks.
• Secure Erase: Permanently delete data from the SSD.

It is recommended to download and install the latest version of Samsung Magician from the official Samsung website for your SSD model.

5.3 Performance Characteristics

The Samsung 9100 PRO leverages PCIe 5.0 technology to deliver exceptional speeds. Sequential read/write speeds can reach up to 14,800 MB/s and 13,400 MB/s respectively, with random read/write IOPS up to 2,200K/2,600K. Actual performance may vary based on system configuration, workload, and other factors.

Image: A graphic highlighting PCIe 5.0 performance with sequential read/write speeds of up to 14,800/13,400 MB/s.

Image: A graphic emphasizing random read/write speeds of Max 2,200K/2,600K IOPS for enhanced productivity.

Image: A graphic demonstrating how the SSD boosts AI applications, enabling instant content creation.

Image: A collage illustrating the versatility of the SSD, supporting cutting-edge performance across various devices and tasks.

6. Maintenance

6.1 Firmware Updates

Regularly check for and install firmware updates using the Samsung Magician software. Firmware updates can improve performance, enhance compatibility, and fix potential issues.

6.2 Data Backup

While SSDs are highly reliable, it is always recommended to regularly back up important data to an external storage device or cloud service to prevent data loss from unforeseen circumstances.

6.3 Thermal Management

The 9100 PRO features advanced thermal management to maintain performance under load. Ensure adequate airflow within your computer case and consider using a motherboard's integrated M.2 heatsink if available, especially for sustained heavy workloads.

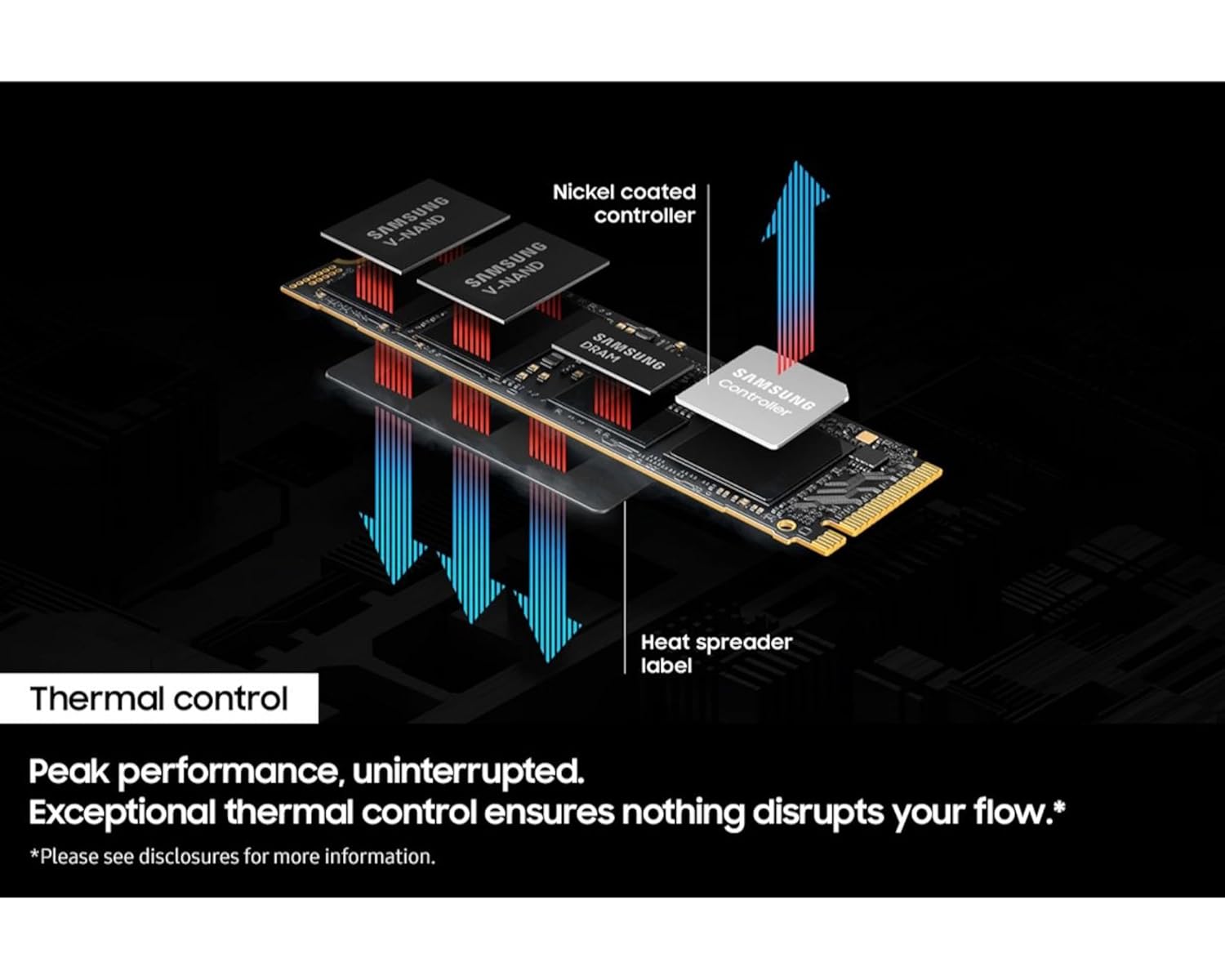

Image: A diagram illustrating the thermal control mechanism of the SSD, showing heat dissipation from the controller and V-NAND components.

7. Troubleshooting

If you encounter issues with your Samsung 9100 PRO SSD, consider the following troubleshooting steps:

• SSD Not Detected:
  • Ensure the SSD is correctly seated in the M.2 slot.
  • Check your motherboard's BIOS/UEFI settings to confirm the M.2 slot is enabled and configured correctly (e.g., NVMe mode).
  • Verify that your motherboard supports NVMe M.2 SSDs.
  • Try the SSD in a different M.2 slot or another compatible system if available.
• Slow Performance:
  • Ensure the SSD is installed in a PCIe 5.0 x4 compatible M.2 slot for maximum performance.
  • Check if the latest NVMe drivers are installed for your operating system.
  • Run Samsung Magician to check drive health and optimize performance (TRIM).
  • Monitor SSD temperature; excessive heat can lead to thermal throttling.
• Operating System Issues:
  • If using the SSD as a boot drive, ensure your BIOS/UEFI is configured to boot from the NVMe drive.
  • Perform a clean installation of your operating system if persistent issues occur.

For further assistance, refer to the Samsung support website or contact customer service.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

For detailed warranty terms and conditions, please refer to the official Samsung website or the warranty card included with your product. Warranty coverage typically includes defects in materials and workmanship under normal use.

9.2 Customer Support

If you require technical assistance, have questions about your product, or need to initiate a warranty claim, please contact Samsung Customer Support. You can find contact information and additional resources on the official Samsung website:

Samsung Official Support Page
