Important Safety Instructions
- Read all instructions before operating the appliance.
- Do not immerse the main unit or power adapter in water.
- Ensure the power adapter and cable are not damaged. If damaged, discontinue use immediately.
- This appliance is intended for indoor use only.
- Supervise children to ensure they do not play with the appliance.
- Use only original GOYJOY parts and accessories.
- Always unplug the fountain before cleaning or performing maintenance.
- Keep the water level between the MIN and MAX indicators.
Product Components

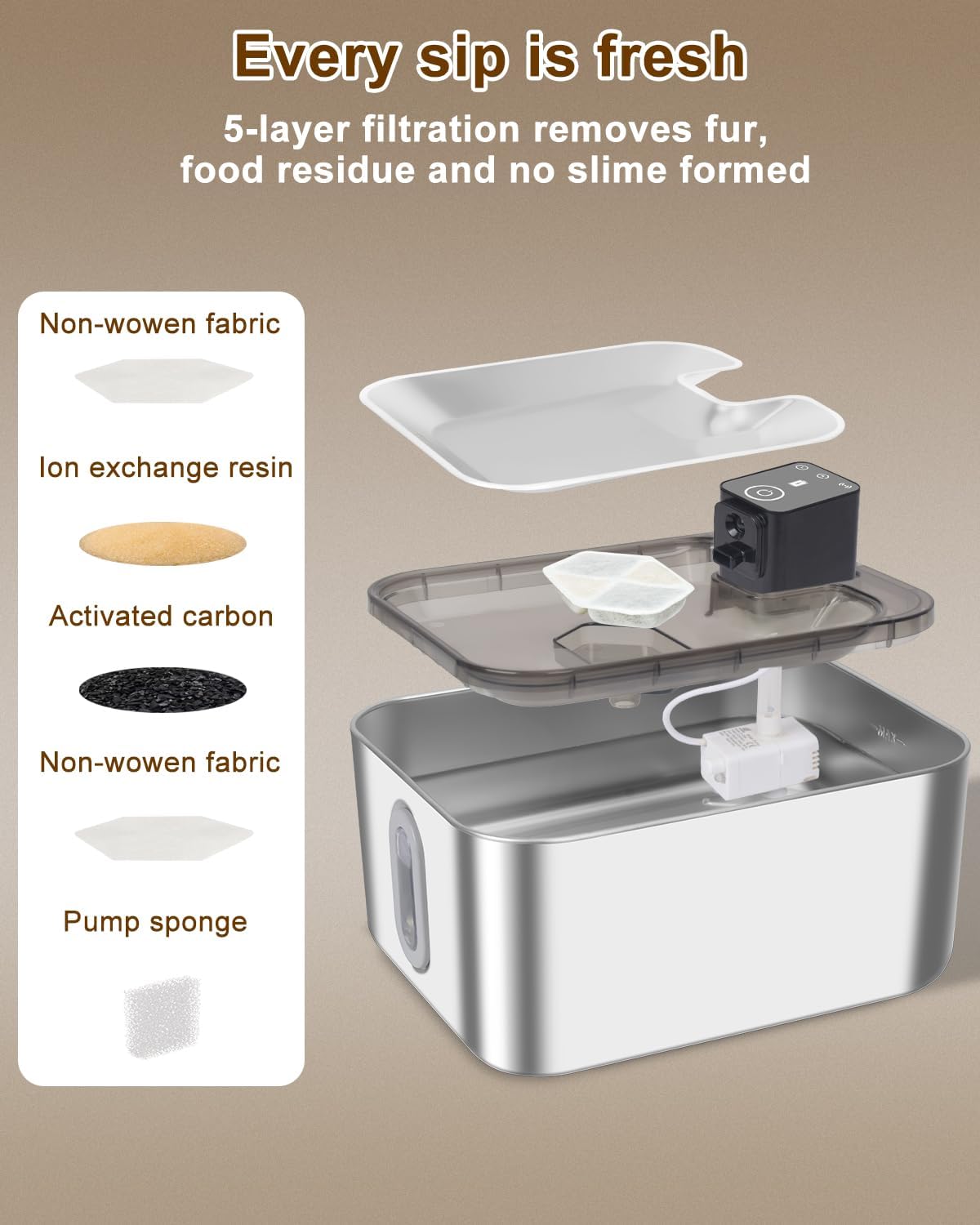

Image: Disassembled components of the water fountain.
The GOYJOY 5L Cat Water Fountain consists of several key parts designed for easy assembly and maintenance:
- Stainless Steel Basin: The main water reservoir, made from food-grade 304 stainless steel.
- Filter Tray: Holds the multi-layer filter and pump.
- Wireless Pump Module: Contains the motor, battery, and control panel for water circulation.
- Multi-layer Filter: Consists of non-woven fabric, ion exchange resin, and activated carbon for water purification.
- Pump Sponge: Pre-filters larger debris before water reaches the main filter.
- USB Charging Cable: For recharging the pump module.
Setup Guide
- Prepare the Filter:
Rinse the multi-layer filter and pump sponge thoroughly under running water for several minutes to remove any loose carbon particles. This ensures optimal filtration from the first use.
Image: Multi-layer filter and pump sponge.
- Assemble the Pump and Filter:
Place the pump sponge into its designated slot in the filter tray. Then, insert the rinsed multi-layer filter into the filter tray. Ensure the wireless pump module is securely attached to the filter tray.
- Fill the Basin with Water:
Place the assembled filter tray with the pump module into the stainless steel basin. Fill the basin with clean water, ensuring the water level is between the MIN and MAX marks visible through the transparent window.
Image: Water level indicator showing sufficient water.
- Power On and Select Mode:
Press the power button on the pump module to turn on the fountain. Cycle through the available operating modes by pressing the mode selection button until your desired mode is active. Refer to the 'Operating Modes' section for details.
Image: Cat interacting with the fountain in sensor mode.
Operating Modes
The GOYJOY Cat Water Fountain offers three distinct operating modes to suit your pet's needs and conserve battery life:
- Sensor Mode (Recommended): The fountain activates and dispenses water for 15 seconds when a pet approaches within 2 meters (120° detection angle). This mode is efficient for battery usage.
- Timed Mode: The fountain activates and dispenses water for 15 seconds every 30 minutes. This provides regular access to fresh water without constant motion detection.
- Continuous Mode: Water flows continuously. This mode provides constant water circulation but will consume battery power more rapidly.
Image: Visual representation of the three operating modes.
Maintenance
Cleaning the Fountain
Regular cleaning is essential to maintain water quality and prolong the life of your fountain. The 304 stainless steel basin is dishwasher safe for convenience.
- Disassemble all components: stainless steel basin, filter tray, pump module, filter, and pump sponge.
- Wash the stainless steel basin and filter tray with mild soap and water, or place them in the dishwasher.
- Clean the pump module and pump sponge separately. Do not put the pump module in the dishwasher. Use a soft brush to clean any debris from the pump's impeller.
- Rinse all components thoroughly to remove any soap residue.
- Reassemble the fountain once all parts are clean and dry.
Filter Replacement
The multi-layer filter should be replaced every 2-4 weeks, depending on the number of pets and water quality, to ensure optimal filtration.
- Turn off and unplug the fountain.
- Remove the filter tray and dispose of the old multi-layer filter.
- Rinse a new filter under running water for several minutes before placing it into the filter tray.
- Replace the pump sponge if it appears excessively dirty or worn.
- Reassemble the fountain and refill with fresh water.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Fountain not dispensing water. | Low battery, pump clogged, water level too low, incorrect mode. | Charge the pump module. Clean the pump and filter. Refill water to appropriate level. Check operating mode. |
| Water flow is weak. | Clogged filter or pump, low water level. | Clean or replace the filter. Clean the pump. Ensure sufficient water in the basin. |
| Fountain is noisy. | Low water level, debris in pump, improper assembly. | Refill water. Clean the pump impeller. Ensure all components are correctly assembled. |
| Water leakage. | Improper assembly, damaged seal. | Check that all parts are correctly seated and sealed. Inspect for any damage to the basin or seals. |
| Sensor mode not activating. | Obstruction, sensor dirty, battery low. | Ensure no objects are blocking the sensor. Clean the sensor window. Charge the pump module. |
Specifications
- Brand: GOYJOY
- Model Name: L
- Material: 304 Stainless Steel
- Capacity: 5 Liters (170 oz)
- Power Source: 5000mAh Rechargeable Li-Polymer Battery
- Battery Life: Up to 60 days (in Sensor Mode)
- Noise Level: <25dB (Ultra Quiet Pump)
- Water Modes: Sensor, Timed, Continuous
- Filtration System: 5-layer (Non-woven fabric, Ion exchange resin, Activated carbon, Non-woven fabric, Pump sponge)
- Item Weight: 1.22 Kilograms (2.68 pounds)
- Dimensions: 10.87 x 8.74 x 6.02 inches (Package)
- Included Components: Fountain unit, Multi-layer filters (quantity may vary), USB charging cable.
Warranty and Support
This GOYJOY product is covered by a 2-Year Manufacturer Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage caused by misuse, neglect, accident, alteration, or unauthorized repair. Please retain your proof of purchase for warranty claims.
For technical support, warranty claims, or inquiries about replacement parts (such as filters), please contact GOYJOY customer service through the retailer where the product was purchased or visit the official GOYJOY website for contact information.
