LogiLink HDW0111 Wireless HDMI Presentation Kit User Manual

Introduction

The LogiLink HDW0111 Wireless HDMI Presentation Kit provides a convenient solution for transmitting HDMI video and audio signals wirelessly. This kit is designed for BYOD (Bring Your Own Device) environments, enabling easy content sharing in meeting rooms, conference halls, or educational settings. It supports Ultra HD 4K/60Hz resolution and can transmit signals up to 50 meters in clear line of sight. The system is plug-and-play, requiring no additional software installation for most devices.

LogiLink HDW0111 Wireless HDMI Presentation Kit in use during a meeting

Image: The LogiLink HDW0111 Wireless HDMI Presentation Kit facilitating a meeting presentation.

Package Contents

Please verify that all items are present in your package:

1x LogiLink HDW0111 Receiver Unit (RX)
1x LogiLink HDW0111 Transmitter Unit (TX)
2x USB-C to USB-A Power Cables
2x HDMI Extension Cables
1x User Manual

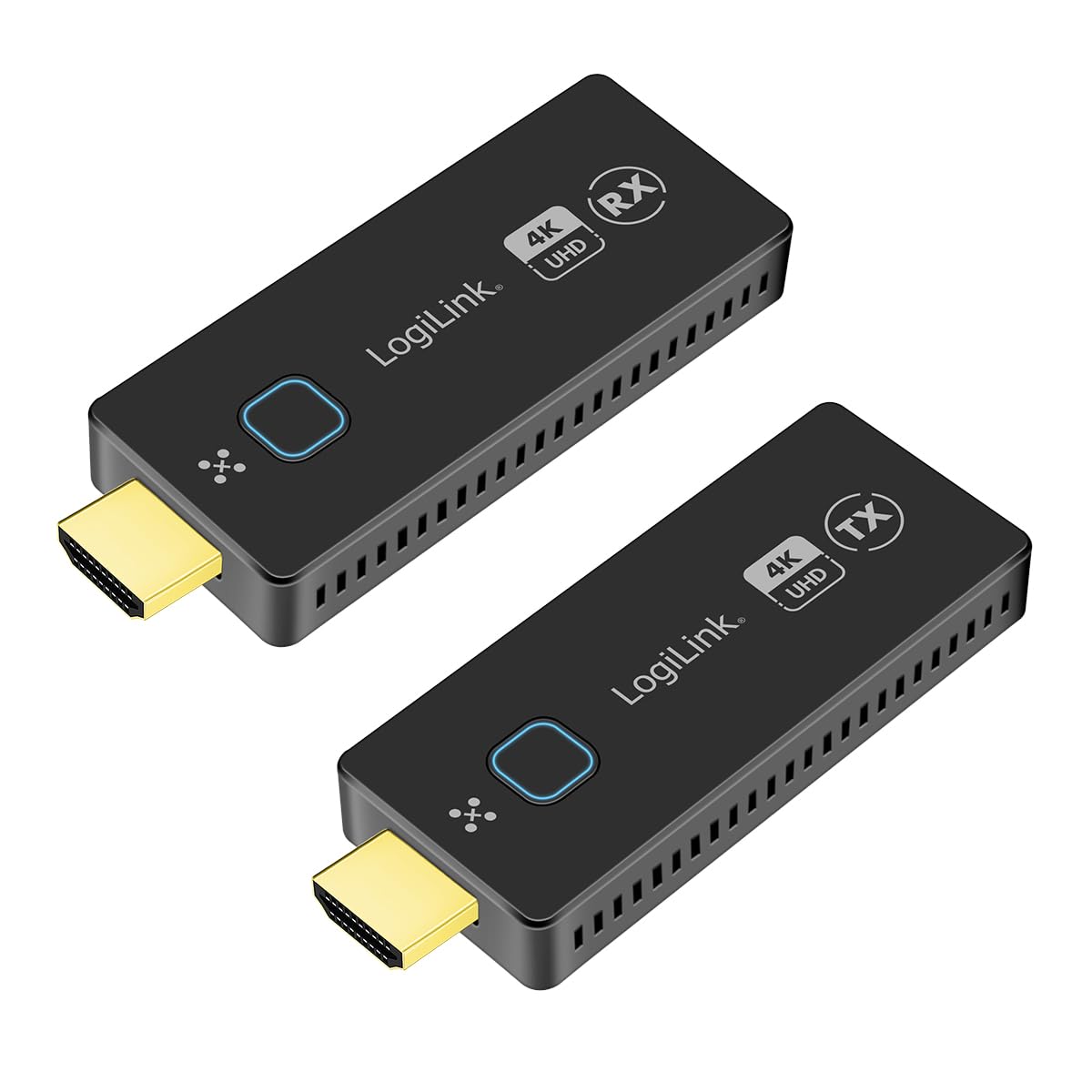

LogiLink HDW0111 Transmitter and Receiver Units

Image: The LogiLink HDW0111 Transmitter (TX) and Receiver (RX) units.

Product Overview

The LogiLink HDW0111 system consists of two main components: a Transmitter (TX) and a Receiver (RX).

Transmitter (TX)

The Transmitter unit connects to your source device (e.g., laptop, PC, smartphone, tablet) via an HDMI port. It captures the video and audio signal and transmits it wirelessly to the Receiver.

HDMI Connector: Connects to the source device.
USB-C Port: For power supply (DC 5V/0.5A required).
Function Button: Used for pairing and switching between multiple transmitters.
Status Indicator: Displays connection status.

Receiver (RX)

The Receiver unit connects to your display device (e.g., TV, projector, monitor) via an HDMI port. It receives the wireless signal from the Transmitter and outputs the video and audio.

HDMI Connector: Connects to the display device.
USB-C Port: For power supply (DC 5V/0.5A required).
Function Button: Used for pairing and managing connections.
Status Indicator: Displays connection status.

LogiLink HDW0111 Wireless HDMI Kit Components

Image: Close-up view of the LogiLink HDW0111 Transmitter and Receiver units, showing ports and indicators.

Setup Instructions

Connect the Receiver (RX):
- Plug the LogiLink HDW0111 Receiver (RX) into an available HDMI input port on your display device (TV, projector, monitor). Use an HDMI extension cable if needed for better fit or signal path.
- Connect one of the provided USB-C to USB-A power cables to the USB-C port on the Receiver. Plug the USB-A end into a USB power source (e.g., a USB port on your display device, a USB wall adapter, or a power bank). Ensure the power source provides at least 5V/0.5A.
- Power on your display device and select the correct HDMI input source.
Connect the Transmitter (TX):
- Plug the LogiLink HDW0111 Transmitter (TX) into an available HDMI output port on your source device (e.g., laptop, PC). Use an HDMI extension cable if needed.
- Connect the second USB-C to USB-A power cable to the USB-C port on the Transmitter. Plug the USB-A end into a USB power source (e.g., a USB port on your laptop, a USB wall adapter, or a power bank). Ensure the power source provides at least 5V/0.5A.
Initial Pairing (if necessary):
- The Transmitter and Receiver units are usually pre-paired from the factory. If they do not connect automatically, press the function button on both the Transmitter and Receiver simultaneously for a few seconds until their status indicators show a successful connection (e.g., solid blue light).

Operating Instructions

Start Transmission:
- Once both the Transmitter and Receiver are powered on and connected, the status indicators should show a stable connection.
- Your source device's screen content should automatically appear on the connected display.
Switching Transmitters (for multiple TX units):
- The system supports up to 16 Transmitter units (additional TX units sold separately, model HDW0111AT).
- To switch between active transmitters, simply press the function button on the desired Transmitter unit. The Receiver will automatically switch to display the content from that Transmitter.
Mobile Device Sharing:
- For smartphones and tablets, you can share content directly via your device's operating system's casting features (e.g., Miracast, AirPlay, Google Cast). No additional app is required.
- Ensure your mobile device is connected to the same Wi-Fi network as the LogiLink HDW0111 Receiver, or follow your device's specific instructions for screen mirroring to a wireless display.
Power Saving:
- The units can be powered directly from the HDMI port if the source/display provides sufficient power (0.5A). For stable operation, especially with longer cables or high resolutions, using the dedicated USB power cable is recommended.

Maintenance

Cleaning: Use a soft, dry cloth to clean the units. Do not use liquid or aerosol cleaners.
Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
Handling: Avoid dropping or subjecting the units to strong impacts. Do not attempt to disassemble or modify the device, as this will void the warranty.
Power: Always use the provided power cables or compatible 5V/0.5A USB power sources.

Troubleshooting

Problem	Possible Cause	Solution
No signal on display.	Units not powered. Incorrect HDMI input selected on display. Units not paired. Source device not outputting signal. Distance too far or obstructions.	Ensure both TX and RX units are properly powered via USB-C. Select the correct HDMI input on your TV/monitor. Press the function button on both TX and RX to re-pair. Check source device's display settings (e.g., extend/duplicate display). Reduce distance between TX and RX, remove obstructions.
Intermittent signal or flickering.	Weak power supply. Interference from other wireless devices. Distance/obstructions. High resolution/refresh rate.	Ensure stable 5V/0.5A power supply for both units. Move units away from other Wi-Fi routers or wireless devices. Reduce distance, ensure clear line of sight. Try a lower resolution or refresh rate on your source device.
Audio but no video, or vice versa.	HDCP compatibility issue. Source device output settings.	Ensure both source and display devices support HDCP 1.4/2.2. Check audio/video output settings on your source device.
Cannot connect more than one transmitter.	Transmitters not paired. Maximum transmitters reached.	Ensure each additional transmitter is paired with the receiver. The system supports up to 16 transmitters.

Specifications

Model: HDW0111
Wireless Standard: 802.11ac
HDMI Standard: HDMI 2.0
Bandwidth: 18 Gbps (6 Gbit/s per line at 600 MHz)
Max Transmission Distance: Up to 50 meters (line of sight)
Supported Resolutions: Up to 4K (3840x2160) @ 60Hz, Full HD, Full 3D
HDCP Compliance: HDCP 1.4 and 2.2
Audio Support: Uncompressed LPCM 7.1 (up to 48 kHz), Compressed DTS, Dolby Digital (including DTS-HD Master Audio, Dolby TrueHD)
Latency: Near-zero
Power Input: DC 5V/0.5A (via USB-C)
Housing Material: Metal
Max Transmitters: Up to 16 (with additional HDW0111AT units)
Compatible Devices: TVs, Personal Computers, Smartphones, Tablets, Laptops
Video Codecs: H.264, H.265/HEVC

Warranty and Support

LogiLink products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official LogiLink website.

Spare Parts Availability: Information regarding spare parts availability is not provided.

Software Updates: Information regarding guaranteed software updates is not provided.

For technical support or further assistance, please contact your local LogiLink distributor or visit the LogiLink support portal.
