Hamilton-Beach 12 Cup Programmable Coffee Maker User Manual

Introduction

The Hamilton-Beach 12 Cup Programmable Coffee Maker is designed for ultimate convenience and customization. This appliance allows you to enjoy freshly brewed coffee with features like a 24-hour programmable timer, auto pause and pour, and a front-access water reservoir. Its sleek black finish complements any kitchen decor, providing consistent, high-quality results for your daily coffee needs.

Figure 1: Front view of the Hamilton-Beach 12 Cup Programmable Coffee Maker.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not place cord, plug, or coffee maker in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact manufacturer for information on examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• To disconnect, turn any control to "off," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Carafe is designed for use with this appliance. It must never be used on a range top.
• Do not place a hot carafe on a cold or wet surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive material.
• Scalding may occur if the lid is removed during the brewing cycles.

Parts and Features

Familiarize yourself with the components of your coffee maker:

• Lid: Covers the water reservoir and brew basket area.
• Water Reservoir: Front-access design for easy filling.
• Brew Basket: Removable for easy filling and cleaning.
• Glass Carafe: 12-cup capacity with measurement markings.
• Nonstick Hot Plate: Keeps coffee warm after brewing.
• Control Panel: Includes digital display, PROGRAM, H (Hour), M (Minute), and I/O (On/Off) buttons.
• Brew Strength Selector: Allows selection between Regular and Bold brew options.

Figure 2: Angled view showing the main components of the coffee maker.

Setup

1. Unpack: Carefully remove all packaging materials and components.
2. Clean: Before first use, wash the carafe, brew basket, and removable water tank in warm, soapy water. Rinse thoroughly.
3. Placement: Place the coffee maker on a flat, stable surface. Ensure the power cord is not touching any hot surfaces.
4. Initial Rinse Cycle: Fill the water reservoir with clean water up to the 12-cup mark. Place an empty filter in the brew basket. Run a full brew cycle without coffee grounds to clean the internal components. Discard the water.

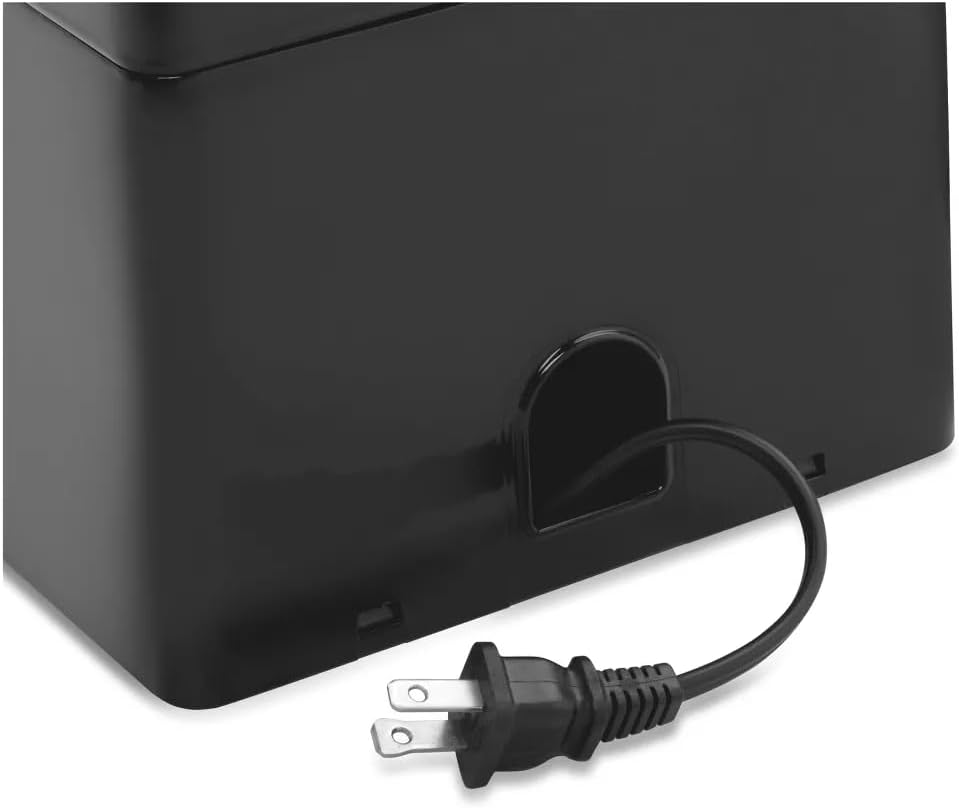

Figure 3: Rear view illustrating the power cord and compact design.

Operating Instructions

Brewing Coffee

1. Fill Water Reservoir: Open the lid and fill the front-access water reservoir with the desired amount of fresh, cold water. The carafe has markings to guide you.
2. Add Coffee Grounds: Place a paper filter (or reusable filter if applicable) into the brew basket. Add your desired amount of ground coffee. For best results, use 1 tablespoon of ground coffee per cup.
3. Close Lid: Ensure the lid is securely closed.
4. Place Carafe: Place the empty glass carafe on the nonstick hot plate.
5. Select Brew Strength: Use the "Brew Options" button to select between "Regular" or "Bold" strength.
6. Start Brewing: Press the I/O (On/Off) button to begin brewing. The indicator light will illuminate.
7. Auto Pause & Pour: You can remove the carafe during brewing to pour a cup. The flow will temporarily stop. Replace the carafe within 20 seconds to prevent overflow.

Figure 4: Auto Pause & Pour feature allows for quick serving during brewing.

Programming the Brew Time

The 24-hour programmable timer allows you to set the coffee maker to start brewing at a specific time.

1. Set Current Time: Press the H (Hour) and M (Minute) buttons to set the current time on the digital display. Ensure AM/PM is correct.
2. Set Program Time: Press the PROGRAM button. The display will flash. Use the H (Hour) and M (Minute) buttons to set your desired brew start time.
3. Activate Program: Press the PROGRAM button again to confirm. The program indicator light will illuminate, indicating the timer is set.
4. Prepare for Brewing: Ensure the water reservoir is filled, coffee grounds are in the brew basket, and the carafe is on the hot plate.

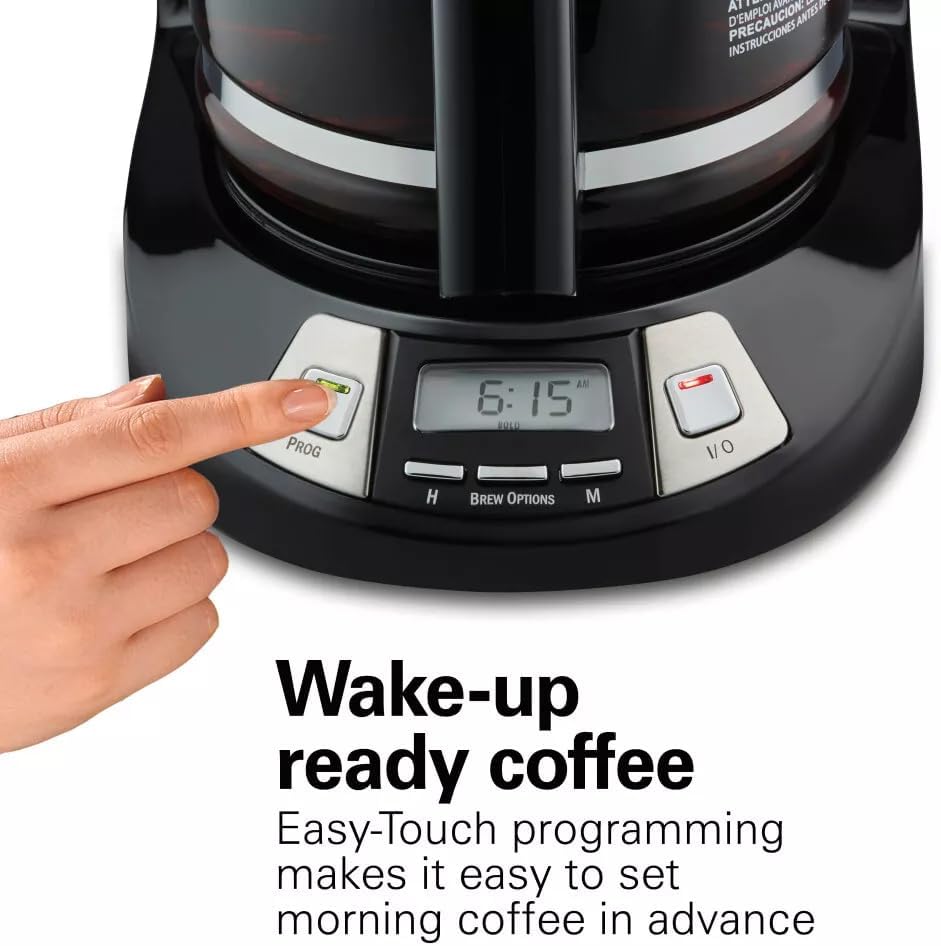

Figure 5: Digital display and programming buttons for setting brew time.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your coffee maker.

• Daily Cleaning: After each use, unplug the coffee maker and allow it to cool. Remove the brew basket and carafe. Wash them in warm, soapy water or place them in the dishwasher (top rack recommended). Wipe the exterior of the coffee maker with a damp cloth.
• Brew Basket Removal: The brew basket lifts out for easy filling and dishwasher-safe cleanup.
• Descaling (Monthly/Bi-Monthly): Mineral deposits from water can affect performance. To descale, fill the water reservoir with a mixture of 1 part white vinegar and 2 parts water. Place an empty filter in the brew basket. Run a full brew cycle. After the cycle, turn off the coffee maker and let it sit for 30 minutes. Run another cycle with the vinegar solution. Finally, run 2-3 cycles with fresh, clean water to rinse thoroughly.

Figure 6: Removable brew basket for easy cleaning.

Figure 7: The glass carafe and brew basket are designed for durability and easy cleaning.

Troubleshooting

Specifications

• Brand: Hamilton-Beach
• Model Name: 12 Cup Programmable Coffee Maker
• Model Number: 46290
• Color: Black
• Product Dimensions: 11.4"D x 9.5"W x 12.9"H
• Item Weight: 3.85 pounds
• Coffee Maker Type: Drip Coffee Machine
• Filter Type: Paper (or reusable)
• Operation Mode: Fully Automatic
• Voltage: 120 Volts
• Special Features: Programmable Timer, Auto Pause & Pour, Front-Access Water Reservoir, Brew Strength Selector, Nonstick Hot Plate
• Included Components: Glass Carafe, Coffee Maker Unit, User Manual

Warranty and Support

This Hamilton-Beach coffee maker comes with a standard manufacturer's warranty. For specific warranty details, including duration and coverage, please refer to the warranty card included in your product packaging or visit the official Hamilton-Beach website.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Hamilton-Beach Customer Service. Contact information can typically be found on the product packaging, the official website, or by searching for "Hamilton-Beach customer support" online.

Please have your model number (46290) and purchase date available when contacting support.
