1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VARMINPOOL KSPF-007L1MR1A1 30000 BTU Smart Electric Pool Heater. Please read this manual thoroughly before installation and use, and retain it for future reference.

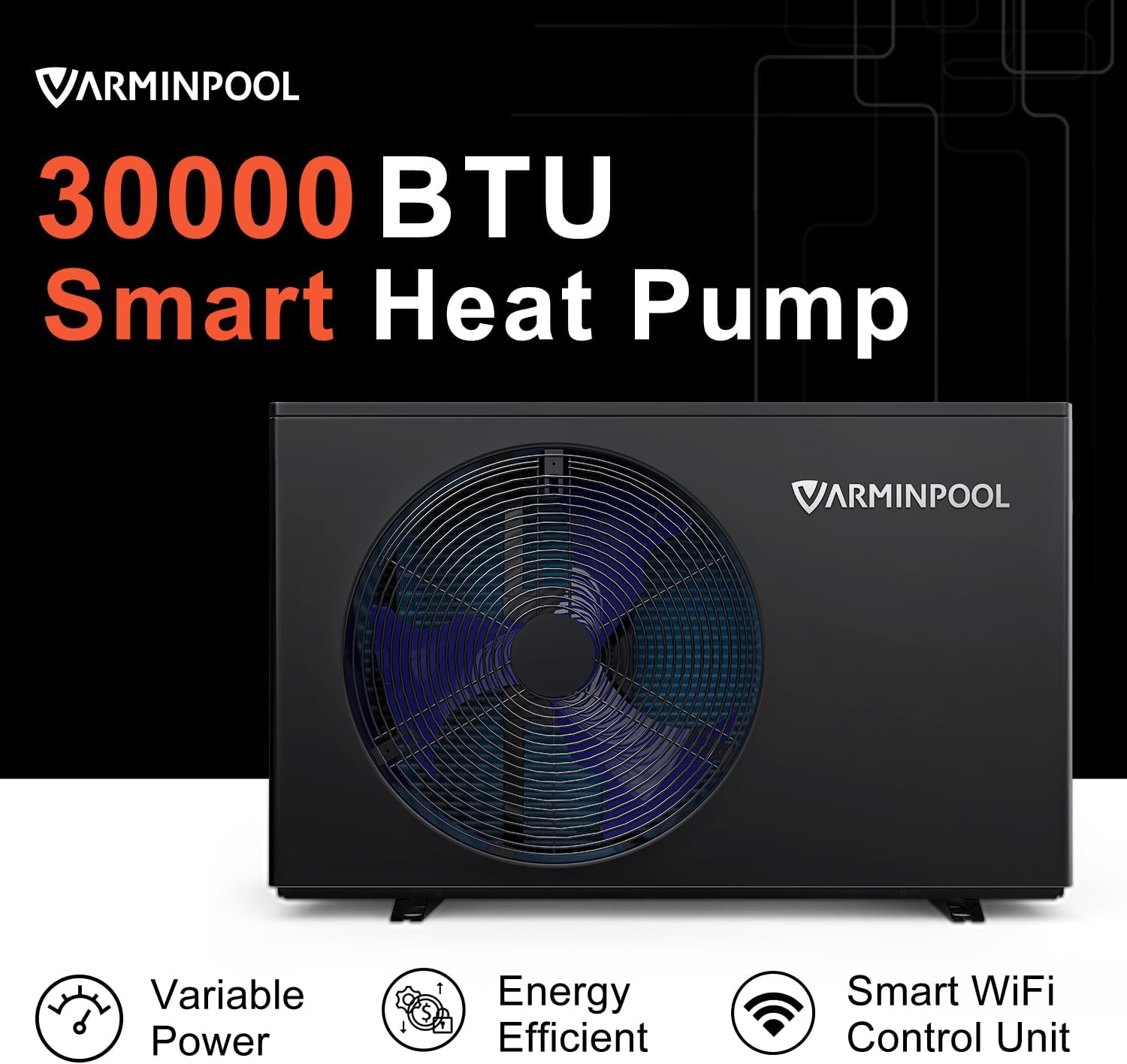

Figure 1: VARMINPOOL 30000 BTU Smart Electric Pool Heater.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing injury and damage to the unit. Always consult a qualified professional for electrical and plumbing work if you are unsure.
- Electrical Safety: The unit operates on 110-120V / 60 Hz. Ensure the electrical supply meets these requirements. The unit includes a leakage protection plug for enhanced safety. Do not bypass or modify this plug.
- Water Flow: The integrated flow-switch and sensors ensure safe operation by detecting adequate water flow. Do not operate the unit without proper water circulation.
- Placement: Ensure the heat pump is installed in a location with sufficient ventilation to allow for proper airflow. Refer to installation guidelines for minimum clearance requirements.
- Water Chemistry: Maintain proper pool water chemistry as recommended by pool professionals to prevent corrosion and damage to the heat exchanger.
3. Product Features
The VARMINPOOL KSPF-007L1MR1A1 heat pump is designed with advanced features for efficient and convenient pool heating:
- Heat Capacity: 30,000 BTU, suitable for pools up to 8000 gallons or 18 ft in diameter.
- Smart Inverter Technology: Adjusts power usage to optimize energy consumption, achieving a C.O.P efficiency of 6.0.
- WiFi Control: Remote control and monitoring via a dedicated smartphone application.
- Titanium Heat Exchanger: Provides corrosion resistance, suitable for various water types, including saltwater.
- Durable Construction: Features galvanized steel and an evaporator shield for protection against weather elements.
- Quiet Operation: Engineered for low noise levels, operating at approximately 48dB.
- Dual Mode Functionality: Offers both heating (46-104°F) and cooling (46-86°F) capabilities.
Figure 2: Key features of the VARMINPOOL 30000 BTU Smart Heat Pump.
Figure 3: Smart Inverter technology for energy efficiency.
4. Setup and Installation
The VARMINPOOL heat pump is designed for quick installation, typically within 30 minutes. No professional help or voltage conversion is required for the 120V model.
4.1. Pool Size Compatibility
Ensure your pool size is compatible with the 30,000 BTU unit. This model is suitable for pools up to 8000 gallons or 260 sq ft surface area, especially in moderate ambient temperatures (65°F average).

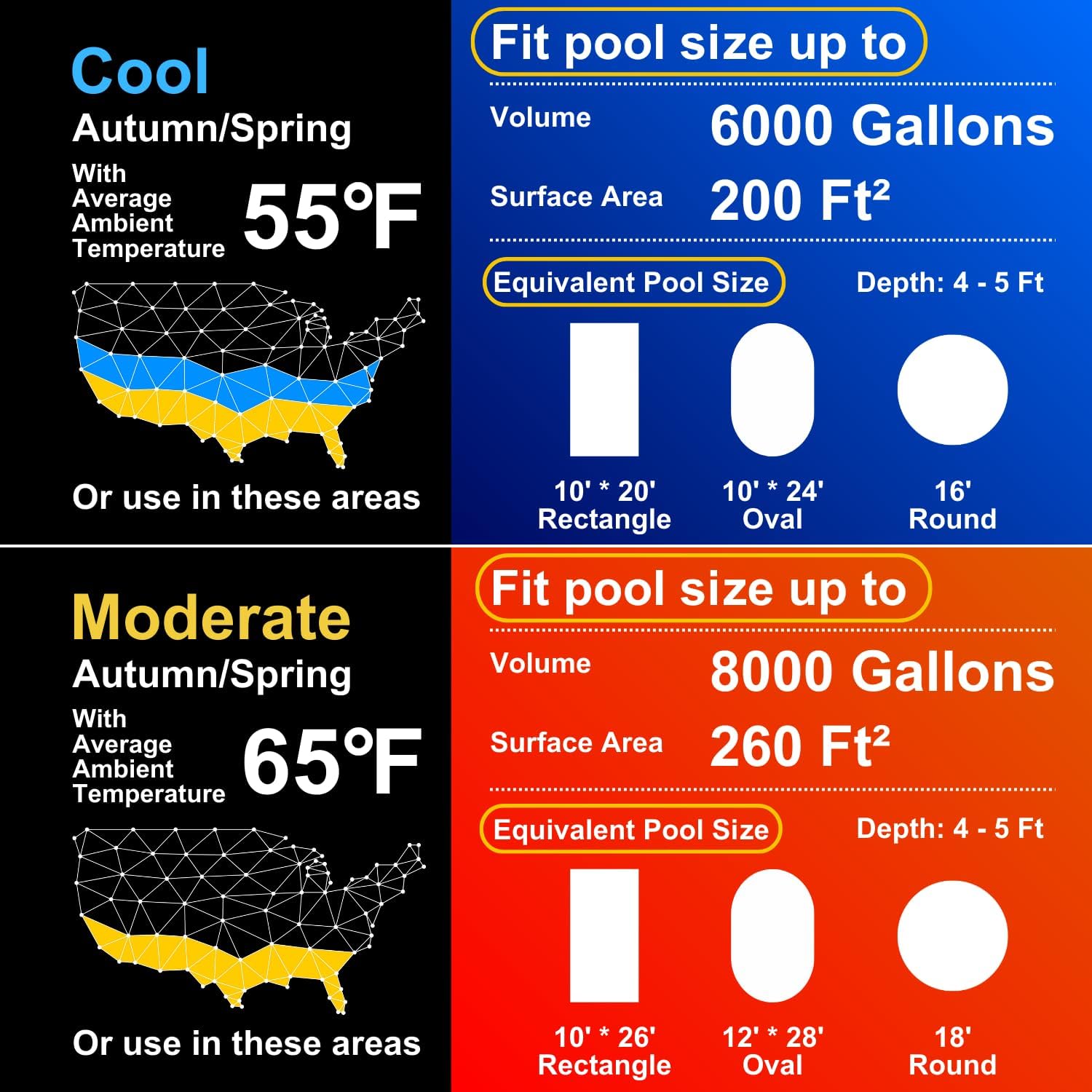

Figure 4: Pool size compatibility chart.
4.2. Pool Parameter Measurement
Accurate measurement of your pool's dimensions is essential for optimal performance.
- Measure the size of your pool: Determine the length, width, and diameter based on your pool's shape.
- Measure the depth of your pool: Calculate the average depth, especially for pools with varying depths.
Figure 5: Pool shape measurement guide.
Figure 6: Formulas for calculating pool surface area and average depth.
Figure 7: Size guide table for pool volume.
4.3. Plumbing and Electrical Connections
Connect the heat pump to your pool's filtration system according to the provided diagrams in the full installation guide. Ensure all connections are secure and watertight. Plug the unit into a compatible 110-120V / 60 Hz GFCI-protected outlet.
5. Operating Instructions
The VARMINPOOL heat pump can be controlled via its integrated display or the dedicated smartphone application.
5.1. Initial Startup
After installation, ensure the pool pump is running and water is circulating through the heat pump. Power on the unit. The system will perform an initial check.
5.2. WiFi Control Unit
Download the 'Smart Life' application from the Google Play Store or Apple App Store. Follow the in-app instructions to connect your heat pump to your home WiFi network. This allows for remote monitoring and control.
Figure 8: VARMINPOOL WiFi Control Unit and app interface.
Figure 9: WiFi control app for temperature setting and scheduling.
5.3. Setting Temperature and Operation Modes
Use the app or the unit's control panel to set your desired water temperature. The Smart Inverter technology will automatically adjust power output:
- Full Power: Used for initial rapid heating to reach the target temperature.
- Moderate Power: Continues heating efficiently as the temperature approaches the set point.
- Lowest Power: Maintains the set temperature with minimal energy consumption.
You can also select between heating and cooling modes as needed.
Figure 10: Smart Inverter power output optimization.
6. Maintenance
Regular maintenance ensures the longevity and efficiency of your VARMINPOOL heat pump.
- Exterior Cleaning: Periodically clean the exterior of the unit to remove dust, leaves, and debris. Ensure the fan blades and evaporator coils are clear of obstructions.
- Check Connections: Regularly inspect all plumbing and electrical connections for leaks or signs of wear.
- Winterization: If operating in cold climates, follow proper winterization procedures to protect the unit from freezing temperatures. Refer to the comprehensive manual for detailed winterization steps.
- Professional Inspection: Consider an annual inspection by a qualified technician to ensure optimal performance and address any potential issues.
7. Troubleshooting
The VARMINPOOL heat pump features an intelligent control system with auto-diagnostic capabilities to detect and protect against operational issues.
Figure 11: Intelligent Control with Auto Diagnostic.
If you encounter problems, the unit's display or the app may show an error code. Refer to the full instruction manual for a list of error codes and corresponding troubleshooting steps. Common issues may include:
- No Heat Output: Check water flow, power supply, and temperature settings.
- WiFi Connection Issues: Verify network connectivity and app settings.
- Unusual Noises: Inspect for debris in the fan or pump.
If issues persist, contact VARMINPOOL customer support.
8. Specifications
| Specification | Detail |
|---|---|
| Brand | VARMINPOOL |
| Model Number | KSPF-007L1MR1A1 |
| Heat Capacity | 30,000 BTU |
| C.O.P Efficiency | 6.0 |
| Power | 110-120 V / 60 Hz |
| Product Dimensions (L x W x H) | 35.31" x 13.88" x 21.98" |
| Item Weight | 90.4 lbs |
| Color | Deep Grey |
| Style | Above Ground (also suitable for inground pools up to 8000 gallons) |
9. Warranty and Support
VARMINPOOL stands behind its products with comprehensive support and warranty.
9.1. Product Protection
Your VARMINPOOL KSPF-007L1MR1A1 Smart Electric Pool Heater is covered by a 36-month product protection plan. Please retain your proof of purchase for warranty claims.
Figure 12: 36 Months Product Protection.
9.2. Customer Support
For any questions regarding installation, operation, troubleshooting, or warranty claims, please contact the VARMINPOOL customer support team. They offer consultants for pre-sale and after-sale inquiries and a 7-24 support team via email, including holidays.
Figure 13: VARMINPOOL Customer Support.
