1. Introduction
Thank you for choosing the Arwibon GT06 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
The Arwibon GT06 is designed for adults, featuring a powerful 1200W motor, capable of speeds up to 31.1 MPH and a range of 18.6 miles. It is equipped with 11-inch off-road tires, dual brakes, and suspension for a comfortable and secure riding experience. This product is UL Certified, ensuring high safety standards.
Image 1.1: The Arwibon GT06 Electric Scooter, showcasing its robust design, large off-road tires, and suspension system.
2. Safety Information
Your safety is paramount. Always adhere to the following safety guidelines:
- Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding.
- Do not ride under the influence of alcohol or drugs.
- Observe all local traffic laws and regulations.
- Avoid riding in heavy rain, snow, or icy conditions.
- Ensure the scooter is fully charged and all components are secure before each ride.
- Maintain a safe distance from other vehicles and pedestrians.
- Do not perform stunts or ride aggressively.
- The maximum weight limit for this scooter is 330 Pounds. Do not exceed this limit.
- This scooter is designed for adult use only.
3. Package Contents
Upon opening the package, please verify that all the following items are included:
- Arwibon GT06 Electric Scooter
- User Manual (this document)
- Charger
- Brake Pads (2 pieces)
- Storage Bag
- Tool Kit
4. Product Diagram and Components
Familiarize yourself with the various parts of your Arwibon GT06 Electric Scooter.
Image 4.1: Detailed view of the GT06 scooter's handlebar and dashboard, indicating the location of the light switch, LCD meter, voltage display, power plant, turn signal, horn, gear position, and key lock.
- Handlebar: For steering and control.
- LCD Meter: Displays speed, battery level, and other riding data.
- Light Switch: Activates the front headlight.
- Turn Signal: Engages the turn indicators.
- Horn: Sound signal for alerting others.
- Key Lock: Secures the scooter and powers it on/off.
- Brake Levers: Controls the dual braking system (front and rear).
- Throttle: Controls acceleration.
- Headlight: Provides illumination for night riding.
- 11-inch Off-Road Tires: Designed for various terrains.
- Suspension System: Absorbs shocks for a smoother ride.
- Deck: Standing platform for the rider.
- Kickstand: For parking the scooter.
- Charging Port: Where the charger connects.
5. Setup and Assembly
The Arwibon GT06 scooter comes partially assembled. Follow these steps to complete the setup:
- Unfold the Scooter: Carefully lift the stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
- Attach the Handlebar: Insert the handlebar into the stem and tighten any securing bolts using the provided tool kit. Ensure the handlebar is firmly in place and does not wobble.
- Check Connections: Verify that all cables (brake lines, electrical wires) are properly connected and not pinched.
- Inflate Tires: Check the tire pressure and inflate if necessary. The 11-inch vacuum off-road tires are designed to be robust.
- Initial Charge: Before your first ride, fully charge the scooter's battery. Refer to the "Charging" section for detailed instructions.
Image 5.1: Comparison of the Arwibon GT06 scooter in its expanded state (48x53 inches) and folded state (48x22 inches), illustrating its compact storage capability and UL2272 certification.
6. Operating the Scooter
Follow these steps for safe and effective operation:
- Power On: Insert the key into the key lock and turn it to the "ON" position. The LCD meter will illuminate.
- Riding Stance: Place one foot firmly on the deck and use the other foot to push off the ground to gain initial momentum.
- Acceleration: Once moving, gently press the throttle to accelerate. The 1200W motor provides strong power.
- Braking: To slow down or stop, gently squeeze the brake levers. The dual braking system (front and rear) ensures effective stopping power.
- Turning: Lean slightly in the direction you wish to turn and gently steer the handlebar. Use the turn signals to indicate your direction.
- Headlight and Horn: Use the light switch to turn on the headlight for visibility, especially at night. Use the horn to alert others when necessary.
- Power Off: When finished riding, turn the key to the "OFF" position and remove it.
Image 6.1: Close-up of the GT06 scooter's high-brightness headlight and integrated horn, designed to ensure safe riding at night.
Image 6.2: View of the GT06 scooter's rear wheel, highlighting the 48V 1200W powerful brushless motor, which offers strong power, higher transmission efficiency, and lower energy consumption.
7. Charging the Battery
To ensure optimal battery life and performance, follow these charging instructions:
- Ensure the scooter is powered off before charging.
- Locate the charging port on the scooter.
- Connect the charger to the charging port, then plug the charger into a standard wall outlet.
- The charger's indicator light will typically show red during charging and turn green when fully charged.
- Do not overcharge the battery. Disconnect the charger once the battery is full.
- Charging time may vary. Refer to the specifications for estimated charging duration.

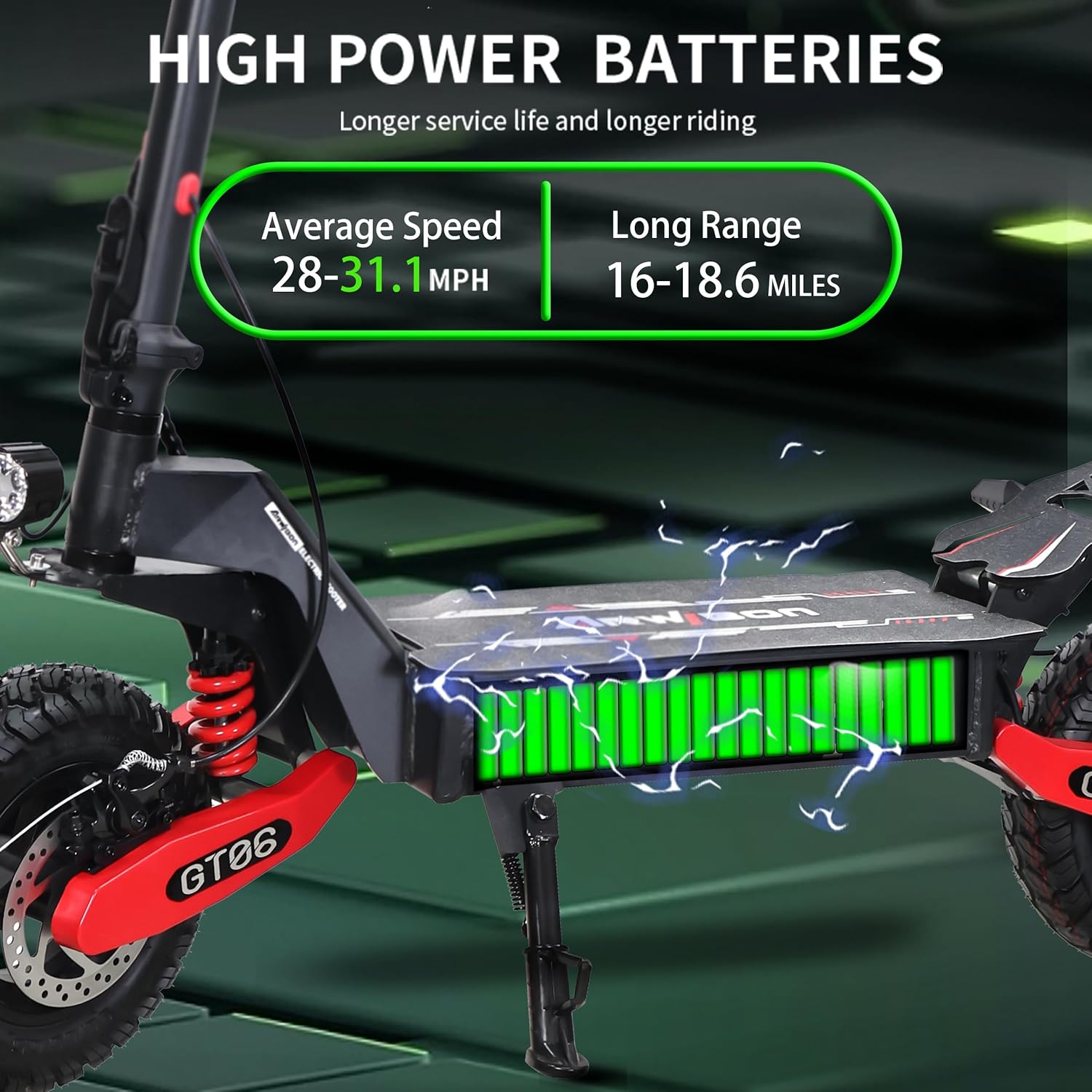

Image 7.1: Illustration of the GT06 scooter's high-power batteries, indicating an average speed of 28-31.1 MPH and a long range of 16-18.6 miles, designed for longer service life and extended riding.
8. Folding and Storage
The Arwibon GT06 features an innovative folding design for easy transport and storage.
- Ensure the scooter is powered off.
- Locate the folding mechanism at the base of the stem.
- Follow the specific instructions for your model to release the locking mechanism. This usually involves pulling a lever or pressing a button while pushing the stem downwards.
- Carefully fold the stem down towards the rear wheel until it clicks into place.
- Once folded, the scooter is compact (48 inches x 22 inches) and can be easily stored in a trunk or small space.
Image 8.1: The Arwibon GT06 scooter folded and placed in a car trunk, demonstrating its innovative folding design for easy handling and storage, featuring a high-grade folding mechanism that is safe and durable.
9. Maintenance
Regular maintenance will extend the life of your scooter and ensure safe operation.
- Cleaning: Wipe down the scooter with a damp cloth after each use. Do not use high-pressure water or immerse the scooter in water.
- Tires: Regularly check tire pressure and for any signs of wear or damage. The 11-inch vacuum off-road tires are designed to be anti-puncture.
- Brakes: Inspect brake pads and cables regularly. Adjust or replace brake pads as needed. The scooter comes with 2 spare pads.
- Bolts and Fasteners: Periodically check and tighten all bolts and fasteners to ensure they are secure.
- Battery Care: Store the scooter in a cool, dry place. If storing for an extended period, charge the battery to about 50-70% and recharge every 30-60 days to prevent deep discharge.
- Lubrication: Lubricate moving parts as recommended by a professional if needed.
10. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Battery is low or dead; Key not fully inserted/turned. | Charge the battery; Ensure key is fully inserted and turned to "ON". |
| Motor not engaging. | Throttle issue; Brake engaged; Loose connection. | Check throttle for damage; Ensure brakes are not engaged; Inspect electrical connections. |
| Reduced range or speed. | Low tire pressure; Battery degradation; Overload. | Inflate tires to recommended pressure; Battery may need replacement over time; Do not exceed weight limit. |
| Brakes feel weak. | Worn brake pads; Loose brake cable. | Replace brake pads (2 spare pads included); Adjust brake cable tension. |
If you encounter issues not listed here or require further assistance, please contact customer support.
11. Specifications
Key technical specifications for the Arwibon GT06 Electric Scooter:
- Model Name: GT06
- Motor: 1200W Brushless Motor
- Max Speed: Up to 31.1 MPH
- Max Range: Up to 18.6 Miles
- Tires: 11-inch Vacuum Off-Road Tires
- Brakes: Dual Braking System (Front and Rear)
- Suspension: Yes
- Weight Limit: 330 Pounds
- Frame Material: Alloy Steel
- Handlebar Type: Fixed
- Handle Height: 39.8 Inches
- Wheel Material: Rubber
- Folded Dimensions: 48 inches x 22 inches (123cm x 58cm)
- Expanded Dimensions: 48 inches x 53 inches (123cm x 135cm)
- Special Features: Anti-Puncture Tire, Non-Slip Deck, Cruise Control, Foldable
- Certifications: UL2272 Certified
- Included Components: User Manual, Charger, Brake Pads (2), Bag, Tool Kits
12. Warranty and Support
Arwibon is committed to providing high-quality products and customer service.
- Warranty: This product comes with a 180-day long-term after-sales guarantee.
- Customer Service: If you encounter any issues or have questions, please feel free to contact Arwibon customer service at any time. They aim to respond and solve problems within 12 hours.
- UL2272 Certification: All Arwibon products, including the GT06, have passed strict UL2272 testing, ensuring electrical safety.
For further assistance, please refer to the contact information provided with your purchase or visit the official Arwibon website.
