1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your SEAFLO 23A Series Automatic Demand Diaphragm Pump. The 23A Series is designed for liquid transfer, pressurization, and circulation in various applications. It features a compact design with a flow rate up to 1.5 GPM (5.6 LPM) and pressure up to 120 PSI (8.2 Bar). Please read this manual thoroughly before installation and use.
2. Safety Information
Observe all safety precautions to prevent injury or damage. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always disconnect power before servicing the pump.
- Ensure proper electrical grounding.
- Do not pump flammable liquids. This pump is designed for water and compatible non-flammable liquids.
- Protect the pump from freezing temperatures.
- Ensure all connections are secure and leak-free.
- Do not operate the pump dry for extended periods, although it has dry run capability.
3. Product Overview
The SEAFLO 23A Series pump is a self-priming, automatic demand diaphragm pump. Key features include:
- Open flow up to 1.5 GPM (5.6 LPM)
- Max Self-priming up to 5 feet (1.5m)
- Waterproof grade IP54 with extra cover
- On-demand long life pressure switch
- Configurable reflux function
- Ignition protected, CE, RoHS certified
- Multiple connector options for adaptability

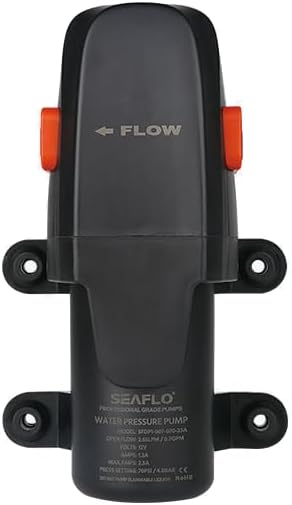

Figure 1: Front view of the SEAFLO 23A Series Automatic Demand Diaphragm Pump. Shows the pump body with 'FLOW' indicator and mounting tabs.

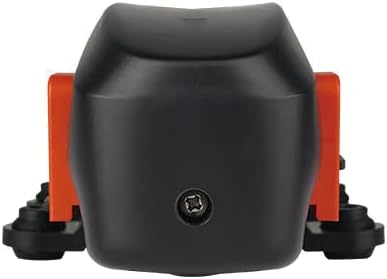

Figure 2: Rear view of the SEAFLO 23A Series Automatic Demand Diaphragm Pump. Displays the motor housing and mounting points.
4. Setup and Installation
Proper installation is crucial for pump performance and longevity.
4.1 Mounting
- Mount the pump in a dry, well-ventilated area.
- Secure the pump to a solid surface using the integrated mounting tabs.
- Ensure the pump is mounted in a position that allows for easy access for maintenance and inspection.
4.2 Plumbing
- Use appropriate fittings (2 fittings included) for your application.
- Connect the inlet hose to the pump's inlet port (indicated by 'FLOW' arrow).
- Connect the outlet hose to the pump's outlet port.
- Ensure all plumbing connections are tight to prevent leaks and air ingress.
- Install a filter on the inlet side to protect the pump from debris.
4.3 Electrical Connection
- This pump operates on Corded Electric power. Refer to the pump label for specific voltage requirements.
- Connect the pump to a fused power supply.
- Ensure correct polarity for DC models.
- All electrical connections should be made by a qualified professional and comply with local codes.
5. Operating Instructions
The 23A Series is an automatic demand pump, meaning it will turn on and off based on system pressure.
- Priming: Once plumbing and electrical connections are complete, open a faucet or valve on the discharge side to allow air to escape. Turn on the power to the pump. The pump will begin to self-prime. Once a steady stream of water flows from the open faucet, close it. The pump will build pressure and shut off.
- Automatic Operation: The pump will automatically turn on when a demand for water is detected (e.g., opening a faucet) and turn off when the demand ceases and system pressure is restored.
- Dry Run: The pump is capable of dry running without damage, but continuous dry running is not recommended.
6. Maintenance
Regular maintenance ensures optimal performance and extends the pump's lifespan.
- Inspect Connections: Periodically check all plumbing and electrical connections for tightness and signs of wear.
- Clean Inlet Filter: If an inlet filter is installed, clean it regularly to prevent debris from entering the pump.
- Winterization: In freezing conditions, drain all water from the pump and plumbing system to prevent damage. Run non-toxic RV antifreeze through the system if necessary.
- General Cleaning: Keep the exterior of the pump clean and free from dirt and debris.
7. Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not turn on | No power; Blown fuse; Loose wiring; Faulty pressure switch | Check power supply; Replace fuse; Secure wiring; Contact support if switch is faulty. |
| Low flow or no pressure | Clogged inlet filter; Air leak in suction line; Restricted discharge line; Low voltage | Clean filter; Check all suction connections; Clear discharge line; Verify voltage. |
| Pump runs continuously | Water leak in system; Air leak in suction line; Faulty pressure switch | Check for leaks in plumbing; Check suction connections; Contact support if switch is faulty. |
| Noisy operation | Air in system; Loose mounting; Debris in pump head | Bleed air from system; Tighten mounting screws; Inspect pump head for foreign objects. |
8. Specifications
| Specification | Value |
|---|---|
| Model Number | SFDP1-005-120-23A |
| Flow Rate (Open Flow) | Up to 1.5 GPM (5.6 LPM) |
| Max Pressure | 120 PSI (8.2 Bar) |
| Self-Priming Capability | Up to 5 feet (1.5m) |
| Power Source | Corded Electric |
| Waterproof Grade | IP54 |
| Item Weight | 1.54 pounds |
| Package Dimensions | 7.09 x 4.13 x 2.76 inches |
| Included Components | 1 Pump, 2 fittings |
9. Warranty and Support
For warranty information and technical support, please contact SEAFLO customer service. Keep your purchase receipt as proof of purchase.
For further assistance, visit the official SEAFLO website or contact your local distributor.
