COSTWAY 24-Inch Dual Zone Wine and Beverage Refrigerator Instruction Manual

1. Safety Information

Please read all instructions carefully before using this appliance to ensure safe operation and to prevent injury or damage. Keep this manual for future reference.

• Electrical Safety: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords.
• Ventilation: Maintain adequate clearance around the unit for proper ventilation to prevent overheating.
• Placement: Place the unit on a flat, stable surface away from direct sunlight, heat sources, and excessive moisture.
• Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Flammable Materials: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

2. Product Overview

The COSTWAY 24-inch Dual Zone Wine and Beverage Refrigerator is designed to keep your wines and drinks in perfect condition. It features independent temperature controls for two distinct zones, allowing optimal chilling for various beverages. This versatile unit can be used as a built-in appliance or as a freestanding cooler.

Key Features:

• Dual Zone Independent Temperature Control: The upper wine fridge operates between 41°F (5°C) and 72°F (22°C), while the lower beverage cooler maintains temperatures between 39°F (4°C) and 46°F (8°C).
• Generous Storage Capacity: Accommodates up to 108 standard 750ml wine bottles and 175 standard cans.
• Advanced Cooling Technology: Features a 360° 3D air duct design for frost-free cooling and a powerful compressor for quiet operation (≤37dB).
• Superior Insulation: Equipped with a 3-layer glass door and stainless steel foam drawers for reliable temperature control.
• Intuitive Controls and Lighting: Clear LED display for temperature and light settings, with built-in blue LED lighting.
• Versatile Installation: Suitable for both freestanding and built-in applications.

Image: The refrigerator features two independent cooling zones, one for wine (41°F-72°F) and one for beverages (39°F-46°F), allowing for optimal storage conditions for various drinks.

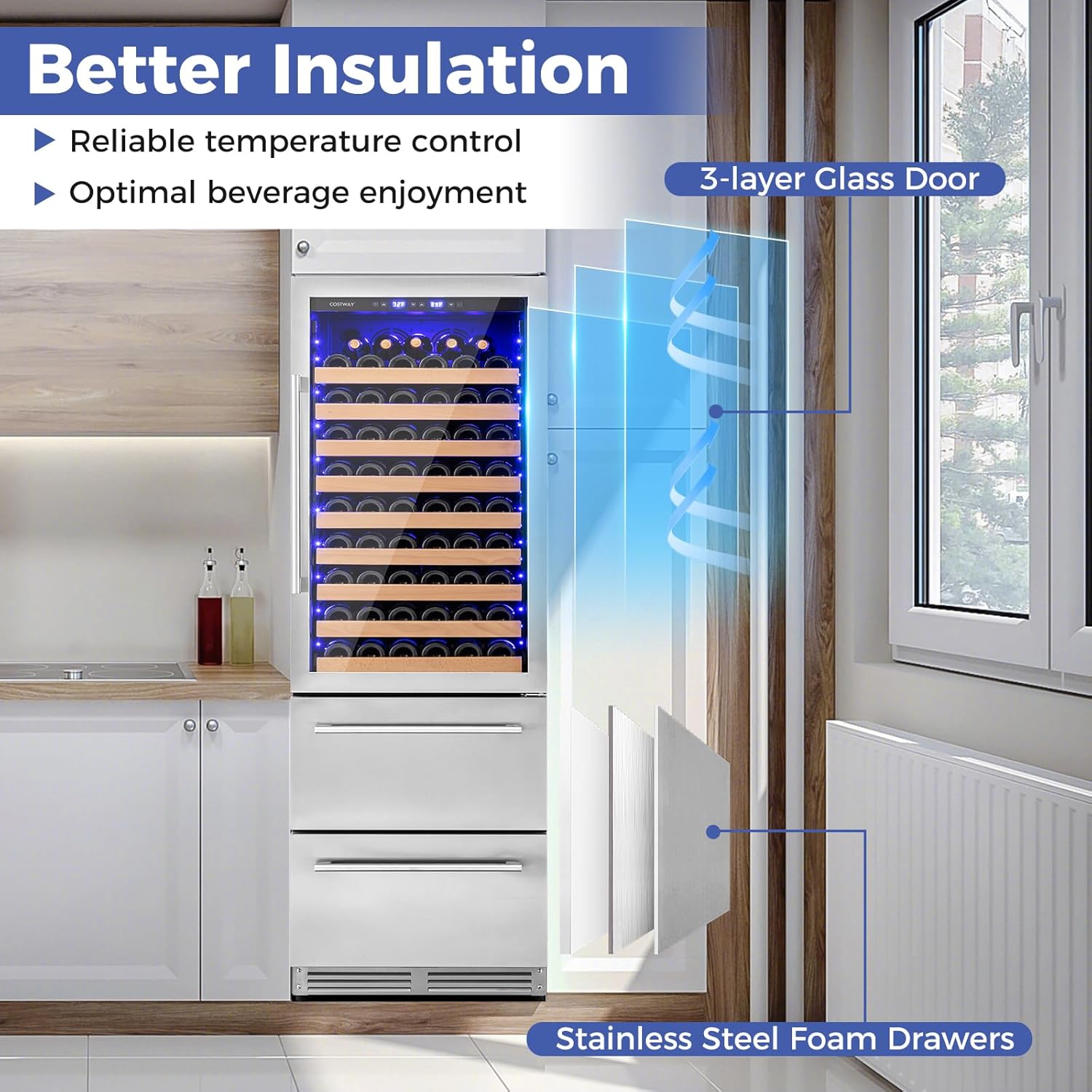

Image: Illustration of the refrigerator's advanced insulation, including a 3-layer glass door and stainless steel foam drawers, designed for reliable temperature control and energy efficiency.

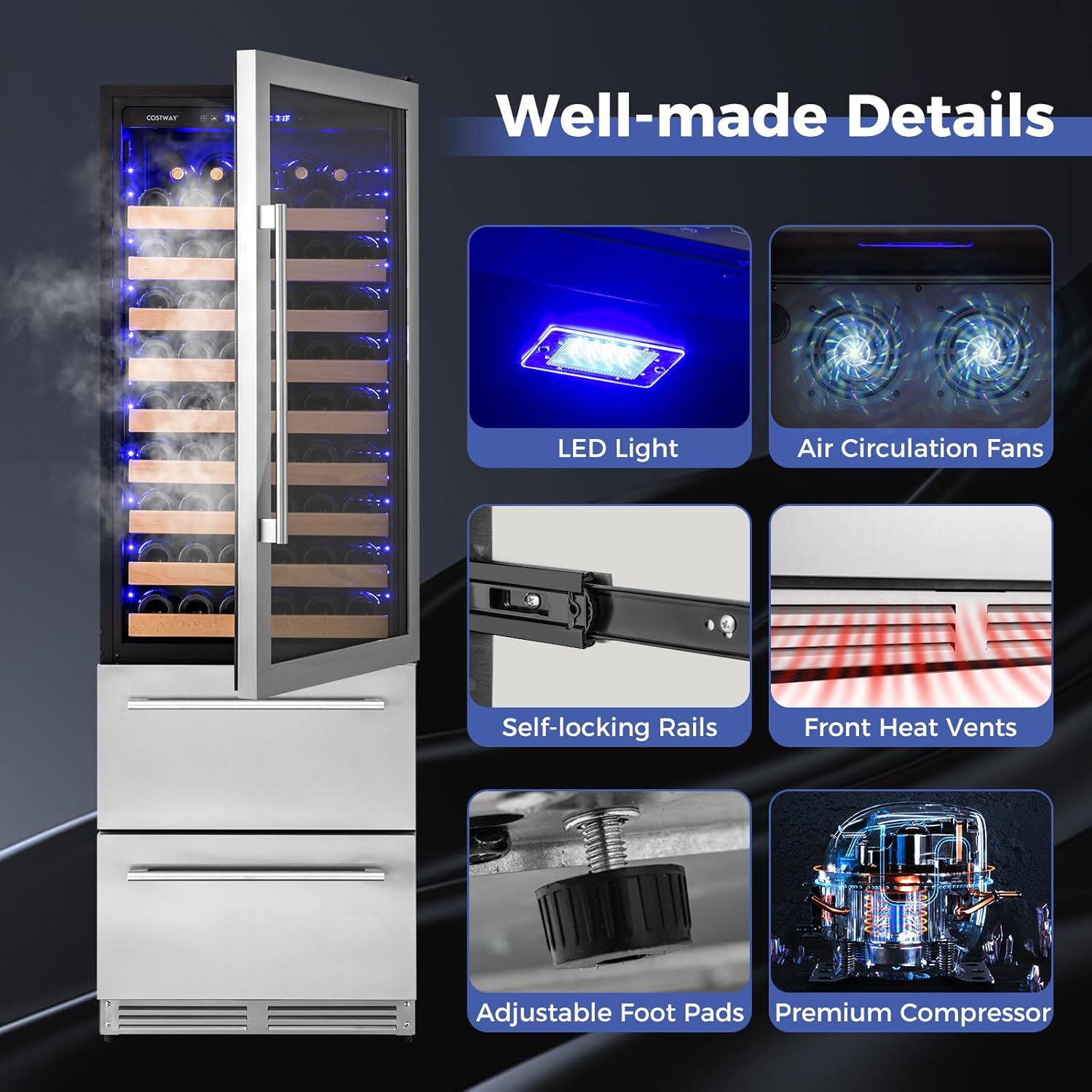

Image: Detailed view of the refrigerator's quality components, such as the internal LED lighting, air circulation fans for even cooling, smooth self-locking shelf rails, front heat vents for built-in installation, adjustable foot pads for leveling, and a premium compressor for efficient and quiet operation.

3. Setup & Installation

3.1 Unpacking

Carefully remove all packaging materials. Inspect the unit for any shipping damage. Keep packaging materials until you are satisfied with the product.

3.2 Placement

This appliance is designed for both freestanding and built-in installation. Ensure the chosen location has a stable, level surface capable of supporting the unit's weight when fully loaded. Avoid placing the unit in direct sunlight or near heat sources (e.g., oven, radiator). Allow adequate space for air circulation, especially if building into cabinetry.

• Freestanding: Allow at least 2 inches (5 cm) of space on the sides and back for proper ventilation.
• Built-In: Recommended insert dimensions are >23.8"W x 27.4"D x 77.9"H. Ensure front heat vents are not obstructed.

Image: Product dimensions and recommended built-in insert dimensions for proper installation.

3.3 Leveling the Unit

The appliance has adjustable foot pads. Use a level to ensure the unit is perfectly level. Adjust the feet by turning them clockwise or counter-clockwise until the unit is stable and level. Proper leveling is crucial for efficient operation and door alignment.

3.4 Reversible Door

The upper zone door is reversible, allowing for flexible installation to open from either the right or left side. Refer to the detailed instructions in the included manual for the specific steps to reverse the door swing.

Image: The reversible door with detachable hinge offers flexibility for right or left opening, adapting to your space requirements.

3.5 Electrical Connection

Before plugging in the appliance, ensure the voltage and frequency match the ratings on the product label (115V, 60Hz). Connect the unit to a dedicated, grounded electrical outlet. Do not overload the circuit or use adapters.

4. Operating Instructions

The refrigerator features an intuitive LED display and touch control panel for easy management of settings.

4.1 Control Panel Overview

Image: The easy-to-use control panel with separate controls for the upper and lower zones, including temperature adjustment, light control, and unit conversion.

4.2 Power On/Off

Press and hold the power button on the control panel for 3 seconds to turn the unit on or off.

4.3 Temperature Adjustment

Each zone has independent temperature controls. Use the 'Up' and 'Down' arrows to set the desired temperature for the upper (wine) and lower (beverage) zones. The LED display will show the current temperature. Press the 'Set' button to confirm your selection.

• Upper Zone (Wine): 41°F - 72°F (5°C - 22°C)
• Lower Zone (Beverage): 39°F - 46°F (4°C - 8°C)

4.4 Light Control

Press the 'Light' button to turn the internal blue LED light on or off. This light enhances visibility and adds an elegant touch to your collection.

4.5 Temperature Unit Conversion

Press the '°F/°C' button to switch the temperature display between Fahrenheit and Celsius.

5. Loading & Storage

The refrigerator offers versatile storage options for both wine bottles and beverage cans.

5.1 Wine Bottle Storage

The upper zone is equipped with 9 beech wood shelves, designed to hold up to 108 standard 750ml wine bottles. The shelves feature self-locking rails for smooth and secure access.

Image: The wine fridge section, illustrating its capacity for 108 standard 750ml bottles across 9 wooden shelves.

5.2 Beverage Can Storage

The lower zone includes 2 expandable grid organizers and 2 wire baskets, providing ample space for up to 175 standard cans. These organizers allow for flexible arrangement of various beverage sizes.

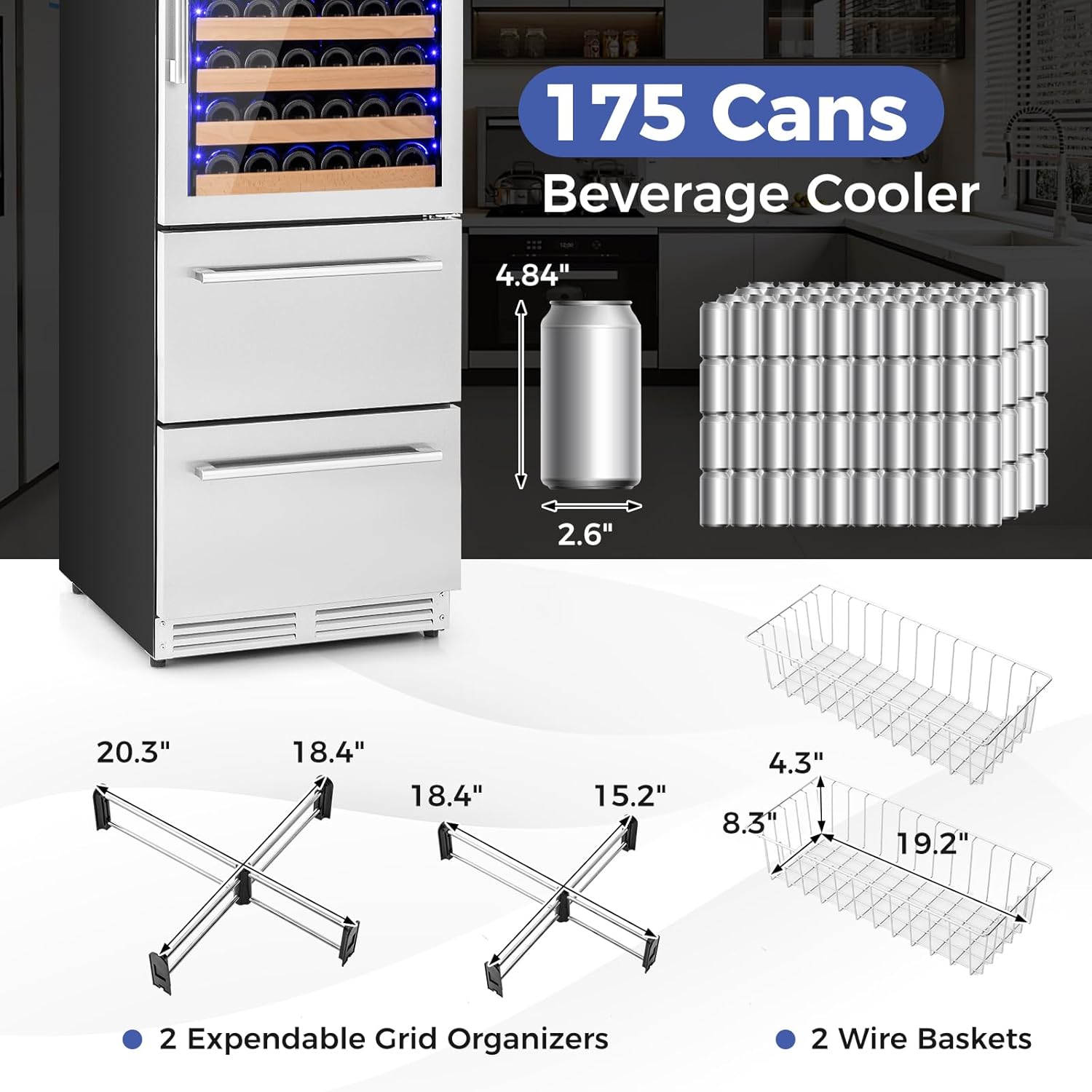

Image: The beverage cooler section, demonstrating its capacity for 175 cans using expandable grid organizers and wire baskets.

5.3 Shelf Removal and Adjustment

The shelves are designed for easy removal and adjustment to accommodate different bottle and can sizes. To remove a shelf, gently lift the front and slide it out. To reinsert, align the shelf with the rails and push it back until it locks into place.

6. Maintenance & Cleaning

Regular maintenance ensures optimal performance and longevity of your appliance.

6.1 Cleaning the Interior

Unplug the unit before cleaning. Clean the interior with a soft cloth dampened with a solution of mild detergent and warm water. Avoid abrasive cleaners or solvents. Ensure all surfaces are dry before plugging the unit back in.

6.2 Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. For stainless steel surfaces, use a stainless steel cleaner and polish. Do not use harsh chemicals or abrasive pads.

6.3 Defrosting

This appliance features a frost-free cooling system, eliminating the need for manual defrosting. Any accumulated frost will melt automatically and evaporate.

7. Troubleshooting

If you experience issues with your appliance, refer to the following common troubleshooting tips:

• Unit Not Operating: Check if the power cord is securely plugged into a working outlet. Verify the circuit breaker has not tripped.
• Temperature Not Cold Enough: Ensure the door is fully closed and the seal is intact. Check if the temperature setting is appropriate for the contents. Avoid placing the unit near heat sources or in direct sunlight. Ensure adequate ventilation.
• Excessive Noise: Verify the unit is level. Check for any objects vibrating against the unit. Normal compressor operation may produce some sound.
• Water on Floor: Check if the drain hose is properly positioned and not clogged. Ensure the unit is level to allow proper drainage.

For persistent issues or problems not listed here, please contact customer support.

8. Specifications

9. Warranty & Support

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical assistance, troubleshooting, or to inquire about replacement parts, please contact COSTWAY customer support.

Keep your purchase receipt and model number handy when contacting support.
