Parkside 20V 4Ah Battery PAP 20 B3 and 4.5A Charger PLG 20 C3 Instruction Manual
Model: PAP 20 B3 + PLG 20 C3
Introduction
This instruction manual provides important information for the safe and efficient use of your Parkside 20V 4Ah Lithium-Ion Battery (PAP 20 B3) and 4.5A Charger (PLG 20 C3) bundle. This product is designed for use with the Parkside X 20 V Team series of power tools. Please read this manual thoroughly before first use and keep it for future reference.
Product Overview
Parkside 20V 4Ah Lithium-Ion Battery (PAP 20 B3)
The PAP 20 B3 is a powerful lithium-ion battery featuring a 3-level state indicator and cell balancing technology. Cell balancing ensures uniform cell utilization, leading to a longer battery life and extended runtime. This technology maximizes the battery's charging potential.
Image: Parkside 20V 4Ah Lithium-Ion Battery PAP 20 B3, showing its compact design and 3-level charge indicator.
Parkside 4.5A Charger (PLG 20 C3)
The PLG 20 C3 charger features automatic charge cut-off and an LED charge indicator. It includes rubber feet for anti-slip stability and a wall-mounting device on the rear (mounting hardware not included). This charger is compatible with all batteries from the PARKSIDE X 20 V Team series.
Image: Parkside 4.5A Charger PLG 20 C3, illustrating its design with LED indicator and wall-mounting option.
Technical Specifications
Battery PAP 20 B3
| Feature | Specification |
|---|---|
| Type | Lithium-ion |
| Nominal Voltage | 20 V |
| Capacity | 4 Ah |
| Battery Cells | 10 |
| Energy | 80 Wh |
| Material | Plastic |
| Dimensions (approx.) | 126 x 71 x 84 mm |
| Weight (approx.) | 712 g |
Charger PLG 20 C3
| Feature | Specification |
|---|---|
| Rated Power | 120 W |
| Charging Current | 4.5 A |
| Charging Time (2 Ah battery) | approx. 30 min (ready for use) |
| Charging Time (4 Ah battery) | approx. 60 min |
| Charging Time (8 Ah battery) | approx. 120 min |
| Power Cable Length | 2 m |
| Material | Plastic |
| Dimensions (approx.) | 15 x 9 x 7.4 cm |
| Weight (approx.) | 430 g |
Setup and Initial Use
Charging the Battery
- Connect the PLG 20 C3 charger to a suitable power outlet. The LED indicator on the charger will illuminate, typically green, indicating it is ready.
- Slide the PAP 20 B3 battery onto the charger until it clicks into place.
- The charger's LED indicator will change, usually to red, to show that charging has begun. The battery's 3-level state indicator will also show charging progress.
- Once fully charged, the charger's LED indicator will turn green, and the battery's indicator will show a full charge. The charger features automatic charge cut-off to prevent overcharging.
- Disconnect the battery from the charger once charging is complete.
Approximate Charging Times:
- 2 Ah battery: approximately 30 minutes
- 4 Ah battery (PAP 20 B3): approximately 60 minutes
- 8 Ah battery: approximately 120 minutes
Operation
The Parkside PAP 20 B3 battery is designed for use with all tools in the Parkside X 20 V Team series. To use the battery:
- Ensure the battery is fully charged. Check the 3-level state indicator on the battery.
- Align the battery with the battery slot on your Parkside X 20 V Team tool.
- Slide the battery firmly into the tool until it clicks securely into place.
- To remove the battery, press the release button(s) on the tool and slide the battery out.
Always refer to the specific instruction manual of your Parkside X 20 V Team tool for detailed operating procedures.
Maintenance and Care
Battery Care
- Storage: Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to store the battery at approximately 50% charge.
- Charging: Always use the specified Parkside PLG 20 C3 charger. Avoid charging in extremely hot or cold environments.
- Cleaning: Keep the battery contacts clean and free from dirt or debris. Use a dry cloth to wipe them if necessary.
- Cell Balancing: The integrated cell balancing technology helps prolong battery life by ensuring uniform cell discharge and charge. Regular full charge cycles can help maintain this balance.
- Avoid Deep Discharge: Do not allow the battery to completely discharge. Recharge it when the power significantly drops or the tool performance decreases.
Charger Care
- Cleaning: Keep the charger free from dust and dirt. Disconnect it from the power supply before cleaning.
- Storage: Store the charger in a dry place.
- Inspection: Regularly inspect the power cable and housing for any damage. Do not use a damaged charger.
Troubleshooting
This section addresses common issues you might encounter with your Parkside battery and charger.
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not plugged in; faulty power outlet; battery not properly seated; damaged battery or charger. | Check power connection; try a different outlet; ensure battery is fully inserted; inspect battery and charger for damage. |
| Charger LED not indicating charge | Battery fully charged; battery too hot/cold; faulty charger. | Check battery charge level; allow battery to reach room temperature; contact support if charger is faulty. |
| Battery not powering tool | Battery not charged; battery not properly seated; faulty battery or tool. | Charge battery; ensure battery is securely attached to tool; test with another battery if available; consult tool manual. |
Charger LED Indicator Status:
- Green (steady): Charger connected to power, ready for charging.
- Red (steady): Battery is charging.
- Green (steady) after Red: Battery is fully charged.
- Flashing Red/Other: Indicates an error (e.g., battery too hot/cold, faulty battery). Refer to the charger's specific manual for detailed error codes.
Safety Information and Battery Disposal
This section provides important safety guidelines and instructions for the proper disposal of old batteries.
General Safety Instructions
- Do not open, disassemble, or modify the battery or charger.
- Do not expose batteries to heat, fire, or direct sunlight.
- Do not short-circuit the battery terminals.
- Keep batteries away from children and pets.
- If battery fluid comes into contact with skin or eyes, rinse immediately with plenty of water and seek medical attention.
- Only use the battery with compatible Parkside X 20 V Team tools and the specified PLG 20 C3 charger.

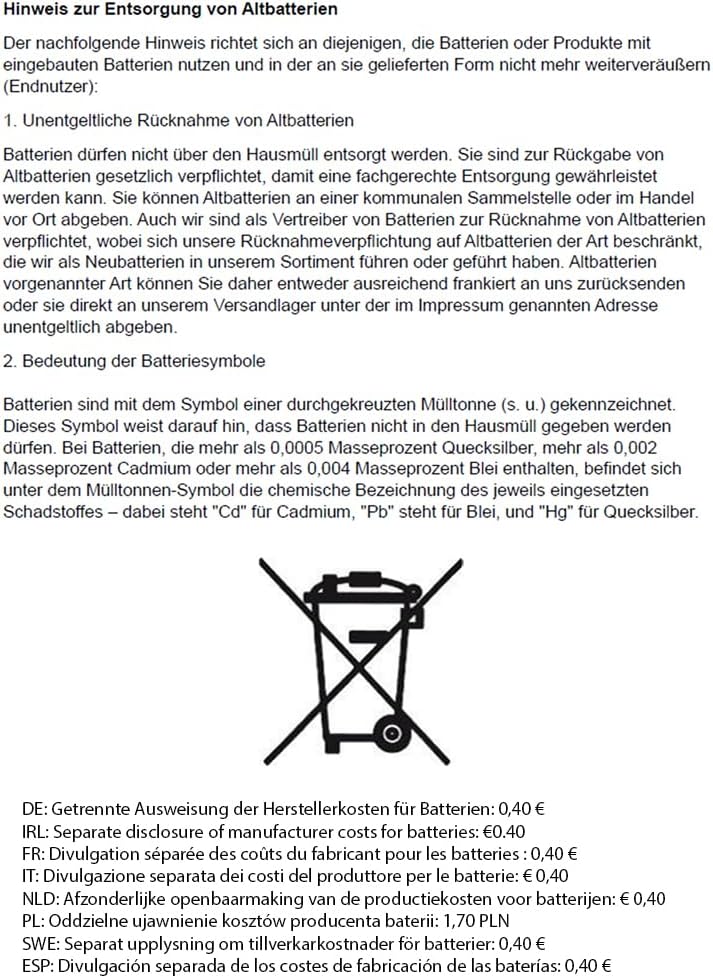

Disposal of Old Batteries
Batteries must not be disposed of with household waste. You are legally obligated to return old batteries to ensure proper disposal. Old batteries can be handed in at municipal collection points or at retailers. As a distributor of batteries, we are also obligated to take back old batteries, although our obligation is limited to the types of old batteries that we carry or have carried as new batteries in our product range. Old batteries of the aforementioned type can therefore either be sent back to us sufficiently stamped or handed in free of charge directly at our warehouse at the address mentioned in the imprint.
Meaning of Battery Symbols:
Batteries are marked with the symbol of a crossed-out wheeled bin. This symbol indicates that batteries must not be disposed of with household waste. For batteries containing more than 0.0005 mass percent mercury, more than 0.002 mass percent cadmium, or more than 0.004 mass percent lead, the chemical designation of the respective pollutant is located below the wheeled bin symbol. "Cd" stands for Cadmium, "Pb" for Lead, and "Hg" for Mercury.
Image: The crossed-out wheeled bin symbol, indicating that batteries should not be disposed of in general household waste.
Manufacturer Costs for Batteries:
- IRL: Separate disclosure of manufacturer costs for batteries: €0.40
- FR: Separate disclosure of manufacturer costs for batteries: €0.40
- IT: Separate disclosure of manufacturer costs for batteries: €0.40
- NLD: Separate disclosure of manufacturer costs for batteries: €0.40
- SWE: Separate disclosure of manufacturer costs for batteries: €0.40
- ESP: Separate disclosure of manufacturer costs for batteries: €0.40
- PL: Separate disclosure of manufacturer costs for batteries: 1.70 PLN
Warranty and Support
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or contact the retailer for specific warranty terms and conditions.
For technical support, spare parts, or service inquiries, please contact the Parkside customer service or your authorized dealer. Keep your purchase receipt and product model number (PAP 20 B3 + PLG 20 C3) handy when contacting support.
