User Manual for Samsung 19 Cu. Ft. AI Top Mount Refrigerator

Introduction

This manual provides essential information for the safe and efficient operation of your new Samsung 19 Cu. Ft. AI Top Mount Refrigerator, model RT53DG6128S9. Please read this manual thoroughly before using the appliance and keep it for future reference. This refrigerator is designed to maintain the freshness of your food for longer periods with its advanced features like All-Around Cooling technology and a Digital Inverter motor.

Safety Information

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

• Ensure the refrigerator is properly grounded.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or performing any maintenance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Setup

Unpacking

Carefully remove all packaging materials, including tape and protective films. Dispose of packaging responsibly.

Placement

Place the refrigerator on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate clearance around the appliance for proper ventilation. The dimensions of the product are approximately 77 cm (depth) x 77 cm (width) x 199 cm (height).

Figure 1: Front view of the Samsung RT53DG6128S9 refrigerator. This image shows the overall design and two-door configuration of the appliance.

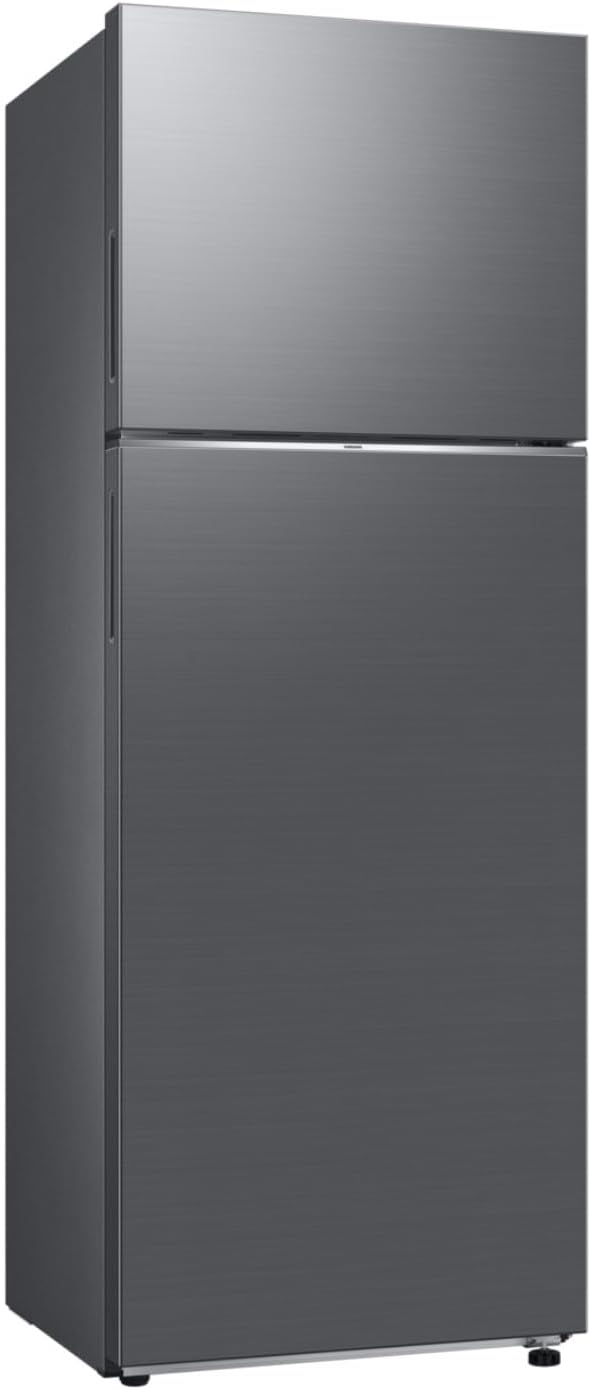

Figure 2: Side view of the Samsung RT53DG6128S9 refrigerator. This perspective highlights the depth and sleek grey finish of the unit.

Figure 3: Rear view of the Samsung RT53DG6128S9 refrigerator. This image displays the compressor area and the overall back panel design, including the refrigerant lines.

Leveling

Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.

Power Connection

Connect the power cord to a dedicated 127V AC outlet. Do not use extension cords or adapters. Allow the refrigerator to stand for at least 2-3 hours before plugging it in to allow refrigerants to settle.

Operating Instructions

Initial Operation

After plugging in, the refrigerator will begin to cool. It may take several hours for the internal temperature to reach the desired level. Avoid placing food inside until the temperature stabilizes.

Temperature Control

Your refrigerator is equipped with All-Around Cooling technology, which ensures uniform and precise temperature distribution throughout the interior. The internal control panel allows you to adjust the temperature settings for both the refrigerator and freezer compartments. For optimal food preservation, the recommended refrigerator temperature is 3°C (37°F).

Figure 4: Close-up of the internal control panel. This panel allows users to adjust the refrigerator temperature and activate features like Power Cool.

Twist Ice Maker

The integrated Twist Ice Maker allows for convenient ice production. Fill the ice trays with water, place them in the designated compartment, and once frozen, twist the knobs to release the ice into the collection bin.

Digital Inverter Motor

The Digital Inverter motor provides enhanced power and durability, adjusting its speed in response to cooling demand. This results in quieter operation, reduced energy consumption, and a longer lifespan for the appliance.

SmartThings Connectivity

This refrigerator features Wi-Fi connectivity, allowing you to control and monitor it remotely using the SmartThings application on your smartphone. Download the SmartThings app and follow the in-app instructions to connect your appliance.

Figure 5: Interior view of the Samsung RT53DG6128S9 refrigerator with empty shelves and drawers. This shows the spacious layout and the Twist Ice Maker in the freezer compartment.

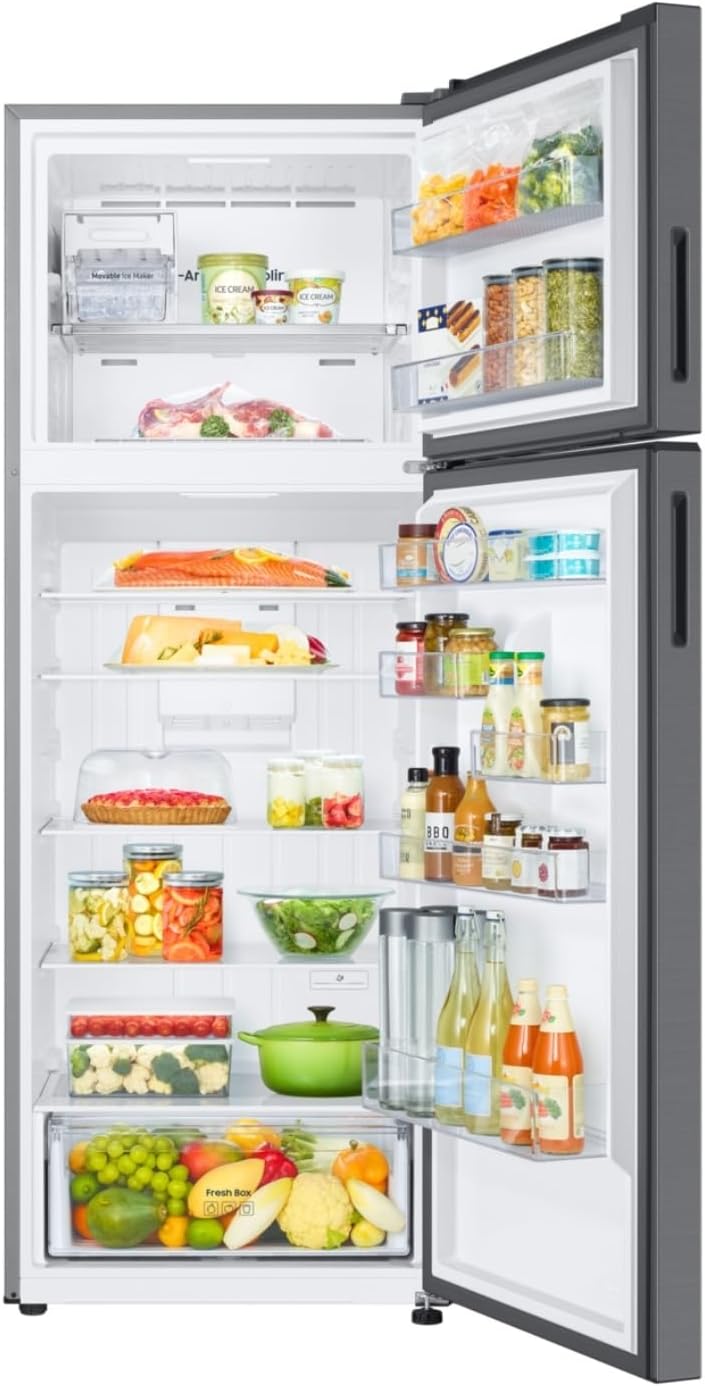

Figure 6: Interior view of the Samsung RT53DG6128S9 refrigerator filled with various food items. This demonstrates the practical storage capacity and organization possibilities within the appliance.

Maintenance

Cleaning

Regularly clean the interior and exterior of your refrigerator. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners or solvents. For the exterior, wipe with a damp cloth and then dry thoroughly.

Defrosting

This refrigerator features a Semiautomático defrosting system. While it minimizes ice buildup, occasional manual defrosting of the freezer compartment may be necessary if excessive frost accumulates. Refer to the full user manual for detailed defrosting instructions.

Care for Components

Removable shelves and drawers can be washed with warm, soapy water. Ensure they are completely dry before placing them back into the refrigerator.

Troubleshooting

Before contacting service, check the following common issues:

• Refrigerator not cooling: Check if the power cord is securely plugged in, the circuit breaker hasn't tripped, and the temperature settings are correct.
• Unusual noises: Some noises are normal (e.g., refrigerant flowing, fan motor). If noises are loud or unusual, ensure the refrigerator is level and not touching a wall.
• Water on floor: Check if the drain pan is properly positioned and not overflowing, or if the door gasket is sealing correctly.
• Door not closing properly: Ensure no food items are blocking the door, and the door gasket is clean and intact.

For more detailed troubleshooting, refer to the comprehensive guide available on the Samsung support website.

Specifications

Warranty and Support

Your Samsung refrigerator, model RT53DG6128S9, comes with a manufacturer's warranty. For specific warranty terms, conditions, and registration, please refer to the warranty card included with your purchase or visit the official Samsung support website. For technical assistance or service requests, please contact Samsung customer support with your model number and serial number readily available.

Online Support: www.samsung.com/support/
