Sparex Perkins AD4.203 Engine Overhaul Kit Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation and maintenance of the Sparex Perkins AD4.203 Engine Overhaul Kit. This kit is designed to restore the performance and extend the lifespan of Perkins AD4.203 engines found in various Massey Ferguson tractor models. Adherence to these guidelines is crucial for optimal engine function and longevity.

2. Product Overview

The Sparex Perkins AD4.203 Engine Overhaul Kit includes a comprehensive set of components necessary for a complete engine rebuild. These parts are manufactured to OEM specifications to ensure direct fitment and reliable performance.

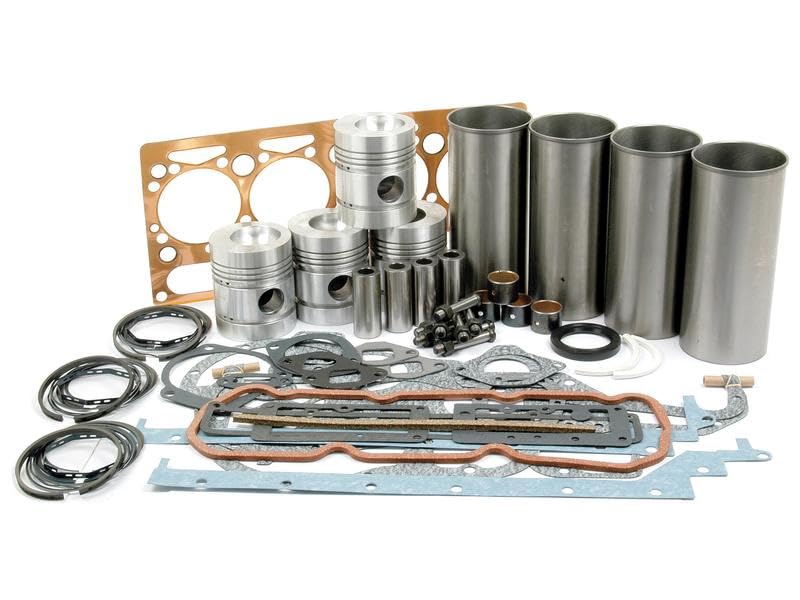

Image 1: Components of the Perkins AD4.203 Engine Overhaul Kit. This image displays a selection of parts typically included in an overhaul kit, such as pistons, cylinder liners, piston rings, main and connecting rod bearings, and a variety of gaskets and seals for the engine block and cylinder head.

2.1 Kit Contents (Typical)

• Pistons and Piston Rings
• Cylinder Liners
• Main Bearings
• Connecting Rod Bearings
• Thrust Washers
• Complete Gasket and Seal Set (including head gasket, manifold gaskets, oil pan gasket, valve stem seals, etc.)
• Small end bushings

2.2 Compatible Engine Models

This kit is specifically designed for the Perkins AD4.203 (JE) engine.

2.3 Compatible Tractor Models

Suitable for various Massey Ferguson models including: 155, 158, 165, 165 US BUILT, 255, 260, 281, 30, 302, 304, 3165, 40B, 50, 560, 65, 65 US BUILT, 765.

3. Setup and Installation

Engine overhaul is a complex procedure that requires specialized tools, technical knowledge, and experience. It is highly recommended that installation be performed by a certified mechanic or an experienced engine technician.

3.1 Safety Precautions

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and protective clothing.
• Ensure the engine is cool and disconnected from any power sources before beginning work.
• Work in a well-ventilated area.
• Use proper lifting equipment when handling heavy engine components.
• Refer to the official Perkins AD4.203 service manual for detailed torque specifications and assembly procedures.

3.2 General Installation Steps (Summary)

1. Engine Removal and Disassembly: Carefully remove the engine from the tractor. Disassemble the engine, meticulously labeling and organizing all components.
2. Inspection and Cleaning: Thoroughly clean all engine components. Inspect the crankshaft, camshaft, cylinder head, and engine block for wear, cracks, or damage. Machine shop services may be required for cylinder boring, head resurfacing, or crankshaft grinding.
3. Component Replacement:
   • Install new cylinder liners (if applicable), ensuring proper fit and protrusion.
   • Assemble pistons with new rings and connect them to the connecting rods.
   • Install new main and connecting rod bearings, ensuring correct clearances.
   • Install the crankshaft and camshaft, verifying proper timing.
   • Install the cylinder head with a new head gasket, tightening bolts to specified torque sequences and values.
   • Replace all other gaskets and seals from the kit during reassembly.
4. Reassembly: Reassemble the engine, paying close attention to all torque specifications and component orientations.
5. Engine Installation: Install the overhauled engine back into the tractor.
6. Fluid Filling: Fill the engine with new engine oil, coolant, and other necessary fluids to the correct levels.

4. Operating After Overhaul

After a complete engine overhaul, a proper break-in period is essential to ensure the longevity and optimal performance of the newly installed components.

4.1 Engine Break-in Procedure

• Initial Start-up: Ensure adequate oil pressure is achieved immediately upon starting. Monitor for any unusual noises or leaks.
• First Few Hours (Light Load): Operate the engine under light to moderate loads for the first 20-50 hours. Avoid sustained high RPMs or heavy loads during this period.
• Oil Change: Perform an initial oil and filter change after the first 50 hours of operation to remove any break-in contaminants.
• Gradual Load Increase: Gradually increase engine load and RPMs over the next 100-200 hours, continuing to monitor engine performance and fluid levels.

5. Maintenance

Regular maintenance is key to preserving the performance and extending the life of your Perkins AD4.203 engine after an overhaul.

• Oil and Filter Changes: Adhere to the manufacturer's recommended intervals for engine oil and filter replacement. Use high-quality oil suitable for diesel engines.
• Air Filter Inspection: Regularly inspect and clean or replace the air filter to ensure proper air intake and prevent contaminants from entering the engine.
• Coolant System: Check coolant levels and condition regularly. Ensure the cooling system is free of leaks and blockages.
• Fuel System: Replace fuel filters as recommended to protect the fuel injection system.
• Belt Tension: Inspect and adjust drive belt tension as needed.
• General Inspection: Periodically check for fluid leaks, loose connections, and unusual wear on components.

6. Troubleshooting

If issues arise after the engine overhaul, consider the following common troubleshooting steps. Always consult a qualified mechanic for complex problems.

6.1 Common Issues

• Oil Leaks: Check for improperly seated gaskets or seals, overtightened or undertightened bolts, or damaged sealing surfaces.
• Coolant Leaks: Inspect hose connections, radiator, water pump, and cylinder head gasket for signs of leakage.
• Unusual Engine Noises: Could indicate incorrect bearing clearances, valve train issues, or improper assembly. Stop the engine immediately and investigate.
• Low Oil Pressure: Verify oil level, check for clogged oil filter, or potential issues with the oil pump or bearing clearances.
• Overheating: Check coolant level, radiator condition, thermostat function, and fan operation.
• Excessive Smoke: Color of smoke can indicate different issues (e.g., blue for oil burning, black for rich fuel mixture, white for coolant burning).

7. Specifications

Note: For detailed engine specifications, including torque values and clearances, refer to the official Perkins AD4.203 service manual.

8. Warranty and Support

This Sparex engine overhaul kit is manufactured with high-grade materials to ensure quality and durability. For specific warranty information regarding the components of this kit, please refer to the documentation provided with your purchase or contact the seller directly.

For technical assistance or inquiries regarding the kit, please contact your Sparex dealer or the point of purchase. Always provide the product's ASIN (B0DVCZ8YGV) and any relevant engine details when seeking support.
