Intex 28472NP PureSpa Chevron Deluxe Inflatable Hot Tub - 6 Person User Manual

1. Introduction and Overview

Welcome to the Intex PureSpa Chevron Deluxe experience. This inflatable hot tub is designed to transform your garden into an oasis of relaxation. Featuring a modern Chevron print, it blends seamlessly into any outdoor setting. The PureSpa Chevron Deluxe accommodates up to 6 adults, offering a rejuvenating massage with 170 powerful bubble jets.

Constructed with durable, three-ply SuperTough laminated PVC and reinforced with Fiber-Tech technology, the spa walls provide excellent stability and extended durability. Operation is made simple with a rechargeable wireless control panel, allowing you to manage all functions with ease.

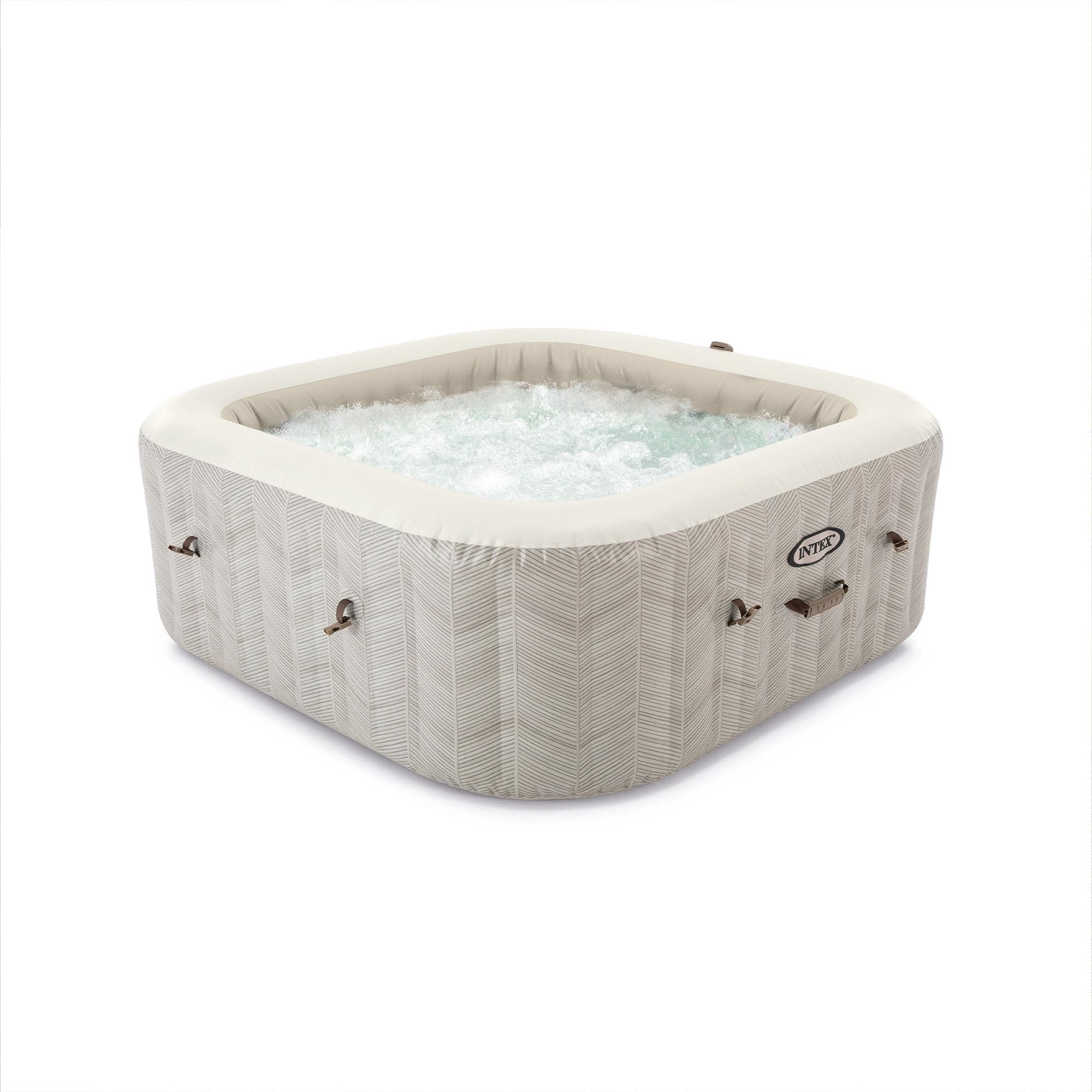

Image: The Intex PureSpa Chevron Deluxe, a beige inflatable hot tub with a chevron pattern, positioned on a patio next to a swimming pool. A control unit is visible on the right side of the spa.

2. Safety Information

Before installing and using this product, please read and follow all safety instructions carefully. Failure to do so may result in serious injury or property damage.

• Adult Supervision: Always supervise children in and around the hot tub.
• Temperature Limits: Do not exceed 40°C (104°F). Pregnant women, individuals with health conditions, or those on medication should consult a physician before use and limit temperature to 38°C (100°F).
• Electrical Safety: Connect the spa only to a grounded power outlet. Do not use extension cords. Keep all electrical components dry.
• Chemical Handling: Handle spa chemicals according to manufacturer's instructions. Avoid direct contact with skin and eyes.
• No Diving: Never dive or jump into the hot tub.
• Empty When Not in Use: Always cover the spa when not in use to prevent accidental drowning and heat loss.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly:

• Inflatable Spa Unit (Chevron Deluxe)
• Control Unit / Motor with integrated heater, air blower, and filter system
• Rechargeable Wireless Control Panel
• Insulating Ground Cloth
• Energy-Efficient Cover
• Floating Chemical Dispenser
• Filter Cartridges (Type S2)
• Storage Bag
• Repair Patch Kit

4. Setup Instructions

Follow these steps for proper setup of your PureSpa:

1. Site Selection: Choose a flat, stable, and level surface capable of supporting the weight of the filled spa (approximately 1098 kg plus occupants). Ensure the area is free of sharp objects.
2. Ground Cloth Placement: Spread the insulating ground cloth on the selected site.
3. Unpack Spa: Carefully remove the inflatable spa unit from its packaging and place it on the ground cloth.
4. Inflation: Connect the spa to the control unit. The integrated FastFill system allows the tub to inflate itself automatically. Ensure the spa is firm but not over-inflated.
5. Connect Control Unit: Securely attach the control unit to the spa. Refer to the markings on the spa and control unit for correct connections.
6. Filter Cartridge Installation: Install the S2 filter cartridge into its designated housing within the control unit. The new motor design allows for easy external access for placement and replacement.
7. Fill with Water: Fill the spa with fresh water using a garden hose. Fill to the minimum and maximum water level lines indicated on the spa interior.
8. Power Connection: Plug the control unit into a grounded electrical outlet. Do not use extension cords.

5. Operating Instructions

Your PureSpa is designed for user-friendly operation:

• Control Panel: The rechargeable wireless control panel allows you to operate all spa functions. It can be placed on the motor unit or on the edge of the PureSpa for convenience. It operates for up to 48 hours on a single charge.
• Power On/Off: Press the power button on the control panel to turn the spa system on or off.
• Temperature Adjustment: Use the temperature up/down buttons to set your desired water temperature between 10°C and 40°C (50°F - 104°F). The integrated heater will work to reach and maintain this temperature. The temperature rise rate is approximately 1-2°C per hour.
• Bubble Jets: Press the bubble button to activate the 170 powerful bubble jets for a refreshing massage. Press again to turn them off.
• Filtration System: The integrated cartridge filter system (1741 L/h) automatically filters the water. Ensure the filter is clean for optimal performance.
• Hard Water & Salt Water System: The integrated dual hard water and salt water system with chlorinator softens the water and prevents limescale buildup, while also sterilizing the water for a gentle experience on skin and swimwear.

6. Maintenance

Regular maintenance ensures the longevity and hygiene of your PureSpa:

• Filter Cartridge Cleaning/Replacement: Regularly remove and clean the S2 filter cartridge. Replace cartridges every few weeks, or more frequently depending on usage and water quality. The S2 cartridges offer 65% more filter surface area.
• Water Treatment: Use the floating chemical dispenser to add appropriate spa chemicals (e.g., chlorine or bromine) to maintain water sanitation. Test water regularly using test strips.
• Hard Water System: The integrated hard water system helps reduce mineral buildup. Periodically check and clean the system as per the detailed manual.
• Spa Cleaning: Clean the interior and exterior of the spa with a soft cloth and mild detergent. Avoid abrasive cleaners.
• Draining and Storage: When not in use for extended periods, drain the spa completely, clean it, and allow it to dry thoroughly before deflating and storing in a cool, dry place.
• Cover Maintenance: Keep the energy-efficient cover clean and ensure it is securely fastened when the spa is not in use to prevent heat loss and keep debris out.

7. Troubleshooting

If you encounter issues with your PureSpa, refer to the following common problems and solutions:

• Spa Not Heating:
  • Ensure the heater function is activated on the control panel.
  • Check that the water level is within the specified range.
  • Verify the filter cartridge is clean and not clogged.
  • Ensure the power supply is stable and not interrupted.
• No Bubbles:
  • Confirm the bubble function is activated on the control panel.
  • Check for any blockages in the air blower system.
• Water Quality Issues (Cloudy/Unsanitary):
  • Clean or replace the filter cartridge.
  • Test water chemistry and adjust chemical levels using the floating dispenser.
  • Ensure the hard water and salt water system is functioning correctly.
• Spa Losing Air:
  • Check all valves and caps are securely tightened.
  • Inspect the spa surface for punctures and use the provided repair patch kit if necessary.

For more detailed troubleshooting or persistent issues, please refer to the comprehensive manual included with your product or contact Intex customer support.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Intex website. Keep your proof of purchase for any warranty claims.

If you require assistance with setup, operation, or troubleshooting that is not covered in this manual, please contact Intex customer service for expert guidance.
