vannect 5-in-1 Foldable Home Exercise Bike User Manual

1. Introduction

Thank you for choosing the vannect 5-in-1 Foldable Home Exercise Bike. This versatile fitness equipment is designed to provide a comprehensive full-body workout in the comfort of your home. With its adjustable magnetic resistance, multiple training positions, and compact design, it is an ideal solution for improving cardiovascular health, building endurance, and strengthening muscles. Please read this manual carefully before assembly and operation to ensure safe and effective use.

2. Important Safety Instructions

To reduce the risk of serious injury, read all instructions before using the exercise bike. Keep this manual for future reference.

• Consult your physician before starting any exercise program.
• Keep children and pets away from the equipment.
• Place the exercise bike on a flat, stable surface. Ensure adequate clearance around the bike.
• Inspect the equipment before each use for loose parts or signs of wear. Do not use if damaged.
• Wear appropriate exercise attire and footwear.
• Do not exceed the maximum user weight capacity of 160 kg (352 lbs).
• Adjust the seat and handlebars to a comfortable and safe position before starting your workout.
• Stop exercising immediately if you feel faint, dizzy, or experience pain.
• Keep hands and feet clear of all moving parts.

3. Package Contents

Carefully unpack all components and verify that you have received the following parts. All necessary tools for assembly are included.

• Main Frame Assembly
• Front and Rear Stabilizers
• Seat and Backrest
• Handlebars with Pulse Sensors
• Pedals (Left and Right)
• LCD Monitor
• Resistance Bands (Hand and Leg)
• Hardware Kit (pre-mounted screws)
• User Manual

4. Assembly Instructions

The vannect exercise bike is designed for quick and easy assembly, typically taking less than 30 minutes. Most screws are pre-mounted for your convenience. No additional tools are required as all necessary assembly tools are provided.

1. Unpack and Prepare: Remove all components from the packaging. Place the main frame on a clear, flat surface.
2. Attach Stabilizers: Secure the front and rear stabilizers to the main frame using the provided bolts and nuts. Ensure they are tightened securely.
3. Install Pedals: Attach the left and right pedals to their respective crank arms. Note that the left pedal typically tightens counter-clockwise.
4. Mount Seat and Backrest: Slide the seat post into the main frame and secure it at your desired height. Attach the backrest to the seat assembly.
5. Attach Handlebars and Monitor: Connect the handlebars to the main frame. Install the LCD monitor onto the designated bracket and connect any necessary sensor cables.
6. Attach Resistance Bands: Secure the hand and leg resistance bands to their attachment points on the bike.
7. Final Check: Ensure all bolts and nuts are securely tightened before first use.

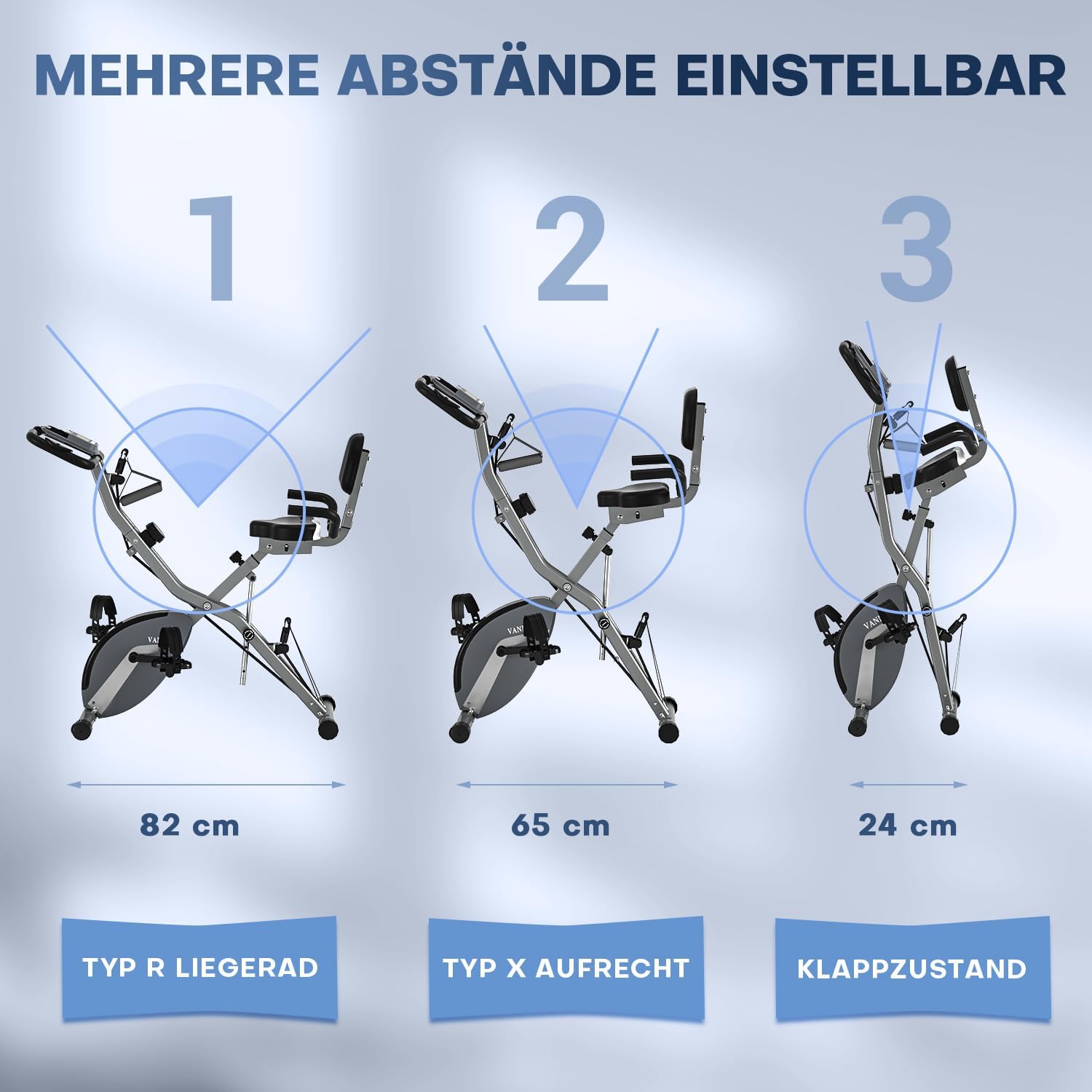

Figure 4.1: The exercise bike can be easily folded for compact storage, reducing its footprint significantly.

5. Operating Instructions

5.1 Training Modes (5-in-1 Functionality)

The vannect exercise bike offers five distinct training options:

• Upright Standard Training: For an intense cardio workout.
• Semi-Recumbent Training: For a more relaxed and comfortable workout, ideal for extended sessions or rehabilitation.
• Classic Cycling: Traditional cycling position for general fitness.
• Arm Training: Utilize the integrated hand resistance bands to strengthen your upper body.
• Leg Training: Utilize the integrated leg resistance bands to target lower body muscles.

Figure 5.1: The 5-in-1 design allows for diverse full-body workouts.

5.2 Adjusting Resistance

The bike features a 16-level magnetic resistance system. Rotate the tension control knob located on the main frame to increase or decrease the resistance. Higher numbers indicate greater resistance.

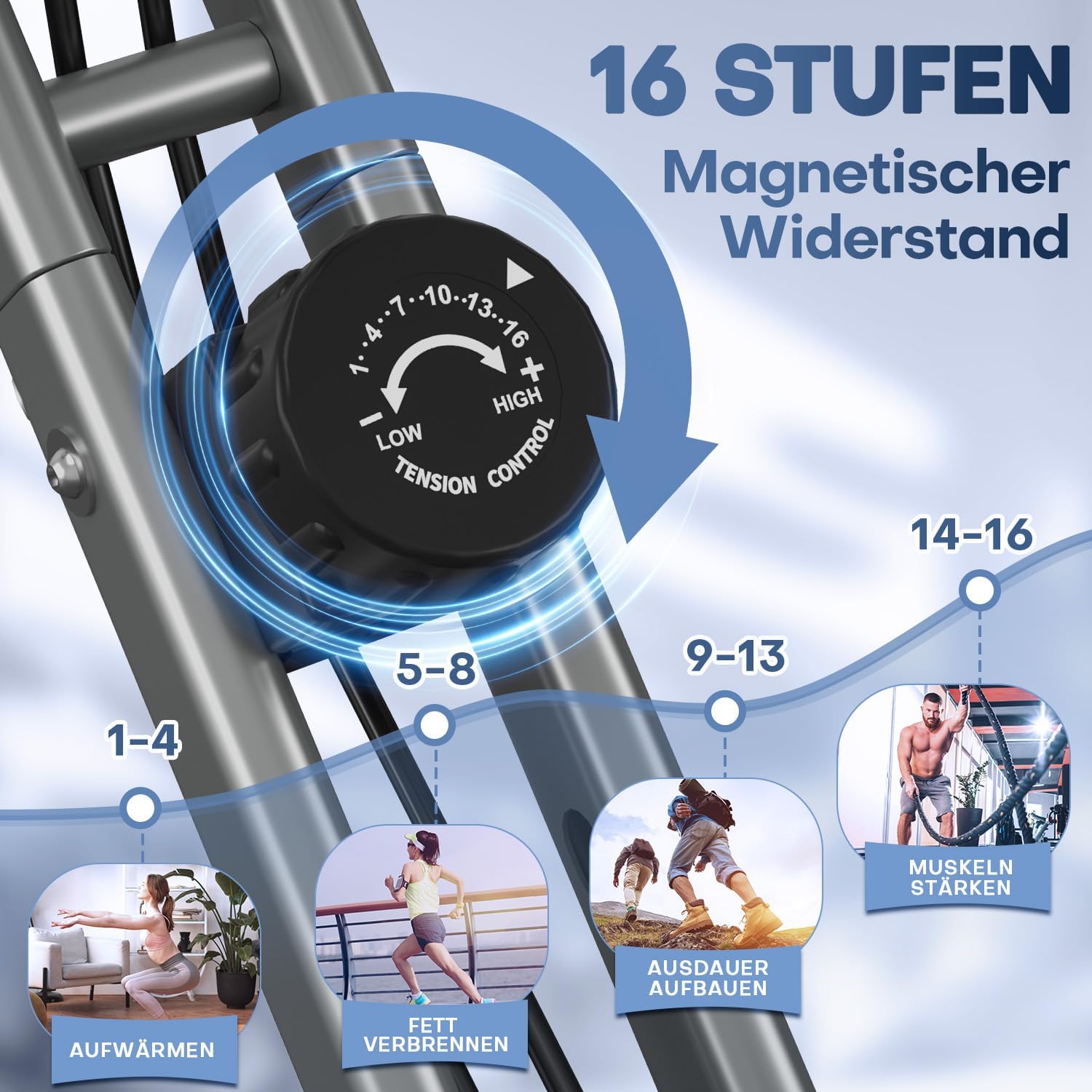

Figure 5.2: Adjust the magnetic resistance from levels 1 to 16 for varied workout intensity.

5.3 Seat and Position Adjustment

The padded seat is adjustable to 8 different height levels to accommodate users from 145 cm to 195 cm. The innovative elastic bolt allows for effortless adjustment between upright and semi-recumbent positions without needing to twist or unscrew.

• Seat Height: Pull the adjustment knob located on the seat post, slide the seat to the desired height, and release the knob to lock it in place.
• Position Adjustment (Elastic Bolt): To change between upright and semi-recumbent modes, gently lift the front frame and pull out the elastic bolt. Adjust the bike to the desired angle and release the bolt to secure it.

Figure 5.3: The upgraded elastic bolt simplifies changing the bike's configuration.

5.4 LCD Monitor Functions

The LCD monitor tracks your workout data. Insert AAA batteries (not included) into the monitor before first use.

• Time: Displays the duration of your workout.
• Speed: Shows your current cycling speed.
• Distance: Tracks the distance covered during your session.
• Pulse: Measures your heart rate via the hand pulse sensors on the handlebars.
• Odometer: Records the total accumulated distance.
• Calories: Estimates the calories burned during your workout.
• Scan: Cycles through all metrics automatically.

Figure 5.4: The LCD monitor provides essential workout data for tracking progress.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your exercise bike.

• Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Lubrication: The magnetic resistance system is low-maintenance. No lubrication is typically required for the internal mechanism.
• Inspection: Periodically check all bolts, nuts, and moving parts for tightness. Tighten any loose components.
• Storage: When not in use, fold the bike for compact storage. Use the integrated transport wheels to move it easily. Store in a dry, cool place away from direct sunlight and extreme temperatures.

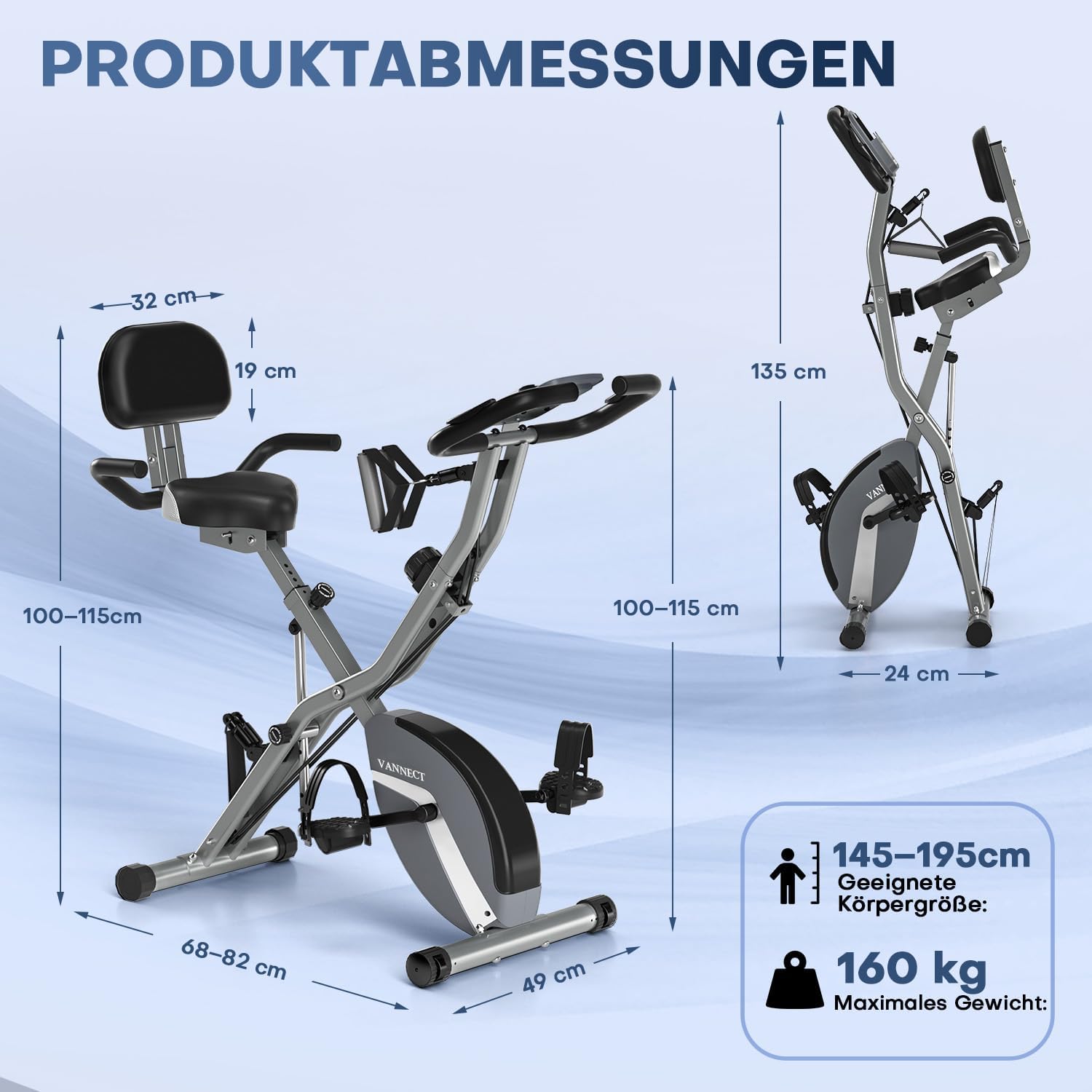

Figure 6.1: The bike's compact folded dimensions (24 cm width) make storage convenient.

7. Troubleshooting

If you encounter any issues with your exercise bike, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact vannect customer support for assistance.

8. Product Specifications

9. Warranty and Customer Support

vannect offers a 5-year free replacement service for all parts of your exercise bike. This warranty covers manufacturing defects and ensures long-term reliability.

Should you have any questions, require assistance with assembly, operation, or troubleshooting, or need to claim warranty service, please contact our professional customer support team. We are committed to providing prompt and helpful video support to resolve any issues you may encounter.

For support, please refer to the contact information provided with your purchase or visit the official vannect website.
