VIAGDO Twin Bed Frame Instruction Manual

Introduction

Thank you for choosing the VIAGDO Twin Bed Frame. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Information

• Always follow the installation manual for safe assembly.
• Do not exceed the weight capacity of 1000 pounds.
• Be cautious around sharp edges to prevent injury.
• Ensure all connections for electrical components (charging station, LED lights) are securely fastened before use.
• Keep children and pets away from the assembly area.

Package Contents

Before assembly, verify that all parts listed below are present. Refer to the detailed parts list in the installation video for visual identification.

Figure 1: All components and hardware included in the package.

Setup and Assembly

Follow these steps for proper assembly. It is recommended to have two people for assembly, though it can be completed by one individual. All necessary tools are included.

1. Assemble the Headboard Frame: Attach the charging station (Part 25) to the headboard shelf (Part 9) using screws (Part G). Connect the side panels (Parts 1 & 2) to the headboard shelf and the lower support bar (Part 8) using screws (Part C).
2. Install Headboard Backing: Secure the headboard backing (Part 6) to the assembled headboard frame using screws (Part D). Attach the lower headboard support (Part 12) to the headboard legs (Part 13) using screws (Part B).
3. Attach Upholstered Panels: Fasten the upholstered headboard panels (Part 3) to the headboard frame using screws (Part C). Ensure the hidden storage compartment is accessible.
4. Assemble Bed Frame Sides: Connect the side rails (Part 14) to the headboard and footboard using screws (Part A). Attach the center support legs (Part 16) to the center support bars (Part 17).
5. Install Bed Slats: Place the wooden slats (Part 15) onto the bed frame. The slats feature a Velcro design for easy and secure placement.
6. Assemble Storage Drawers: Fold and assemble the wire baskets (Part 23). Attach the wheels (Part 26) to the bottom of each basket. Secure the upholstered drawer fronts (Part 5) to the baskets using screws (Part E and F).
7. Insert Drawers: Slide the assembled storage drawers under the bed frame. The drawers are designed to fit securely and feature a locking system to prevent accidental movement.

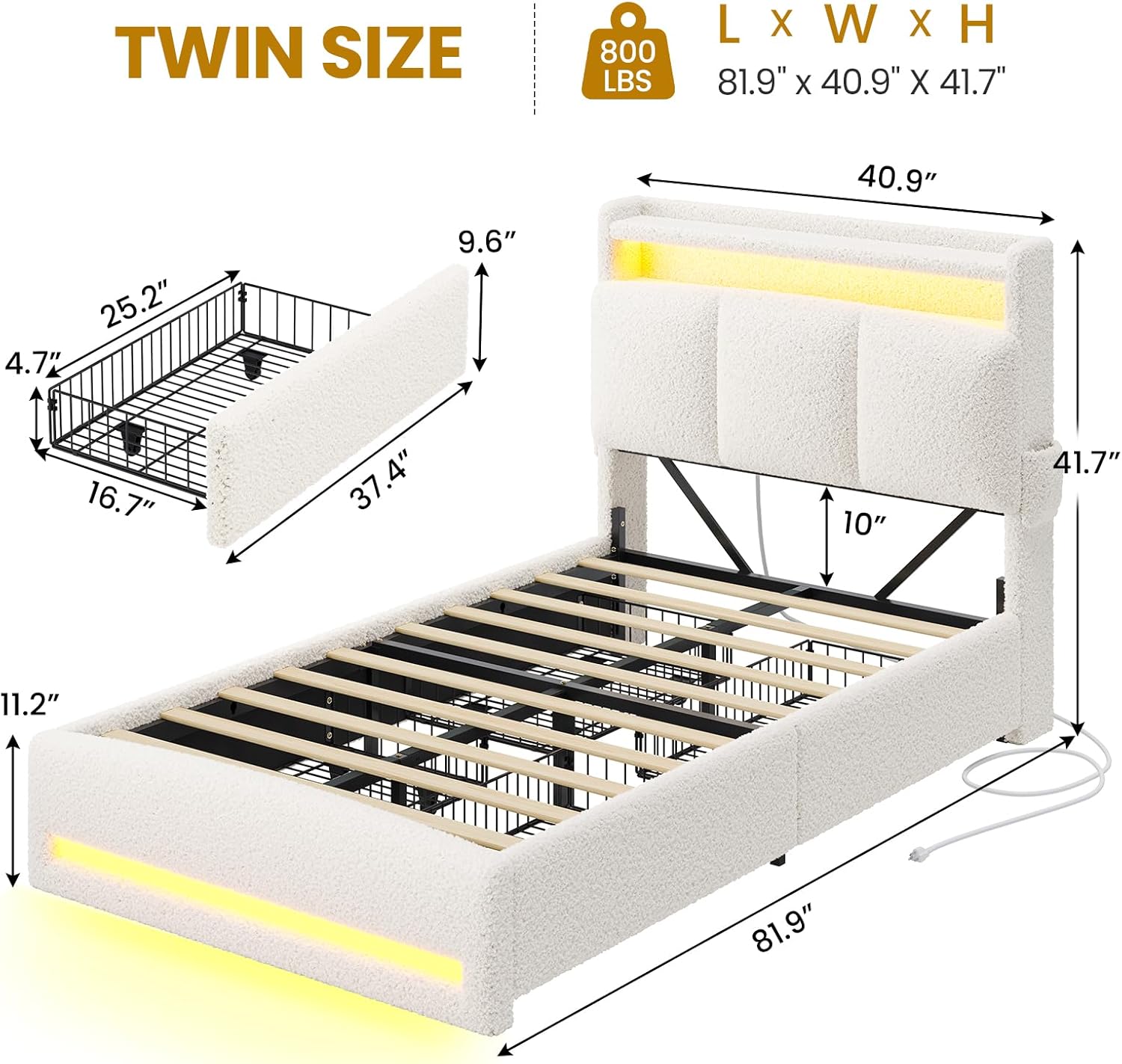

Figure 2: Overall dimensions and weight capacity of the bed frame.

Figure 3: Details of the bed frame construction, including slats, metal frame, and noise-reducing EVA sponge.

Operating Instructions

Your VIAGDO bed frame includes several integrated features for enhanced convenience.

Charging Station

The headboard features a built-in charging station with 2 AC outlets, 1 USB port, and 1 Type-C port. Simply plug the bed frame's power cord into a wall outlet to activate the charging station. You can then charge your electronic devices directly from the headboard.

Figure 4: The convenient charging station on the headboard.

LED Light Strip

The bed frame is equipped with music sync RGB LED light strips on both the headboard and footboard. Use the included remote control or a compatible smartphone application to control the lights. You can choose from over 60,000 colors, 29 dynamic changing modes, set schedules, or activate the music sync feature where lights pulsate with music rhythm.

Figure 5: Music Sync LED Light Strip features and controls.

Storage Drawers

The bed frame includes four large under-bed storage drawers. These drawers are on wheels for smooth opening and closing and feature a locking system to keep them securely in place when not in use. The no-handle design prevents accidental bumping.

Figure 6: Four large storage drawers for organizing items.

Figure 7: Drawer features: locking device and smooth wheels.

Headboard Storage & Side Pouches

The headboard offers a 2-tier storage shelf and a hidden storage compartment, ideal for magazines, phones, or alarm clocks. Additionally, small storage pouches are located on both sides of the headboard for convenient access to smaller items like remote controls.

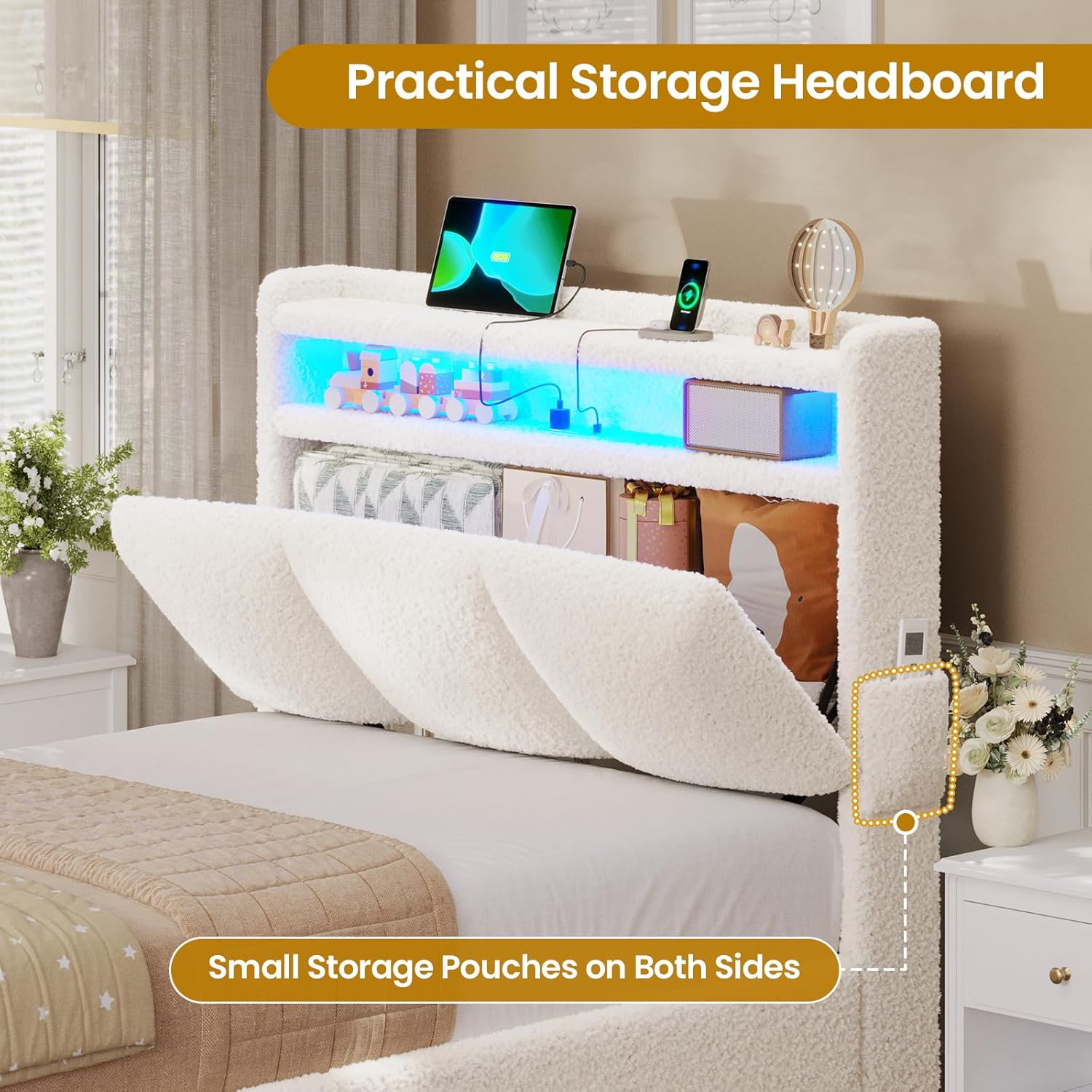

Figure 8: Practical storage headboard with shelves and side pouches.

Maintenance

• Cleaning Boucle Fabric: Gently spot clean the boucle upholstered areas with a mild detergent and a damp cloth. Avoid harsh chemicals or abrasive cleaners.
• LED Lights: Wipe the LED light strips with a dry, soft cloth. Do not use liquid cleaners directly on the lights.
• Frame Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Drawer Maintenance: Keep the drawer wheels free of debris to ensure smooth operation.

Troubleshooting

• LED Lights Not Working: Check if the bed frame's power cord is securely plugged into a working wall outlet. Ensure the remote control batteries are functional.
• Charging Station Not Functioning: Verify the bed frame's power cord is connected. Test with a different device or cable to rule out device-specific issues.
• Drawers Sticking: Check for any obstructions under the drawers or in the wheel path. Ensure the locking mechanism is disengaged.
• Noise from Frame: Confirm all assembly screws are tightened. The EVA sound-absorbing strip should prevent most noise; if noise persists, re-examine slat placement.

Specifications

Warranty and Support

This product is backed by a 90-day easy return policy. For any questions, concerns, or assistance with your VIAGDO Twin Bed Frame, please contact customer support. Refer to your purchase documentation for specific contact details.
