Sokany 4-in-1 Juicer Extractor SK-03029 User Manual

Introduction

Thank you for purchasing the Sokany 4-in-1 Juicer Extractor SK-03029. This versatile appliance is designed to assist you with various kitchen tasks, including juicing, blending, grinding, and mincing. Please read this manual carefully before use to ensure safe and efficient operation. Keep this manual for future reference.

Important Safeguards

• Read all instructions before using the appliance.
• Do not immerse the motor unit in water or other liquids.
• Ensure the appliance is unplugged before assembling, disassembling, or cleaning.
• Keep hands and utensils away from moving blades during operation.
• Do not operate the appliance with a damaged cord or plug.
• This appliance is for household use only.
• Always ensure the lid is securely locked before operating.
• Do not overload the appliance.
• Exercise caution when handling sharp blades.

Product Overview

The Sokany 4-in-1 Juicer Extractor SK-03029 combines multiple functions into one compact unit. It includes a powerful motor base, a juicer attachment, a large blender jar, and smaller jars for grinding and mincing.

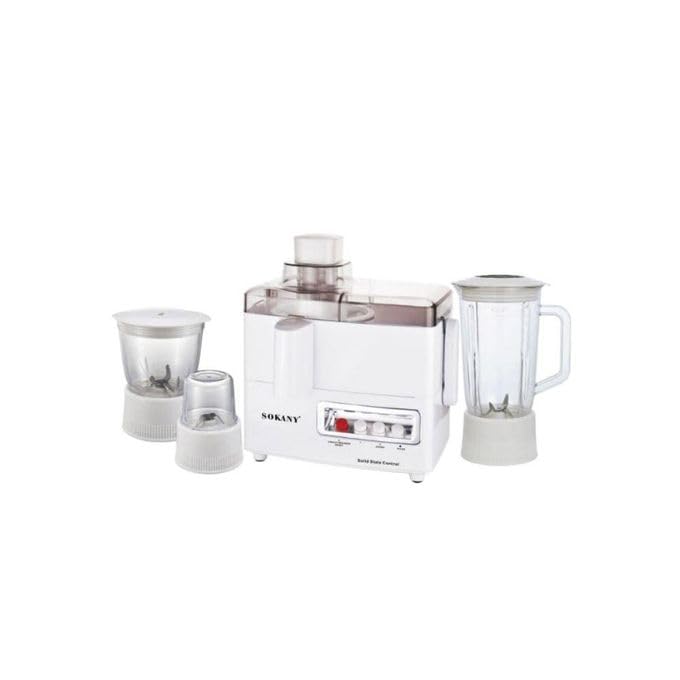

Figure 1: Sokany 4-in-1 Juicer Extractor SK-03029 with main unit, juicer, blender, and grinder attachments. This image displays the complete system, highlighting its 800W power, 1500ml capacity, and glass cup feature.

Components:

• Motor Base: The main power unit with control settings.
• Juicer Attachment: For extracting juice from fruits and vegetables.
• Blender Jar (1500ml): For blending liquids, smoothies, and soft foods.
• Grinder Jar: For grinding dry ingredients like coffee beans, nuts, and spices.
• Mincer Jar: For mincing smaller quantities of ingredients.
• Pusher: To guide ingredients into the juicer.
• Cleaning Brush: For easy cleaning of mesh filters.

Setup and Assembly

Before first use, wash all detachable parts (excluding the motor base) in warm soapy water, rinse thoroughly, and dry. Ensure all parts are completely dry before assembly.

Assembling the Juicer:

1. Place the motor base on a stable, flat surface.
2. Attach the juicer bowl to the motor base, ensuring it clicks into place.
3. Insert the filter basket with the cutting blade into the juicer bowl. Ensure it is seated firmly.
4. Place the juicer cover onto the juicer bowl, aligning the spout with the juice outlet.
5. Secure the locking clamps on both sides of the juicer cover. The appliance will not operate if the clamps are not locked.
6. Place a pulp container under the pulp outlet and a juice collection cup under the juice spout.
7. Insert the food pusher into the feed chute.

Assembling the Blender:

1. Ensure the blender blade assembly is securely attached to the bottom of the blender jar.
2. Place the blender jar onto the motor base, aligning the grooves. Turn clockwise until it locks into position.
3. Place the lid onto the blender jar and secure it. Ensure the measuring cup is inserted into the lid opening.

Assembling the Grinder/Mincer:

1. Attach the blade assembly to the bottom of the grinder/mincer jar.
2. Place the jar onto the motor base, aligning the grooves. Turn clockwise until it locks into position.

Operating Instructions

Always ensure the appliance is correctly assembled and locked before plugging it into a power outlet.

Using the Juicer:

1. Wash fruits and vegetables thoroughly. Cut larger items into pieces that fit the feed chute. Remove pits from fruits like peaches or cherries.
2. Plug in the appliance.
3. Turn the control knob to the desired speed setting (usually 'I' for soft fruits/vegetables, 'II' for harder ones).
4. Gradually feed the prepared ingredients into the feed chute using the food pusher. Do not force ingredients.
5. Once juicing is complete, turn the control knob to '0' (off) and unplug the appliance.

Note: Do not operate the juicer continuously for more than 1 minute. Allow a 2-minute rest period between cycles.

Using the Blender:

1. Place desired ingredients into the blender jar. Do not exceed the maximum fill line (1500ml).
2. Secure the lid.
3. Plug in the appliance.
4. Turn the control knob to the desired speed setting or use the pulse function for short bursts.
5. Once blending is complete, turn the control knob to '0' (off) and unplug the appliance.

Caution: Do not blend hot liquids. Allow hot ingredients to cool before blending.

Using the Grinder/Mincer:

1. Place dry ingredients (e.g., coffee beans, spices) or small quantities of soft ingredients into the respective jar. Do not overfill.
2. Secure the lid.
3. Plug in the appliance.
4. Turn the control knob to a suitable speed setting or use the pulse function for short bursts until desired consistency is achieved.
5. Once grinding/mincing is complete, turn the control knob to '0' (off) and unplug the appliance.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your appliance. Always unplug the appliance before cleaning.

Cleaning the Motor Base:

• Wipe the motor base with a damp cloth. Do not immerse it in water or any other liquid.
• Do not use abrasive cleaners or scouring pads.

Cleaning Detachable Parts:

• Disassemble all detachable parts (juicer cover, filter basket, pulp container, juice cup, blender jar, grinder/mincer jars, blades).
• Wash these parts immediately after use in warm, soapy water. Rinse thoroughly.
• Use the provided cleaning brush to remove pulp from the juicer filter mesh.
• For stubborn stains, soak parts in warm soapy water for a few minutes before cleaning.
• All detachable parts are generally dishwasher safe (top rack only), but hand washing is recommended for longevity.
• Dry all parts completely before reassembling or storing.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact Sokany customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Sokany website or contact their authorized service centers.
