1. Introduction
Thank you for choosing the RAF R.327 Multifunction Hand Blender Set. This appliance is designed to assist you with various kitchen tasks such as blending, mixing, whisking, and chopping. To ensure safe and efficient operation, please read this instruction manual carefully before first use and keep it for future reference.
Important Safety Instructions
- Always unplug the appliance from the power supply before assembly, disassembly, or cleaning.
- Do not immerse the motor unit in water or any other liquid. Clean it with a damp cloth only.
- Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
- Blades are sharp. Handle with extreme care when assembling, disassembling, and cleaning.
- This appliance is not intended for use by children or persons with reduced physical, sensory, or mental capabilities unless supervised or instructed by a responsible adult.
- Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions or has been dropped or damaged in any way. Contact customer support for assistance.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
2. Product Components
Your RAF R.327 Multifunction Hand Blender Set includes the following parts:
- Motor Unit: The main body containing the motor and speed controls.
- Blender Shaft: Stainless steel shaft with a blade guard for immersion blending.
- Whisk Attachment: For whipping cream, beating eggs, and mixing light batters.
- Chopper Bowl with Blade: For chopping nuts, herbs, vegetables, and small amounts of meat.
- Measuring Cup: A graduated cup for blending and measuring ingredients.
Image 2.1: Overview of the RAF R.327 Multifunction Hand Blender Set components.
3. Assembly
Before assembling, ensure the appliance is unplugged from the power outlet.
3.1 Attaching the Blender Shaft
- Align the motor unit with the blender shaft.
- Push the motor unit onto the blender shaft until it clicks into place.
- To detach, press the release buttons on the side of the motor unit and pull the shaft off.
3.2 Attaching the Whisk Attachment
- Insert the whisk into the whisk gear box.
- Align the whisk gear box with the motor unit.
- Push the motor unit onto the whisk gear box until it clicks into place.
- To detach, press the release buttons on the side of the motor unit and pull the whisk gear box off.
3.3 Attaching the Chopper Bowl
- Carefully place the chopping blade onto the central pin inside the chopper bowl.
- Add your ingredients to the chopper bowl. Do not overfill.
- Place the chopper bowl lid onto the bowl, ensuring it is securely seated.
- Align the motor unit with the lid of the chopper bowl.
- Push the motor unit onto the chopper bowl lid until it clicks into place.
- To detach, press the release buttons on the side of the motor unit and pull it off the lid.
Image 3.1: Blender shaft and whisk attachment connection points.
4. Operating Instructions
The RAF R.327 Hand Blender features two speed settings for versatile use.
Image 4.1: Speed control buttons (I for low speed, II for high speed).
4.1 General Operation
- After assembling the desired attachment, plug the appliance into a suitable power outlet.
- Press button I for normal speed or button II for turbo speed.
- Release the button to stop the appliance.
- Do not operate continuously for more than 1 minute. Allow the motor to cool down for at least 3 minutes before resuming use.
4.2 Using the Hand Blender
Ideal for blending soups, sauces, smoothies, and purees directly in pots, bowls, or the measuring cup.
- Attach the blender shaft to the motor unit.
- Immerse the blender shaft into the ingredients. Ensure the blade guard is fully submerged to prevent splashing.
- Press the desired speed button (I or II) to start blending. Move the blender up and down gently for even results.
- Once desired consistency is reached, release the button and unplug the appliance.
4.3 Using the Whisk Attachment
Suitable for whipping cream, beating egg whites, and mixing light batters for pancakes or cakes.
- Attach the whisk attachment to the motor unit.
- Place the whisk into the ingredients in a bowl.
- Press the desired speed button (I or II) to start whisking.
- Continue until the desired consistency is achieved, then release the button and unplug the appliance.
4.4 Using the Chopper Attachment
Use for chopping onions, garlic, herbs, nuts, and small quantities of meat. Do not use for very hard ingredients like coffee beans or ice cubes.
- Place the chopping blade into the chopper bowl and add ingredients.
- Secure the chopper bowl lid and attach the motor unit.
- Place the chopper bowl on a stable, flat surface.
- Press the desired speed button (I or II) in short pulses to chop ingredients to your preferred consistency.
- Release the button, unplug the appliance, and carefully remove the motor unit and blade before emptying the bowl.
5. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your appliance.
5.1 Cleaning
- Always unplug the appliance before cleaning.
- Motor Unit: Wipe with a damp cloth. Never immerse in water or rinse under running water.
- Blender Shaft, Whisk, Chopper Bowl, Chopping Blade, Measuring Cup: These parts can be washed in warm, soapy water. Rinse thoroughly and dry immediately. Be extremely careful when handling the chopping blade as it is very sharp.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals on any part of the appliance.
5.2 Storage
Store the appliance and its accessories in a dry, safe place, out of reach of children, when not in use. Ensure all parts are clean and dry before storage.
6. Troubleshooting
If you encounter any issues with your RAF R.327 Hand Blender Set, please refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet faulty; motor unit not properly attached. | Check power connection; try a different outlet; ensure motor unit is securely clicked into place. |
| Motor runs, but blades/whisk do not move. | Attachment not properly secured to motor unit. | Ensure attachment is correctly aligned and clicked into place. |
| Appliance stops during operation. | Overheating due to continuous use or processing too hard ingredients; food blockage. | Unplug and let cool for 15-20 minutes. Reduce processing time. Remove any food blockage. |
| Chopper blade not chopping effectively. | Overfilled chopper bowl; ingredients too large or too hard. | Reduce quantity of ingredients; cut ingredients into smaller pieces; avoid very hard items. |
If the problem persists after trying these solutions, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | R.327 |
| Brand | RAF (Manufacturer: Silver) |
| Power | 800W |
| Number of Speeds | 2 (Normal, Turbo) |
| Power Source | Corded Electric |
| Recommended Uses | Blending, Mixing, Whisking, Ice Crush (limited), Pureeing, Dough Making (light dough) |
| Item Weight | 4 kg |
| Included Components | Motor Unit, Blender Shaft, Whisk Attachment, Chopper Bowl with Blade, Measuring Cup |

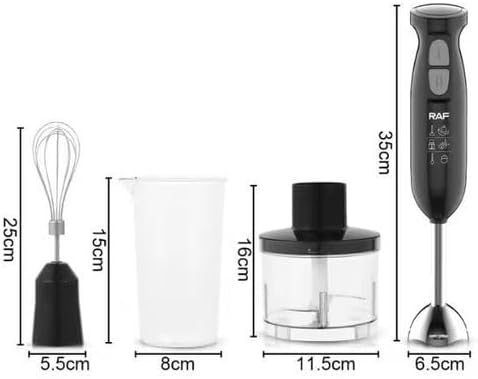

Image 7.1: Dimensions of the RAF R.327 Hand Blender Set components.
8. Warranty and Support
8.1 Warranty Information
Please note that this product is supplied without a warranty as per product specifications. Please refer to your retailer's return policy for any initial defects.
8.2 Customer Support
For any questions, concerns, or assistance regarding your RAF R.327 Multifunction Hand Blender Set, please contact the retailer or the point of purchase. Keep your purchase receipt as proof of purchase.
